Image Processing Module A (IPMA): Removal
- If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

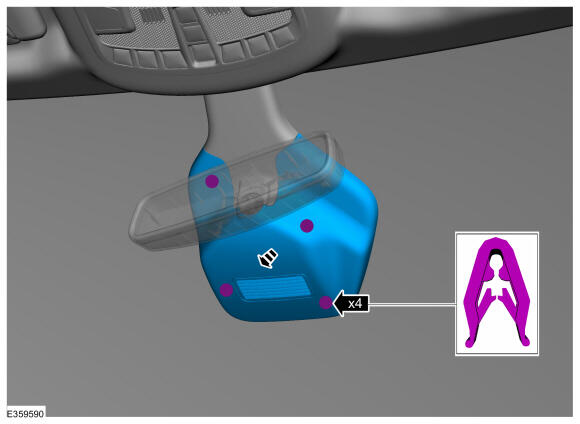

- Release the clips and remove the lower rain sensor cover.

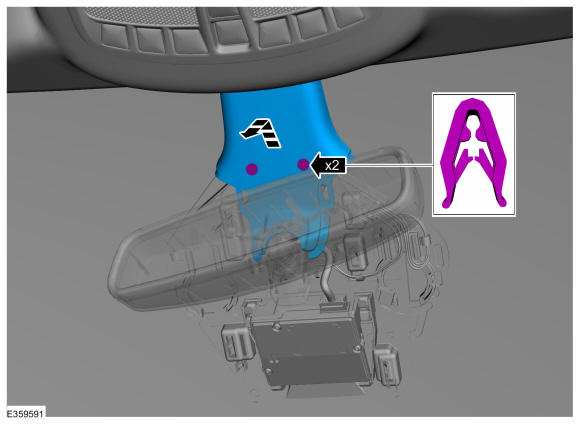

- Release the clips and remove the upper rain sensor cover.

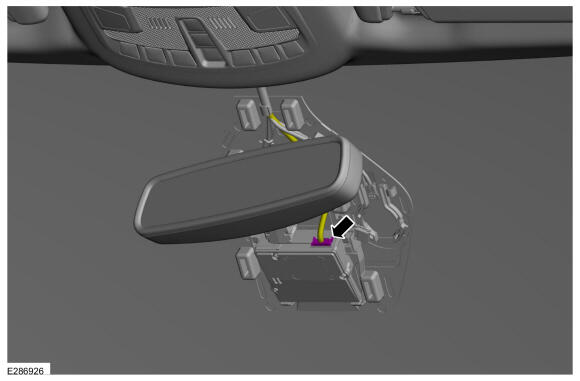

- Disconnect the electrical connector.

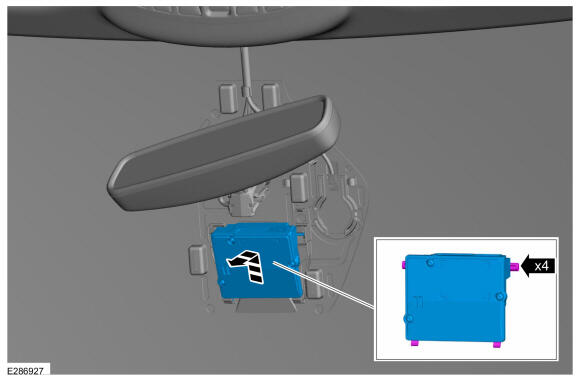

- Release the tabs and remove the IPMA.
