Heated Rear Seat Module: Removal
- Remove the rear seat cushion. Refer to: Rear Seat Cushion

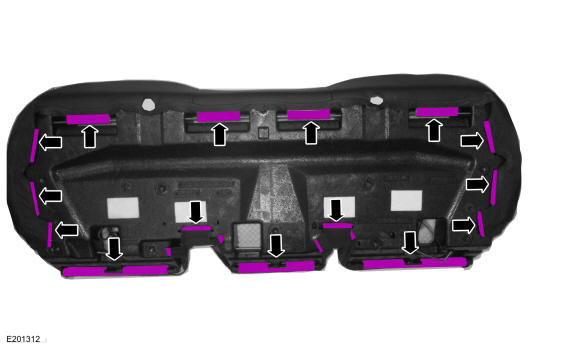

- Release the seat cushion cover J-clips.

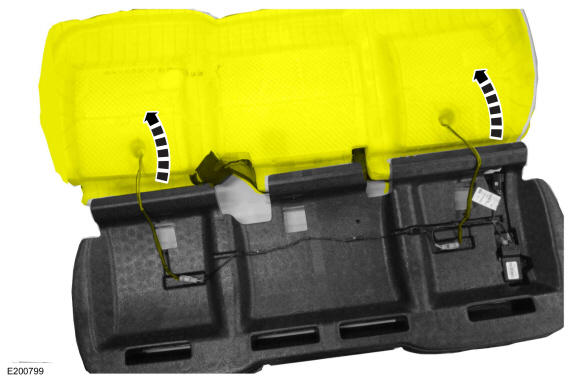

- Raise the rear seat cushion cover and foam.

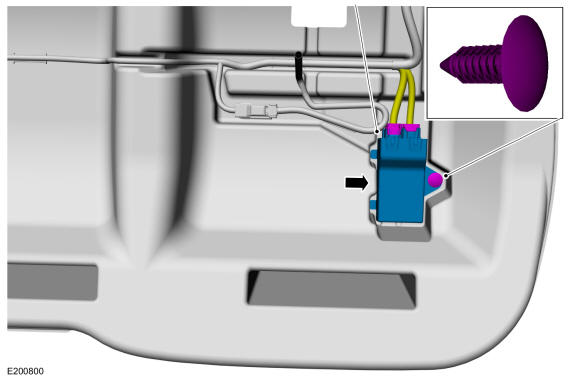

- Disconnect the electrical connectors. Remove the pin-type retainer and the heated rear seat module.
