Overhead Console: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

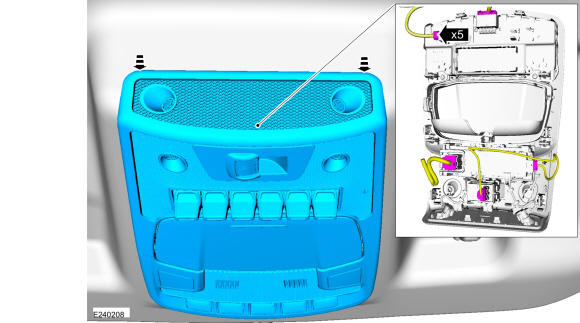

Working from the rear forward, release the clips and remove the overhead console.
- Disconnect the electrical connectors.
  Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
