Differential Case Runout Check
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING .
Special Tool(s) / General Equipment
| Dial Indicator |
|---|
| Hydraulic Press |
| Punch |
| Copper Hammer |
Check
- Remove the differential. REFER to: Differential Carrier .

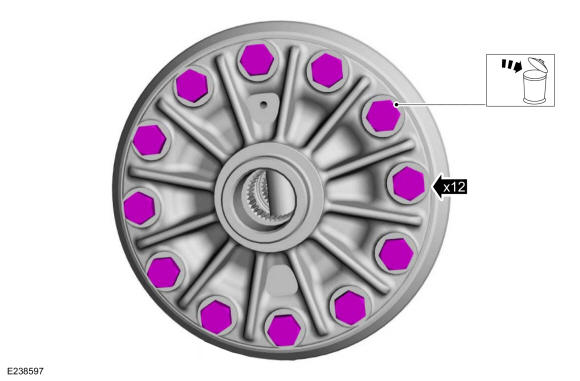

- Remove and discard the ring gear bolts.

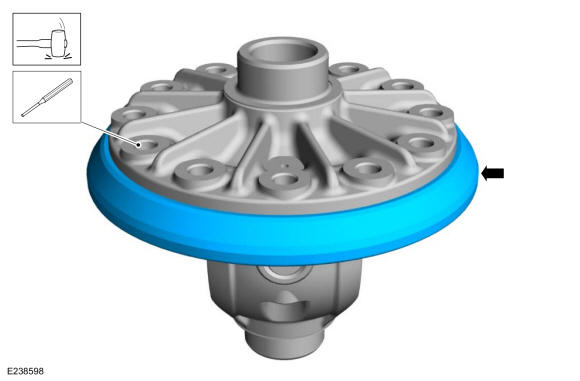

- Using the brass punch and a soft face hammer, remove the ring gear.
Use the General Equipment: PunchUse the General Equipment: Copper Hammer

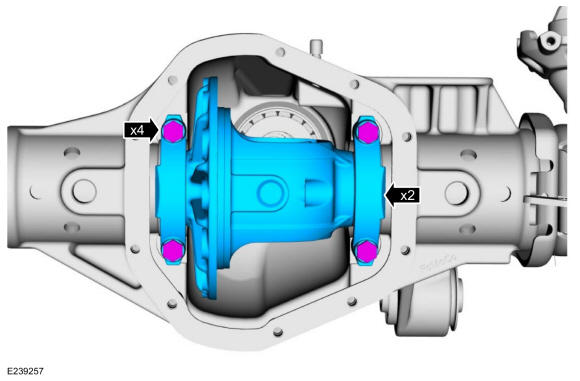

- Install the differential bearing caps and bolts. Align the differential bearing caps in there original location.
Torque: 80 lb.ft (108 Nm)

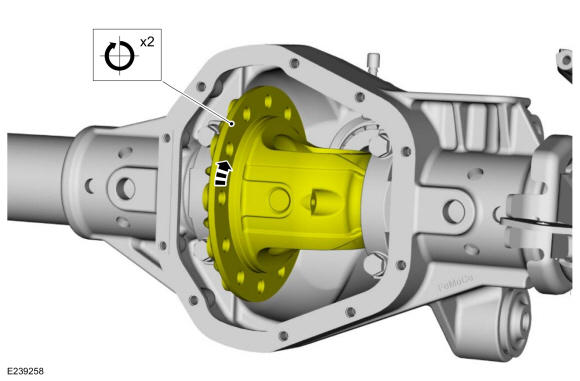

- Rotate the differential carrier to make sure the bearings have seated correctly.

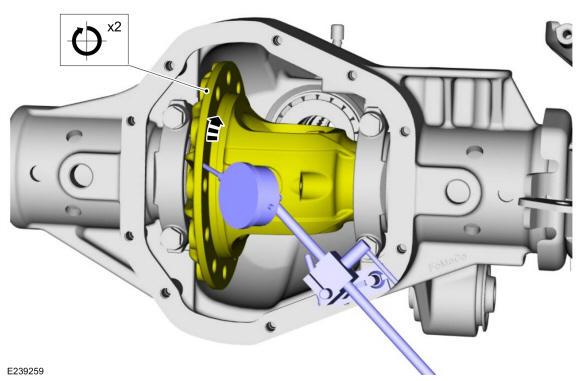

- Using the dial indicator, rotate the differential carrier and measure the differential carrier runout.
- If the runout does not exceed the specification, install a new ring gear and pinion.
Use the General Equipment: Dial Indicator
- If runout exceeds the specification, the ring gear is true and the condition is due to differential carrier/differential bearing damage.
- Inspect the differential bearings and the differential carrier. Always install new differential bearings when installing a new differential carrier, or if a bearing condition is questionable.
- If the runout does not exceed the specification, install a new ring gear and pinion.
- Remove the differential bearing caps, bolts and the differential carrier.

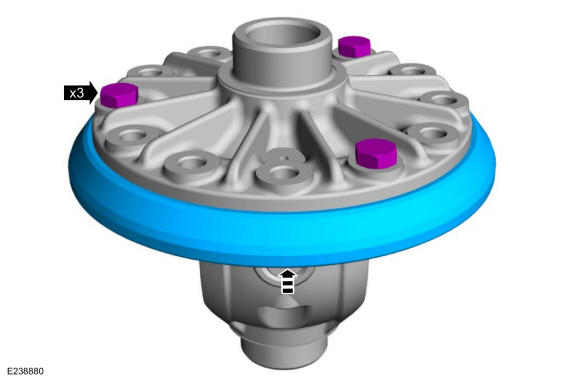

- Install the ring gear onto the differential carrier. Align the ring gear using 3 new bolts. Using the general equipment: press the ring gear into place.
Use the General Equipment: Hydraulic Press

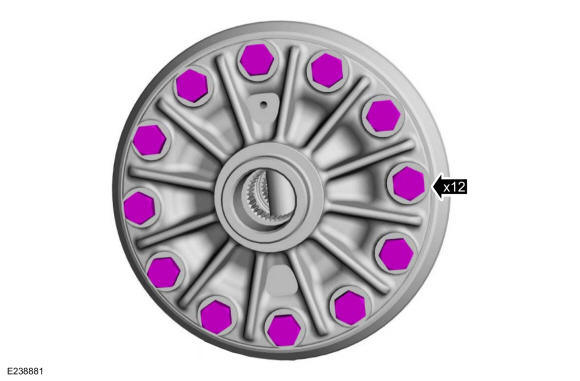

- Install the remaining new ring gear bolts.
Torque: 159 lb.ft (215 Nm)
- Install the differential carrier. REFER to: Differential Carrier .
