SCR System (F-150)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Ford Transit-350 HD, 2018 Ford Transit-350, 2018 Ford Transit-250, 2018 Ford Transit-150, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

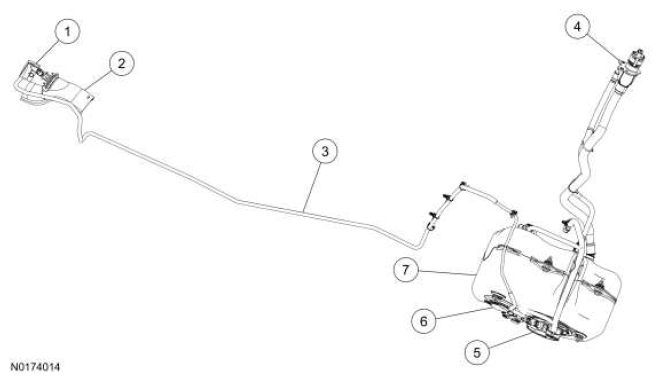

Fig 1: SCR System (F-150) Components Location
G12084171Courtesy of FORD MOTOR CO.
Item Number Description
1 - Reductant Injector
2 - SCR Catalyst
3 - Reductant Pressure Line
4 - Reductant Tank Filler Hose
5 - Reductant Pump Assembly
6 - Reductant Quality Module
7 mdash Reductant Tank
