High Pressure Fuel System (Transit)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Ford Transit-350 HD, 2018 Ford Transit-350, 2018 Ford Transit-250, 2018 Ford Transit-150, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

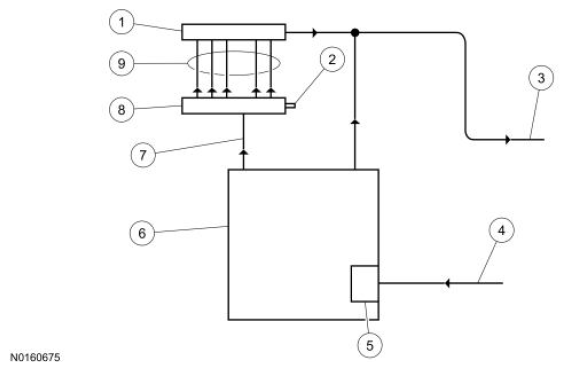

| Item | Number | Description |
|---|---|---|
| 1 | - | Fuel Injectors (5 Required) |
| 2 | - | Fuel Rail Pressure Sensor |
| 3 | - | Low Pressure Fuel Return To The Diesel Fuel Conditioning Module |
| 4 | - | Low Pressure Fuel Supply From The Diesel Fuel Conditioning Module |
| 5 | - | Fuel Volume Control Valve |
| 6 | - | High Pressure Fuel Injection Pump |
| 7 | - | High Pressure Fuel Rail Supply Tube |
| 8 | - | Fuel Rail |
| 9 | - | Fuel Injector Supply Tubes (5 Required) |
