Section 155 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

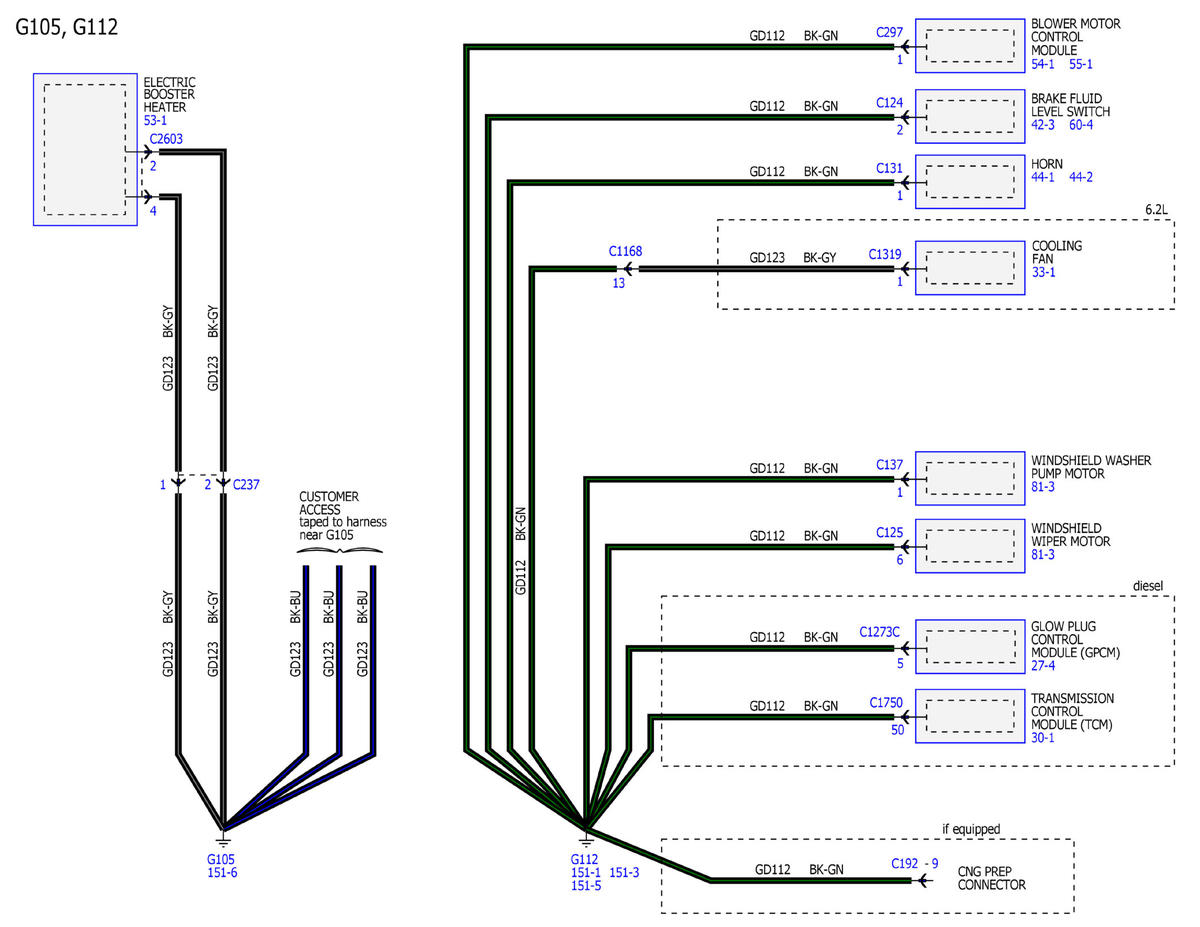

GFDWR56905

Courtesy of FORD MOTOR COMPANY

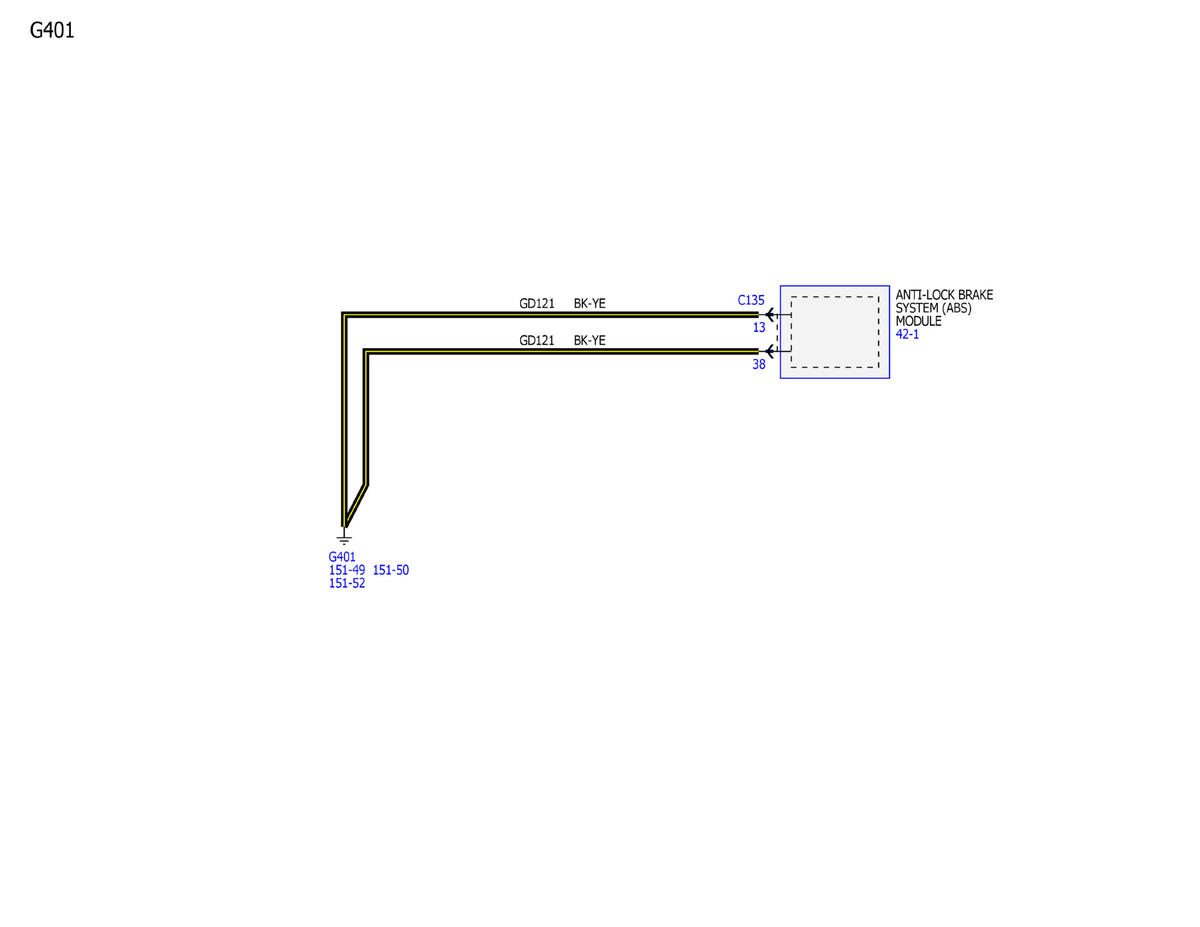

GFDWR56906

Courtesy of FORD MOTOR COMPANY

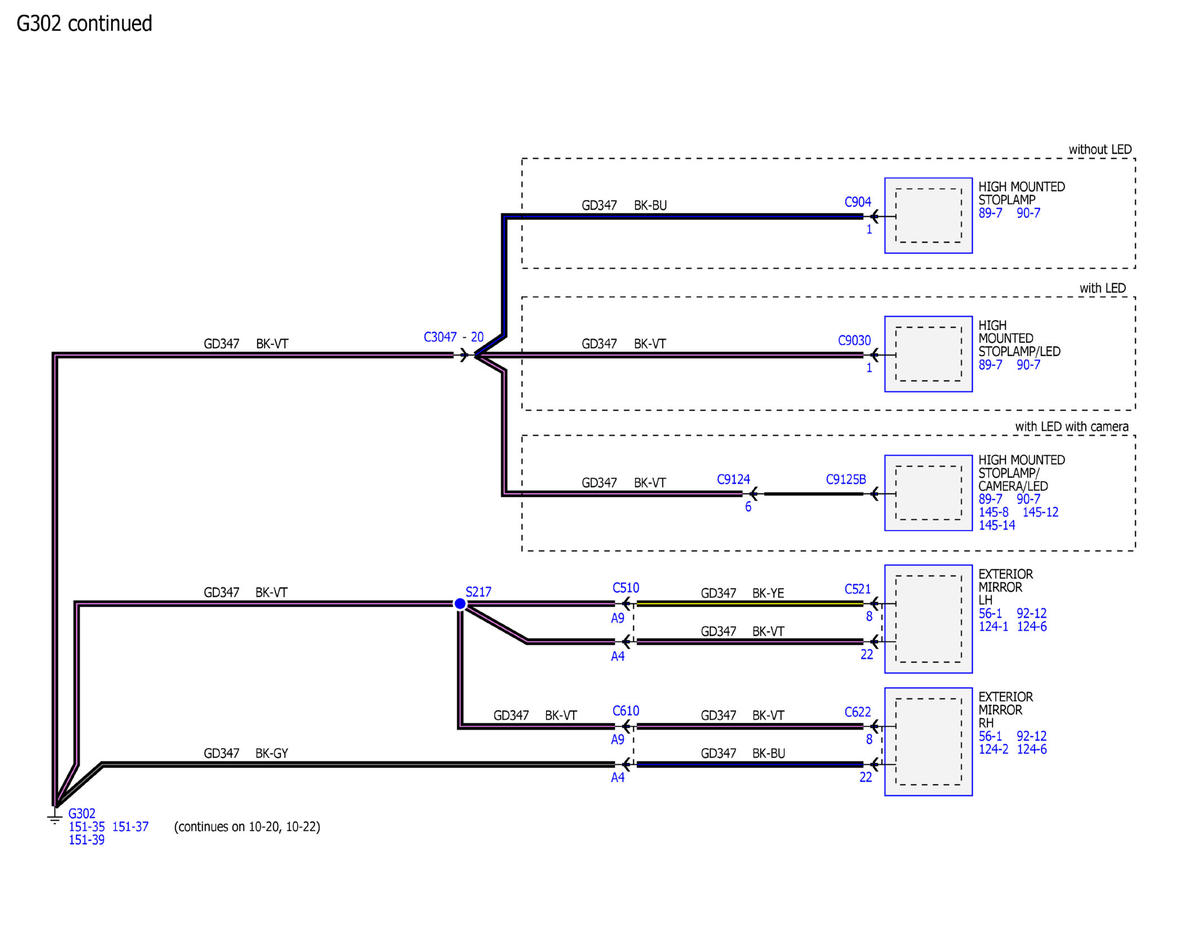

GFDWR56907

Courtesy of FORD MOTOR COMPANY

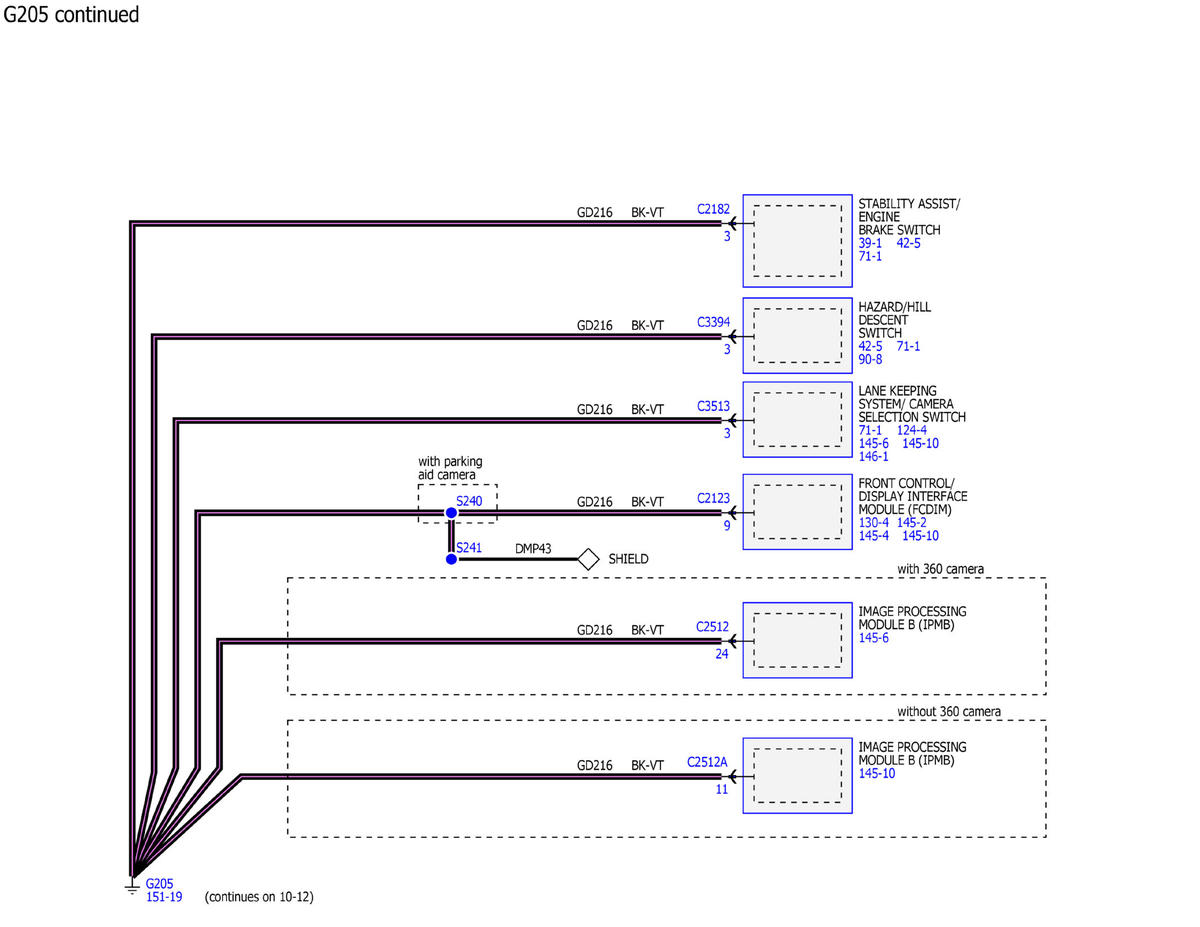

GFDWR56908

Courtesy of FORD MOTOR COMPANY

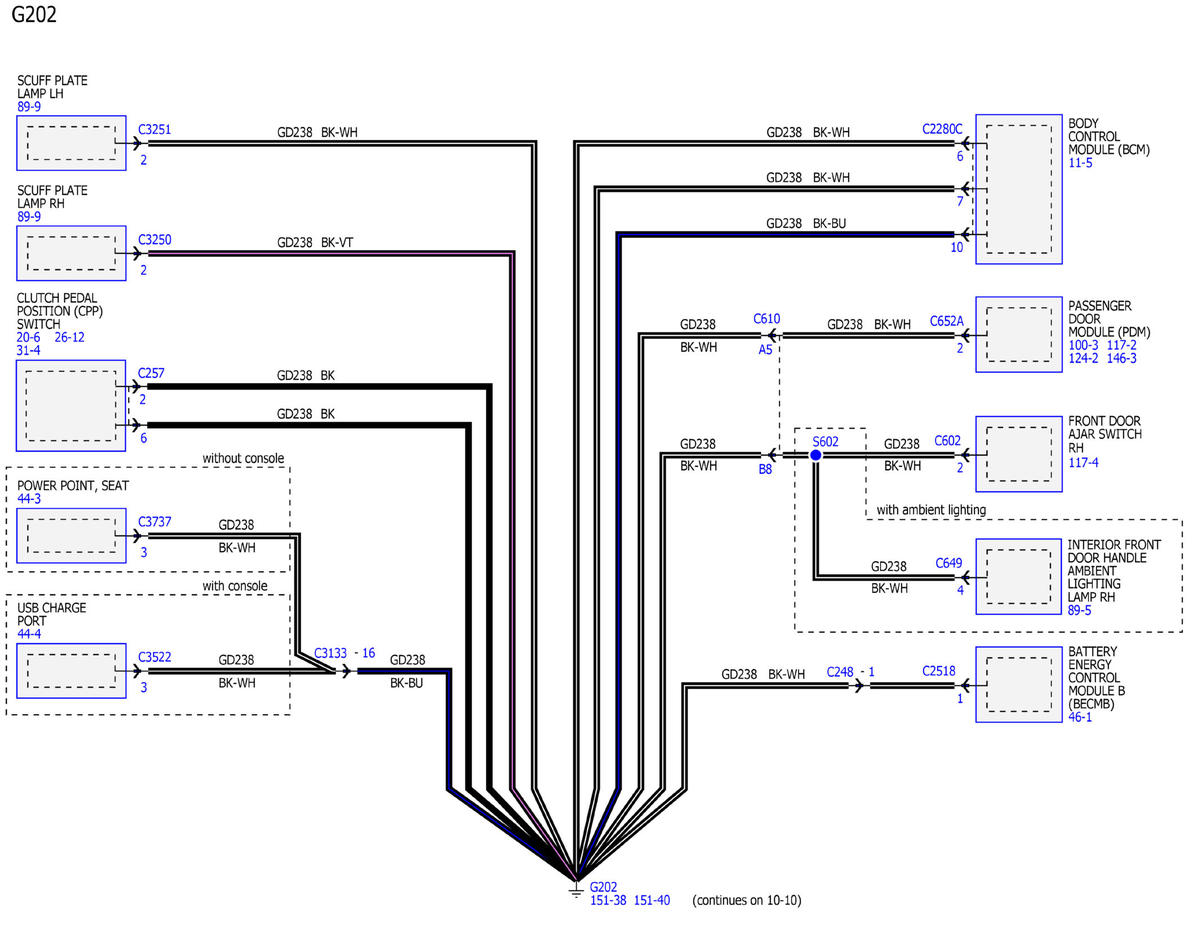

GFDWR56909

Courtesy of FORD MOTOR COMPANY

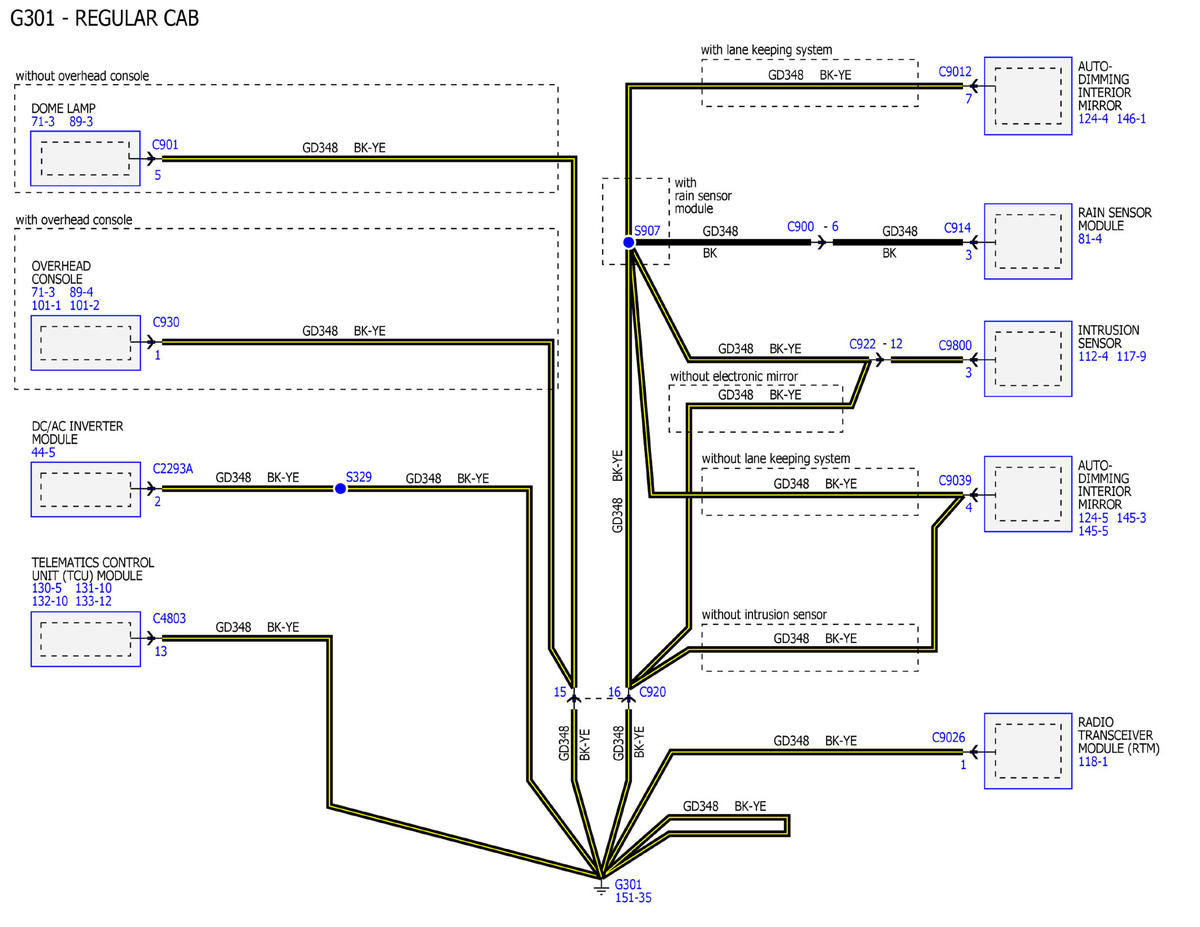

GFDWR56910

Courtesy of FORD MOTOR COMPANY

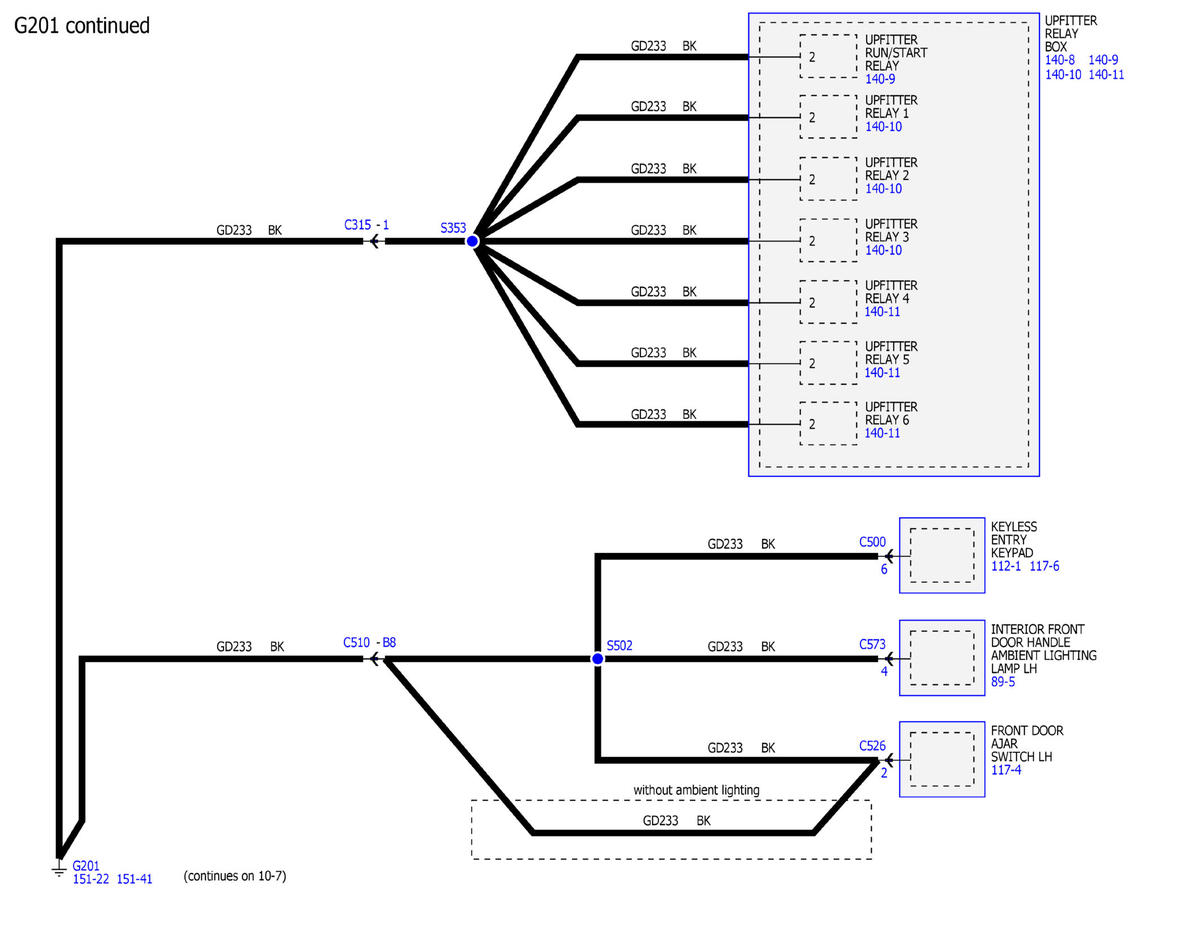

GFDWR56911

Courtesy of FORD MOTOR COMPANY

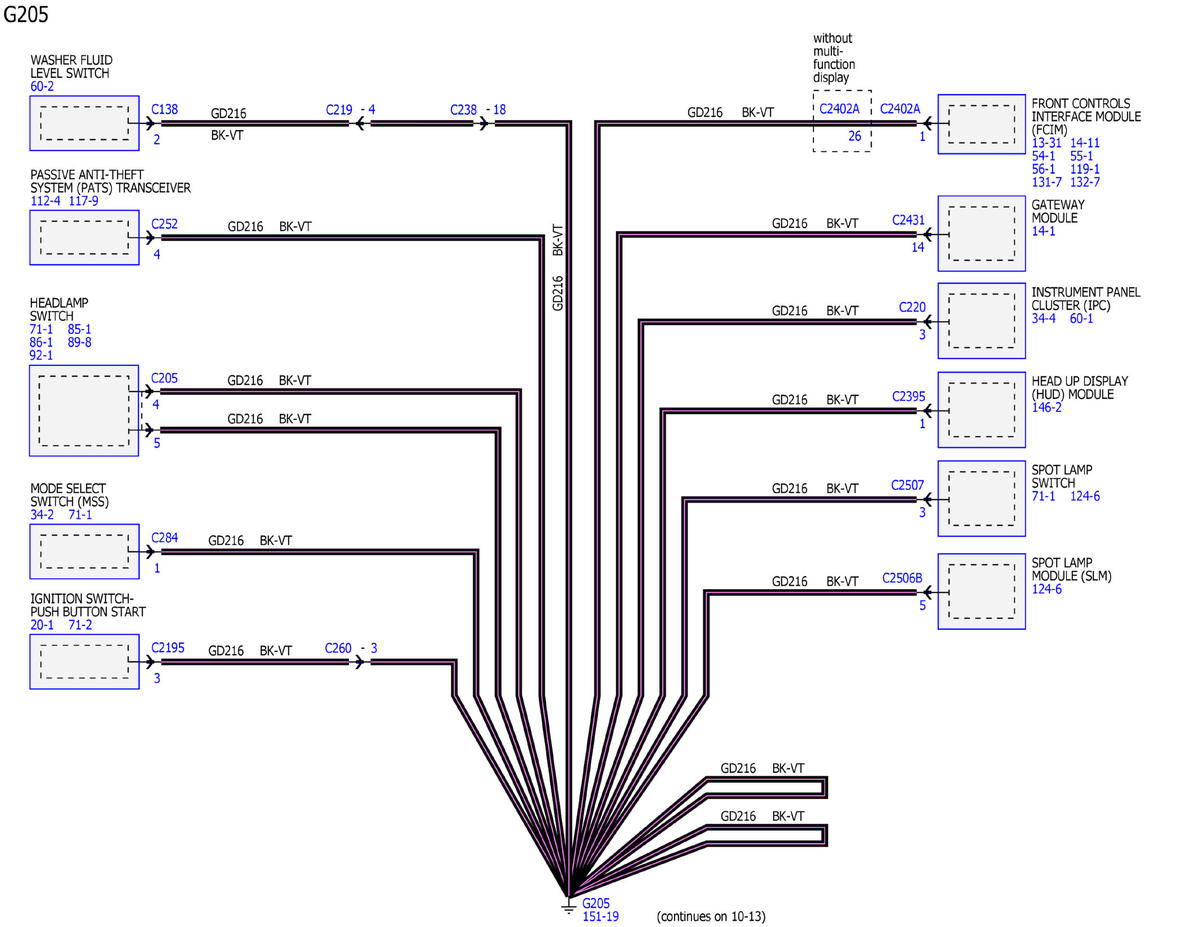

GFDWR56912

Courtesy of FORD MOTOR COMPANY

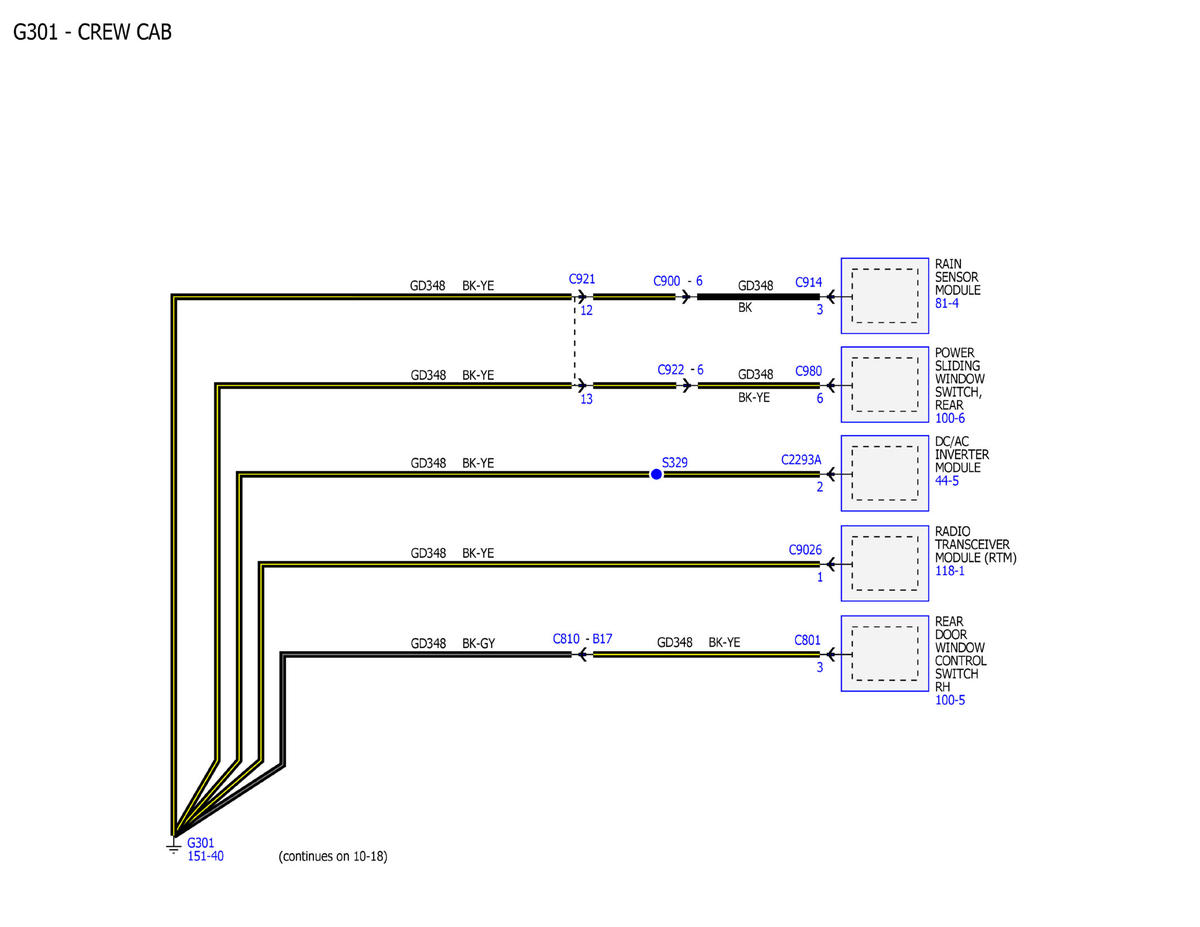

GFDWR56913

Courtesy of FORD MOTOR COMPANY

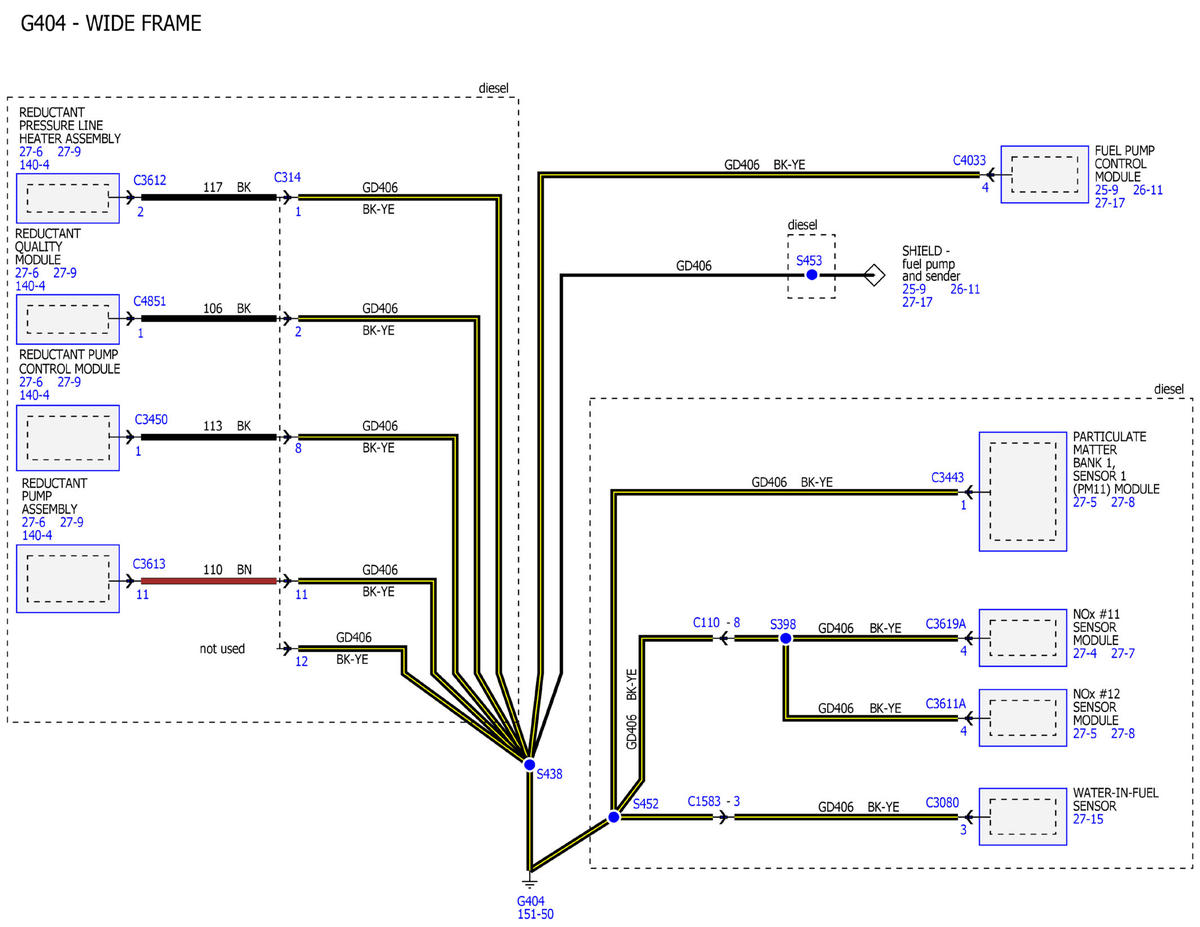

GFDWR56914

Courtesy of FORD MOTOR COMPANY

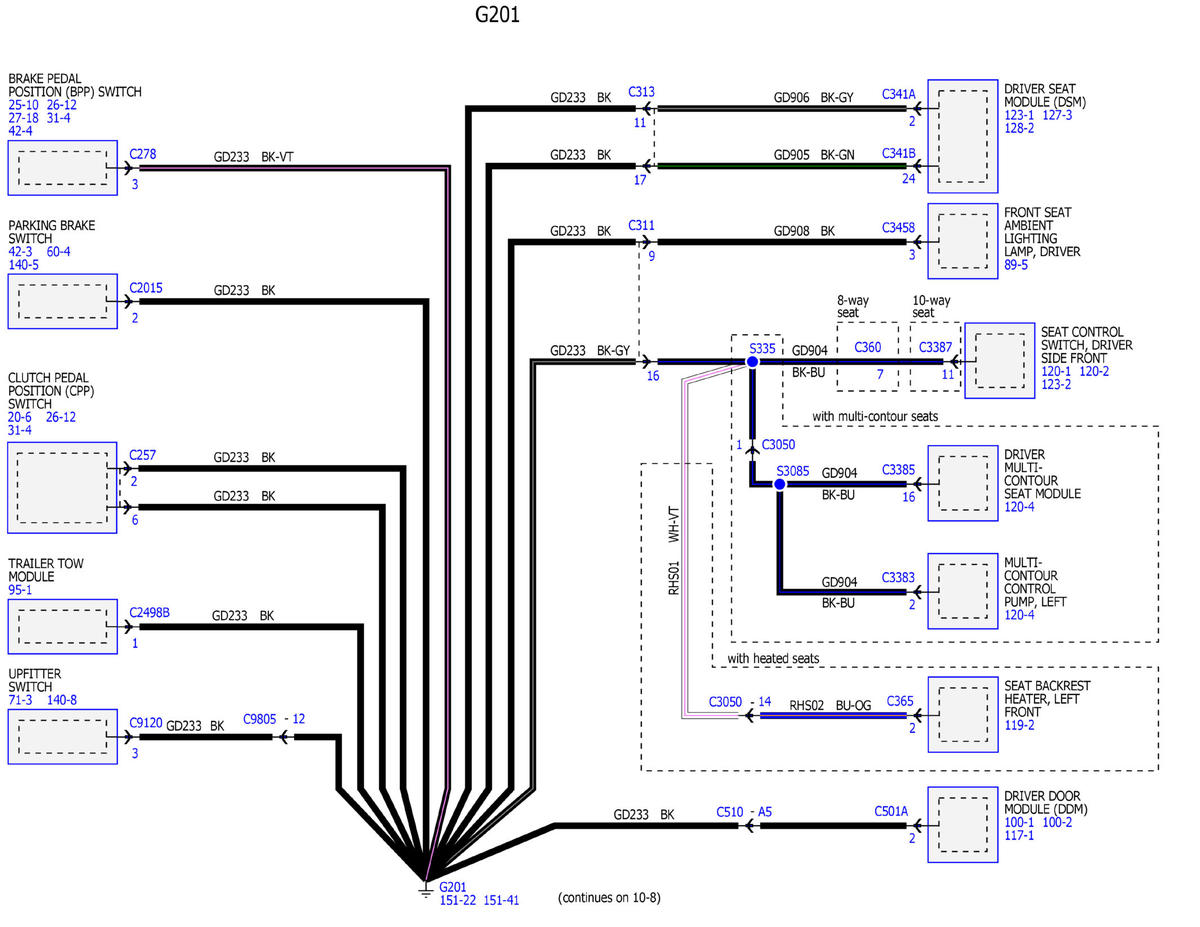

GFDWR56915

Courtesy of FORD MOTOR COMPANY

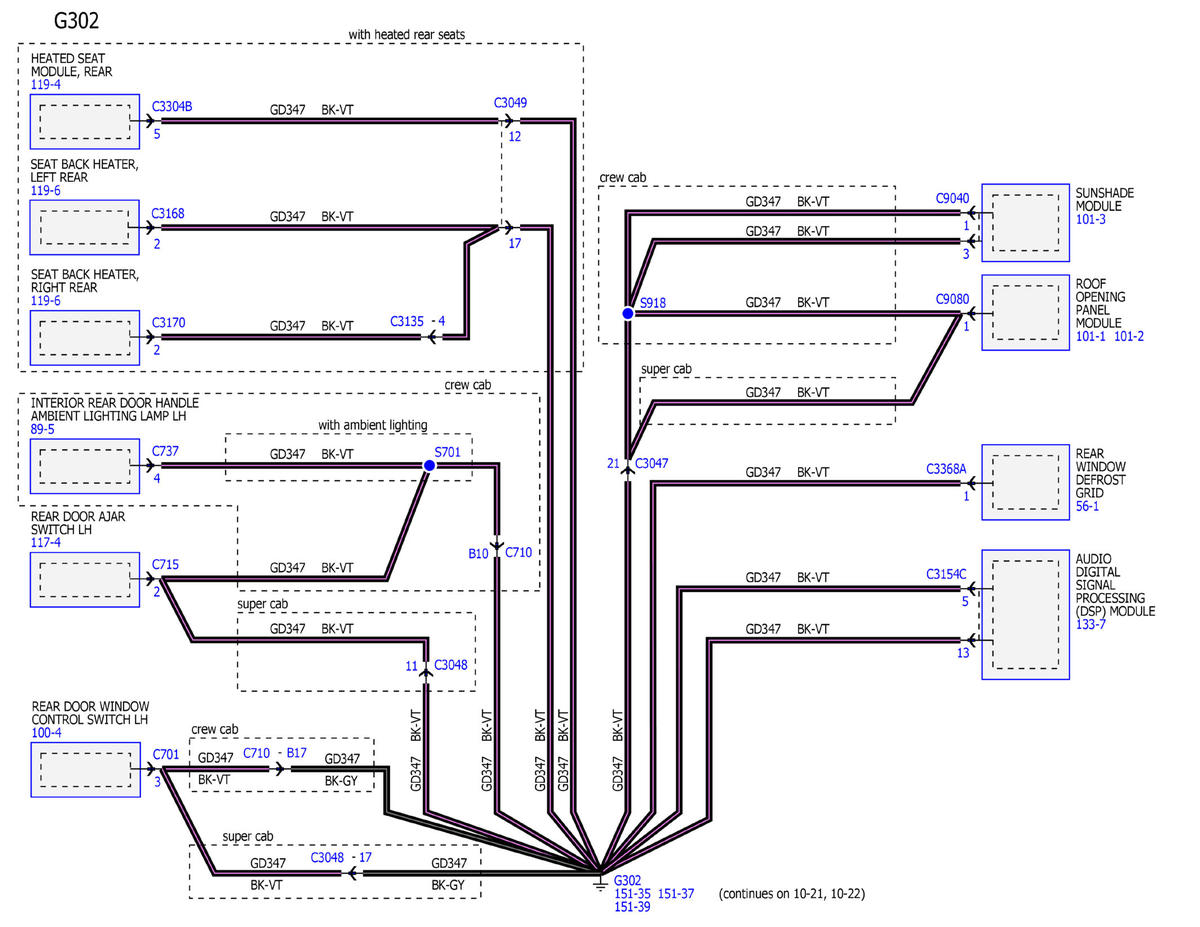

GFDWR56916

Courtesy of FORD MOTOR COMPANY

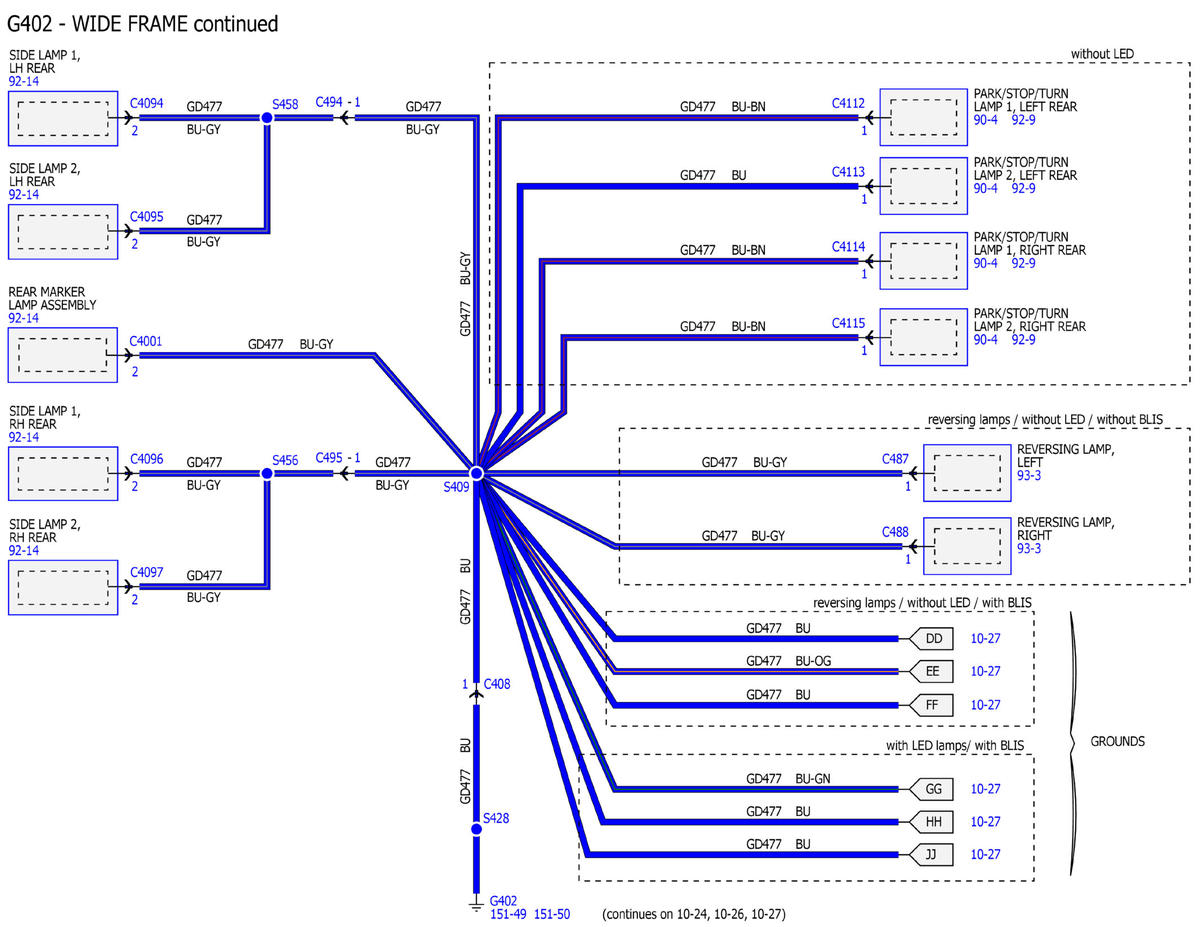

GFDWR56917

Courtesy of FORD MOTOR COMPANY

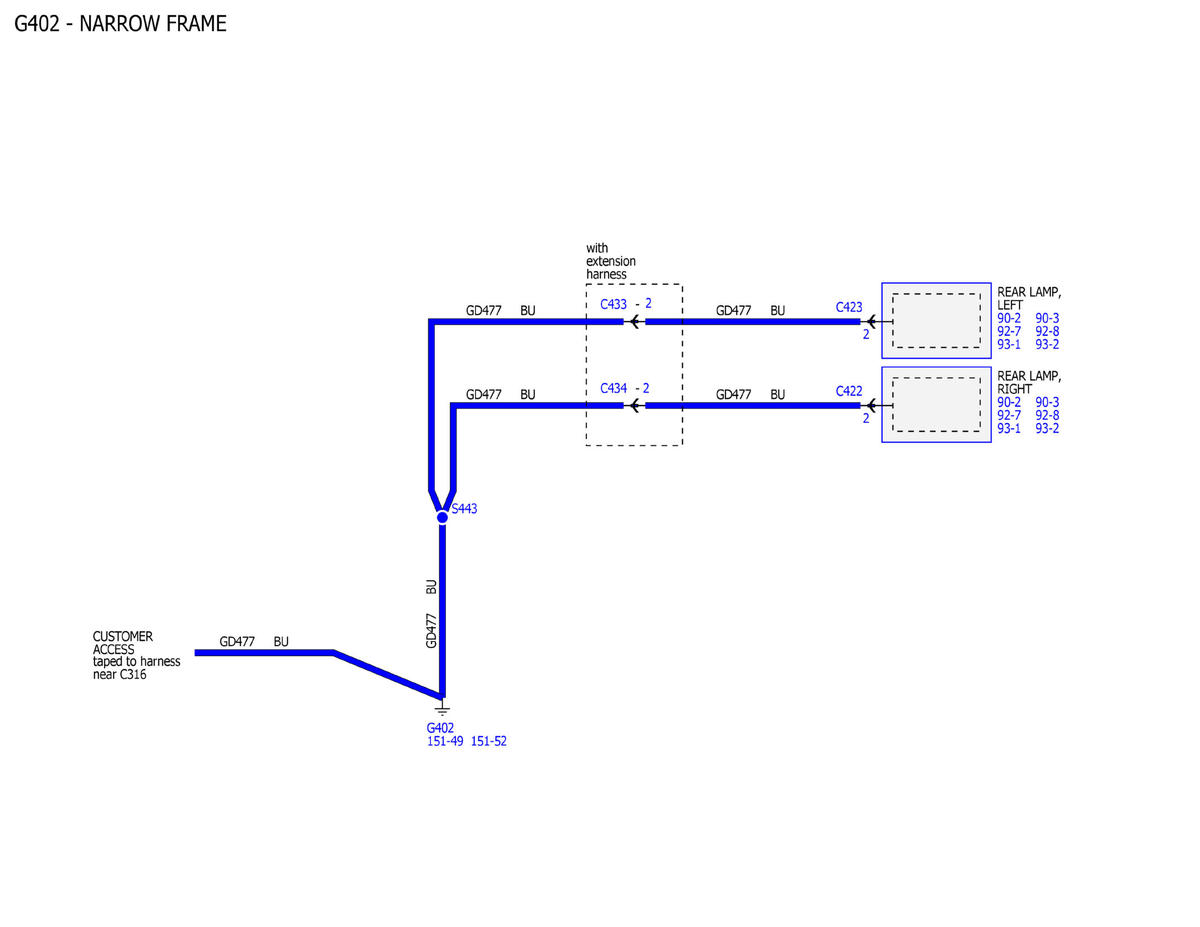

GFDWR56918

Courtesy of FORD MOTOR COMPANY

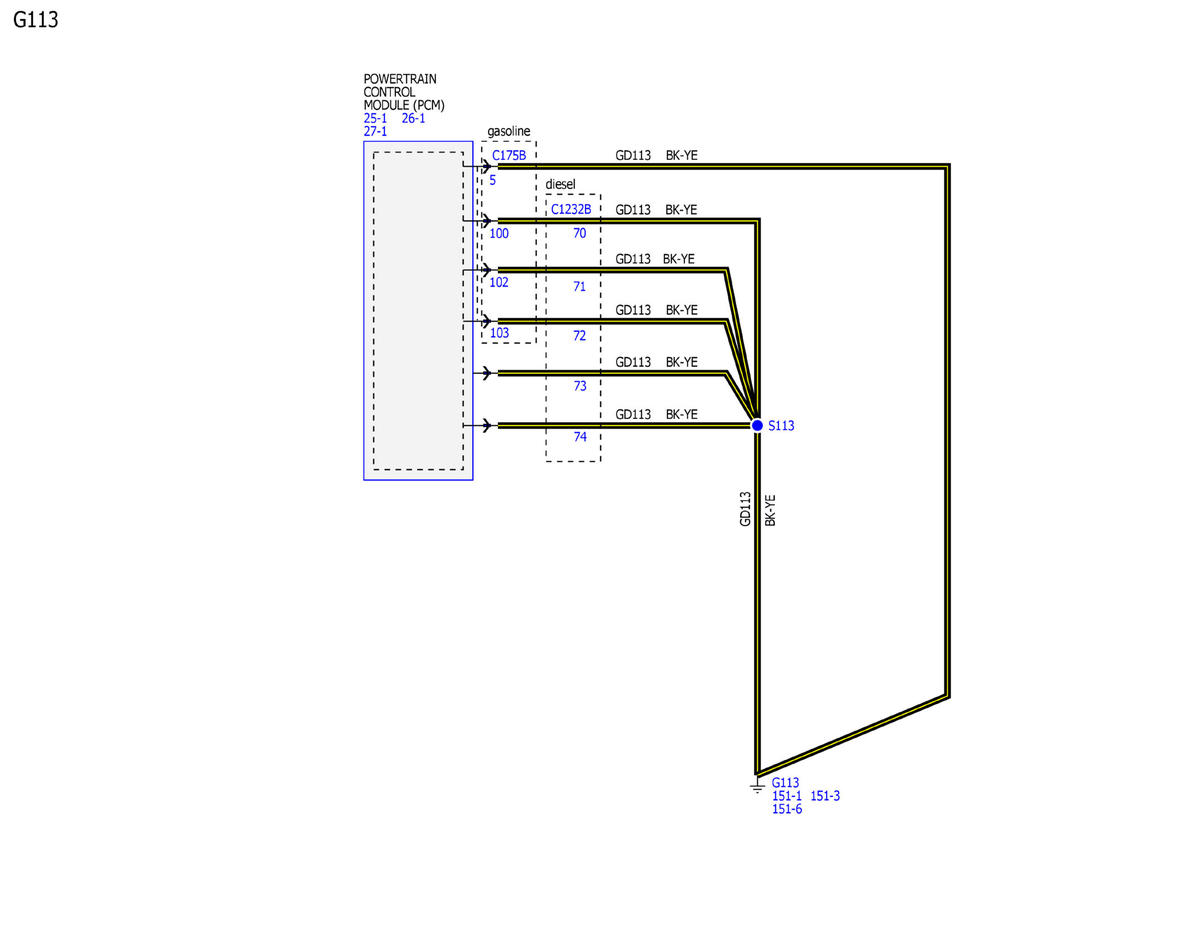

GFDWR56919

Courtesy of FORD MOTOR COMPANY

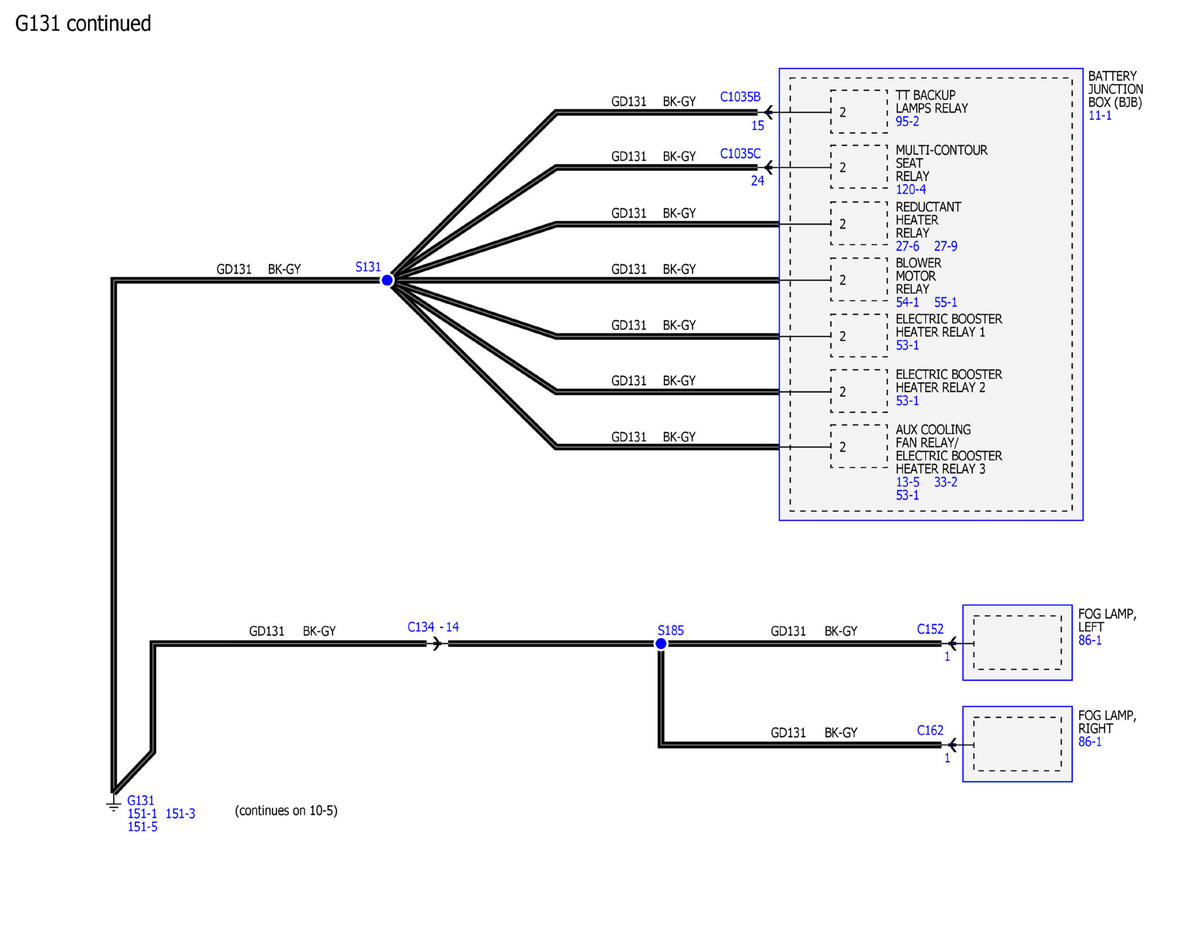

GFDWR56920

Courtesy of FORD MOTOR COMPANY

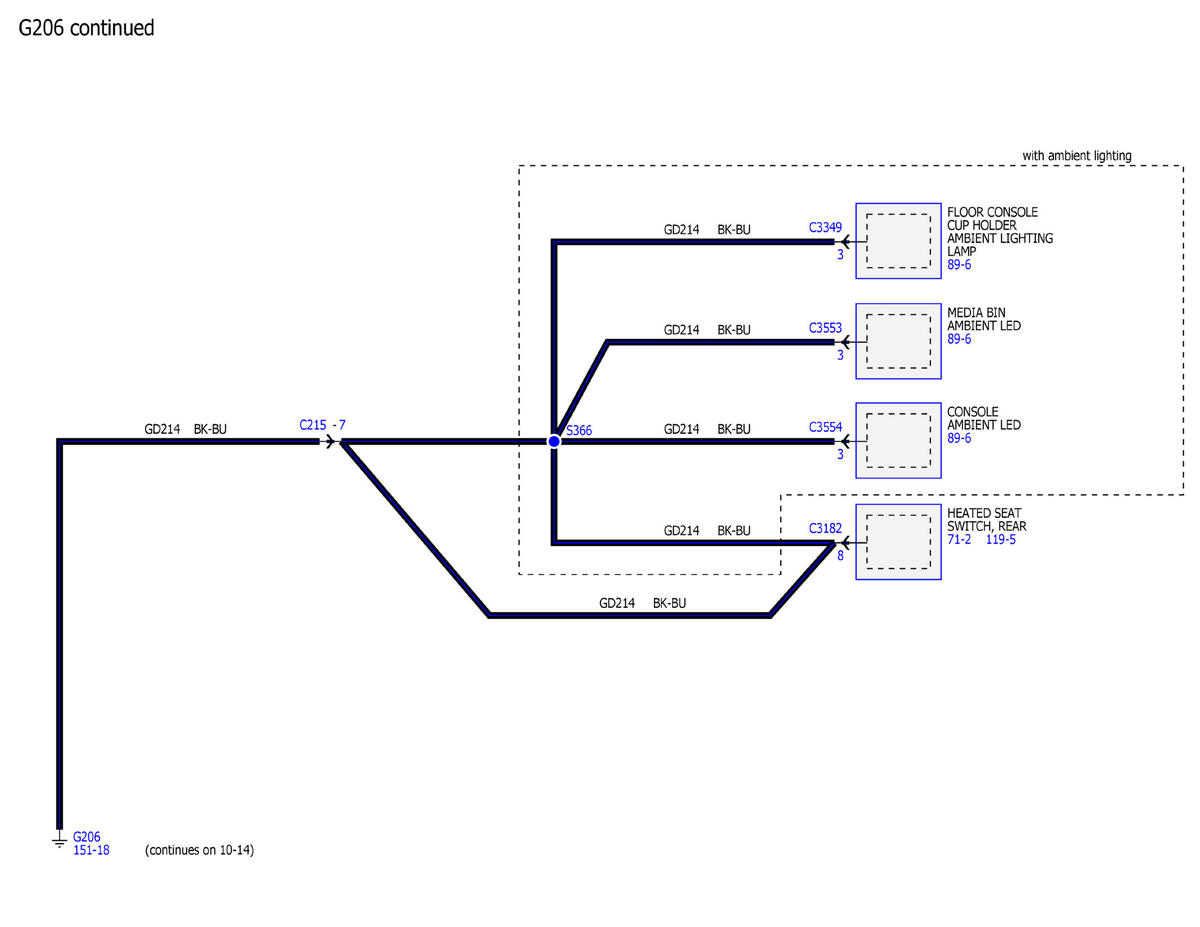

GFDWR56921

Courtesy of FORD MOTOR COMPANY

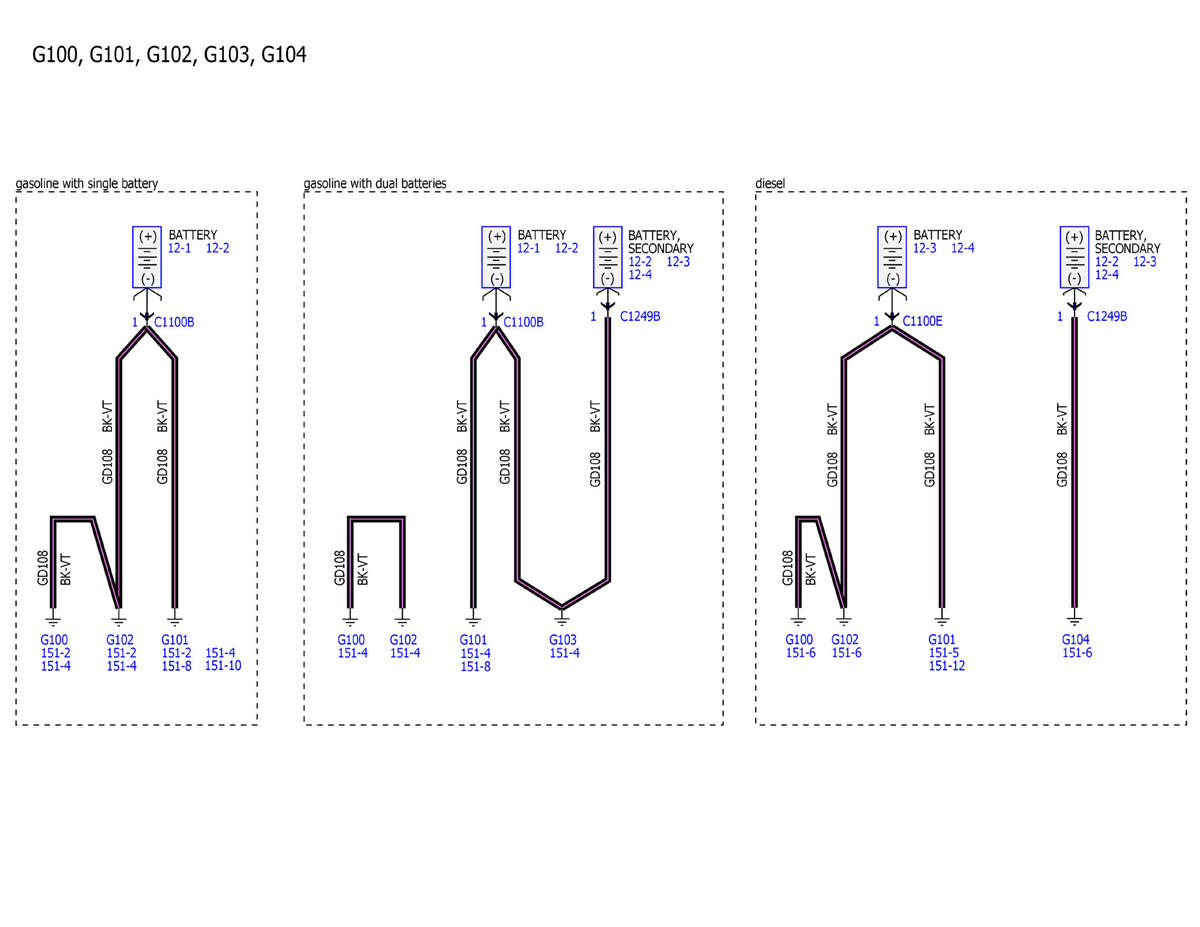

GFDWR56922

Courtesy of FORD MOTOR COMPANY

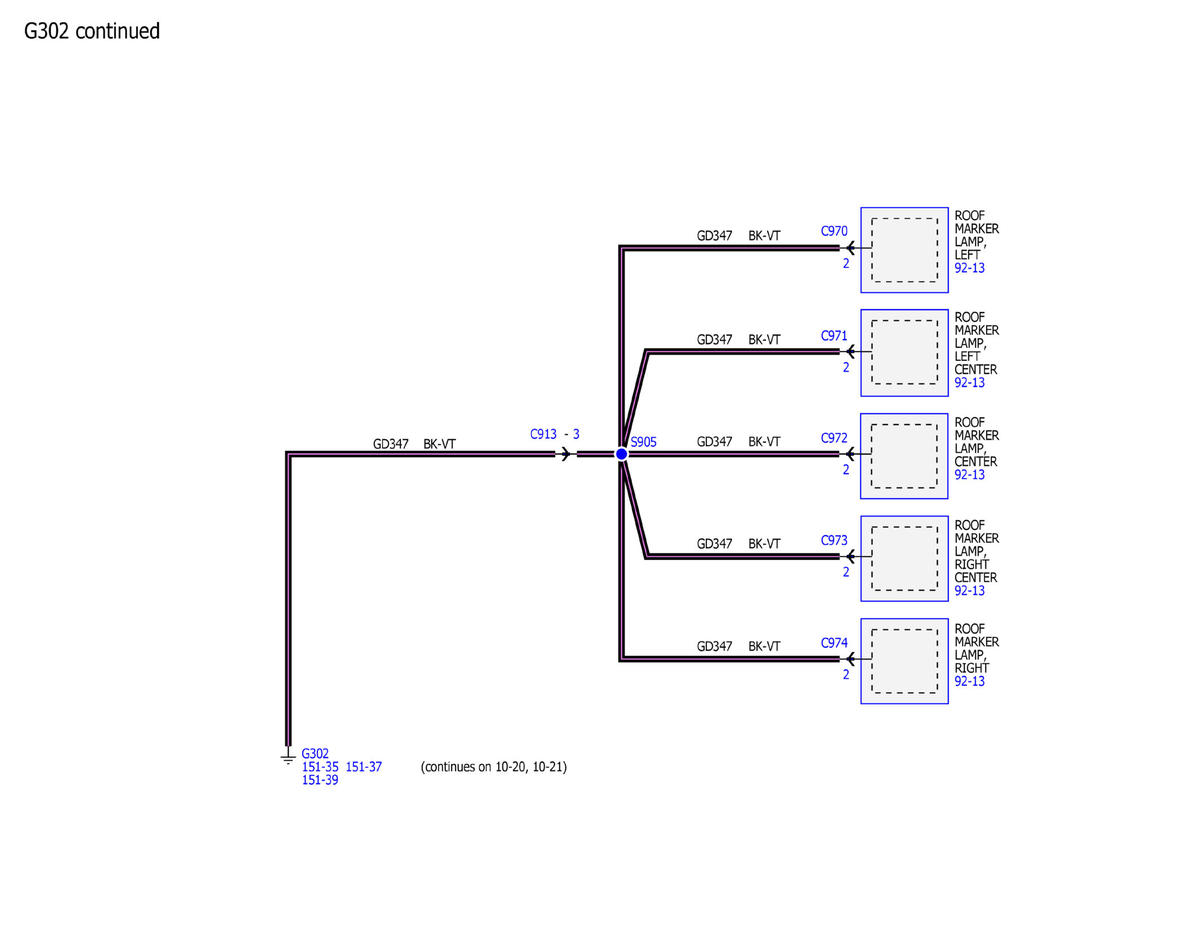

GFDWR56923

Courtesy of FORD MOTOR COMPANY

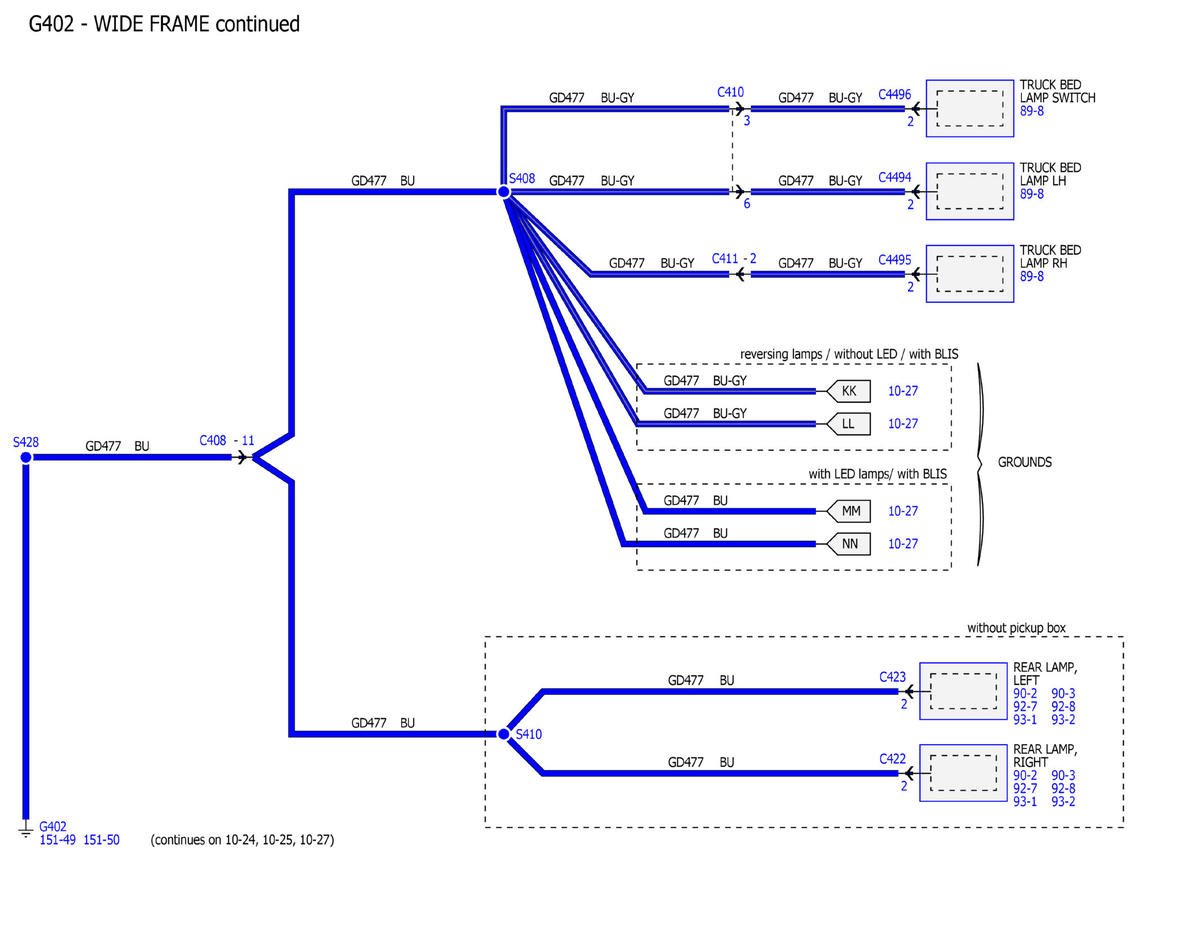

GFDWR56924

Courtesy of FORD MOTOR COMPANY

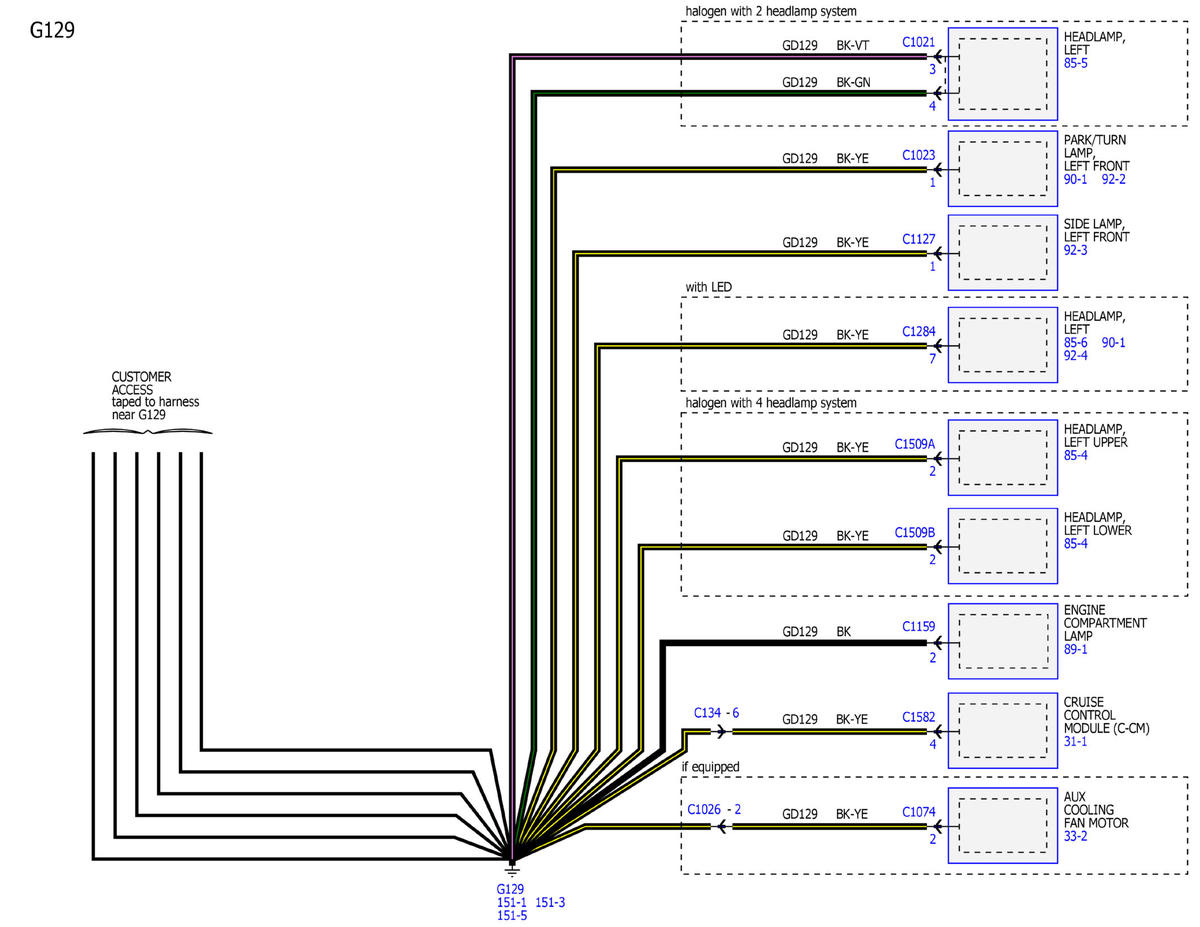

GFDWR56925

Courtesy of FORD MOTOR COMPANY

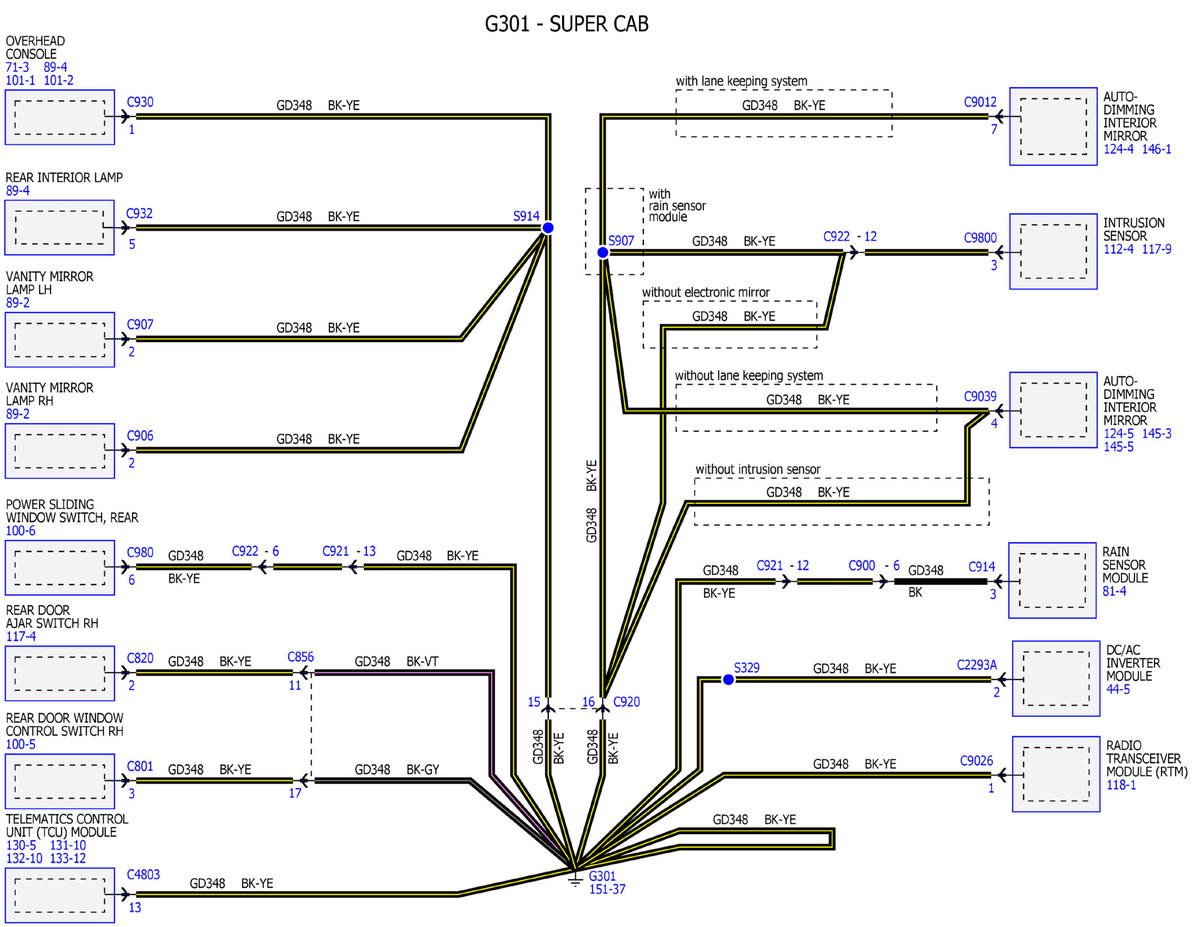

GFDWR56926

Courtesy of FORD MOTOR COMPANY

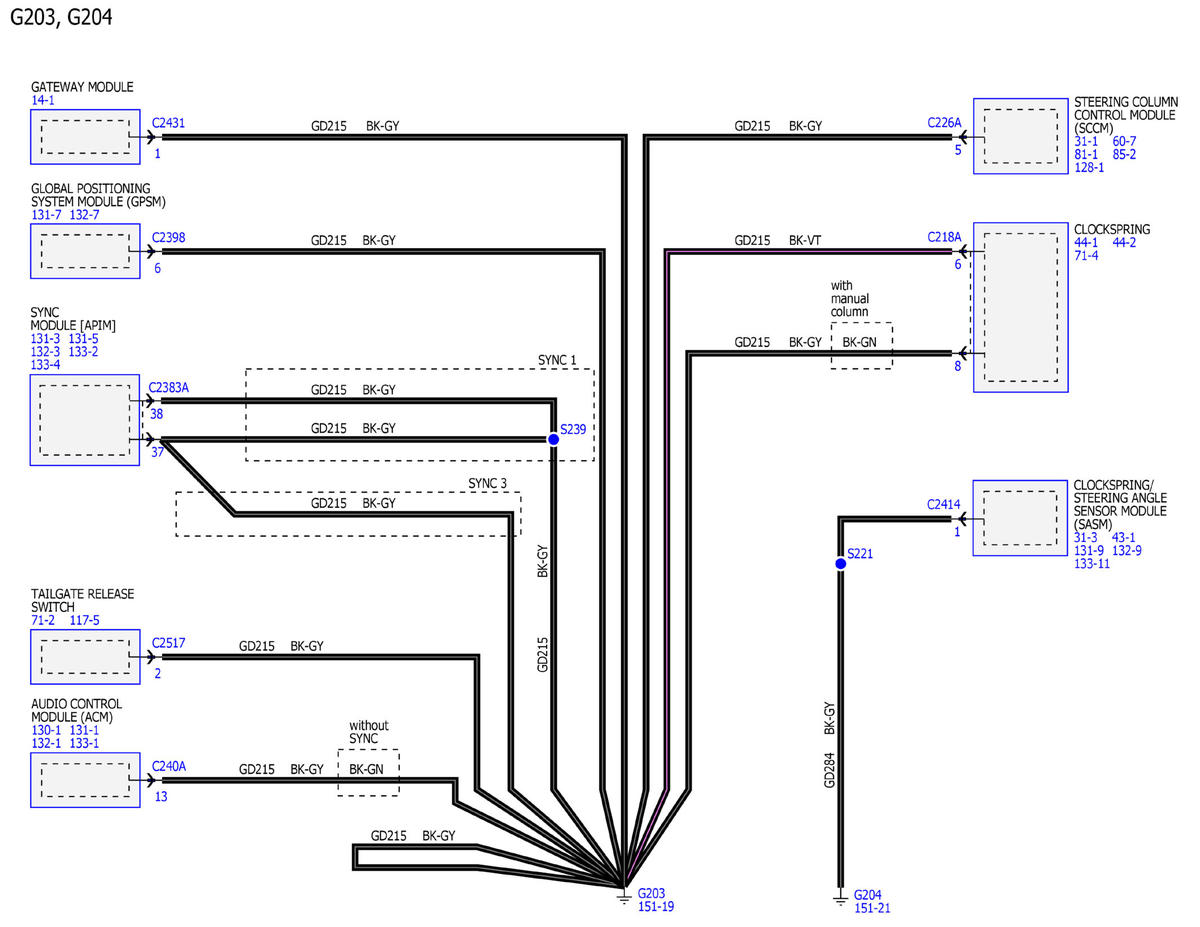

GFDWR56927

Courtesy of FORD MOTOR COMPANY

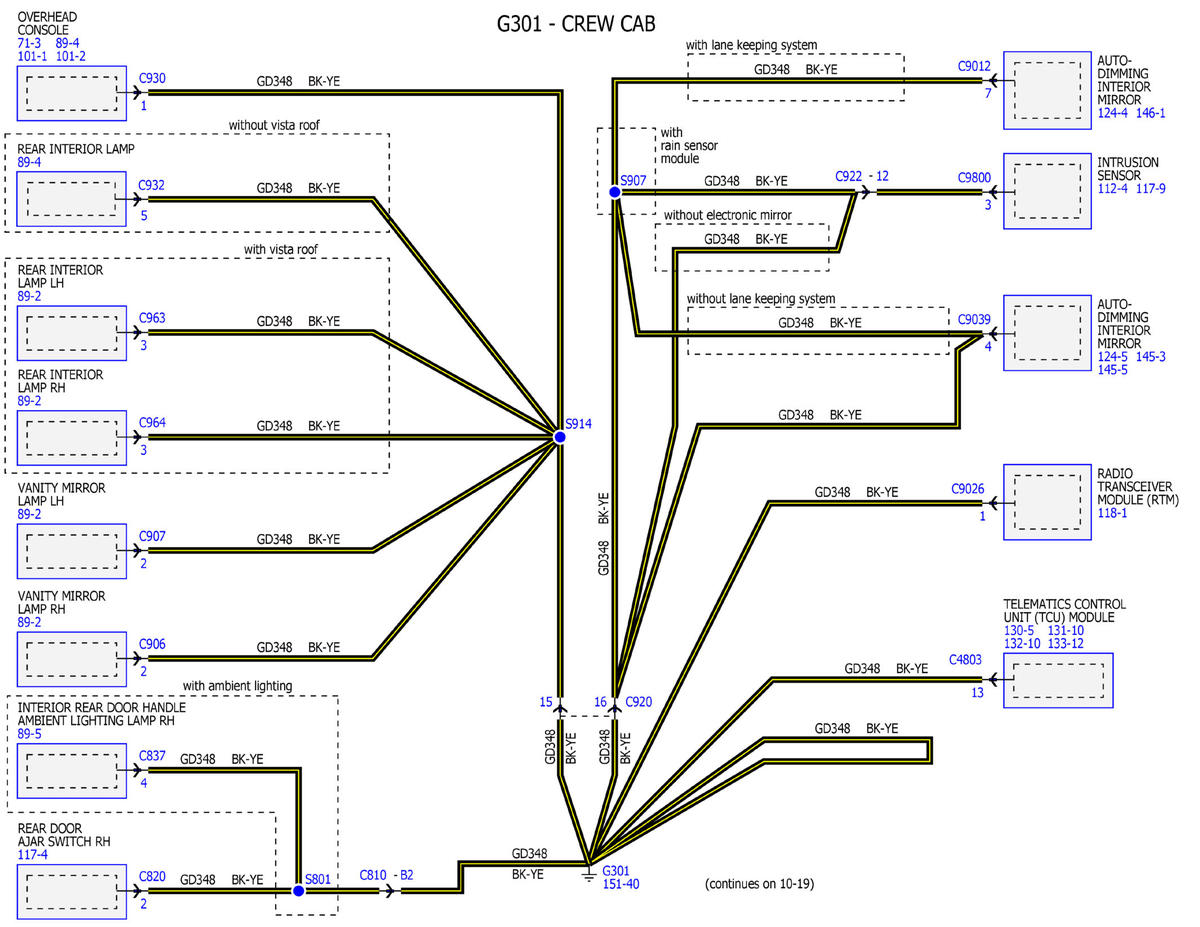

GFDWR56928

Courtesy of FORD MOTOR COMPANY

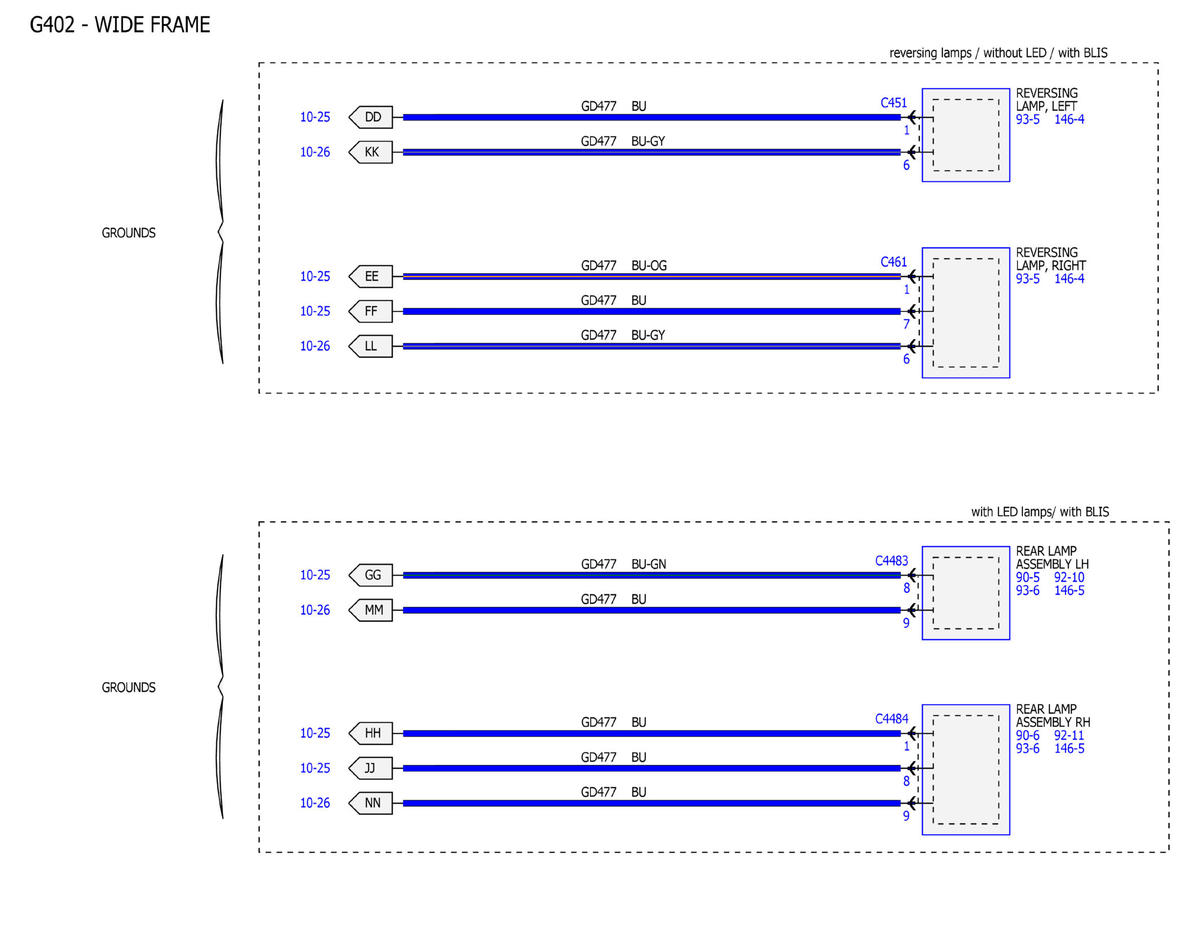

GFDWR56929

Courtesy of FORD MOTOR COMPANY

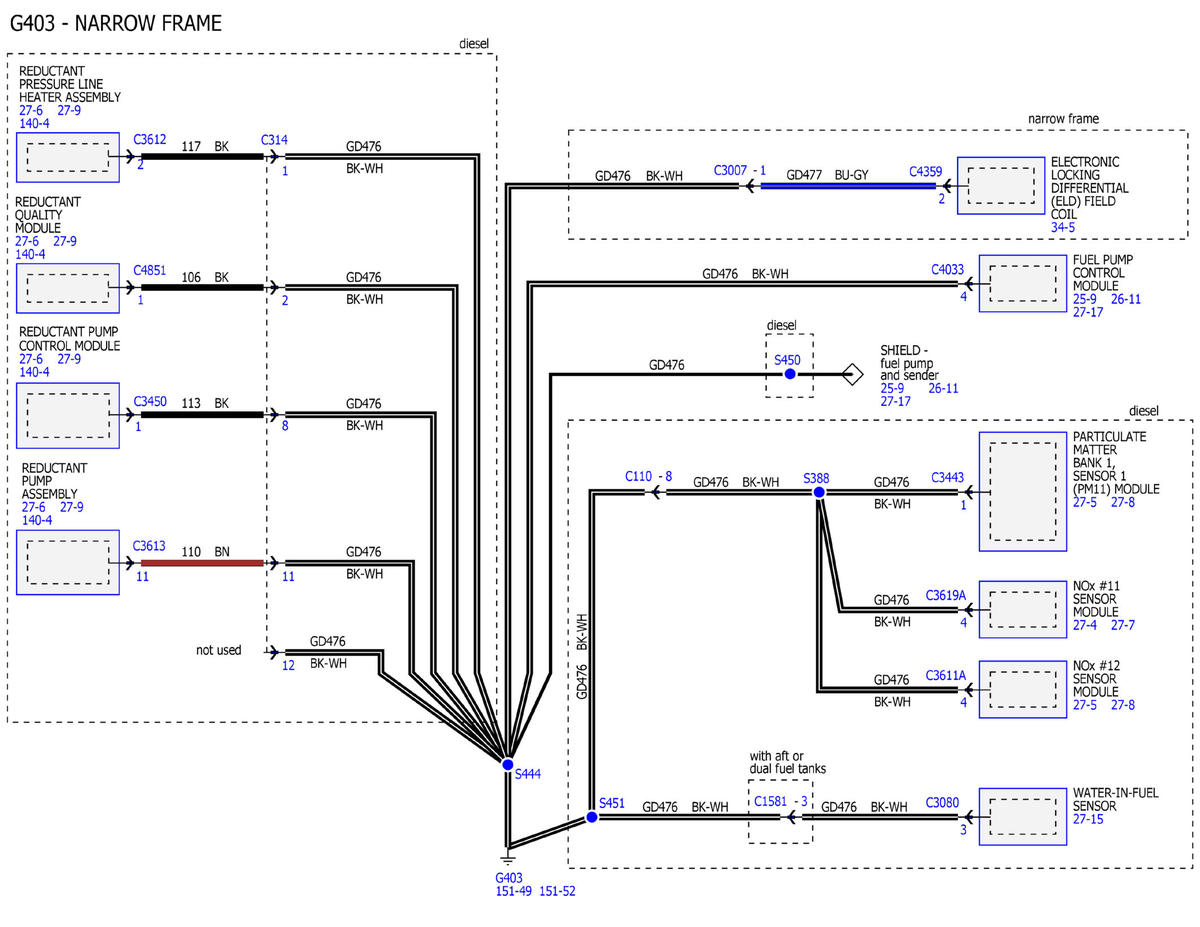

GFDWR56930

Courtesy of FORD MOTOR COMPANY

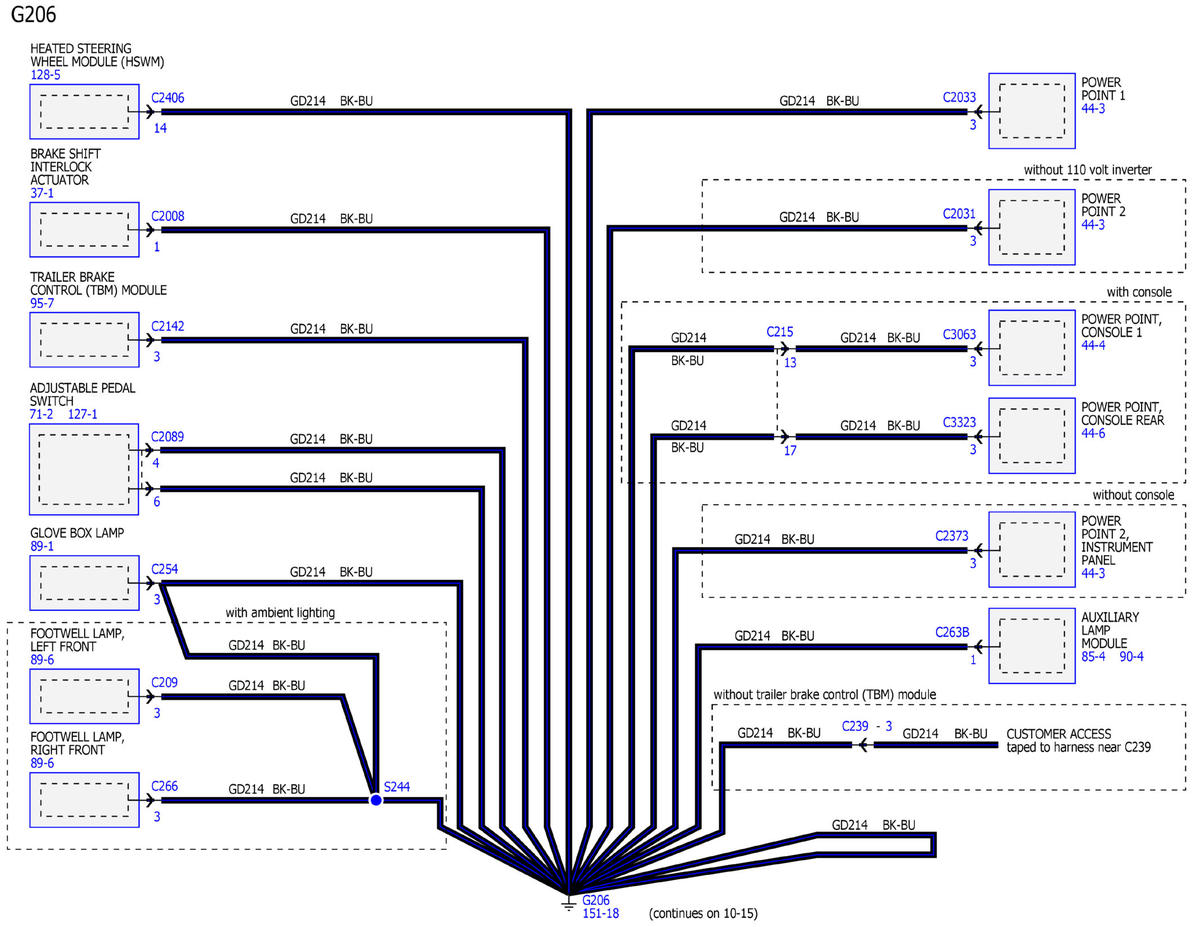

GFDWR56931

Courtesy of FORD MOTOR COMPANY

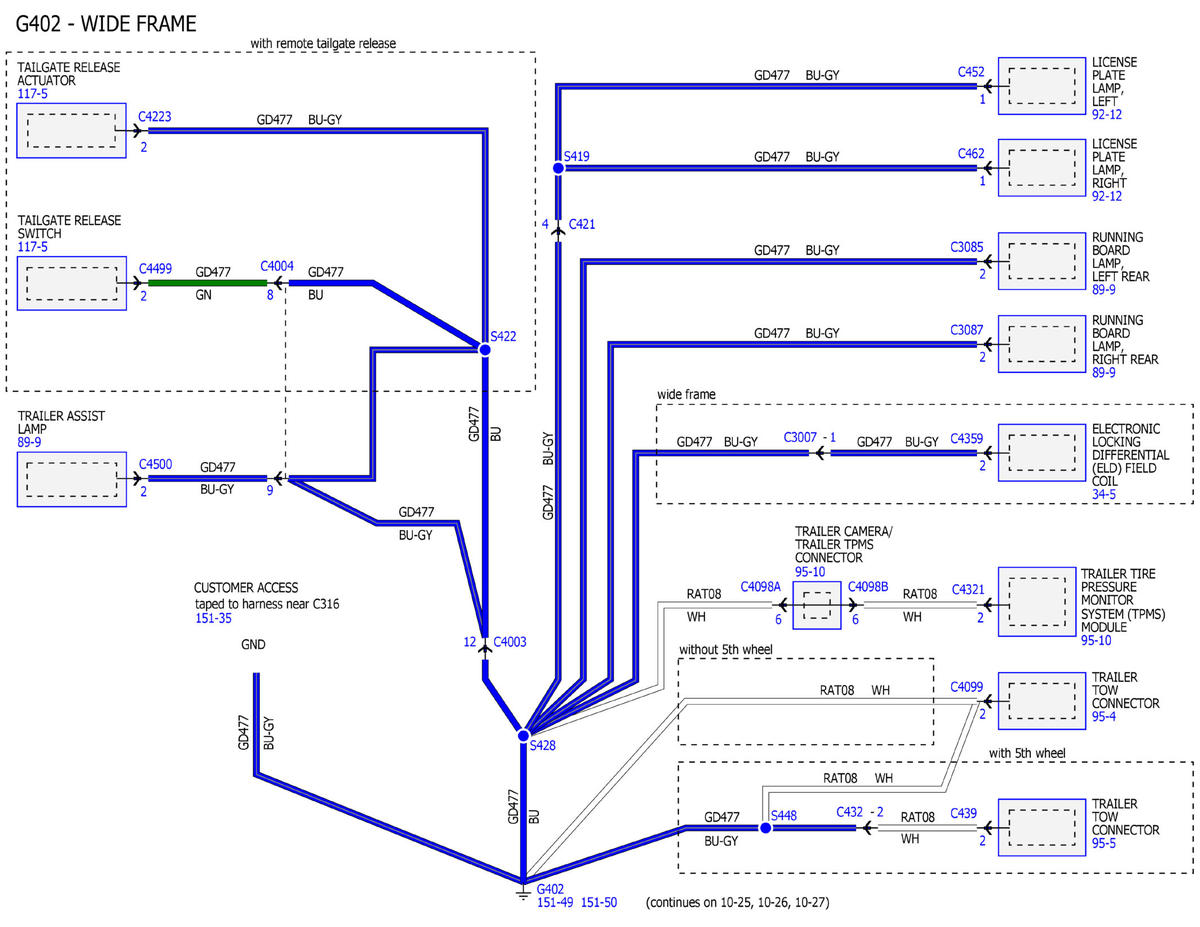

GFDWR56932

Courtesy of FORD MOTOR COMPANY

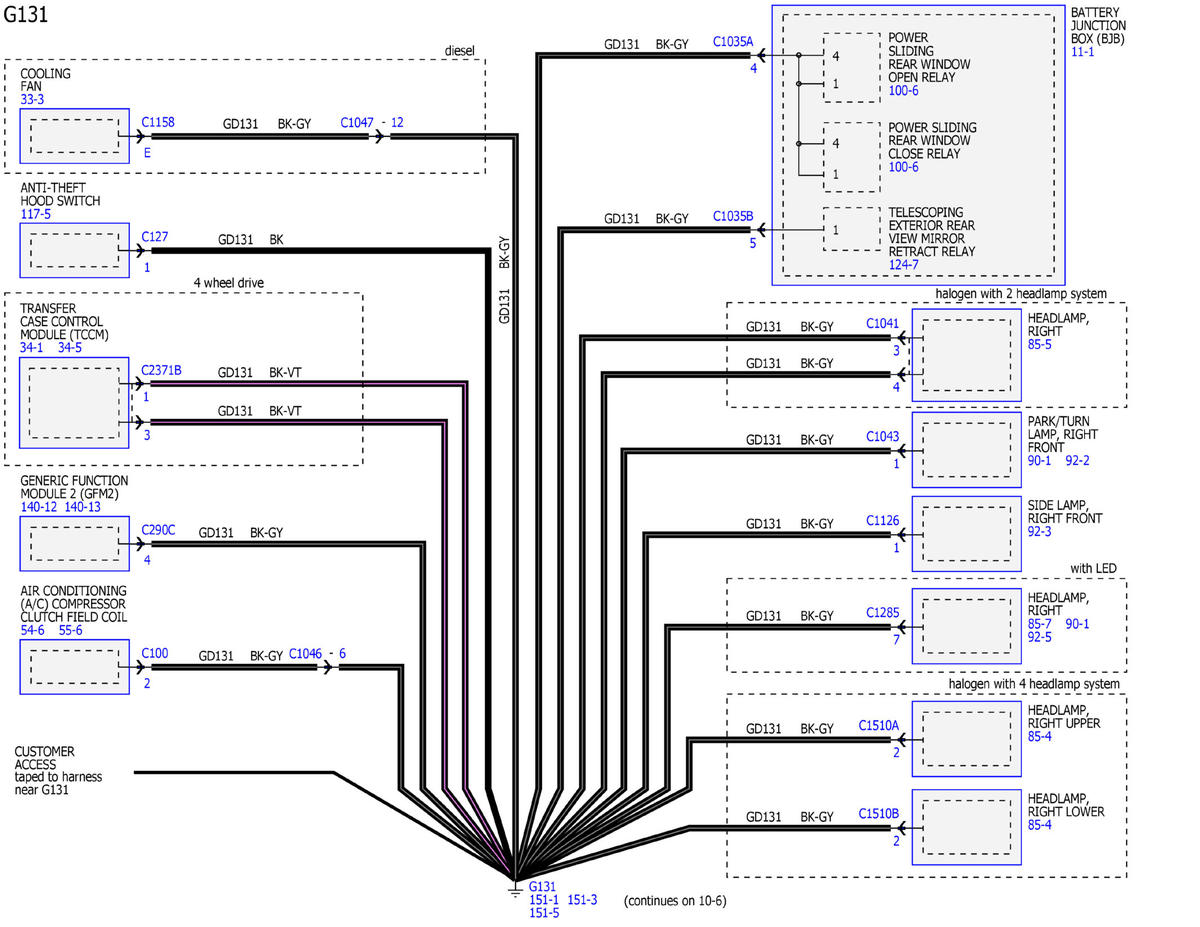

GFDWR56933

Courtesy of FORD MOTOR COMPANY

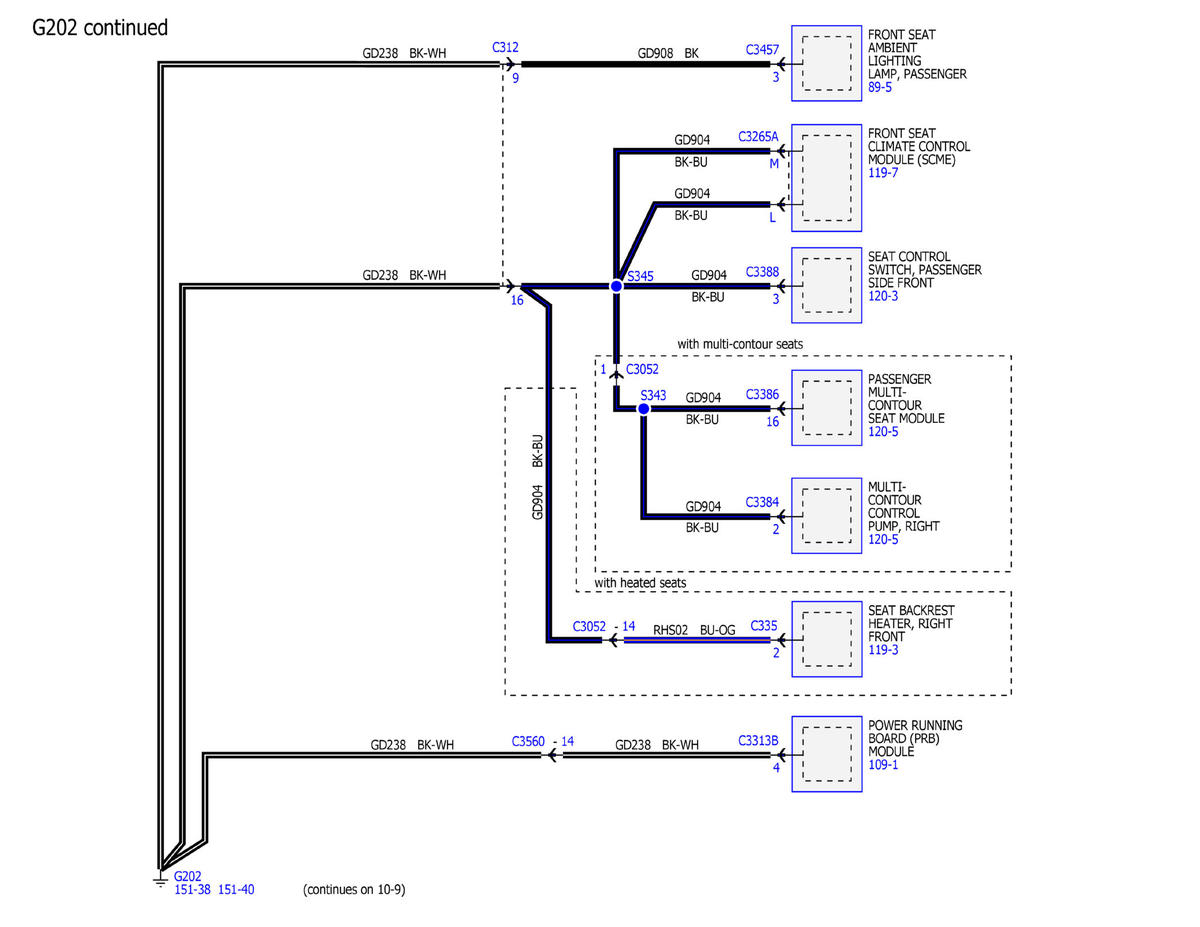

GFDWR56934

Courtesy of FORD MOTOR COMPANY
