Steering Column Control Module (SCCM): Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
- Remove the steering wheel. Refer to: Steering Wheel .
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .

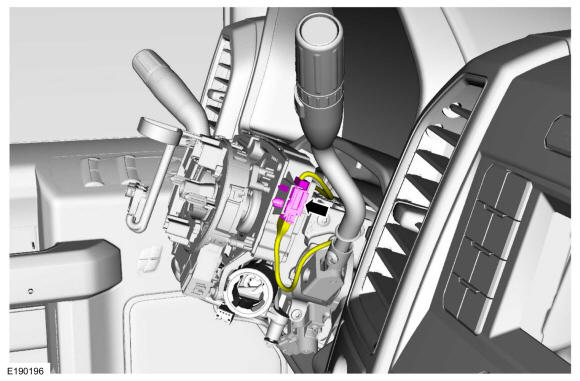

- Release the selector lever electrical connector retainer from the SCCM.

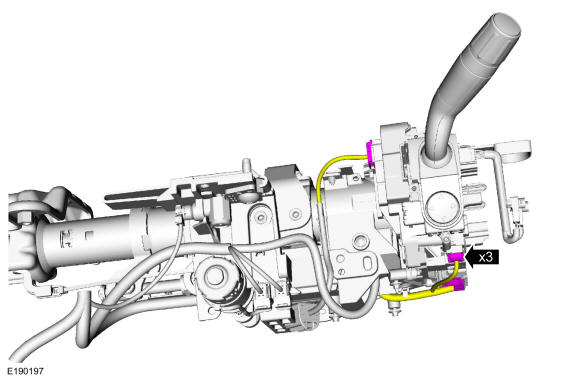

- Disconnect the SCCM electrical connectors.

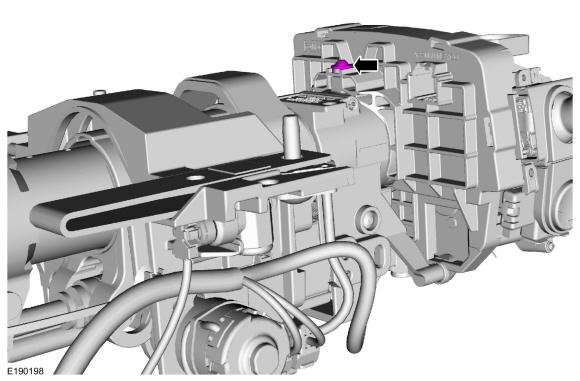

- Remove the SCCM screw.

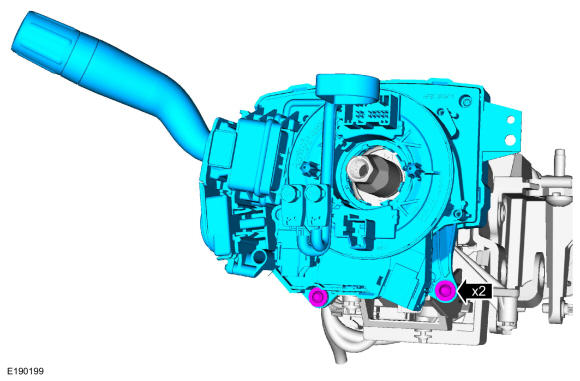

- Remove the screws and the SCCM.
