Steering Column Control Switch: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .

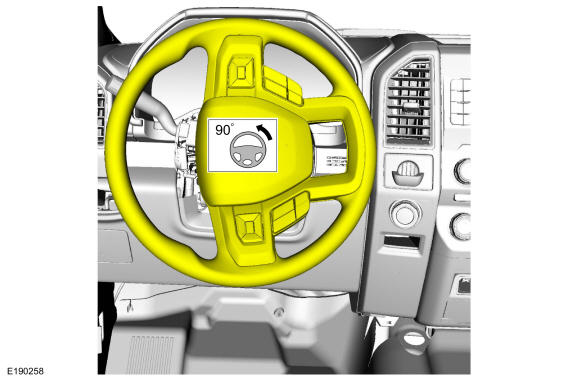

- Turn the steering wheel 90 degrees left.

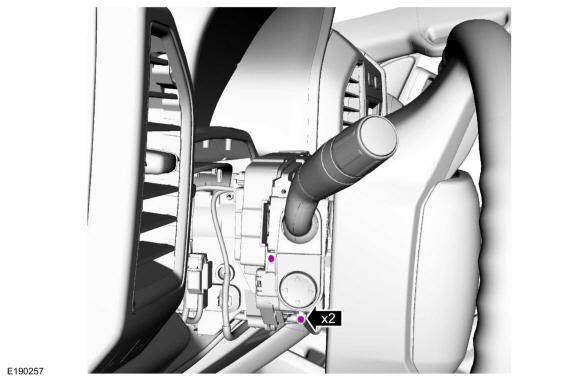

- Remove the screws.

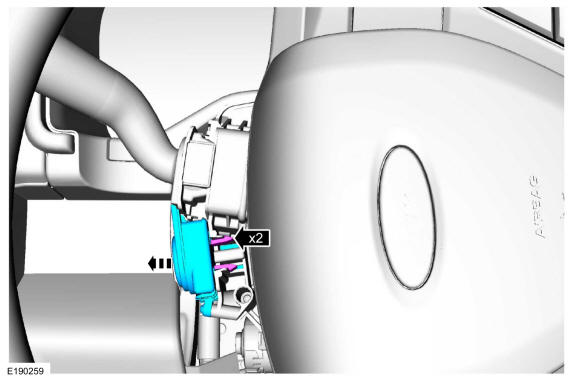

- Squeeze the tabs and remove the steering column control switch.
