Frame Members-Rear Frame Section: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify dimensional accuracy before  performing any welding operations. Refer to: Body Repairs - Vehicle Specific Information And Tolerance Checks .

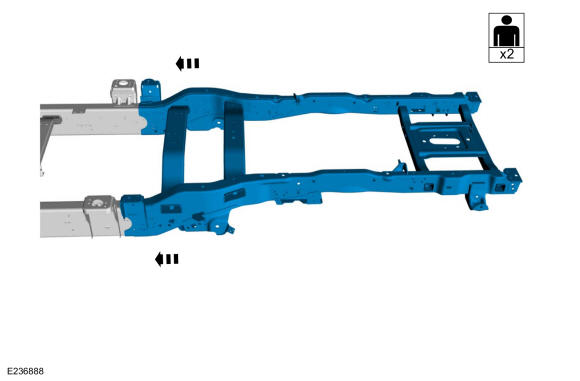

  2. With the help of an assistant, install the new rear frame section into the mid rear section of the frame.
    GFD412509Courtesy of FORD MOTOR COMPANY

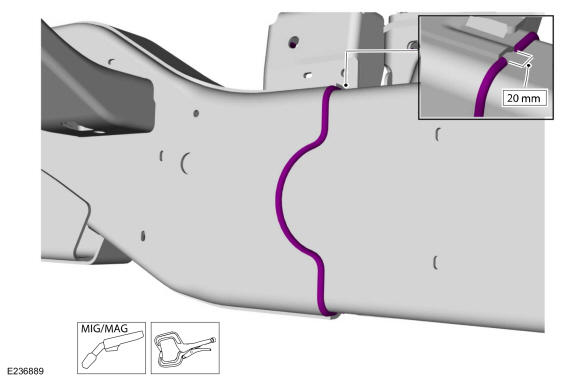

  3. Support the new section, and loosely clamp the replacement section in a preliminary position.

    • Verify correct dimensions, then solid weld the new section to the original inboard overlap joints. Refer to: Body and Frame . Refer to: Joining Techniques . Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

    GFD412510Courtesy of FORD MOTOR COMPANY

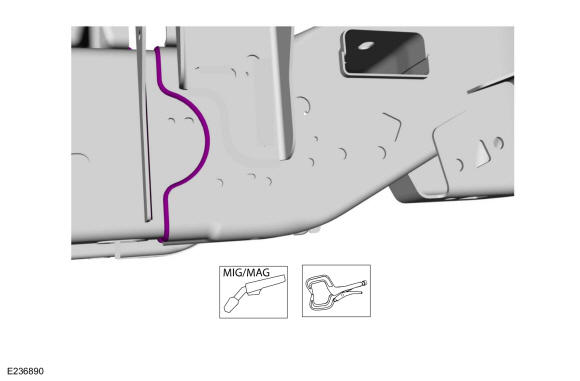

  4. Weld the new rear section to the mid rear section outboard overlap joints. Use the General Equipment: Locking Pliers Use the General Equipment: MIG/MAG Welding Equipment
    GFD412511Courtesy of FORD MOTOR COMPANY
  5. Use a dye penetrant to determine if any cracks or large voids exist in the weld joint. If cracks or other defects exist, grind out the defect and repair until the weld is free of defects.
  6. Metal finish the joint area typical metal finishing techniques.
  7. Refinish using a Ford approved paint system.
  8. Restore corrosion protection. Refer to: Corrosion Prevention .
  9. WARNING: Adjust the rear axle height to relieve spring tension before removing any shackle bolts, nuts or spring pins. Springs under tension may release with great force. Failure to follow this instruction may result in serious personal injury.

    Install the rear spring eye and shackle bolts. Refer to: Spring - F-250/F-350 . Refer to: Spring - F-450/F-550 .

  10. Install the following items:

    1. If required, install the pickup bed. Refer to: Pickup Bed .
    2. NOTE: To avoid damage to the spare tire winch when installing the spare tire, DO NOT exceed 200 RPM if using power tool equipment. Override the winch (listen for an audible click) at least three times to ensure a tight secure fit of the wheel and tire.

      Install the spare tire, and the spare tire carrier winch assembly.

    3. Install the fuel tank assembly. Refer to: Fuel Tank - Vehicles With: Midship Fuel Tank 6.2L V8 . Refer to: Fuel Tank - Vehicles With: Aft of Axle Fuel Tank 6.2L V8 . Refer to: Fuel Tank - Vehicles With: Midship Fuel Tank 6.8L Triton-30V - V10 . Refer to: Fuel Tank - Vehicles With: Aft of Axle Fuel Tank 6.8L Triton-30V - V10 . Refer to: Fuel Tank - Vehicles With: Midship Fuel Tank 6.7L Power Stroke Diesel . Refer to: Fuel Tank - Vehicles With: Aft of Axle Fuel Tank 6.7L Power Stroke Diesel .
    4. Install the rear portion of the exhaust system. Refer to: Rear Muffler . Refer to: Muffler and Tailpipe . Refer to: Tailpipe .
