Intake Manifold Assembly: Disassembly
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During engine repair procedures, cleanliness is extremely important.
- Remove the bolts and the actuator sensors.
- Remove the bolts and the actuator assemblies.
- Remove the bolt and the MAP sensor.
- Remove the fuel rail and injectors as an assembly.

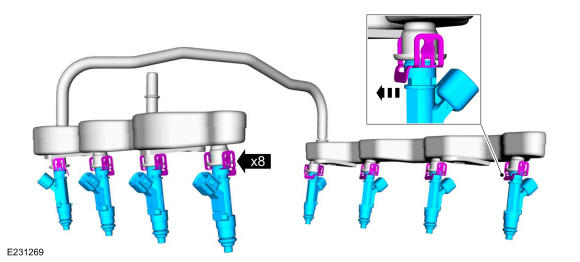

- Remove the fuel injector-to-fuel rail clips and separate the fuel injectors from the fuel rail.

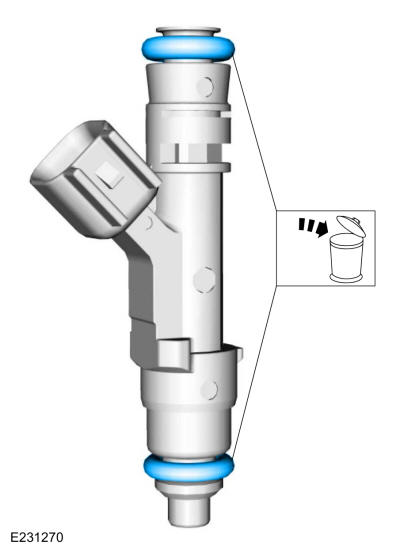

- Discard the upper and lower fuel injector O-ring seals.
