Component Bleeding
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Special Tool(s) / General Equipment
| Master Cylinder Bleeding Set |
|---|
Bleeding
NOTE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
Master Cylinder
NOTE:
When a new brake master cylinder has been installed, it should be primed to prevent air from entering the system.
-
NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

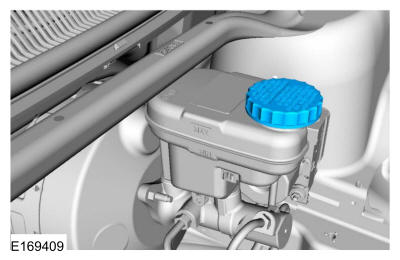

Remove the brake fluid reservoir cap.

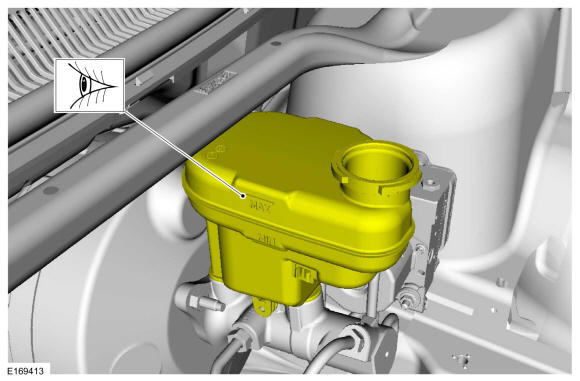

- Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

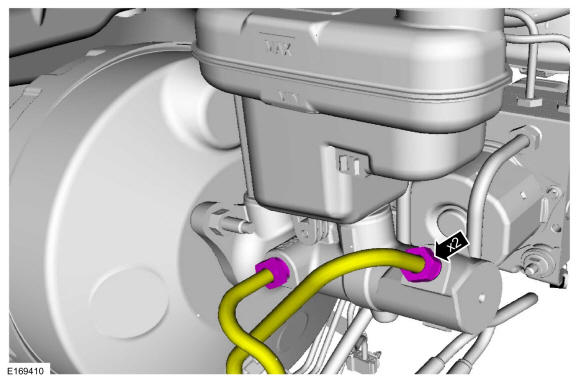

- Loosen and remove the brake tube fittings.

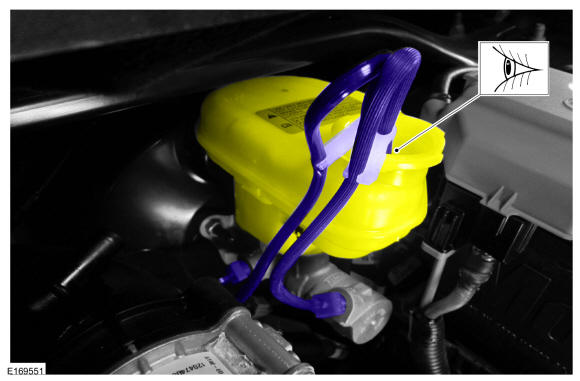

- Install the master cylinder bleeding set. Use the General Equipment: Master Cylinder Bleeding Set

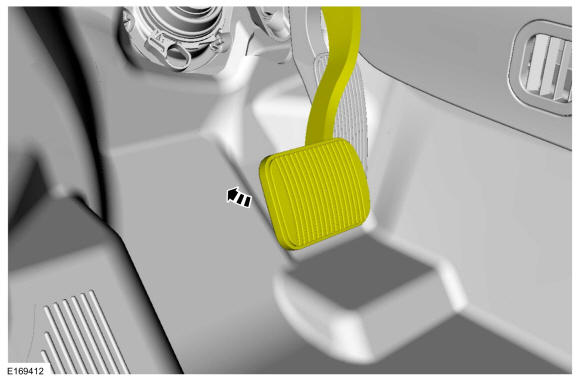

- Have an assistant pump the brake pedal slowly until clear bubble free fluid flows from the brake tubes.
- Remove the master cylinder bleeding set. Remove the General Equipment: Master Cylinder Bleeding Set
- Tighten the brake tube fittings. Refer to: Specifications .
- Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .
- Refer to: Brake System Pressure Bleeding .
Brake Caliper, Wheel Cylinder, Brake Hose or Brake Tube
-
NOTE: Pressure bleeding the brake system is required anytime a hydraulic brake system component has been disconnected.
Refer to: Brake System Pressure Bleeding .
