Stability Assist/Traction Control Switch: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) - Vehicles Without: SYNC, . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: SYNC . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Sony Audio System .

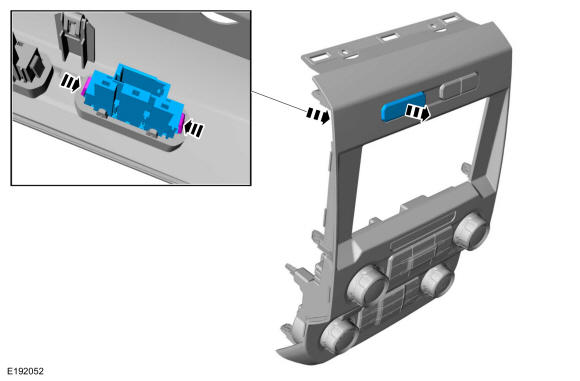

- Press the 2 tabs and remove the stability assist/traction control switch.
