Transfer Case Control Module (TCCM): Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

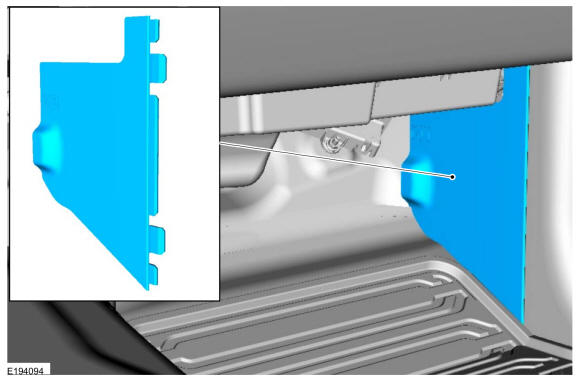

- Remove the CJB cover.

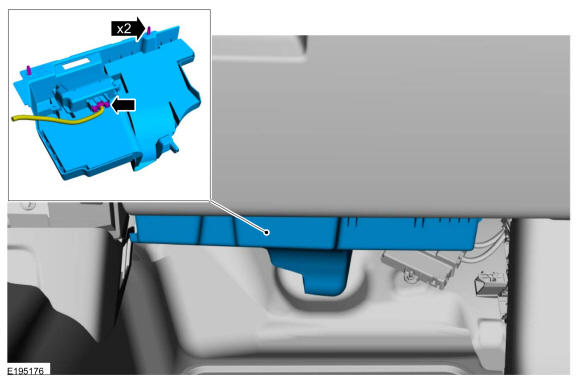

- Remove and disconnect the lower access panel.
-
NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when removing the TCCM.

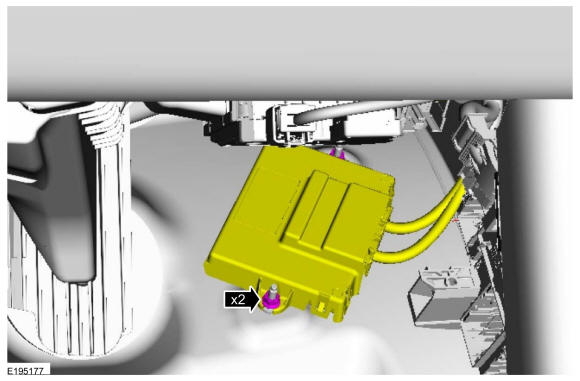

Loosen the LHTCCM nut and remove the RHTCCM nut.
Torque: 62 lb.in (7 Nm)

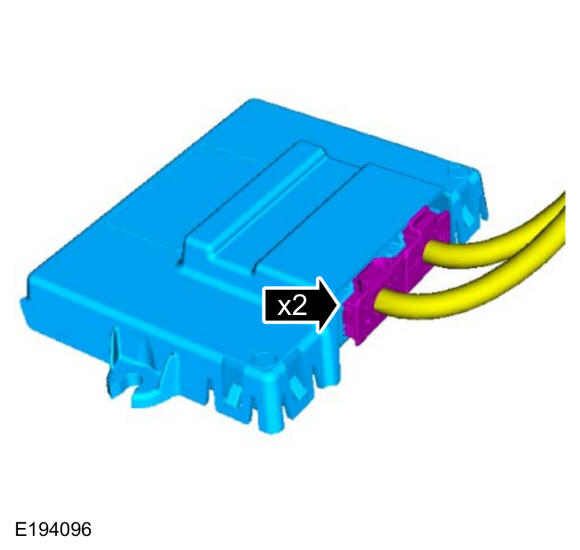

- Disconnect the electrical connectors and remove the TCCM.
