Module Communications Network
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

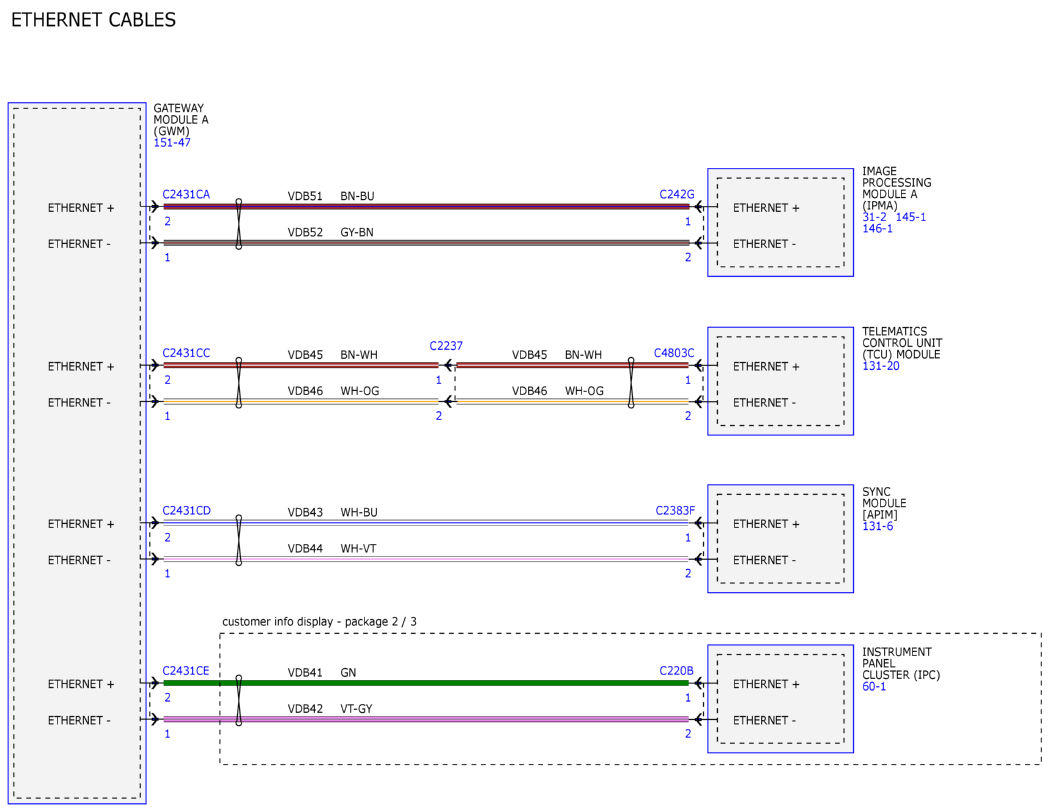

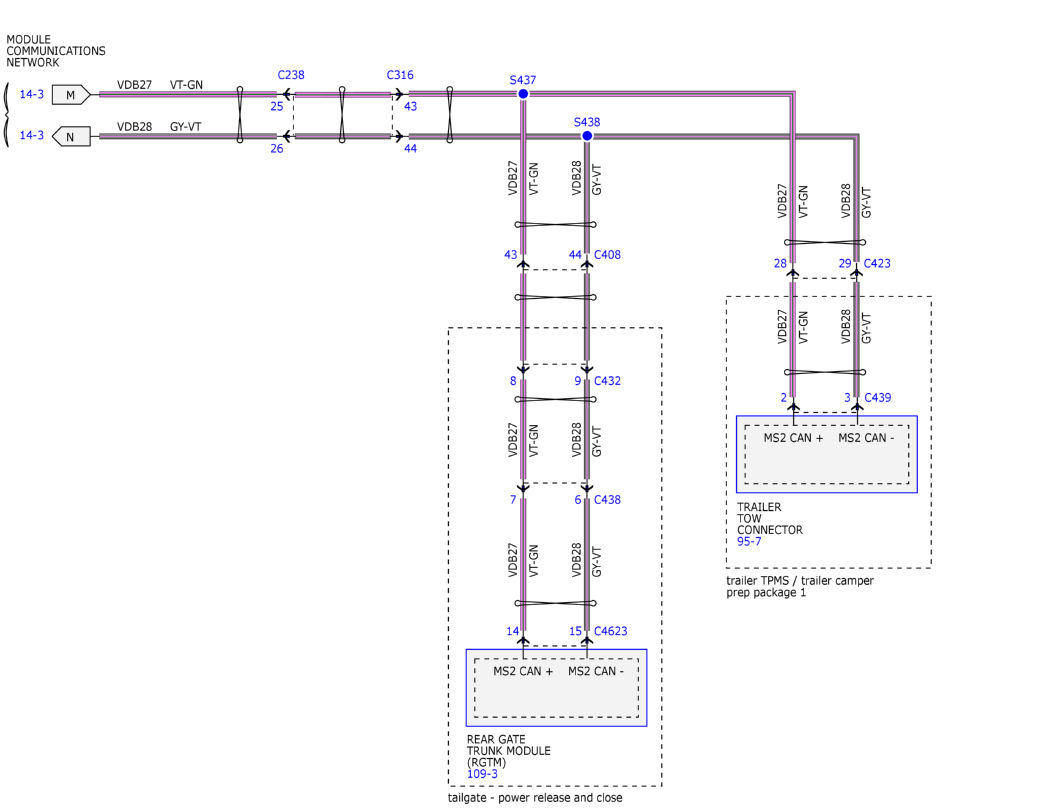

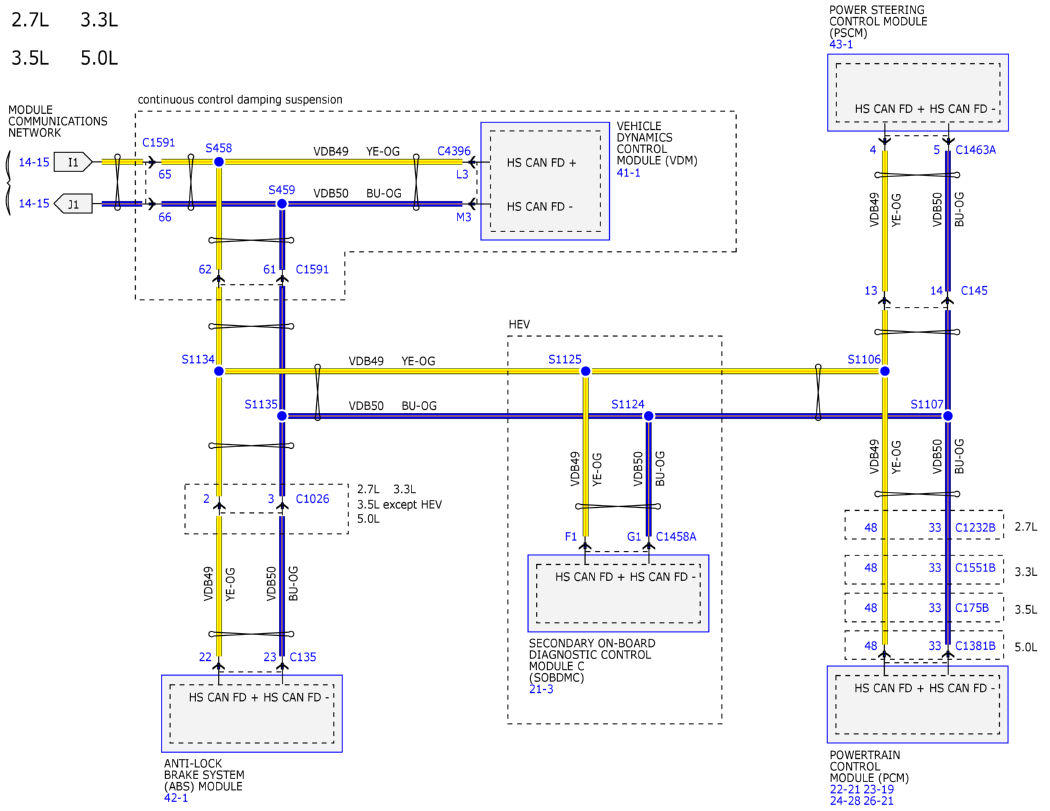

Fig 1: Module Communications Network Wiring Diagram (1 Of 24)
Courtesy of FORD MOTOR COMPANY

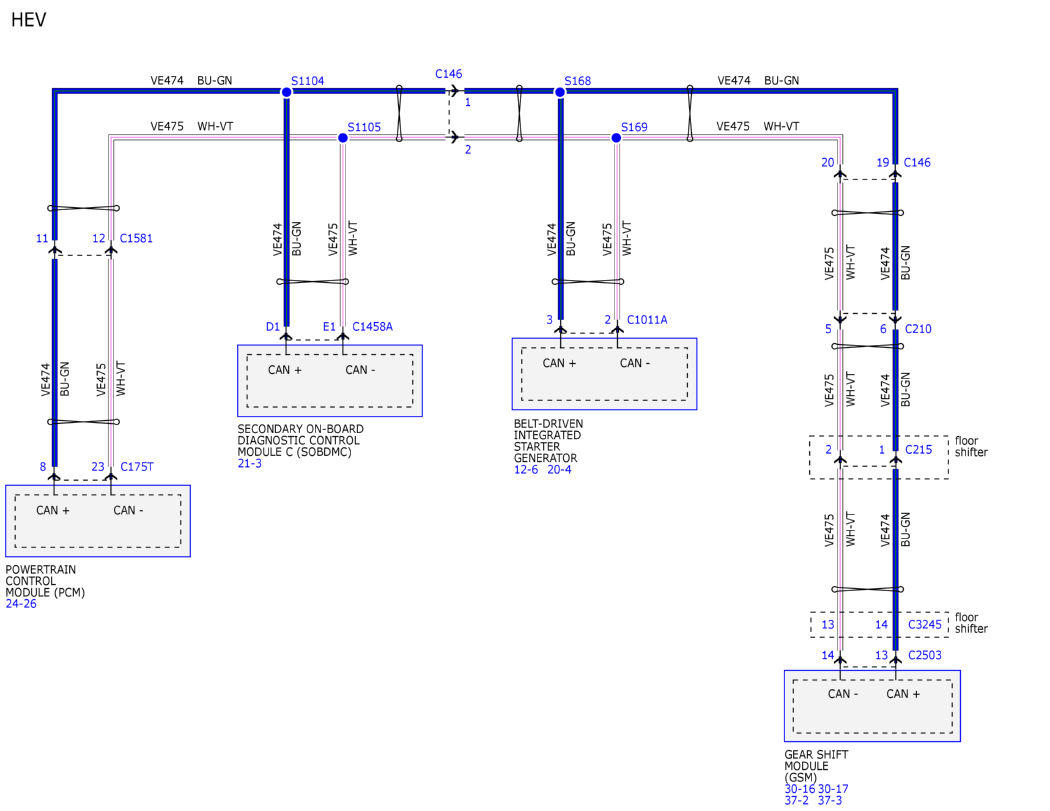

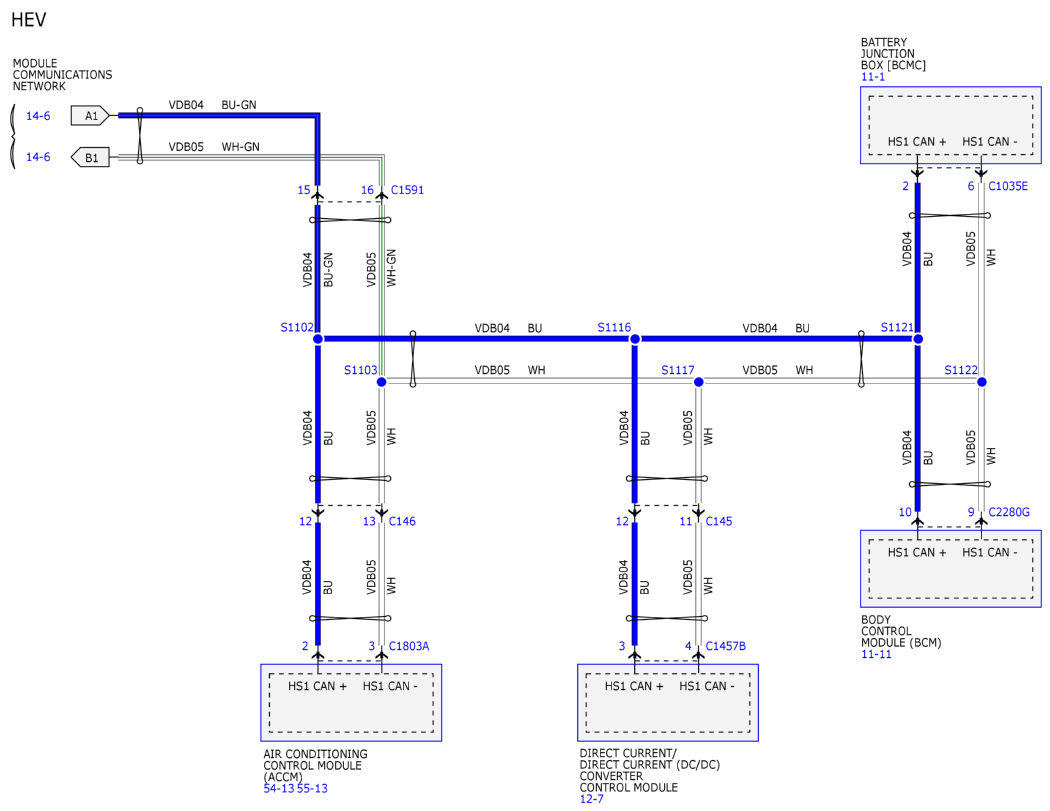

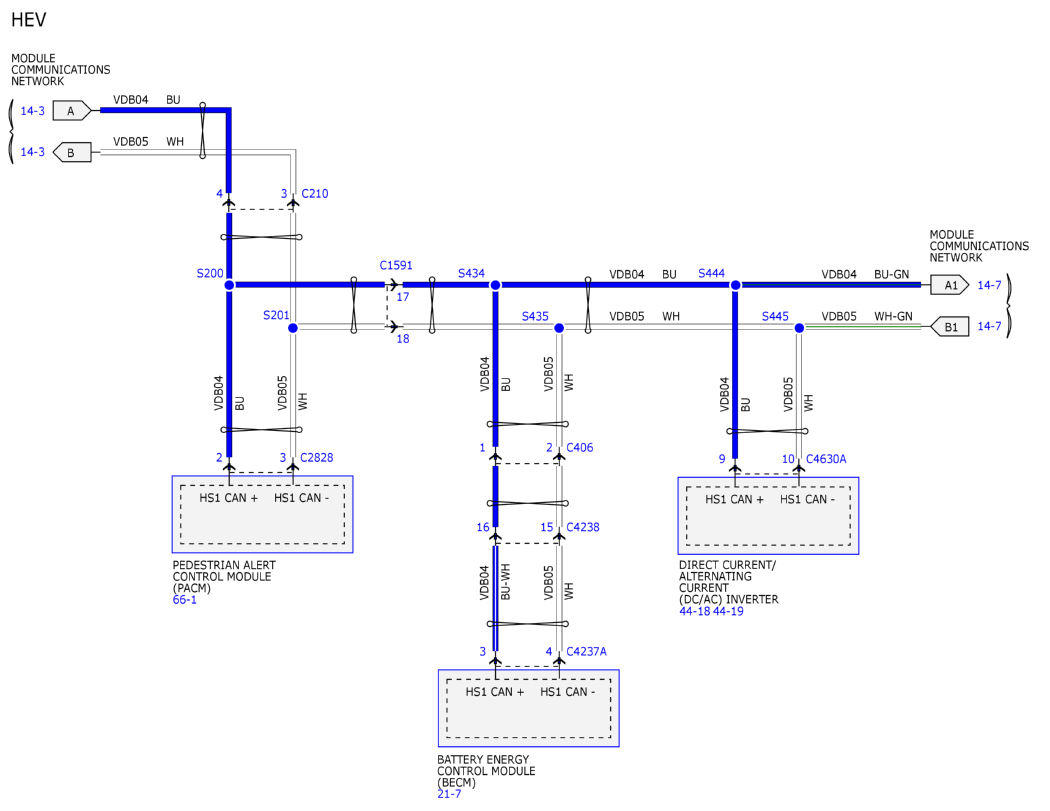

Fig 2: Module Communications Network Wiring Diagram (2 Of 24)
Courtesy of FORD MOTOR COMPANY

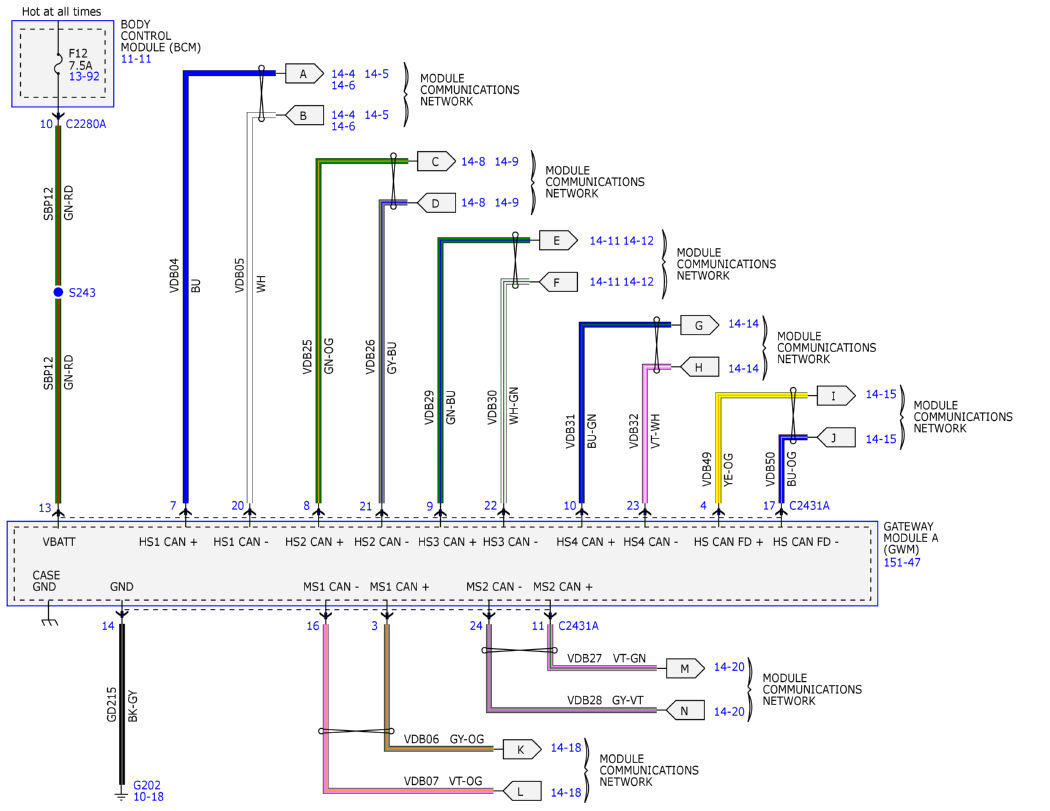

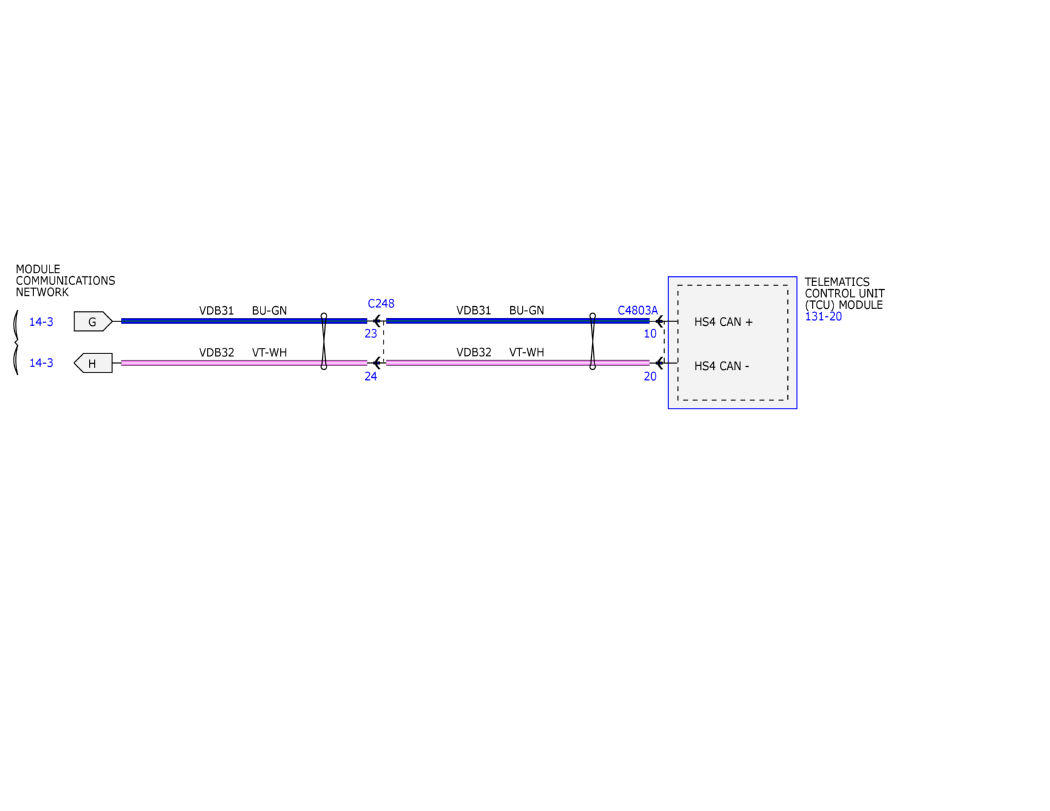

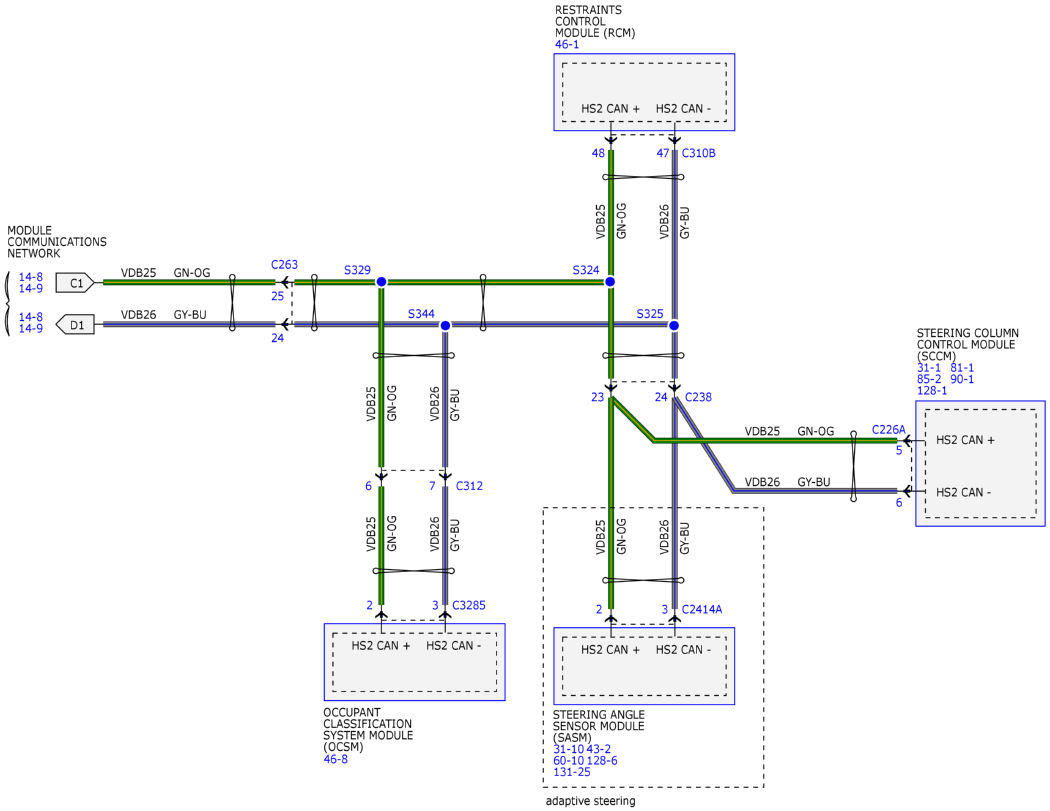

Fig 3: Module Communications Network Wiring Diagram (3 Of 24)
Courtesy of FORD MOTOR COMPANY

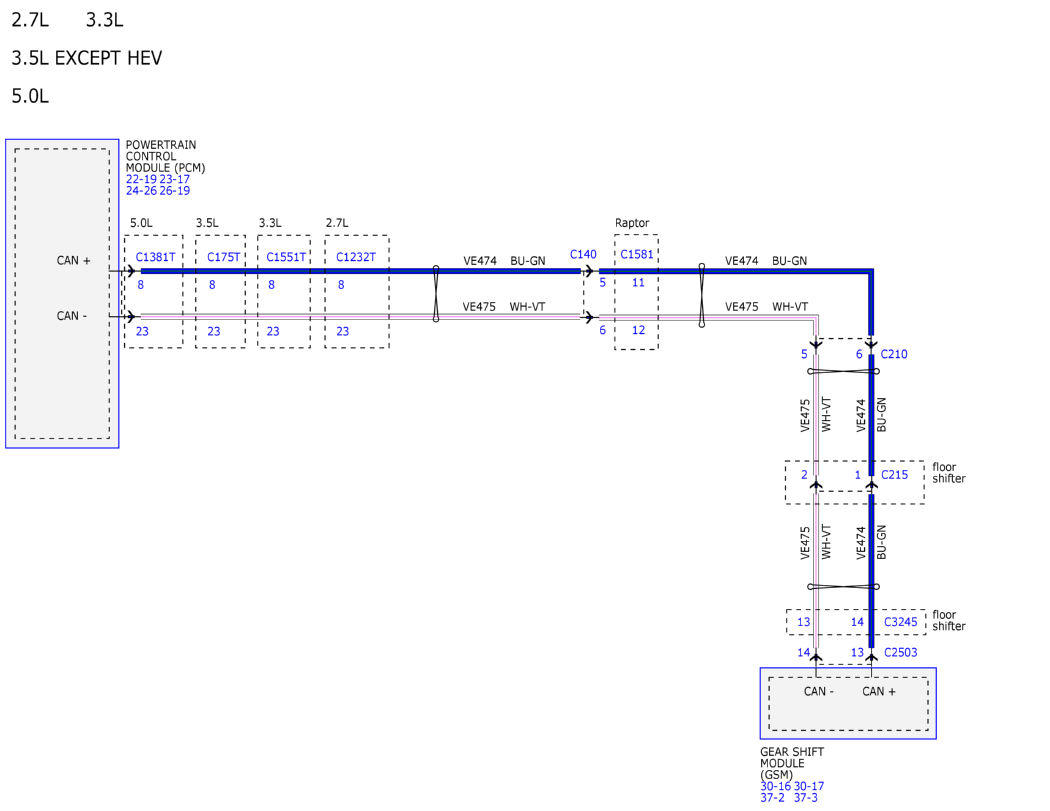

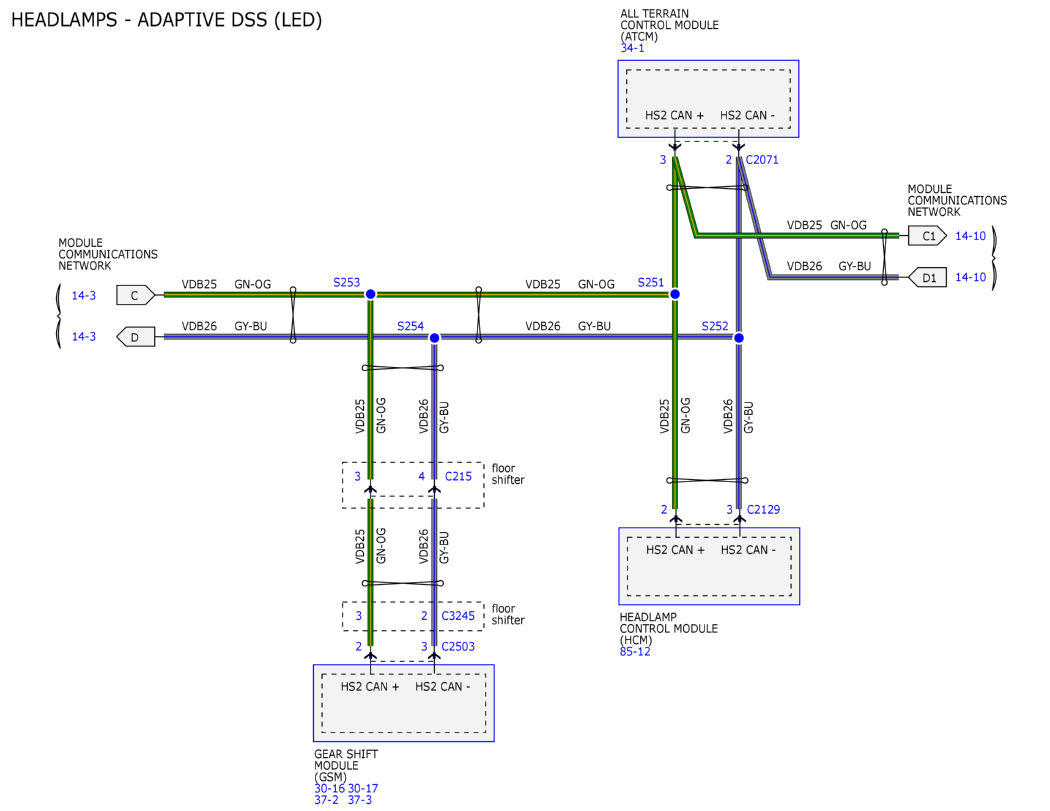

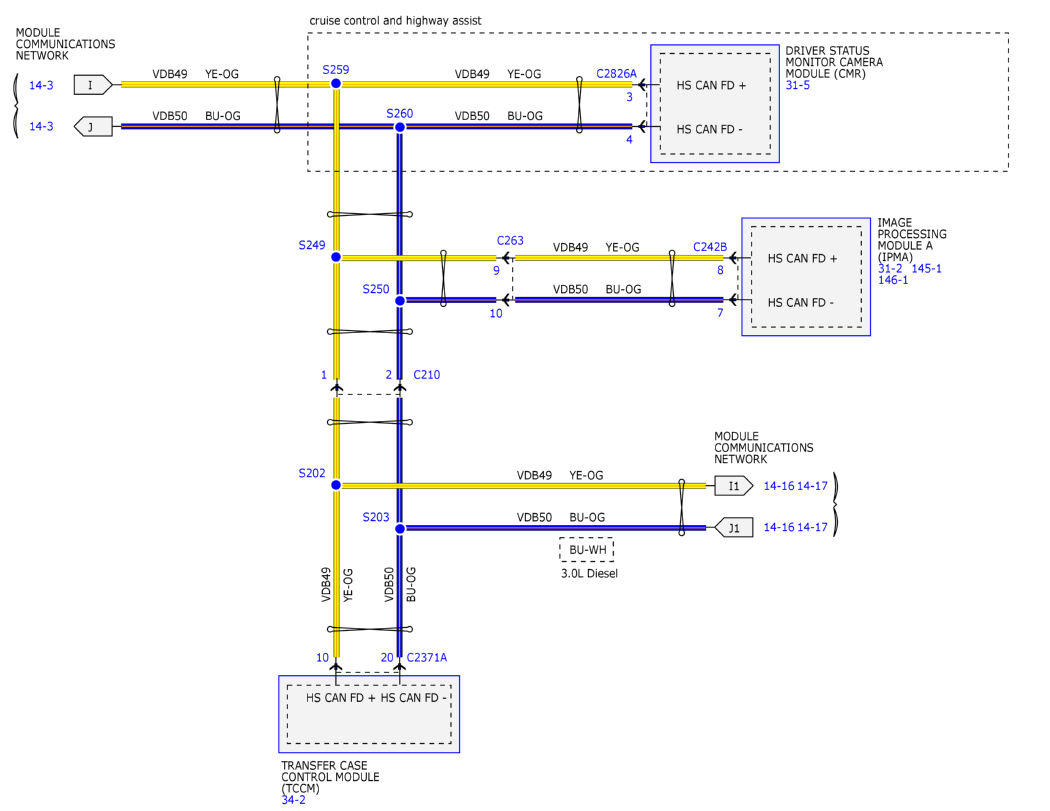

Fig 4: Module Communications Network Wiring Diagram (4 Of 24)
Courtesy of FORD MOTOR COMPANY

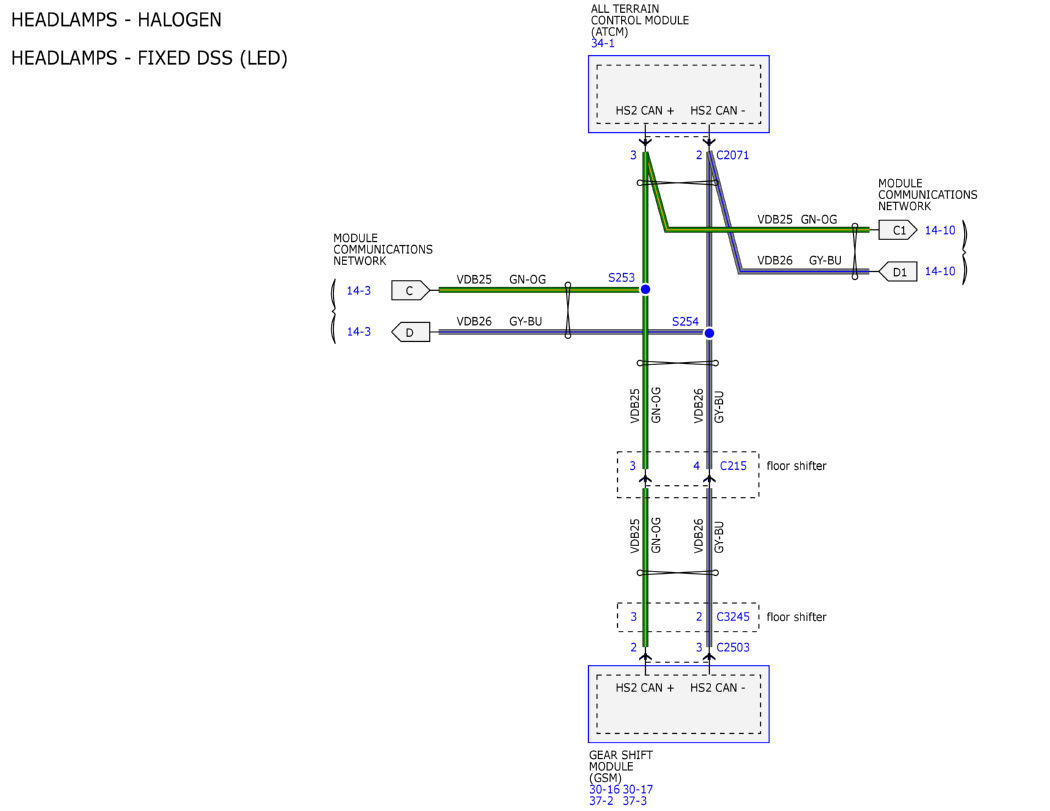

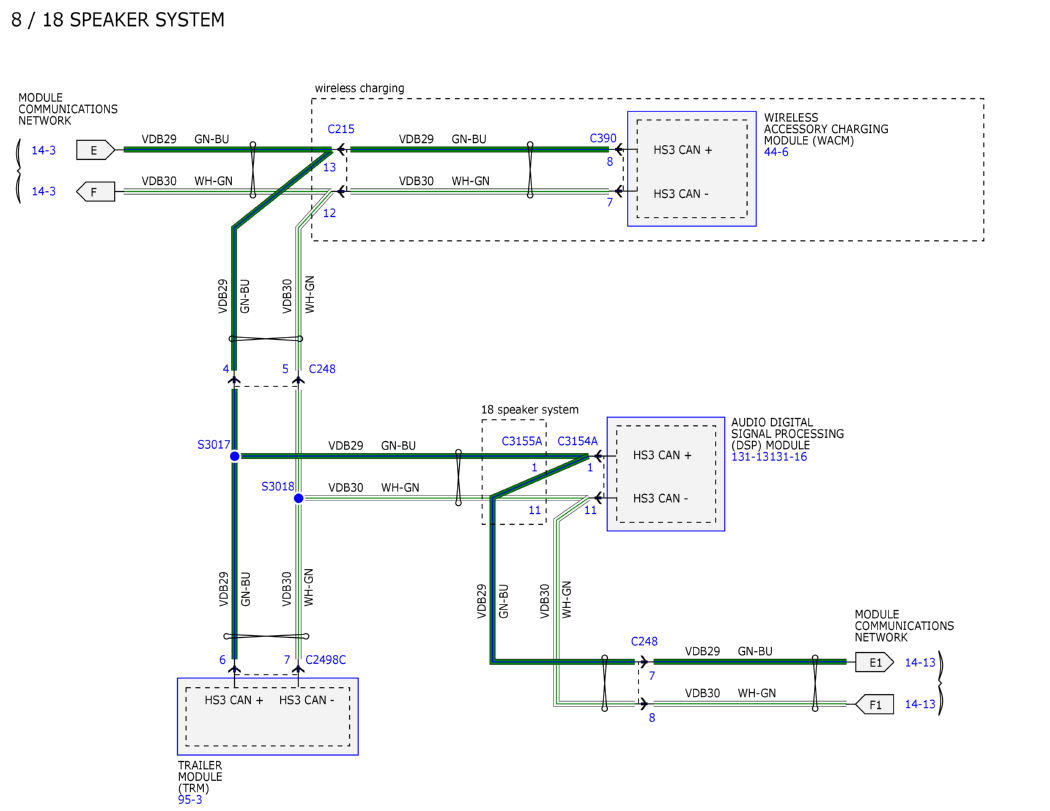

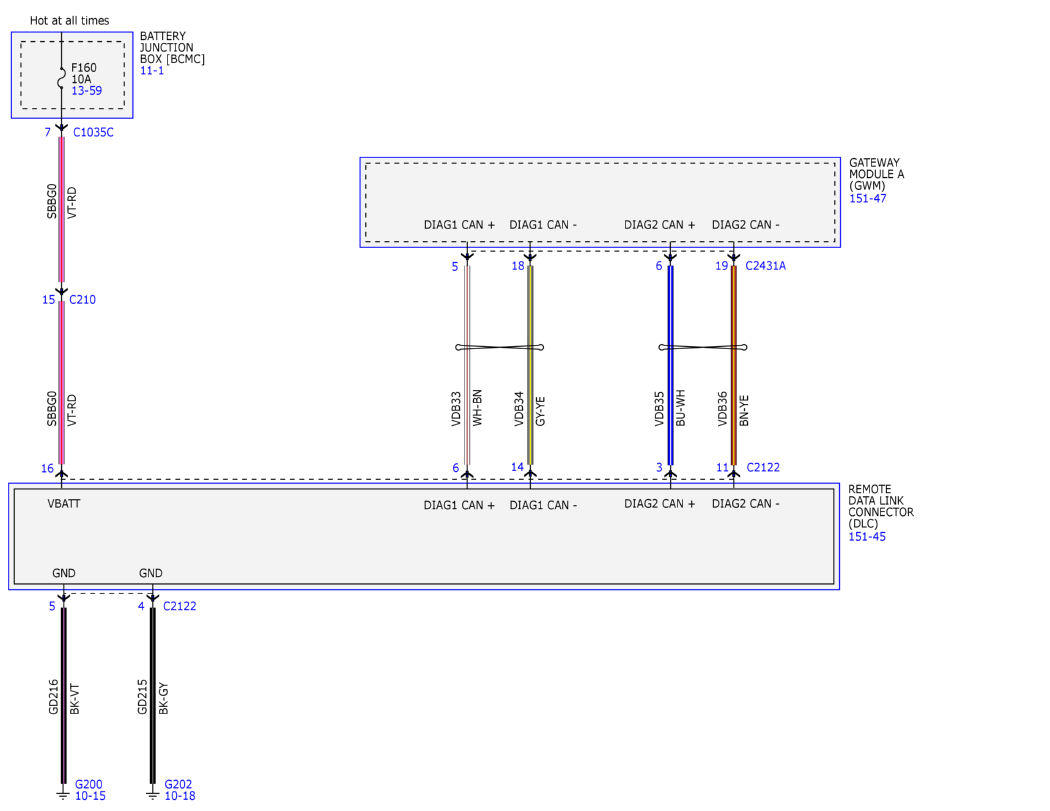

Fig 5: Module Communications Network Wiring Diagram (5 Of 24)
Courtesy of FORD MOTOR COMPANY

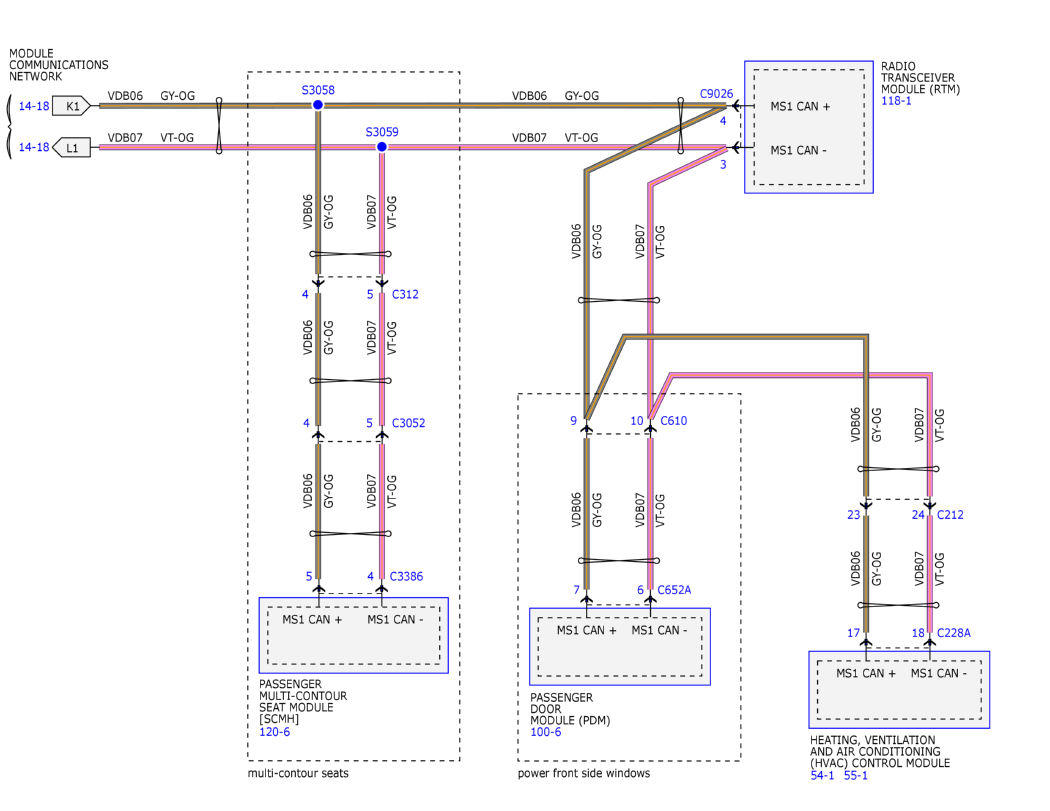

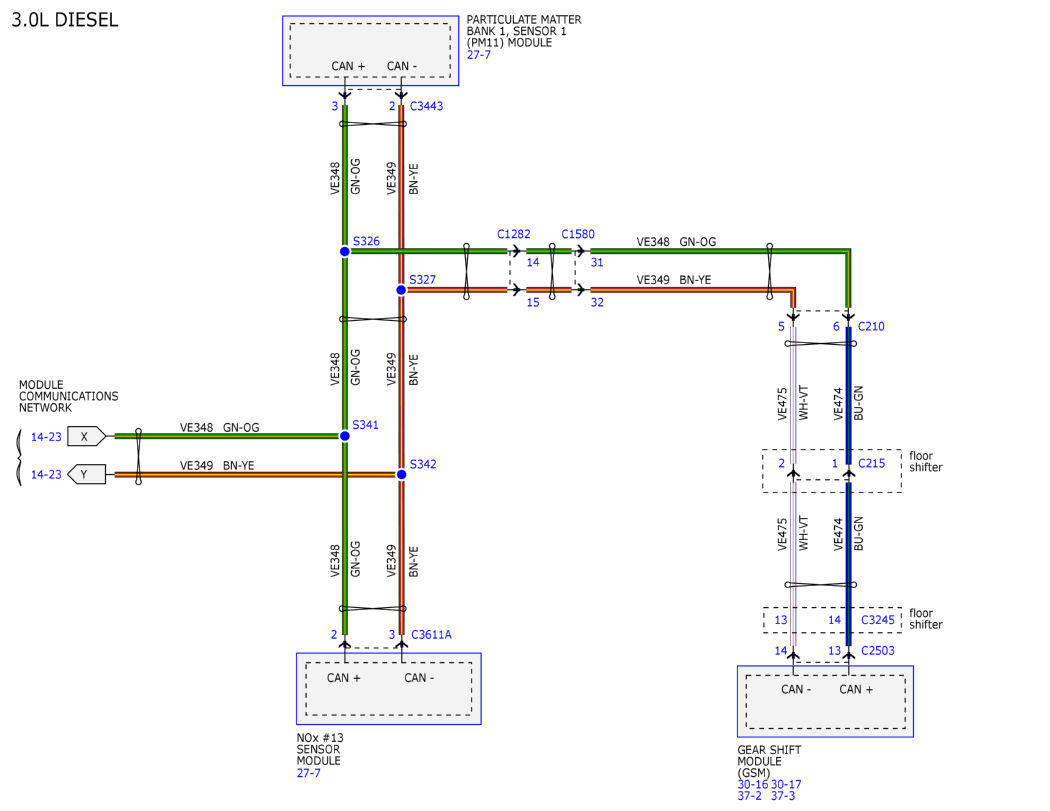

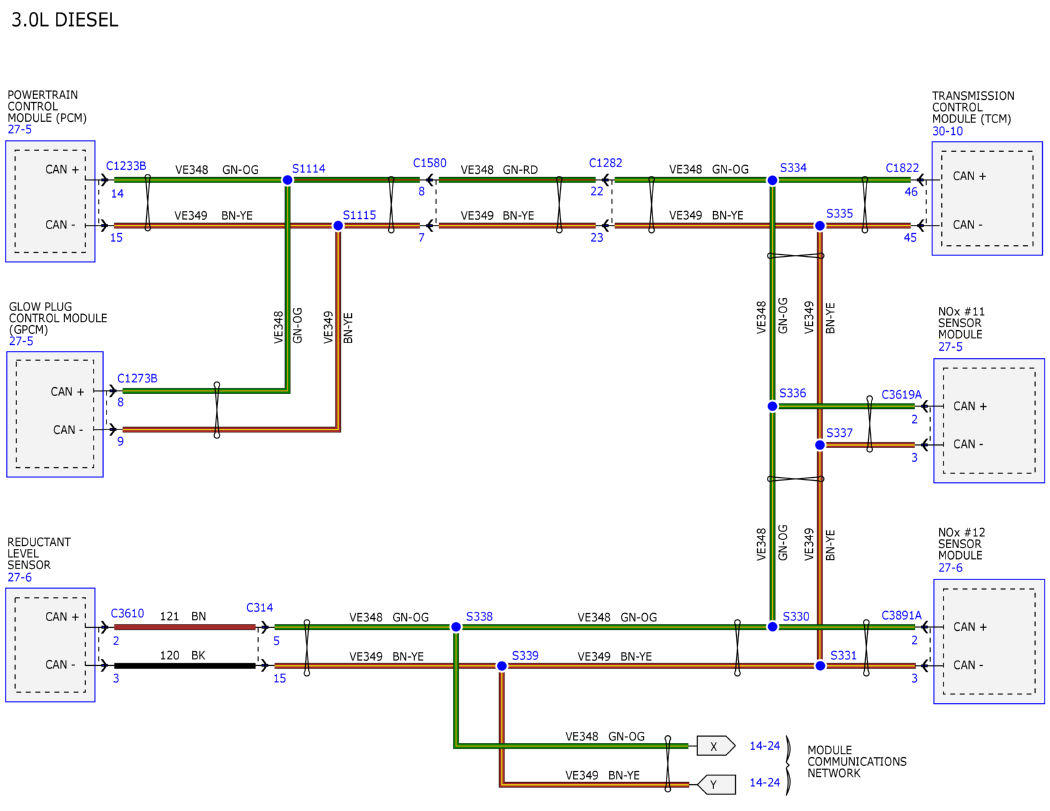

Fig 6: Module Communications Network Wiring Diagram (6 Of 24)
Courtesy of FORD MOTOR COMPANY

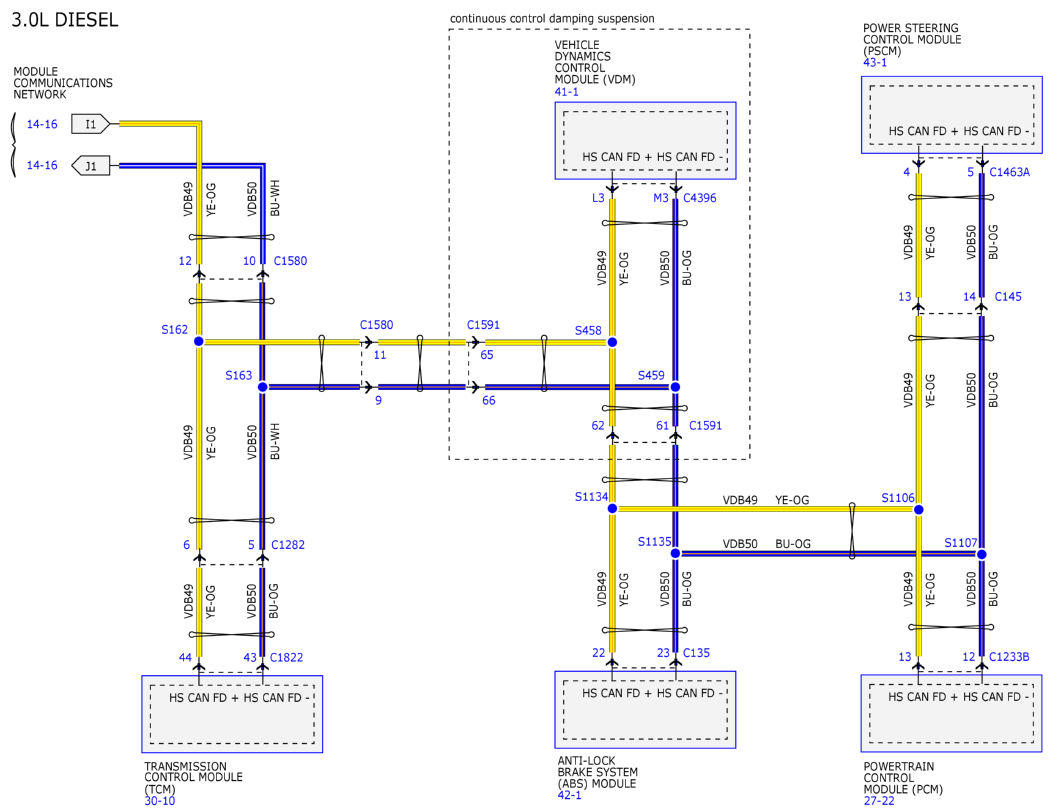

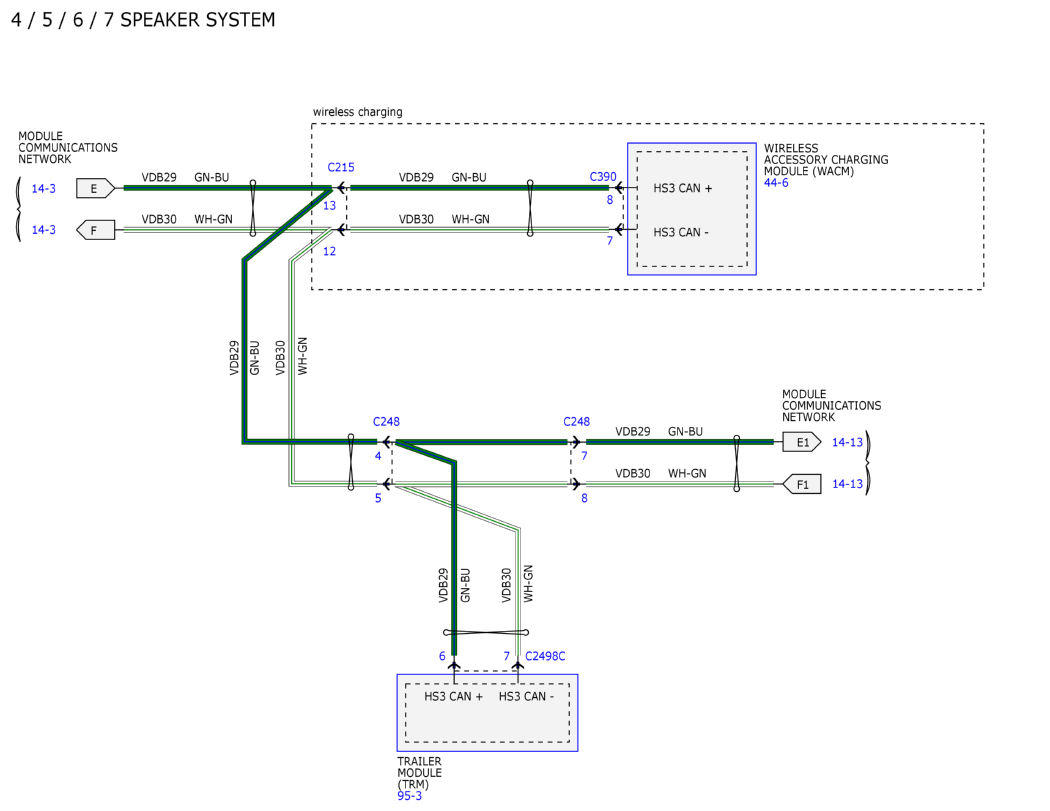

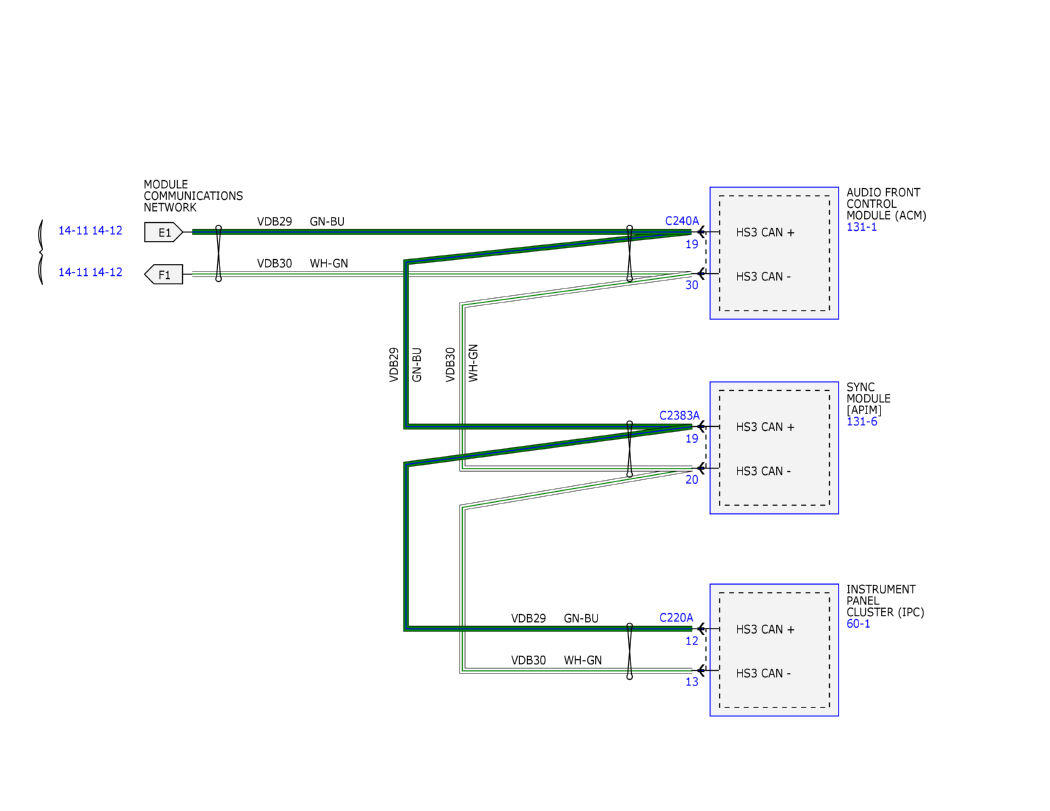

Fig 7: Module Communications Network Wiring Diagram (7 Of 24)
Courtesy of FORD MOTOR COMPANY

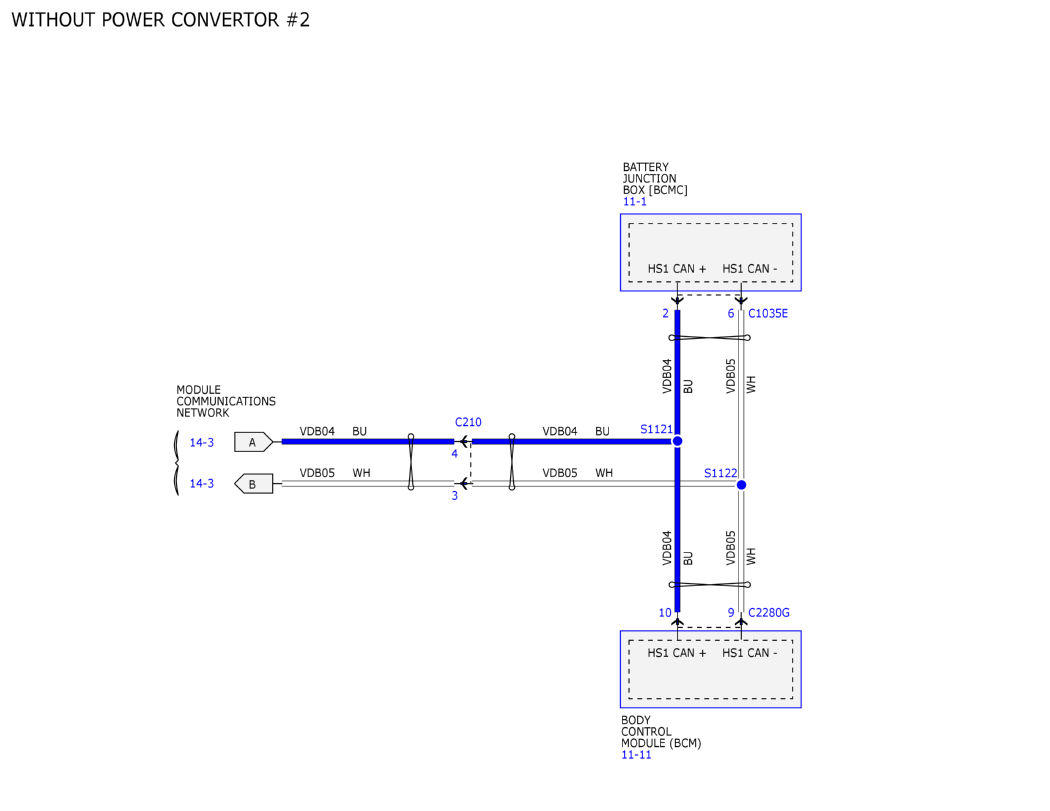

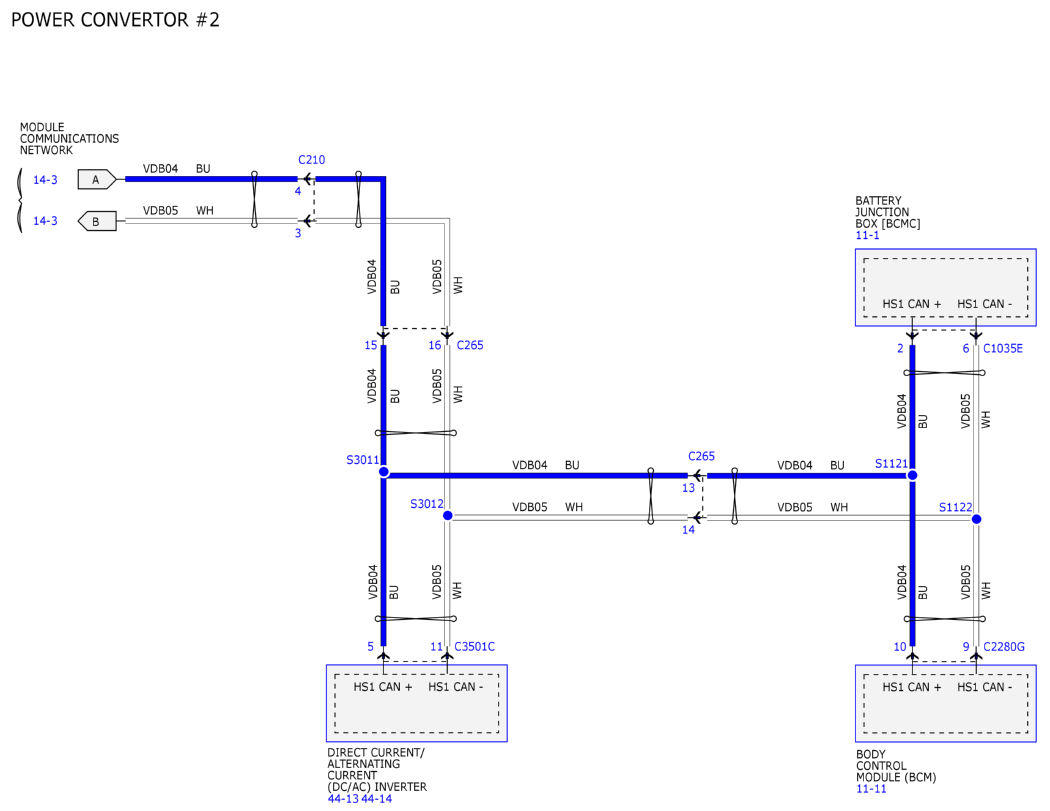

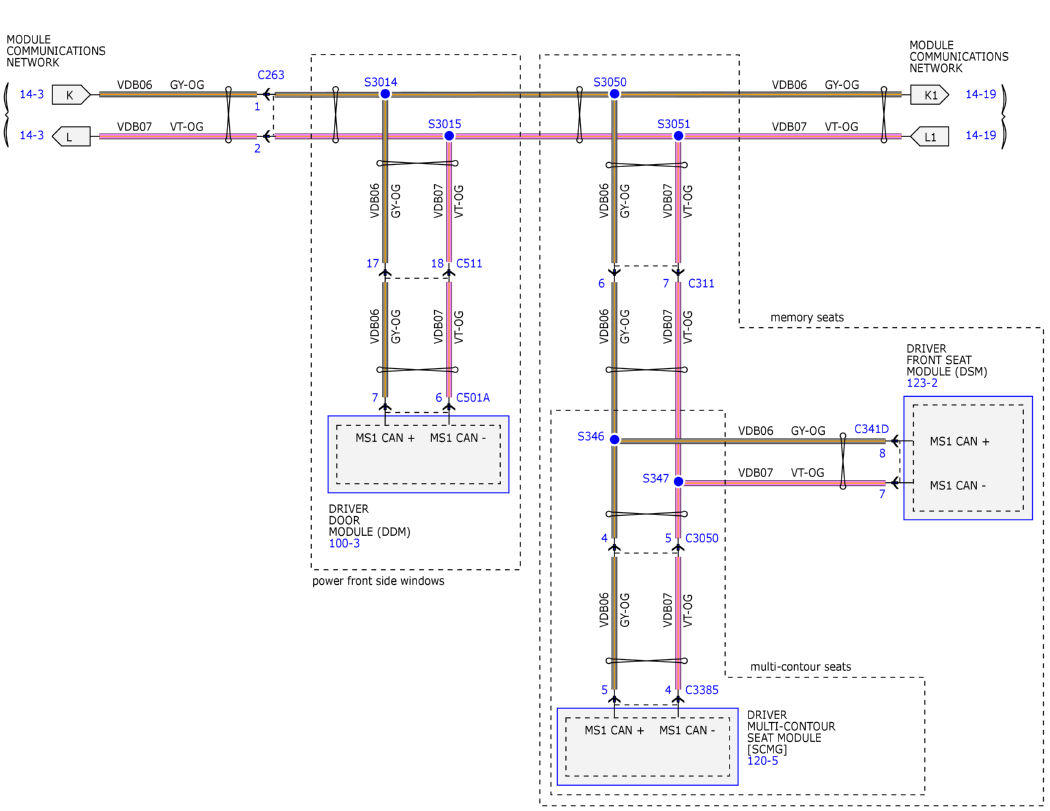

Fig 8: Module Communications Network Wiring Diagram (8 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 9: Module Communications Network Wiring Diagram (9 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 10: Module Communications Network Wiring Diagram (10 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 11: Module Communications Network Wiring Diagram (11 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 12: Module Communications Network Wiring Diagram (12 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 13: Module Communications Network Wiring Diagram (13 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 14: Module Communications Network Wiring Diagram (14 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 15: Module Communications Network Wiring Diagram (15 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 16: Module Communications Network Wiring Diagram (16 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 17: Module Communications Network Wiring Diagram (17 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 18: Module Communications Network Wiring Diagram (18 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 19: Module Communications Network Wiring Diagram (19 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 20: Module Communications Network Wiring Diagram (20 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 21: Module Communications Network Wiring Diagram (21 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 22: Module Communications Network Wiring Diagram (22 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 23: Module Communications Network Wiring Diagram (23 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 24: Module Communications Network Wiring Diagram (24 Of 24)
Courtesy of FORD MOTOR COMPANY
