Axle Assembly: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The removal steps in this procedure may contain installation details.

All vehicles

Remove the front driveshaft. Refer to: Front Driveshaft .
Remove the front halfshafts. Refer to: Halfshaft .
If equipped. Remove the bolts and the rear underbody shield.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the engine front underbody shield.
1. Remove the bolts.
  Torque: 30 lb.ft (40 Nm)
2. Remove the bolts.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

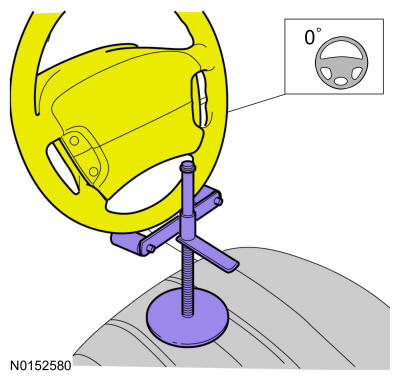

Using a holding device, hold the steering wheel in the straight-ahead position.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

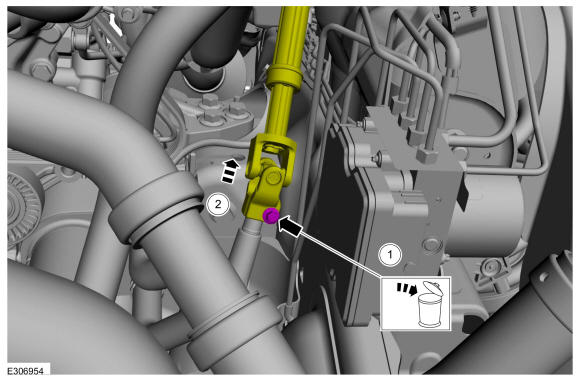

1. Remove and discard the steering column shaft bolt.
  Torque: 22 lb.ft (30 Nm)
2. Separate the steering column shaft U-joint from the steering gear.
Courtesy of FORD MOTOR COMPANY

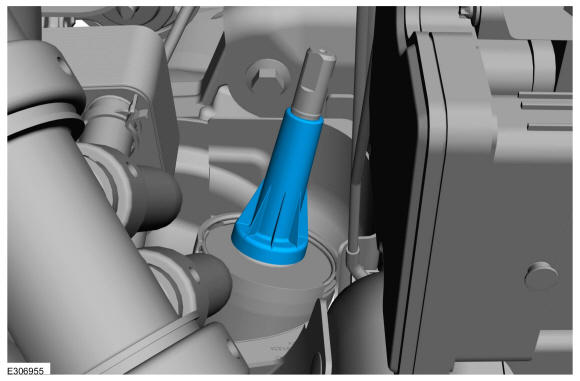

Remove the steering gear boot.

Courtesy of FORD MOTOR COMPANY

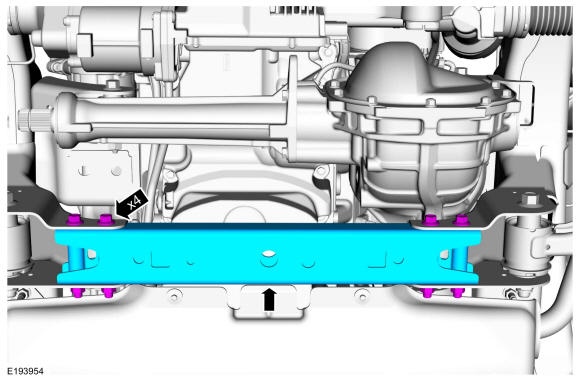

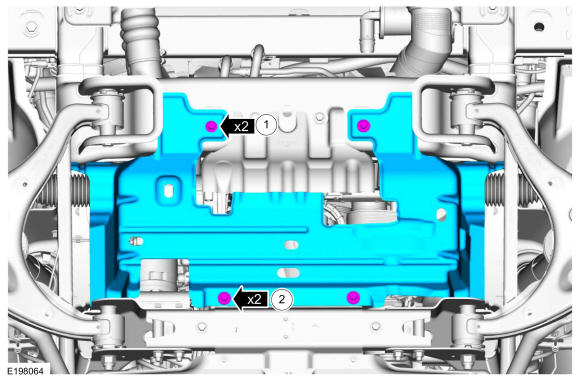

Remove the nuts, bolts and the crossmember.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

3.0L Diesel
Remove the steering gear. Refer to: Steering Gear .
Remove the nuts, bolts and the crossmember.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

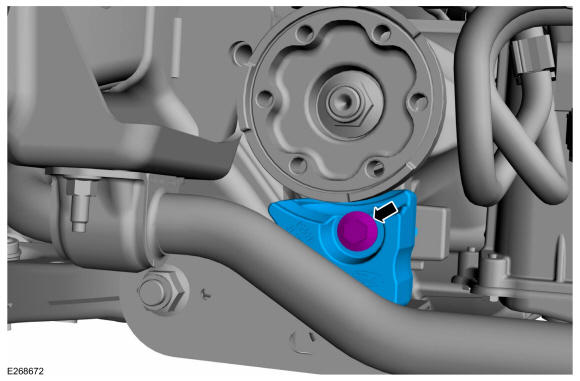

Remove the bolt and the vibration damper from the front differential.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

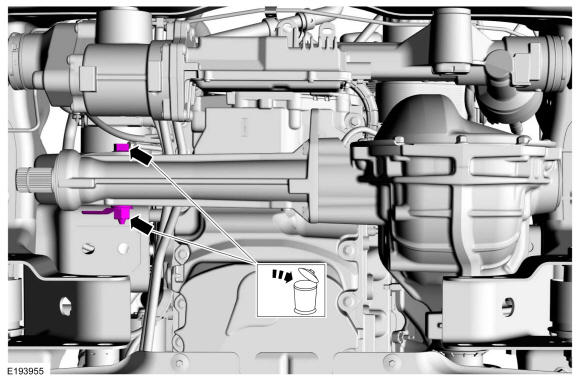

Remove and discard the front axle tube bushing bolt and flagnut.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission jack is not shown for clarity.

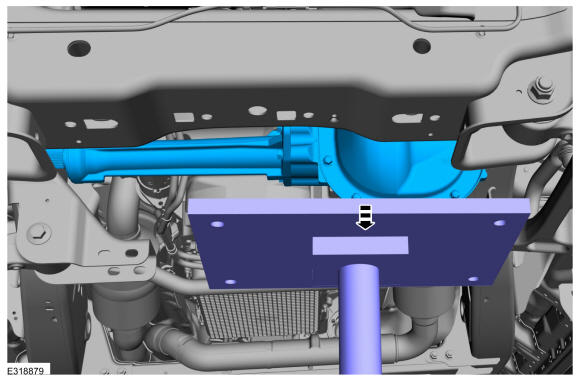

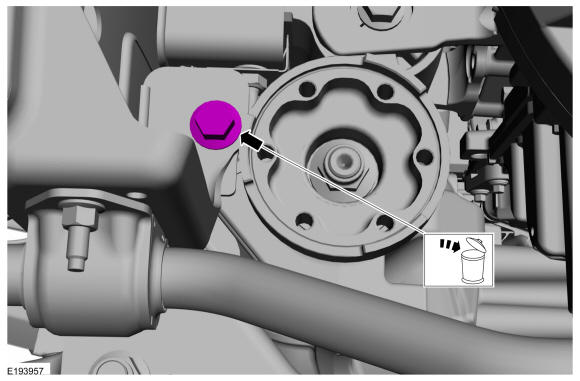

Using the transmission jack for support, remove and discard the front axle housing bushing bolt. Use the General Equipment: Transmission Jack

Torque: 136 lb.ft (185 Nm)

Courtesy of FORD MOTOR COMPANY

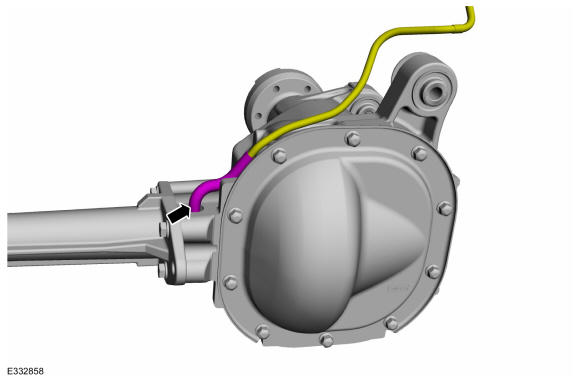

Disconnect the front differential breather hose and position aside.

Courtesy of FORD MOTOR COMPANY

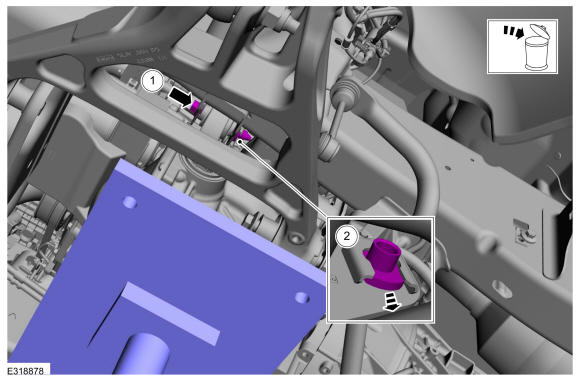

1. With the transmission jack in place to secure the front differential, remove and discard the front axle housing bushing bolt. Use the General Equipment: Transmission Jack
  Torque: 129 lb.ft (175 Nm)
2. Remove and discard the T-nut.
Courtesy of FORD MOTOR COMPANY
Lower the transmission jack and the remove the front axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
