Battery Energy Control Module B (BECMB): Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to health and safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
-
NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current BECMB installed. If the current BECMB does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the BECMB following the on-screen instructions.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the ACM. Refer to: Audio Front Control Module (ACM) - Vehicles Without: SYNC . Refer to: Audio Front Control Module (ACM) - Vehicles With: SYNC . Refer to: Audio Front Control Module (ACM) - Vehicles With: Sony Audio System .
-

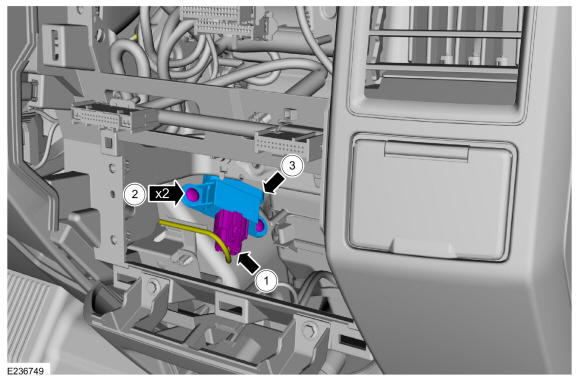

- Disconnect the electrical connector.
- Remove the retainers.
- Remove the BECMB.
