Piston Diameter
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION
Check
-

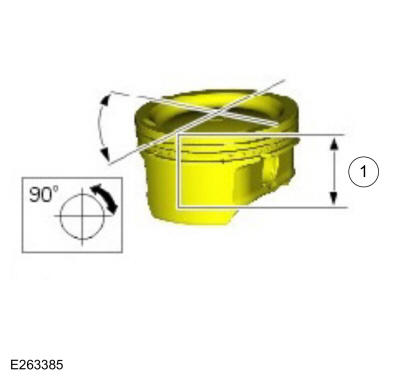

- Measure the piston diameter 90 degrees from the piston pin and piston diameter (DN) height down from the top of the piston at the point indicated.
- Refer to specifications for the piston diameter (DN) height. Refer to: 2.7L EcoBoost Specifications . Refer to: 3.3L Duratec-V6 Specifications . Refer to: 3.5L EcoBoost (BM) Specifications . Refer to: 3.5L V6 PowerBoost (CN) Specifications . Refer to: 3.0L Power Stroke Diesel Specifications .
