Powertrain Control Module (PCM): Removal

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

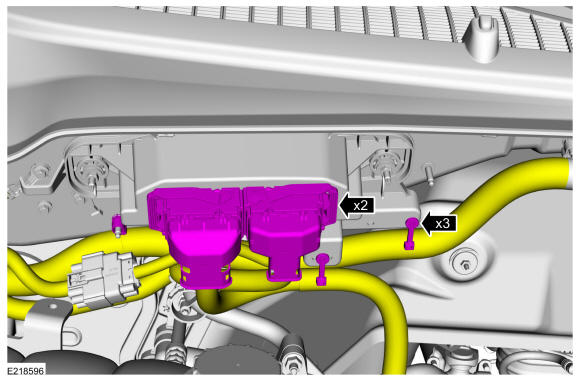

Disconnect the PCM electrical connectors, release the harness retainers to position aside wire harness.

Courtesy of FORD MOTOR COMPANY

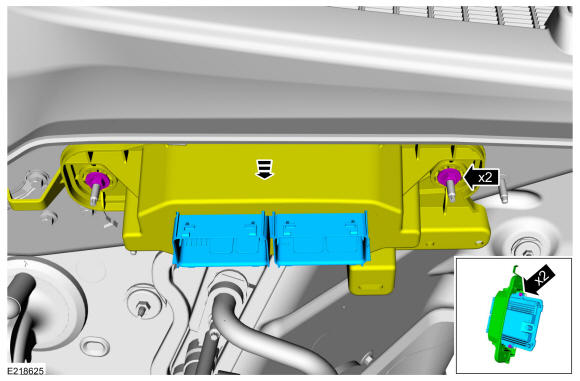

- Remove the 2 retainers and the PCM.
  Torque: 62 lb.in (7 Nm)
- Remove the retainers and remove the PCM from the mounting frame.
  Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
