Pedestrian Alert Control Module (PACM): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

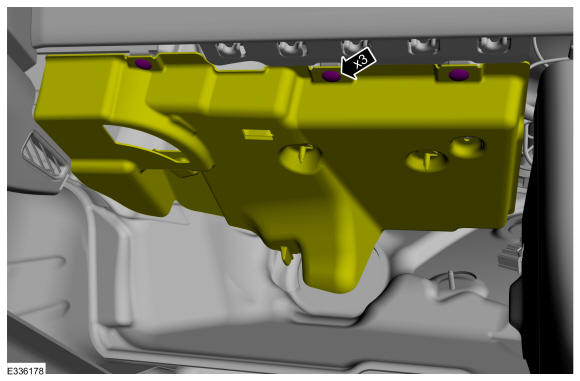

  1. Remove the pin-type retainers and position aside the RH lower instrument panel closeout trim panel.
    GFD560639Courtesy of FORD MOTOR COMPANY

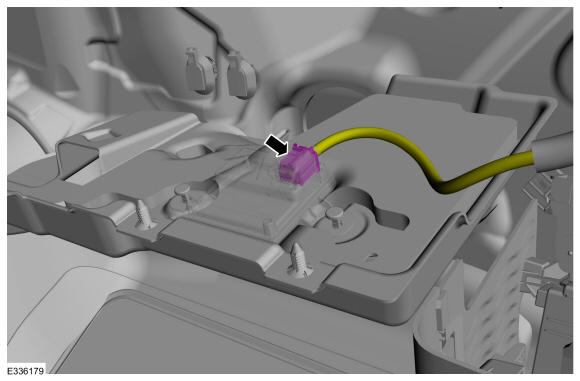

  2. Disconnect the electrical connector.
    GFD560640Courtesy of FORD MOTOR COMPANY

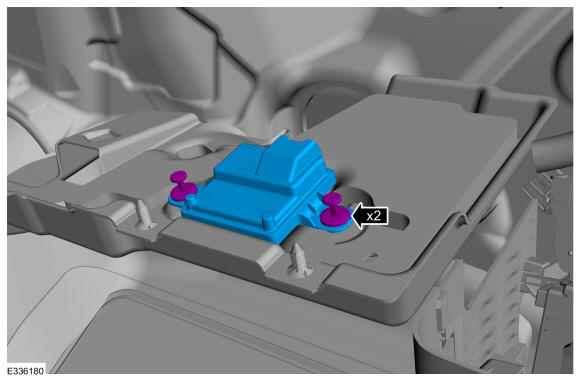

  3. Remove the push pins and the PACM.
GFD560641Courtesy of FORD MOTOR COMPANY
