Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Cruise control module (CCM)

NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

Using a diagnostic scan tool, begin the PMI process for the CCM following the onscreen instructions.
Remove the bolts and the CCM cover.

Courtesy of FORD MOTOR COMPANY
Remove the CCM nuts.

Courtesy of FORD MOTOR COMPANY
Remove the CCM.
1. Release the CCM grommets from the ball studs.
2. Disconnect the CCM electrical connector.
Courtesy of FORD MOTOR COMPANY

Cruise control module (CCM) bracket
Remove the front bumper. Refer to: Front Bumper .

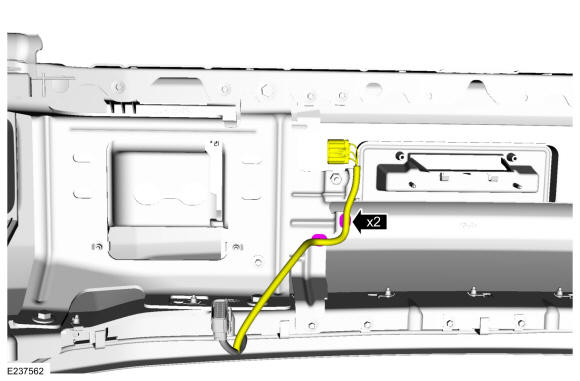

Separate the wiring harness guides and position the harness aside.

Courtesy of FORD MOTOR COMPANY

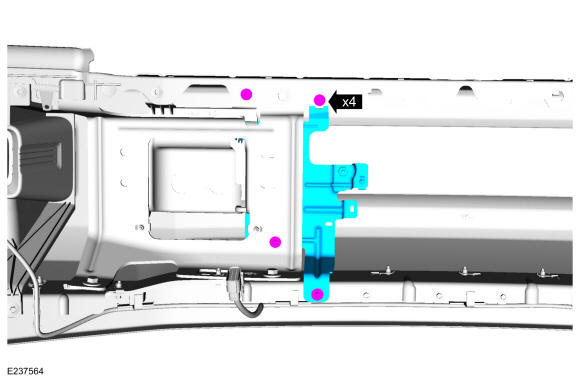

Remove the screws and the CCM bracket.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
