Elevation System Check
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Check
- Turn the ignition ON, engine OFF.
- Set the parking brake.
- Place the gearshift in REVERSE (R) for rear parking aid sensors.
- Place the gearshift in DRIVE (D) for front parking aid sensors.
- Using a diagnostic scan tool, monitor the PAM parking aid sensor distance Parameter Identifications (PIDs) to verify the PAM detects no objects.

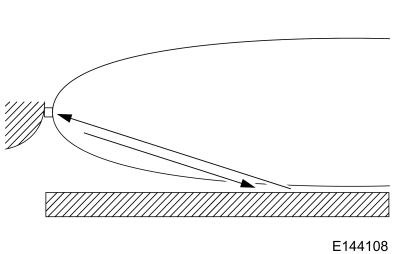

- If the audible warning is heard or if the Parameter Identifications (PIDs) indicate an object is detected, check to make sure the bumper is correctly installed and is not tilted downward so the sensor is pointing at the ground. Refer to Parking Aid .
