Power Transfer Unit

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: This step is only necessary when installing a new component.

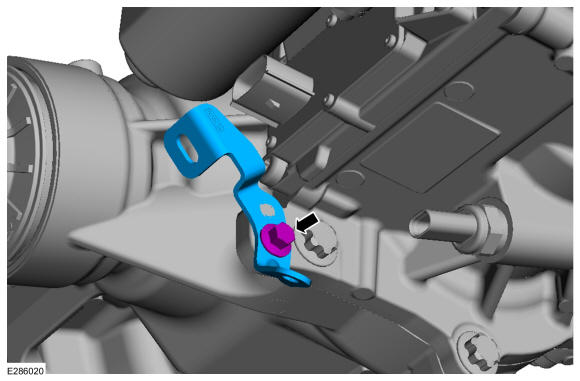

If equipped, install the PTU temperature sensor harness bracket.

Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

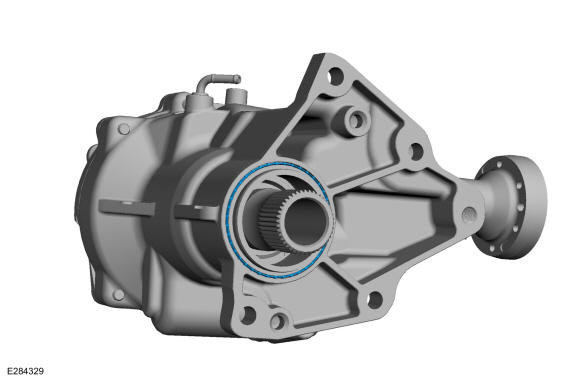

Install the new PTU to transmission compression seal.

Courtesy of FORD MOTOR COMPANY

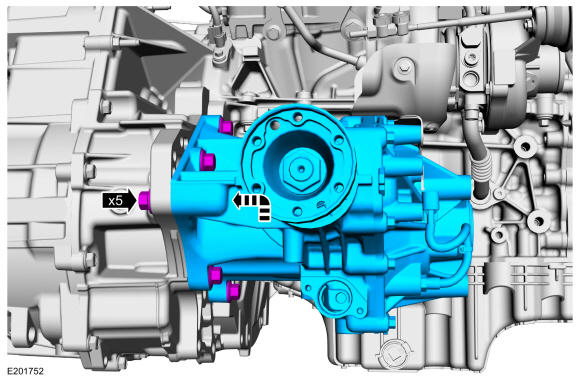

Install the PTU and mounting bolts.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
Install the PTU support bracket and bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the intermediate shaft. Refer to: Intermediate Shaft

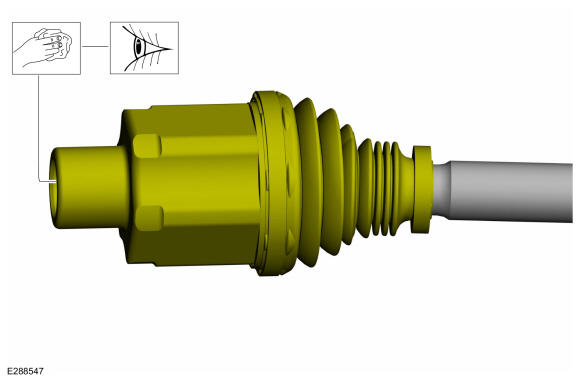

Clean and inspect the inboard end of the halfshaft.

Courtesy of FORD MOTOR COMPANY

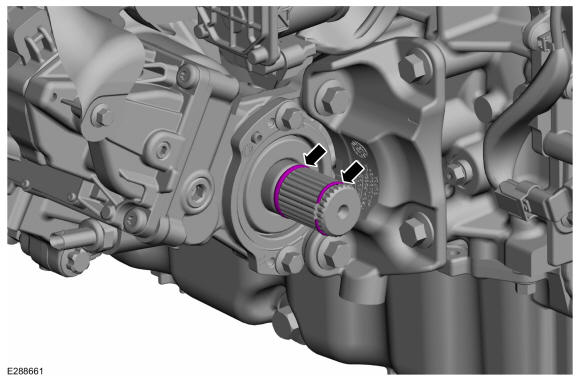

Install the O-Ring and circlip on the intermediate shaft.

Courtesy of FORD MOTOR COMPANY
Install the RH halfshaft on the intermediate shaft.

Courtesy of FORD MOTOR COMPANY
Install the vent hose retainer.

Courtesy of FORD MOTOR COMPANY

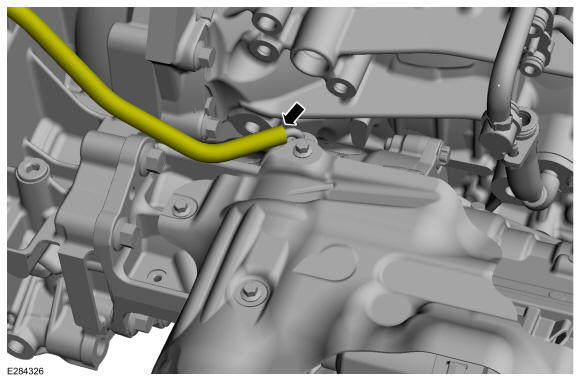

Connect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

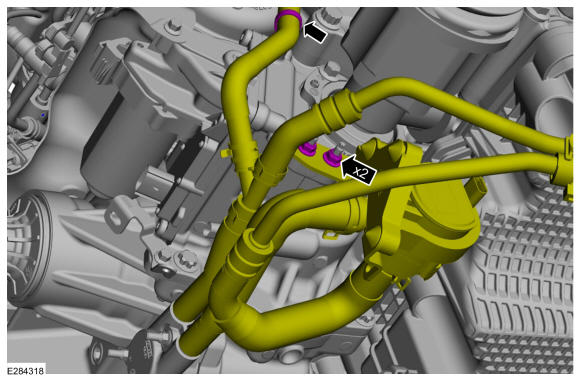

Install the coolant pump and hoses. Install the pump mounting nuts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

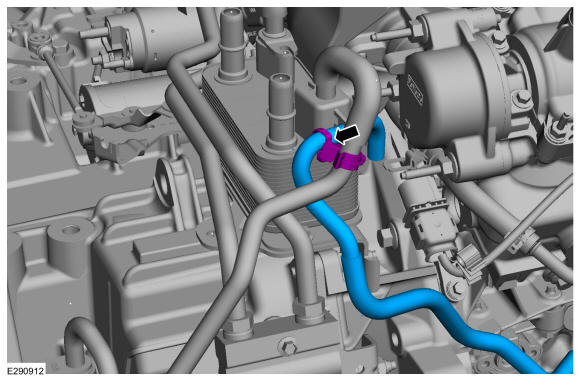

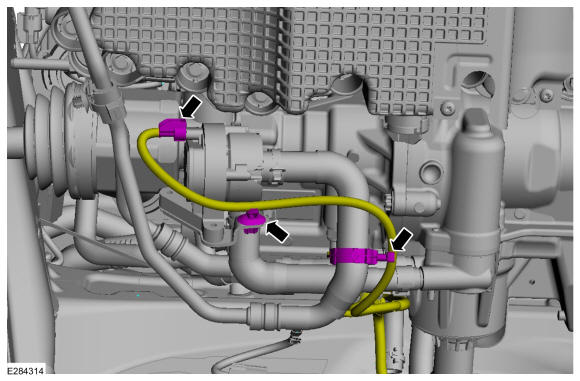

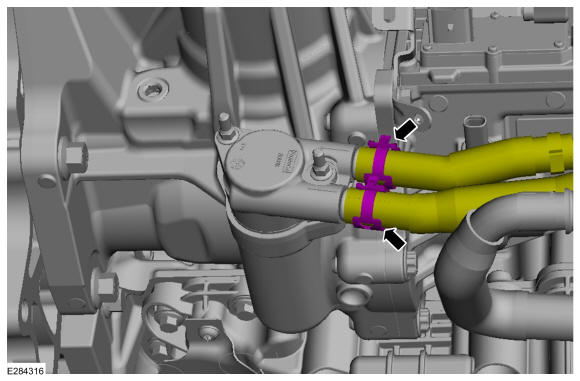

Install the PTU cooling system hoses and connect the hose clamps. Remove the hose clamp pliers.

Courtesy of FORD MOTOR COMPANY
If equipped, connect the PTU temperature sensor and install retainers.

Courtesy of FORD MOTOR COMPANY

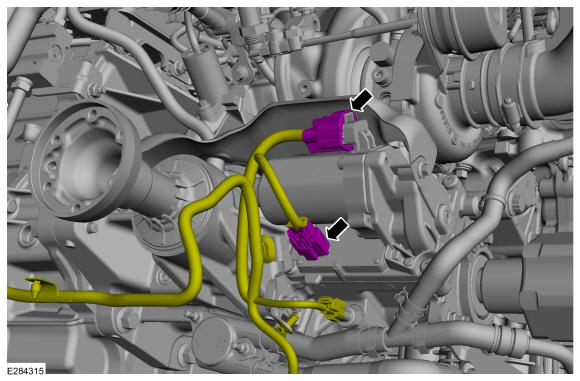

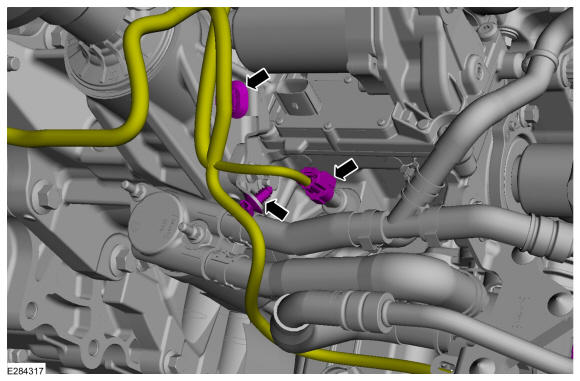

Connect the PTU motor connectors.

Courtesy of FORD MOTOR COMPANY
Connect the auxillary pump connector and retainers.

Courtesy of FORD MOTOR COMPANY

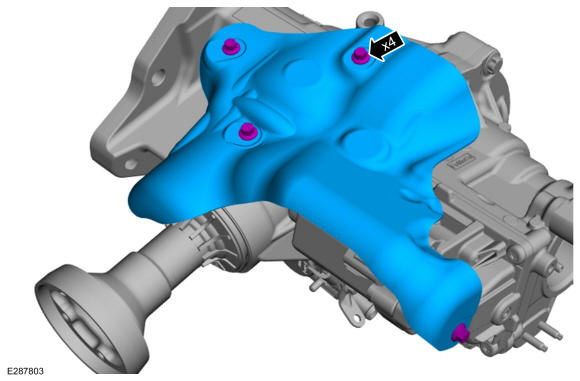

Install the PTU heat shield and PTU heat shield bolts.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

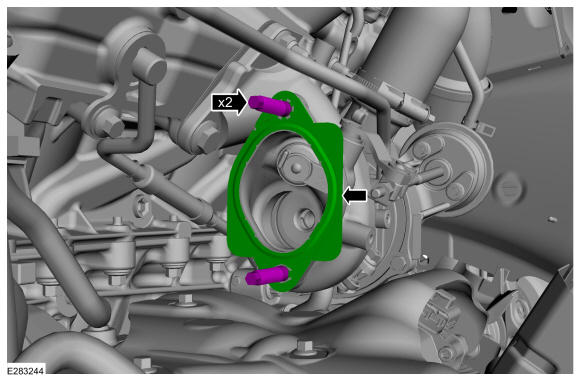

Install new studs and gasket.

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

Position back the catalytic converter in the vehicle. Loosely install the catalytic converter mount bracket bolts.

Courtesy of FORD MOTOR COMPANY

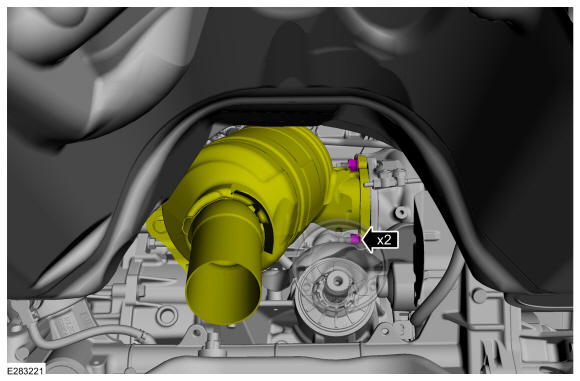

Install the catalytic converter to turbo flange nuts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

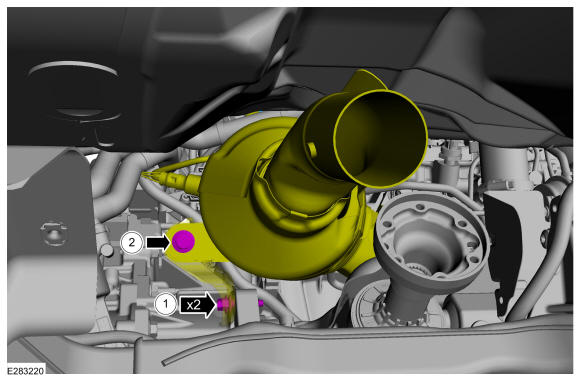

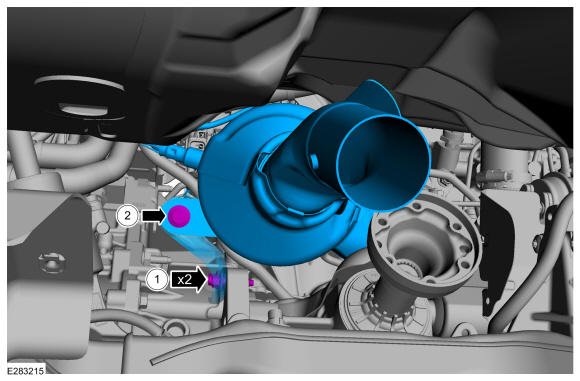

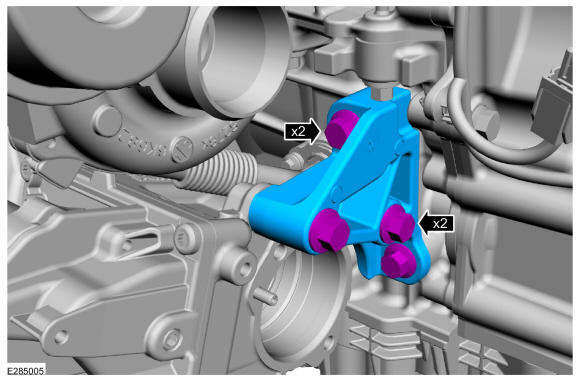

Tighten the catalytic converter mount bracket bolts.
Torque

: Bolts: 22 lb.ft (30 Nm) Through bolt: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

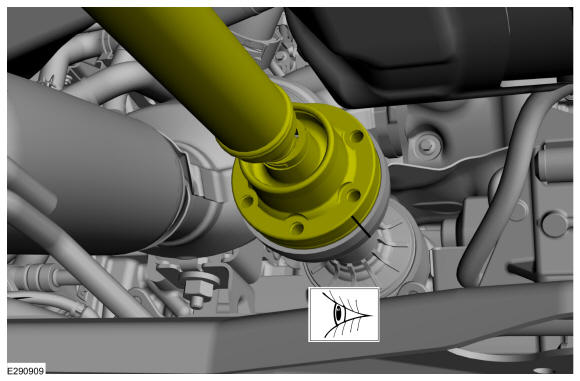

NOTE: Make sure that the installation marks are aligned.

Courtesy of FORD MOTOR COMPANY

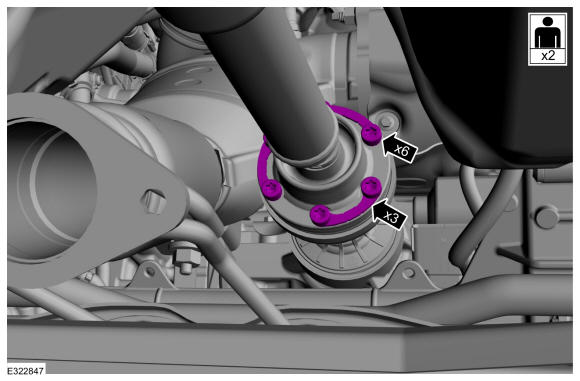

Install new PTU flange bolts.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

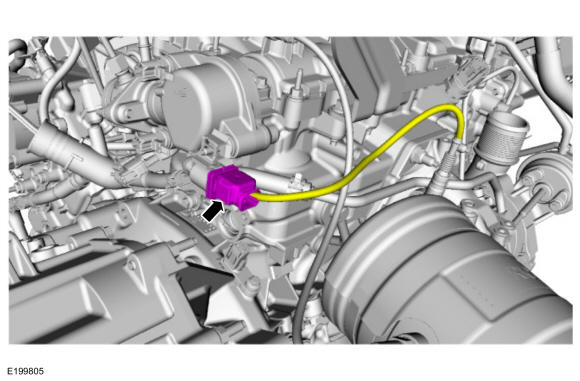

Connect the catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY

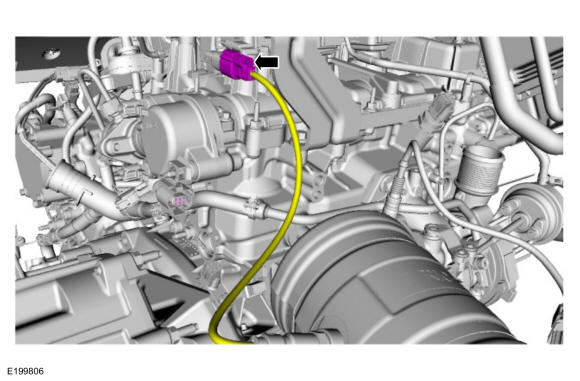

Connect the HO2S.

Courtesy of FORD MOTOR COMPANY
Install the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe
Install the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH

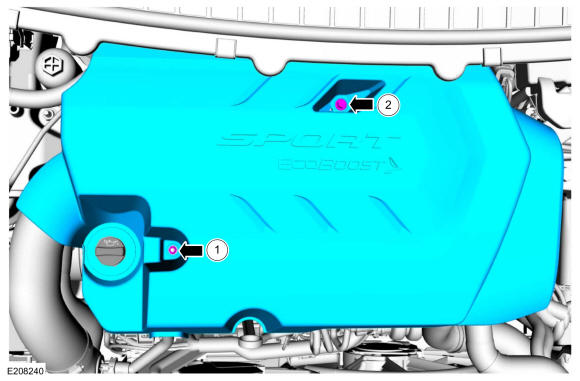

Install the engine appearance cover.
Torque

: Nut: 42 lb.in (4.8 Nm) Bolt: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
Check PTU fluid level and adjust as necessary. Refer to: Power Transfer Unit Fluid Level Check
Install the front subframe. Refer to: Front Subframe
Check the engine coolant level and adjust as necessary. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check
