Power Transfer Unit Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
- If equipped, remove the underbody shield.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
- Disconnect the auxiliary pump connector and retainers.
- Release the clamps and disconnect the hoses.

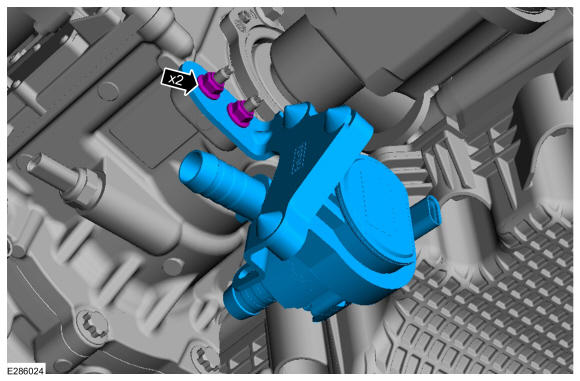

- Remove the nuts and the PTU coolant pump.
Torque
: 80 lb.in (9 Nm)
