Power Transfer Unit Input Shaft Seal RH: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the new seal in installed correctly.

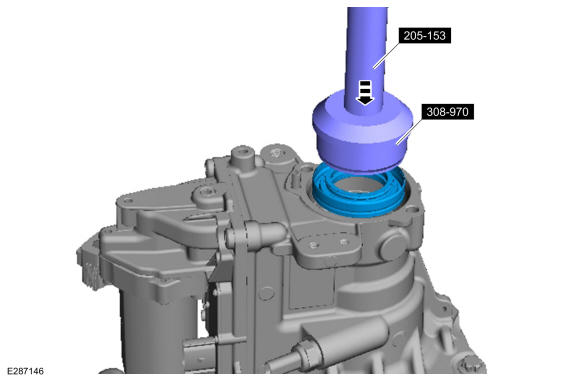

Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-970 Installer, RH halfshaft Seal.

Courtesy of FORD MOTOR COMPANY
Install the intermediate shaft. Refer to: Intermediate Shaft
