Power Transfer Unit Input Shaft Seal RH: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
- Remove the intermediate shaft. Refer to: Intermediate Shaft

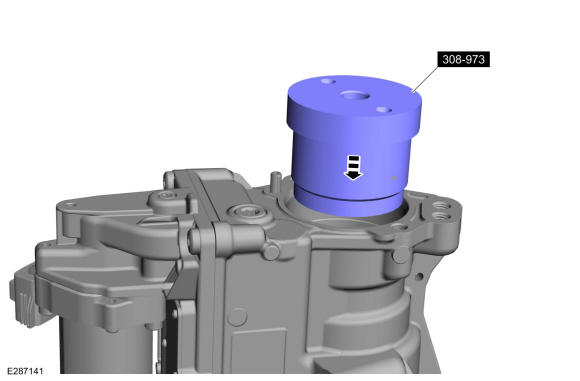

- Position the tool on top of the seal. Use Special Service Tool: 308-973 Remover, PTU Input Sleeve.
-
NOTE: Make sure piercing tool stops on the sleeve tool for proper piercing of the seal.

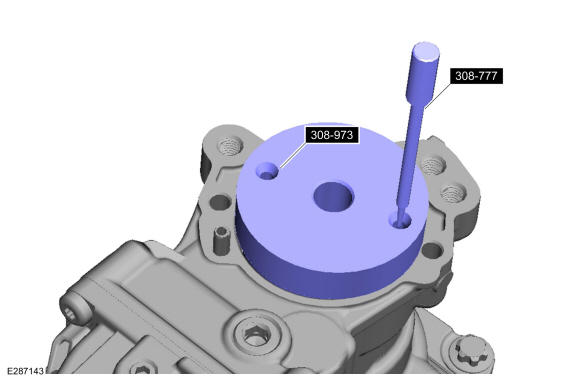

Using the tool, pierce the seal. Use Special Service Tool: 308-973 Remover, PTU Input Sleeve., 308-777 Remover and Installer, PTU Input Shaft Seal.

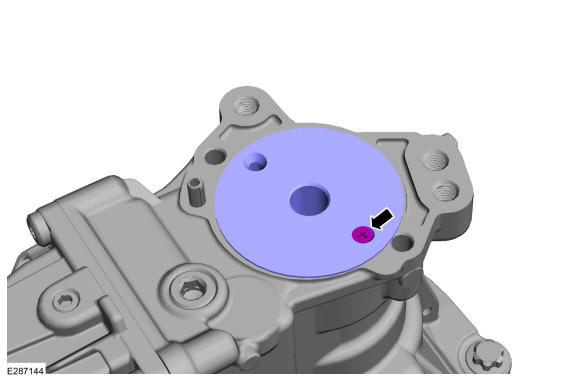

- Install the screws and tighten until the tool firmly attaches to the seal. Use Special Service Tool: 308-973 Remover, PTU Input Sleeve.
-
NOTE: Make sure piercing tool stops on the sleeve tool for proper piercing of the seal.

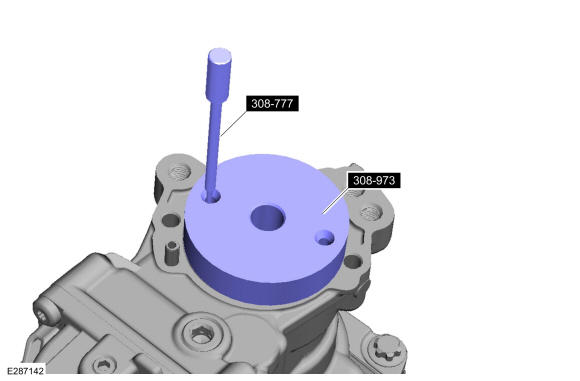

Using the tool, pierce the seal. Use Special Service Tool: 308-973 Remover, PTU Input Sleeve., 308-777 Remover and Installer, PTU Input Shaft Seal.

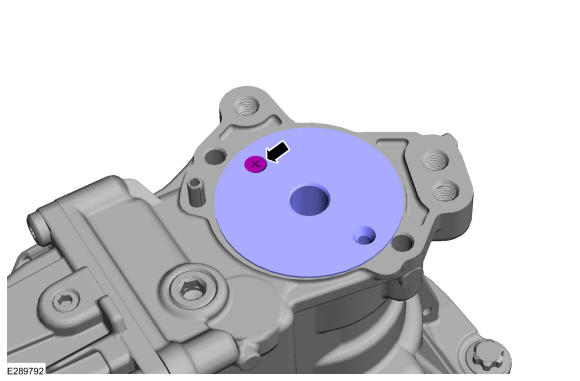

- Install the screws and tighten until the tool firmly attaches to the seal. Use Special Service Tool: 308-973 Remover, PTU Input Sleeve.

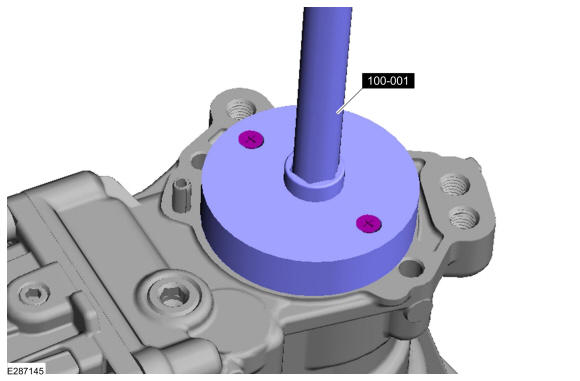

- Using the tool, remove the seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer.
