Component Testing

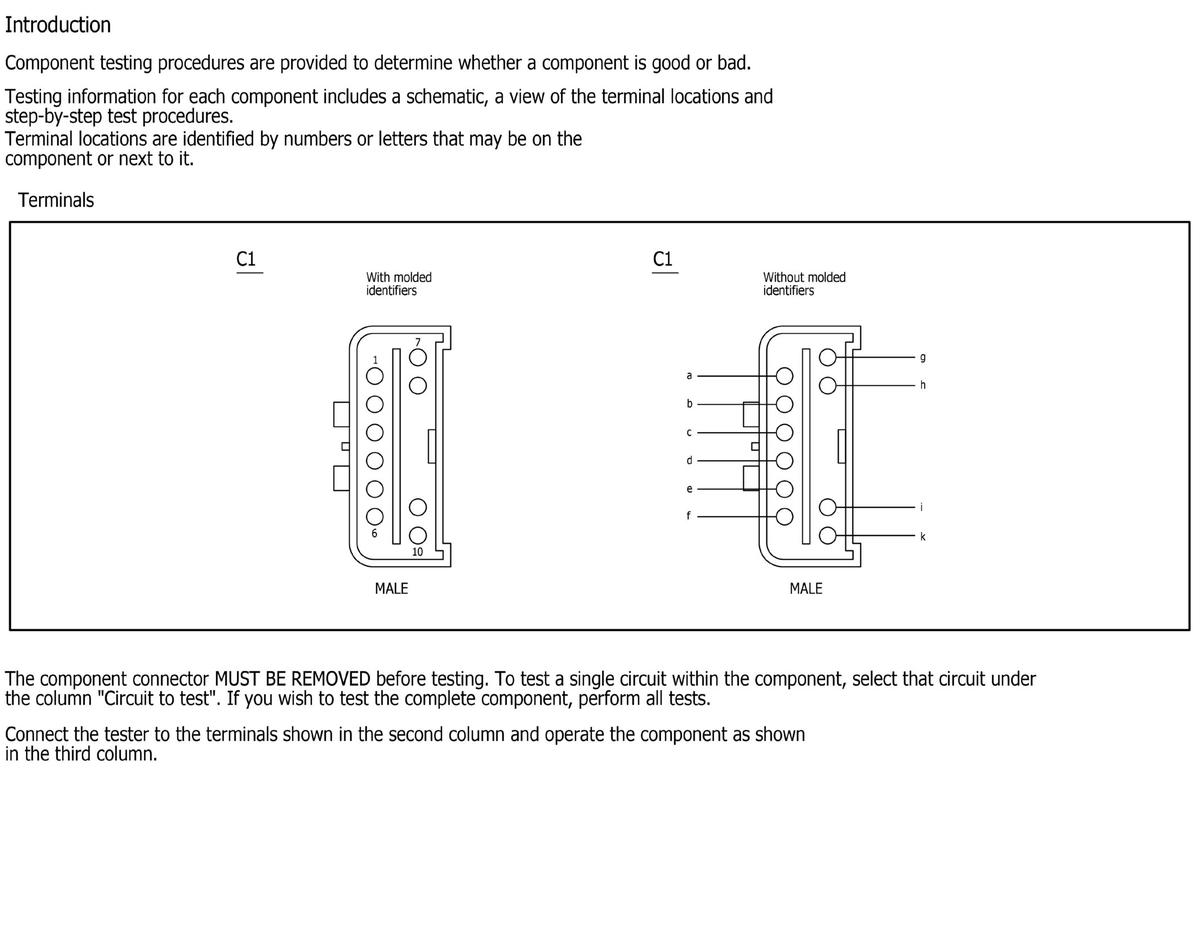

Fig 1: Component Testing Introduction
GFDWR139348Courtesy of FORD MOTOR COMPANY

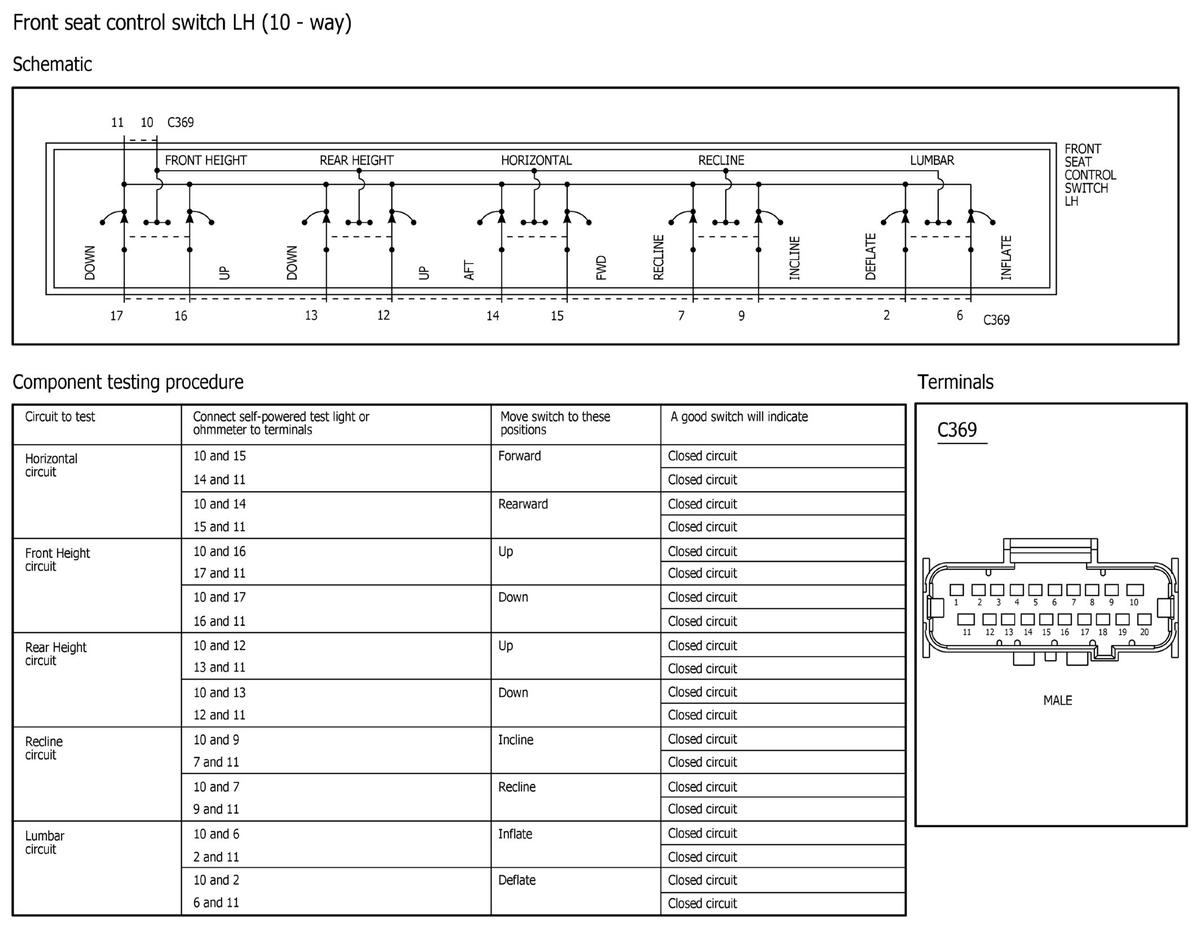

Fig 2: Front Seat Control Switch LH (10-Way) Component Testing
GFDWR139354Courtesy of FORD MOTOR COMPANY

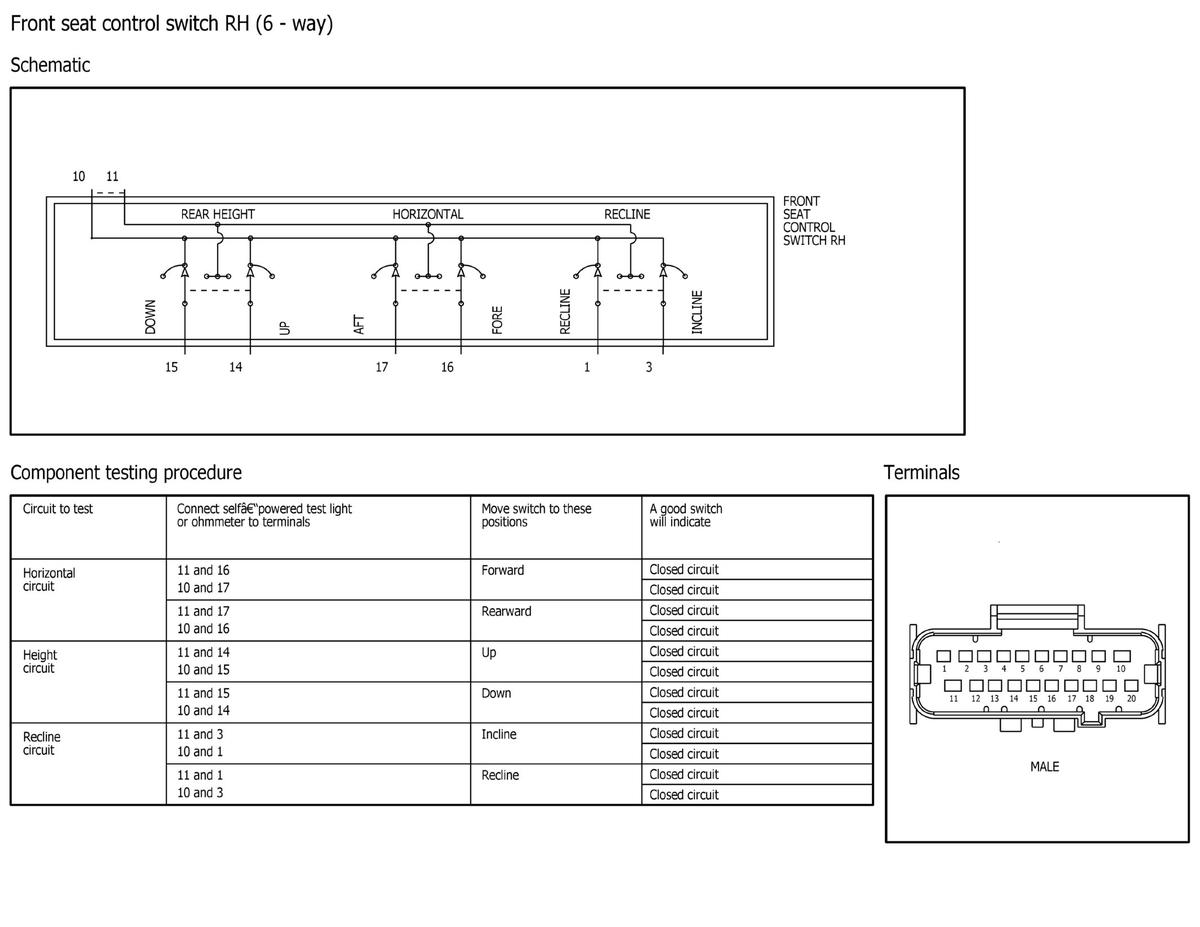

Fig 3: Front Seat Control Switch RH (6-Way) Component Testing
GFDWR139355Courtesy of FORD MOTOR COMPANY

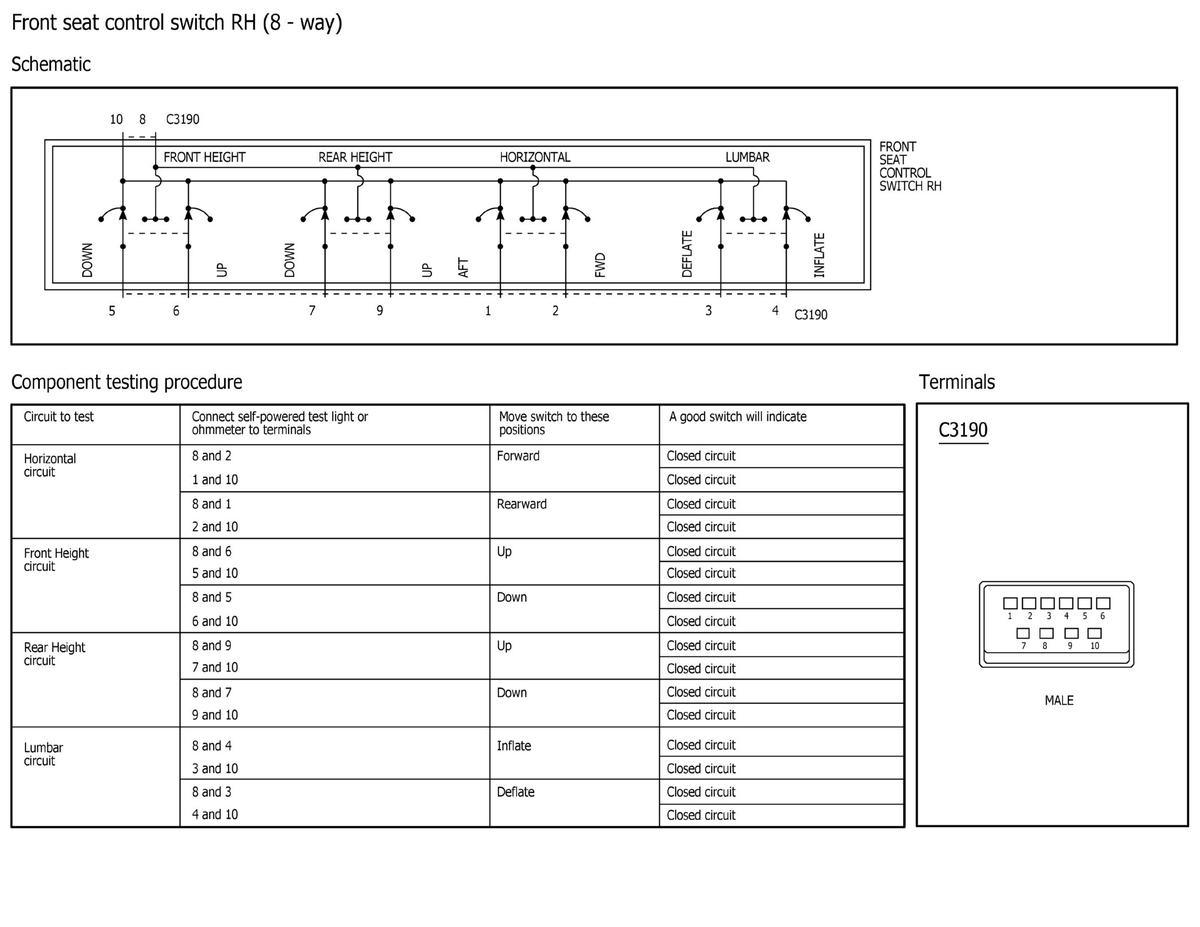

Fig 4: Front Seat Control Switch RH (8-Way) Component Testing
GFDWR139356Courtesy of FORD MOTOR COMPANY

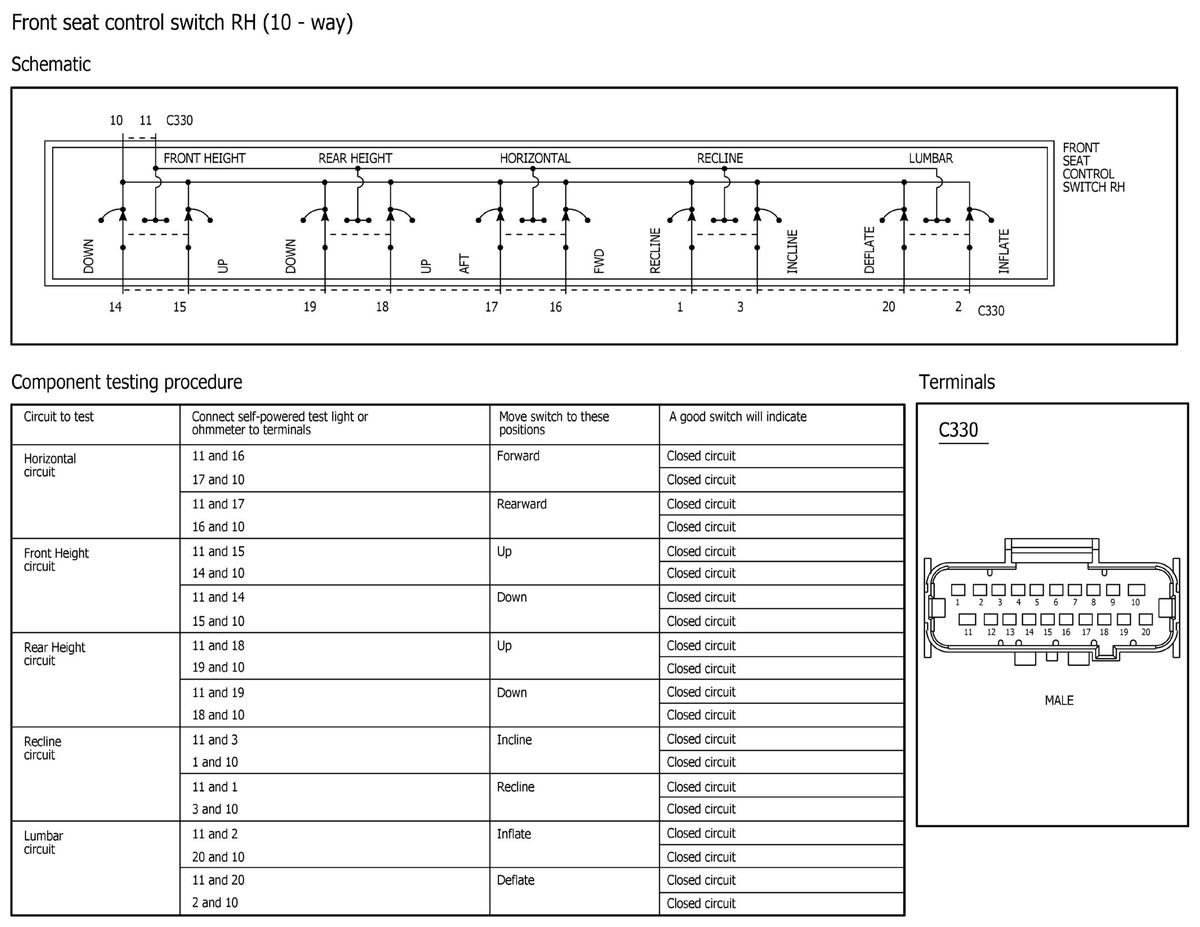

Fig 5: Front Seat Control Switch RH (10-Way) Component Testing
GFDWR139357Courtesy of FORD MOTOR COMPANY

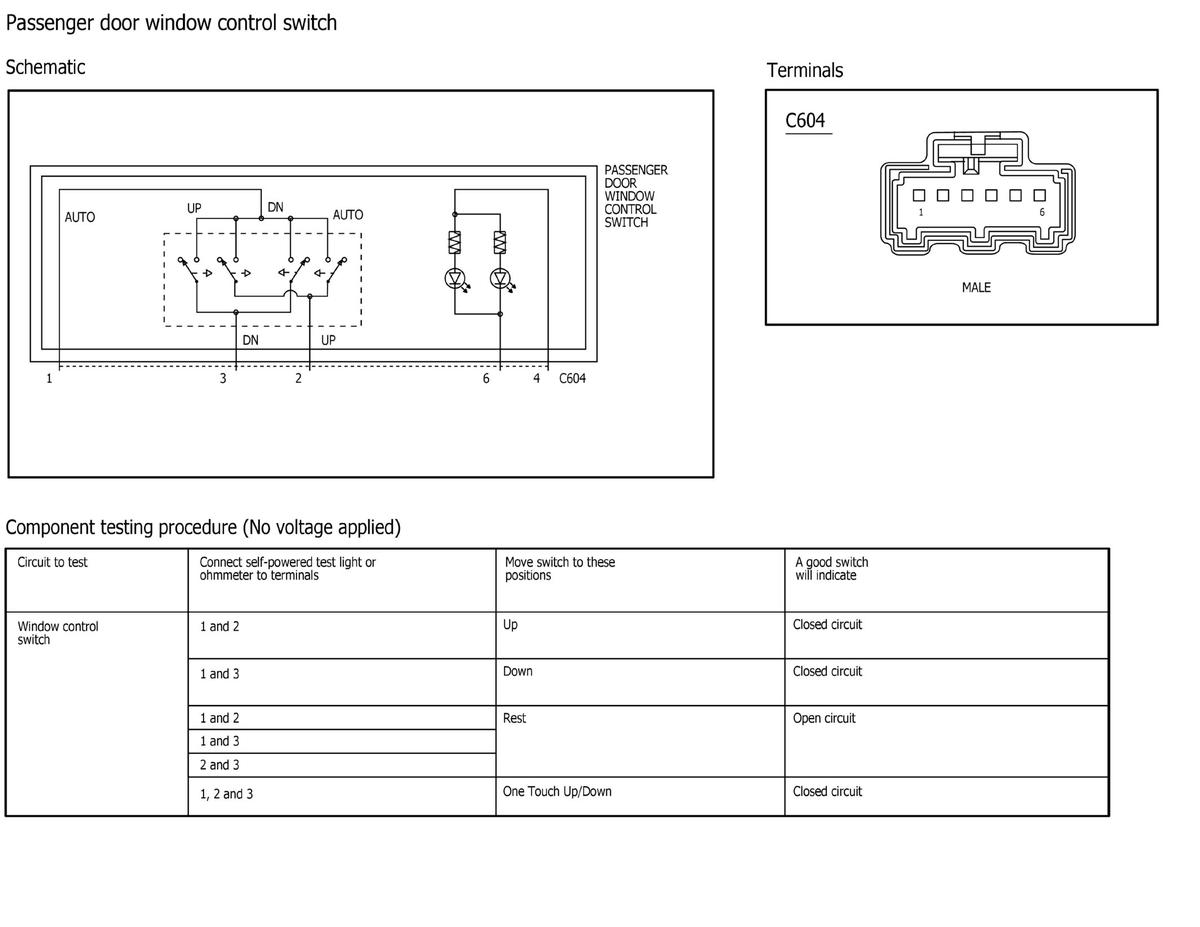

Fig 6: Passenger Door Window Control Switch Component Testing
GFDWR139358Courtesy of FORD MOTOR COMPANY

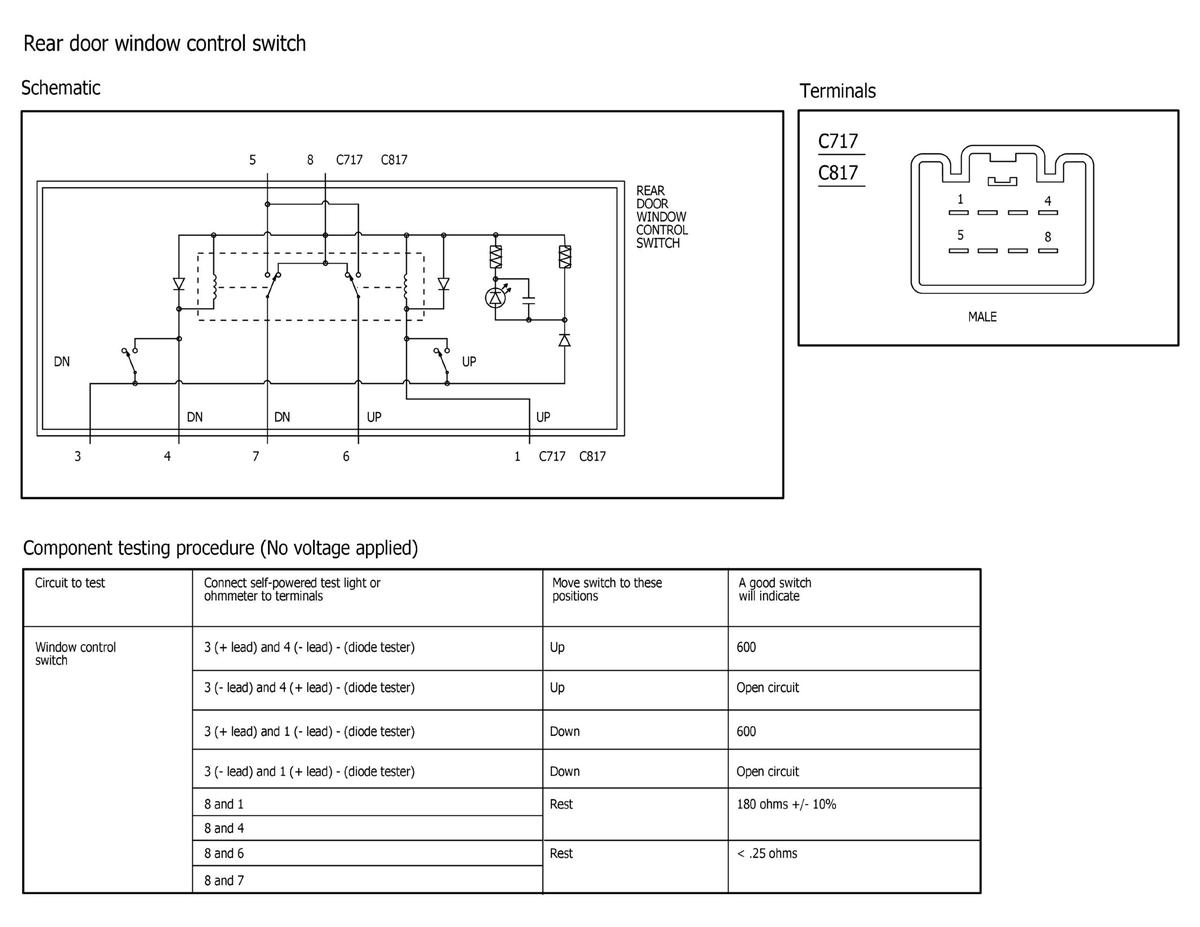

Fig 7: Rear Door Window Control Switch Component Testing
GFDWR139359Courtesy of FORD MOTOR COMPANY

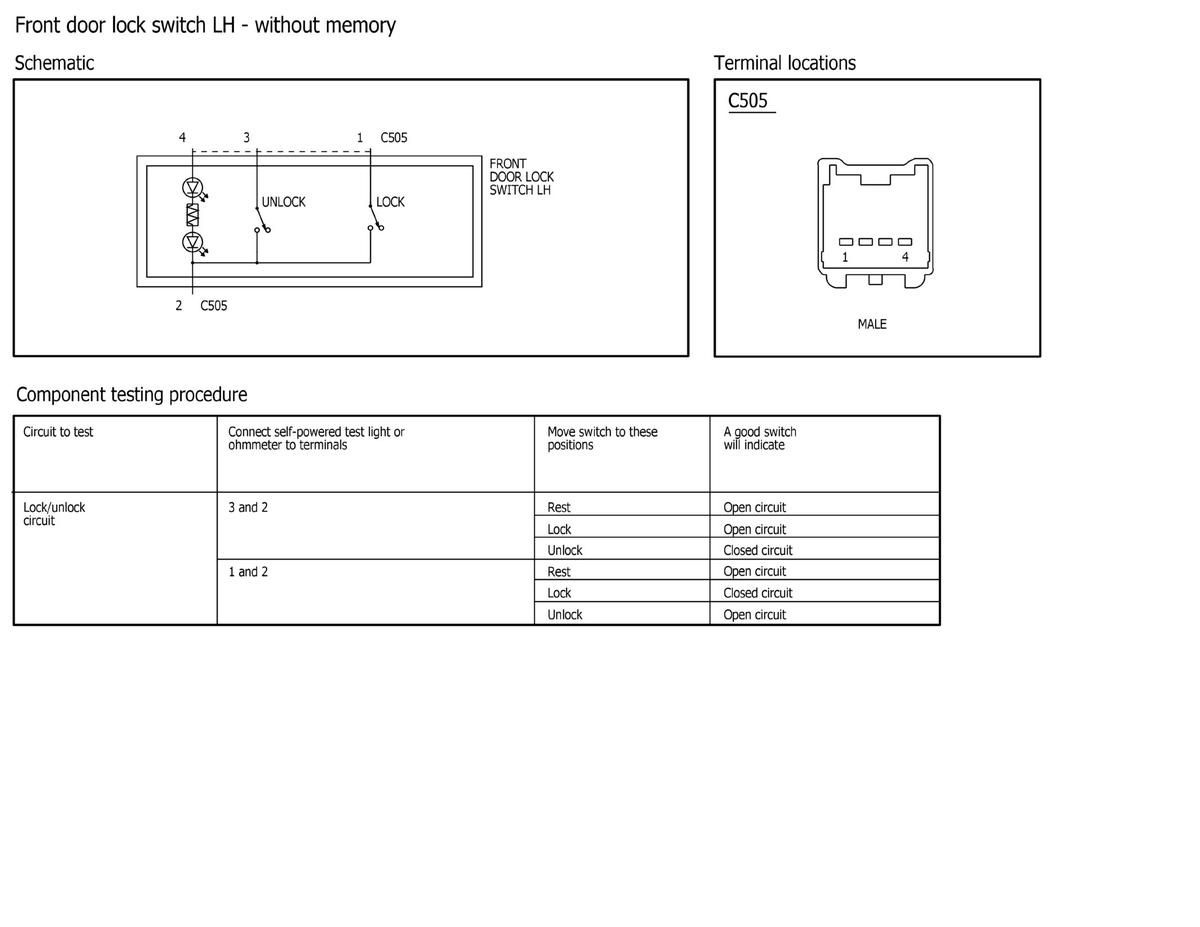

Fig 8: Front Door Lock Switch LH - Without Memory Component Testing
GFDWR139360Courtesy of FORD MOTOR COMPANY

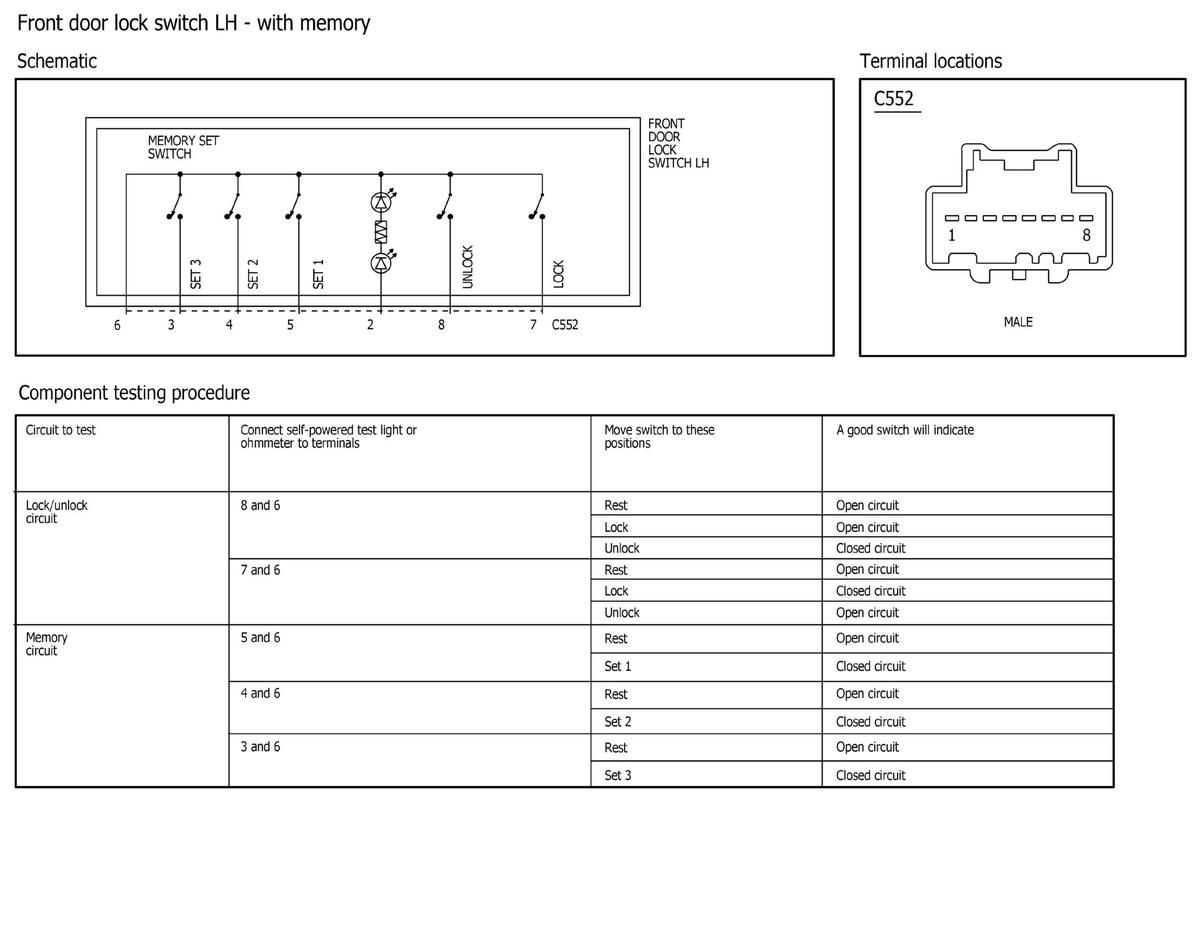

Fig 9: Front Door Lock Switch LH - With Memory Component Testing
GFDWR139361Courtesy of FORD MOTOR COMPANY

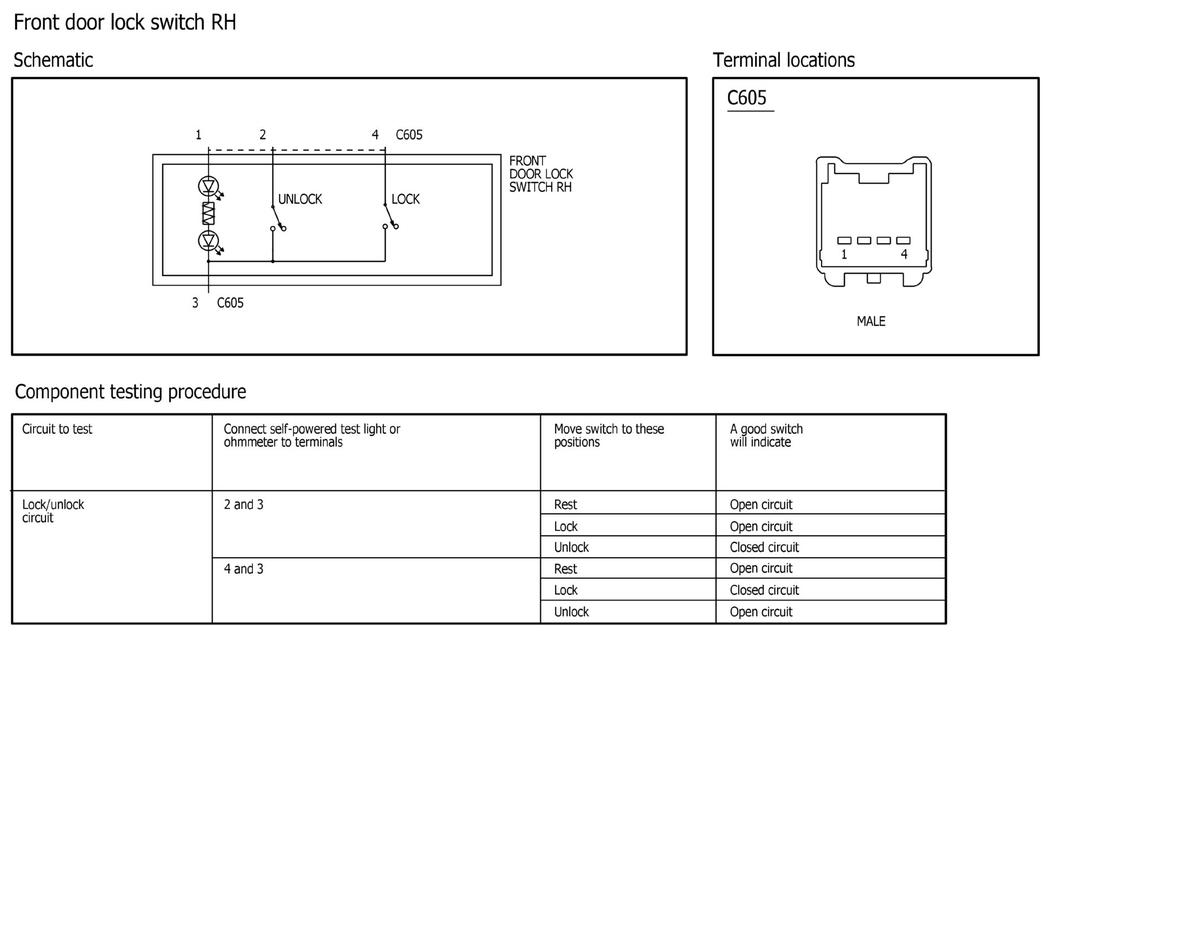

Fig 10: Front Door Lock Switch RH Component Testing
GFDWR139349Courtesy of FORD MOTOR COMPANY

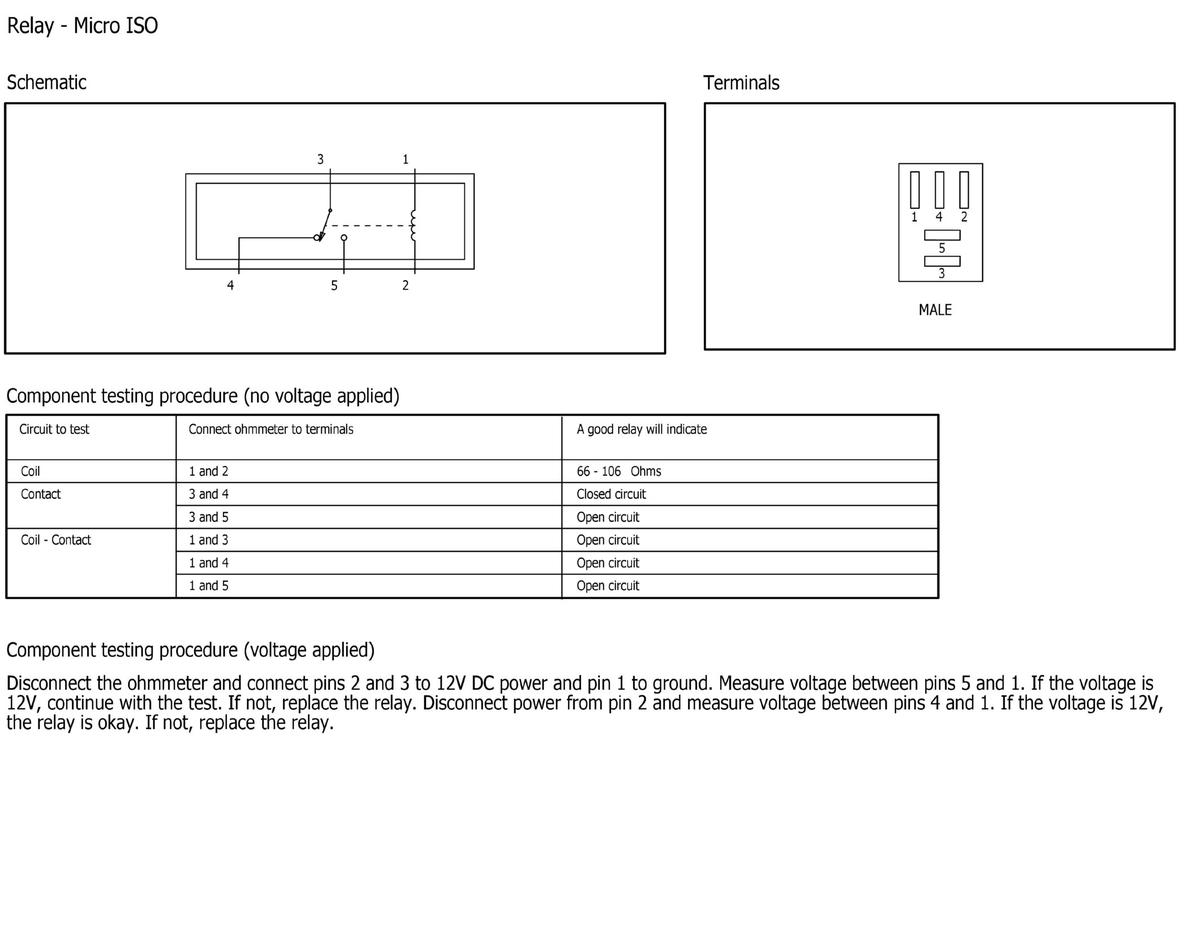

Fig 11: Relay - Micro ISO Component Testing
GFDWR139350Courtesy of FORD MOTOR COMPANY

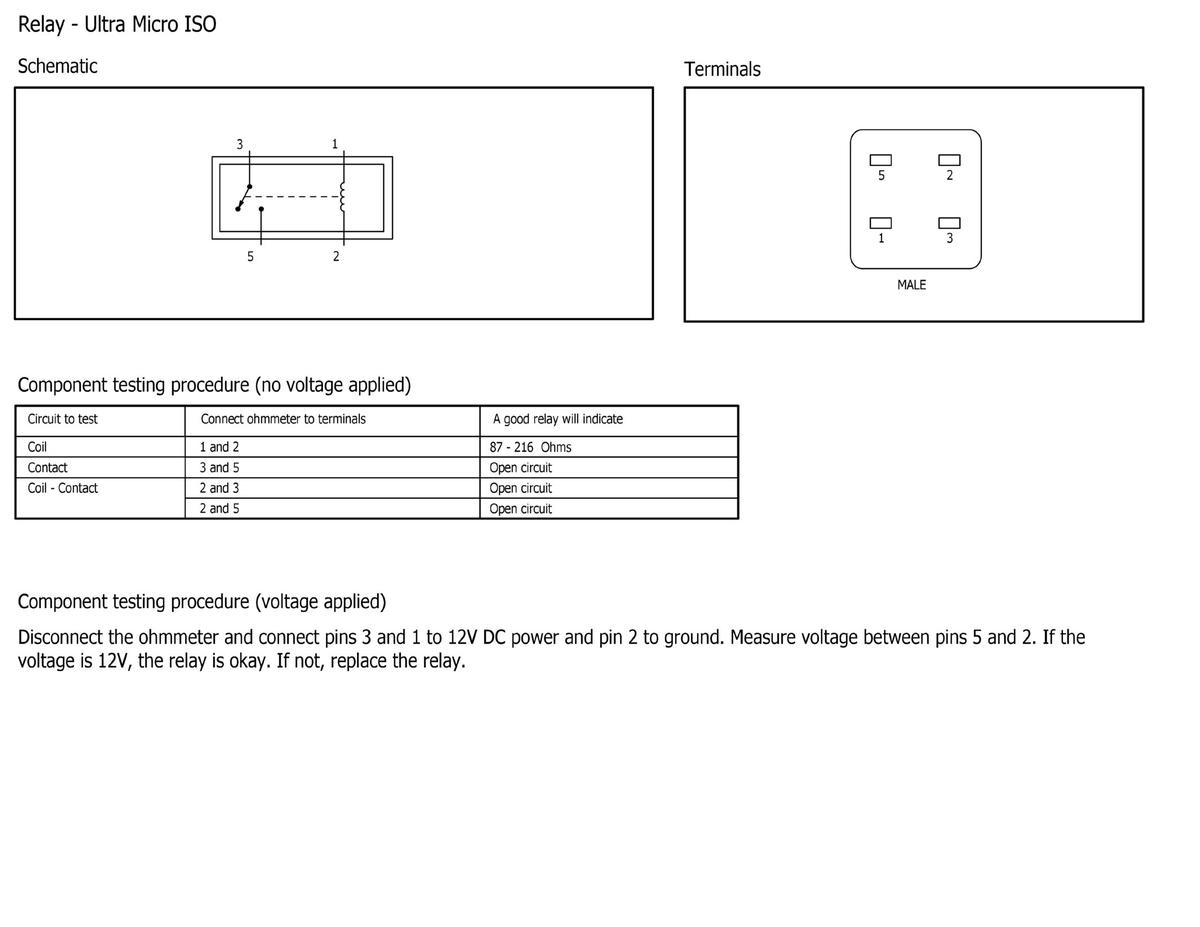

Fig 12: Relay - Ultra Micro ISO Component Testing
GFDWR139351Courtesy of FORD MOTOR COMPANY

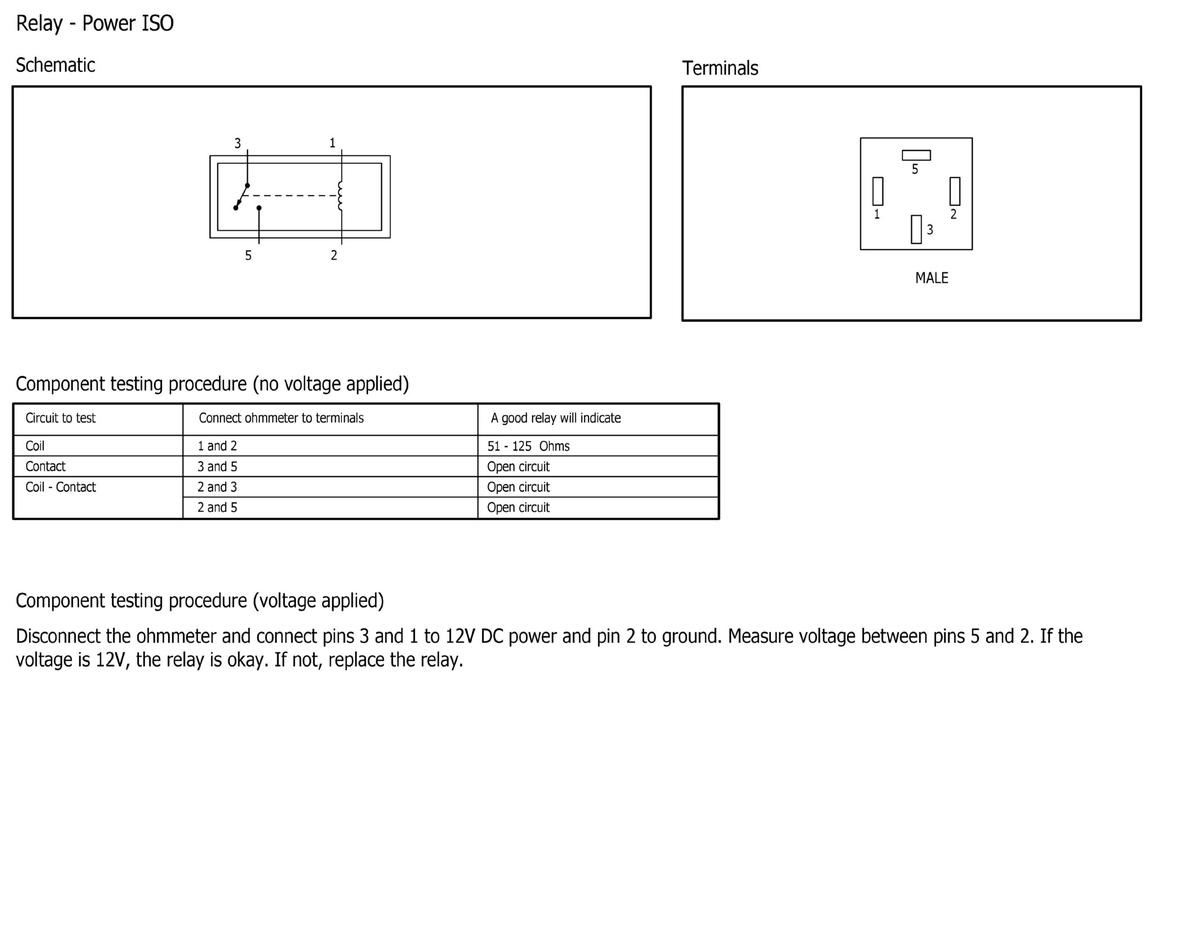

Fig 13: Relay - Power ISO Component Testing
GFDWR139352Courtesy of FORD MOTOR COMPANY

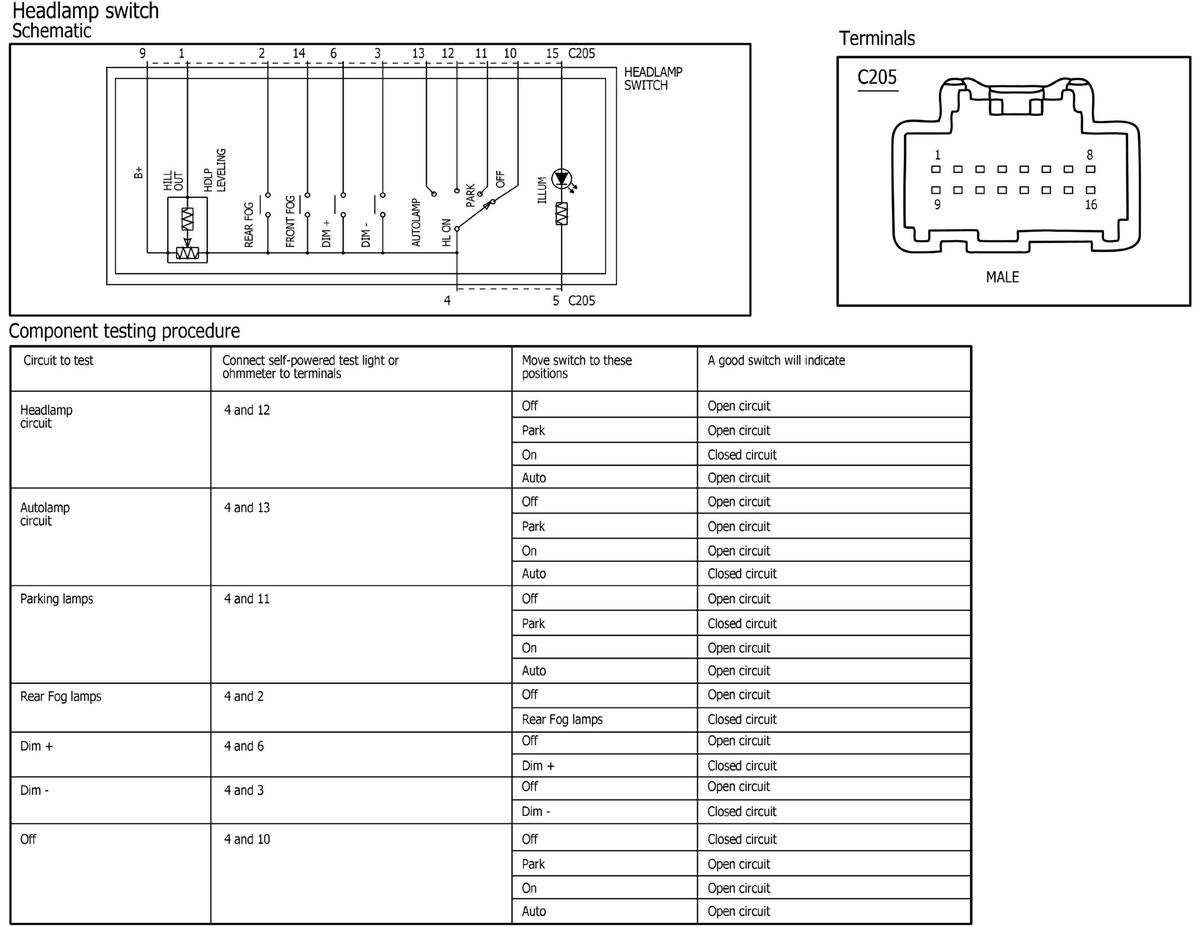

Fig 14: Headlamp Switch Component Testing
GFDWR139353Courtesy of FORD MOTOR COMPANY
