Removal And Installation: Condenser: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Remove the radiator grille. Refer to: Radiator Grille .
Remove both the headlamp assemblies. Refer to: Headlamp Assembly .

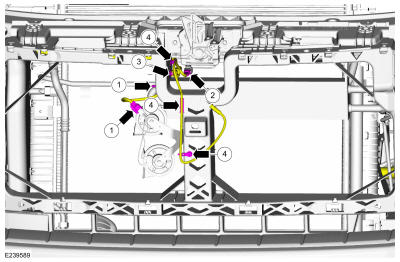

1. All Vehicles. Disconnect the horn electrical connector and detach the wiring harness retainer.
2. Vehicles Equipped With Hood Ajar Switch. Disconnect the electrical connector.
3. Vehicles Not Equipped With Hood Ajar Switch. Detach the wiring harness retainer.
4. Vehicles With Park Aid Camera. Detach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Detach the pin-type retainer, release the clips and position the washer fluid hose aside.

Courtesy of FORD MOTOR COMPANY

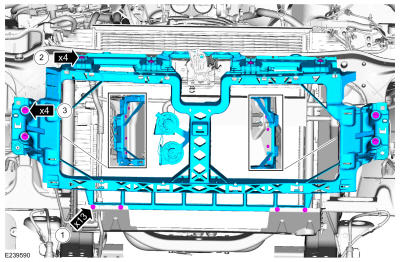

1. Remove the push-pins.
2. Remove the bolts.
  Torque: 62 lb.in (7 Nm)
3. Remove the bolts and the radiator grille bracket.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
1. Remove the condenser inlet, outlet line nuts and disconnect the fittings. Make sure to cover any open ports to prevent debris from entering the system.
  Torque: 159 lb.in (18 Nm)
2. Remove the condenser mounting bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

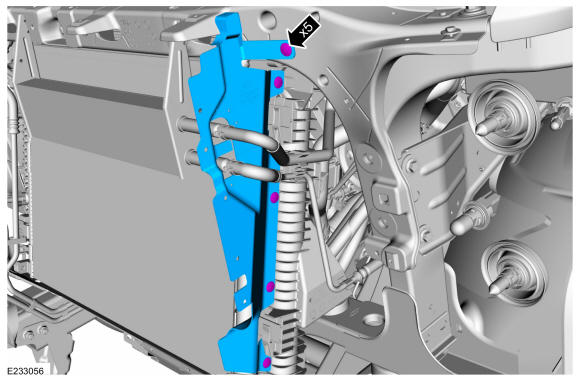

Remove the push-pins and the LH air deflector.

Courtesy of FORD MOTOR COMPANY

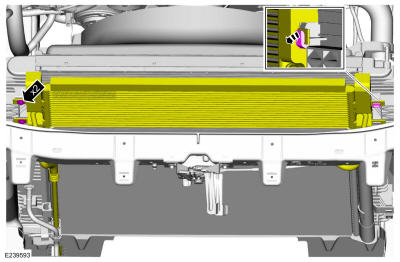

Remove the bolts and position aside the power steering oil cooler.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

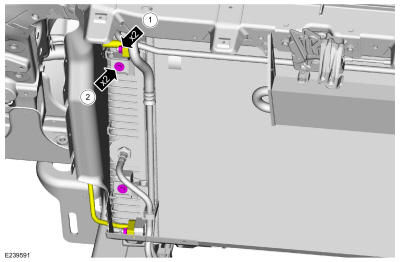

Remove the bolts, release the tab and position aside the transmission oil cooler.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

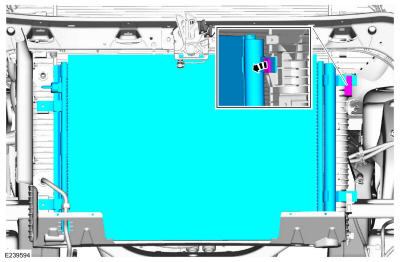

Release the tab and remove the condenser.

Courtesy of FORD MOTOR COMPANY
