Steering Column Control Module (SCCM) - Vehicles With: Adaptive Steering: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the steering wheel. Refer to: Steering Wheel - Vehicles With: Adaptive Steering .

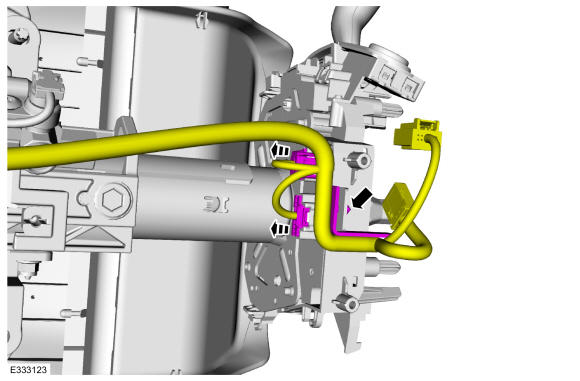

Disconnect the SCCM electrical connectors, unclip the pin type retainer and position the harness aside..

Courtesy of FORD MOTOR COMPANY

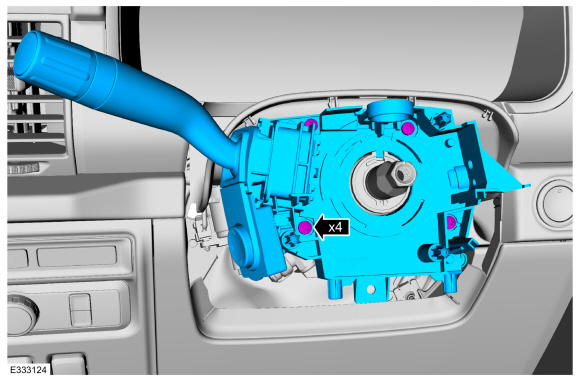

Remove the retainers and the SCCM.
Torque

: 28 lb. in (3. 2 Nm)

Courtesy of FORD MOTOR COMPANY
