Steering Column Control Module (SCCM): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the clockspring. Refer to: Clockspring .

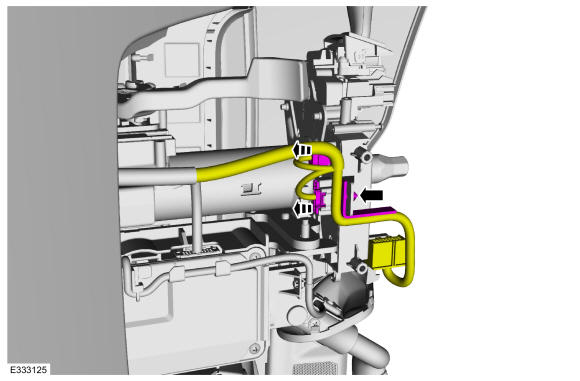

Disconnect the SCCM electrical connectors, unclip the pin type retainer and position the harness aside..

Courtesy of FORD MOTOR COMPANY

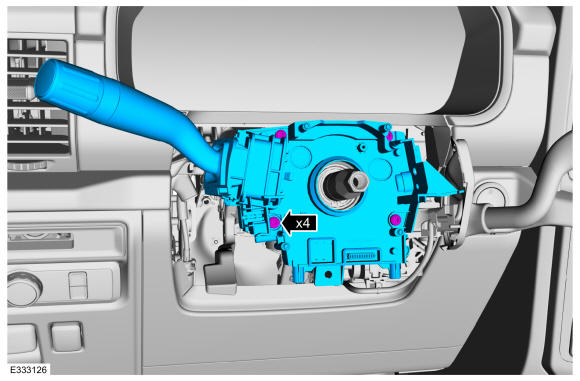

Remove the retainers and the SCCM.
Torque

: 28 lb. in (3. 2 Nm)

Courtesy of FORD MOTOR COMPANY
