Component Location Views

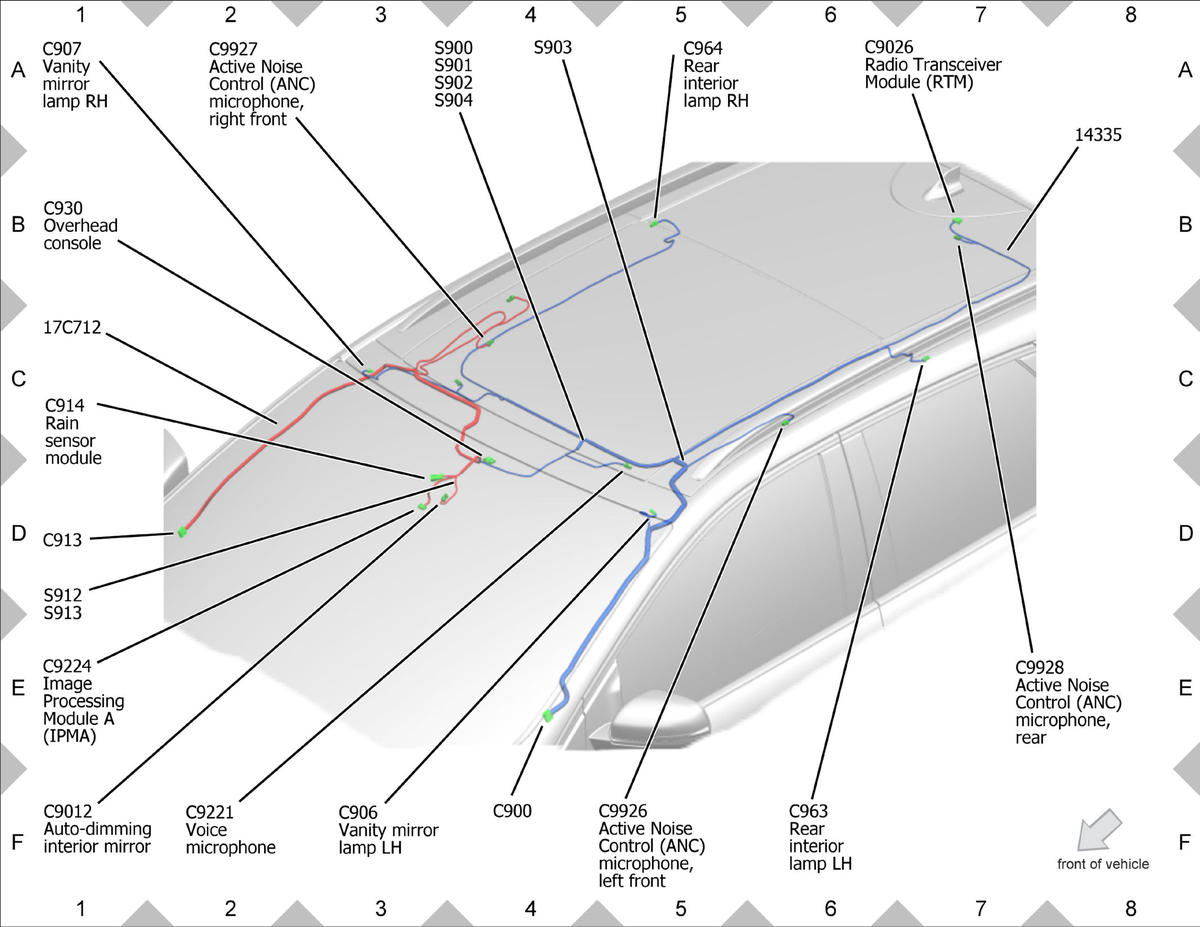

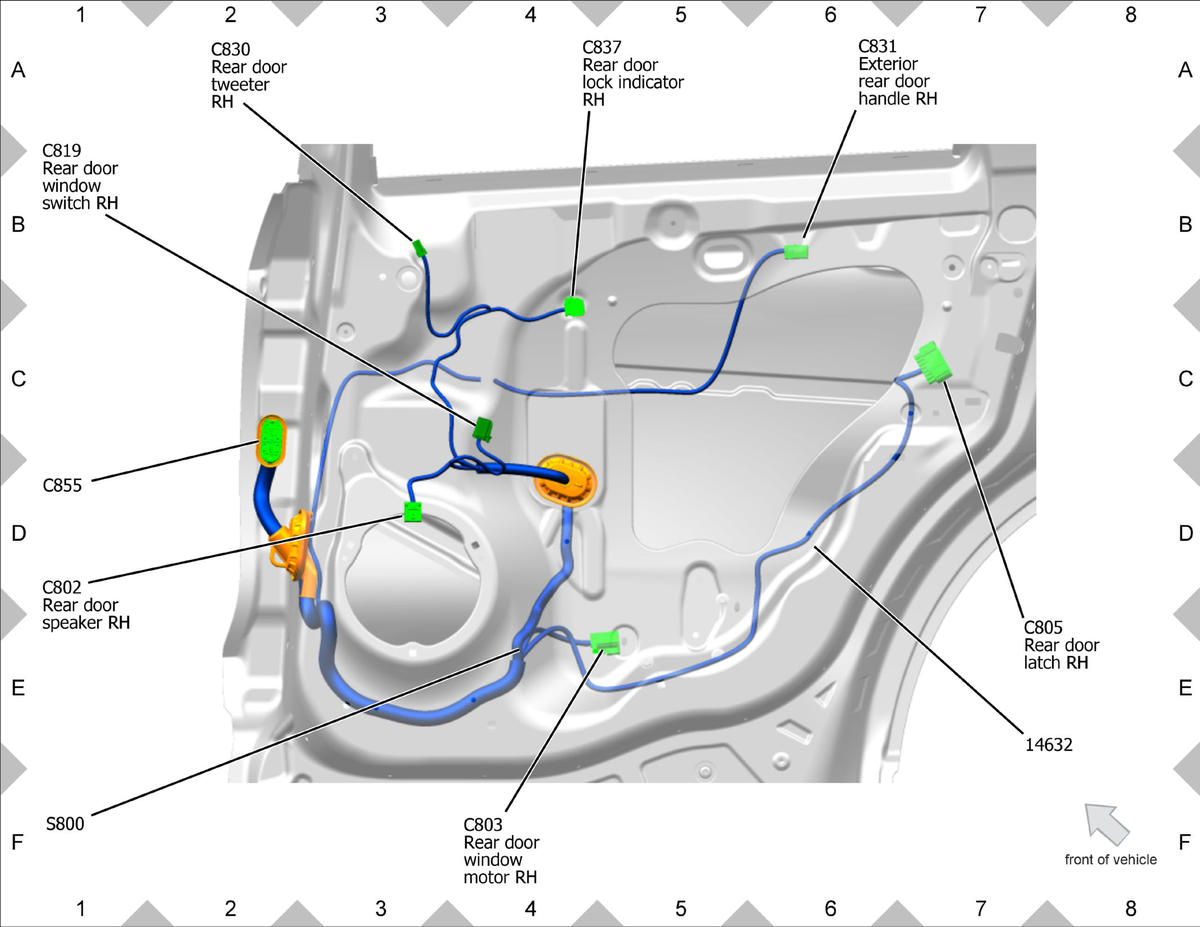

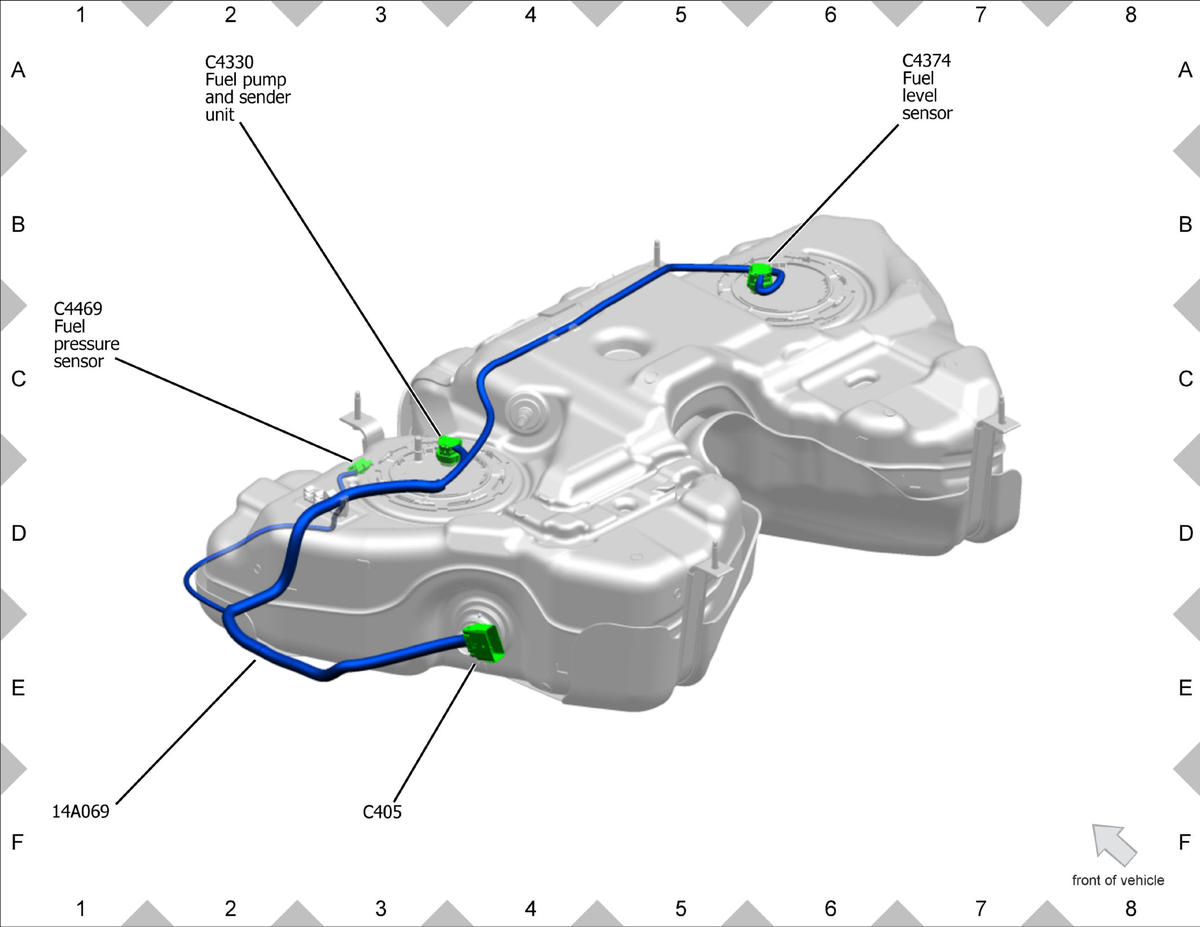

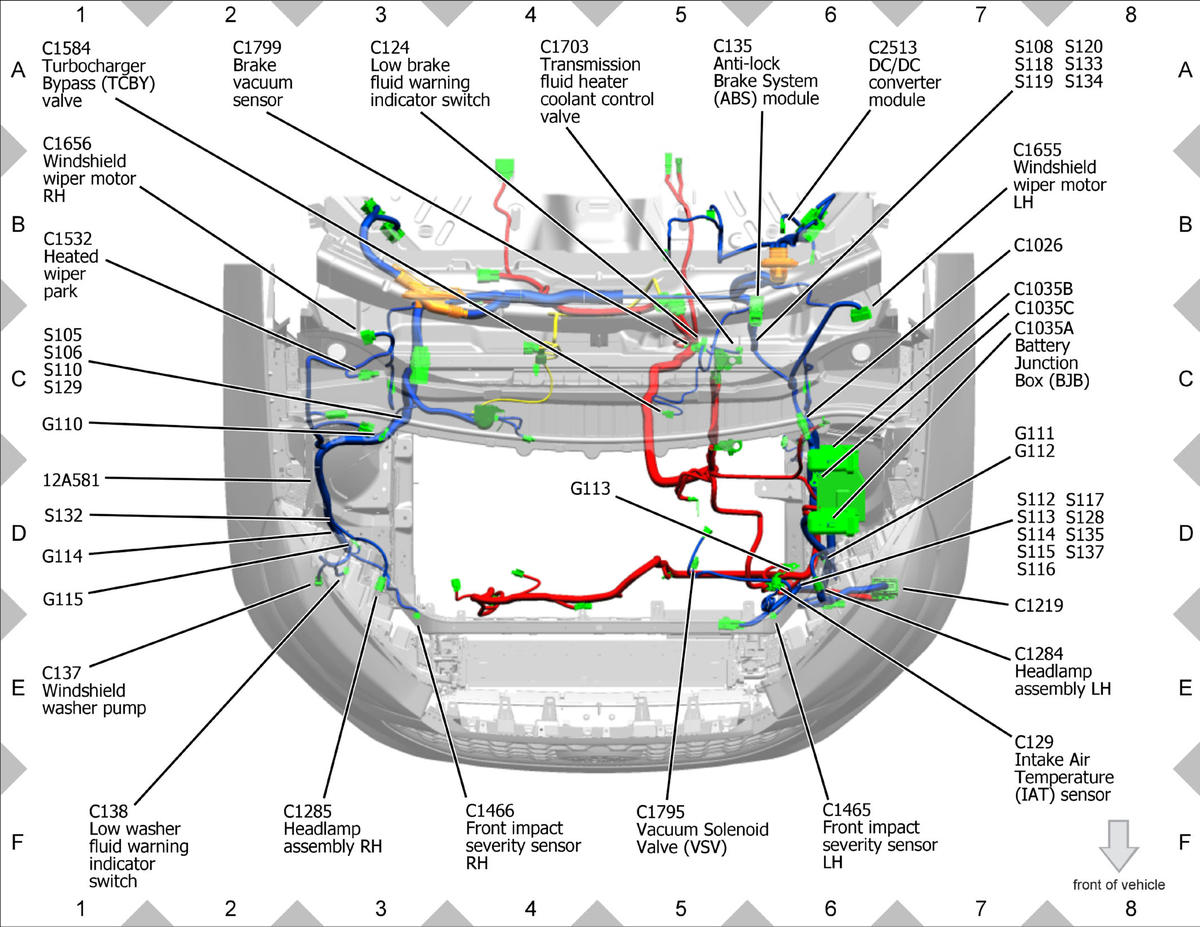

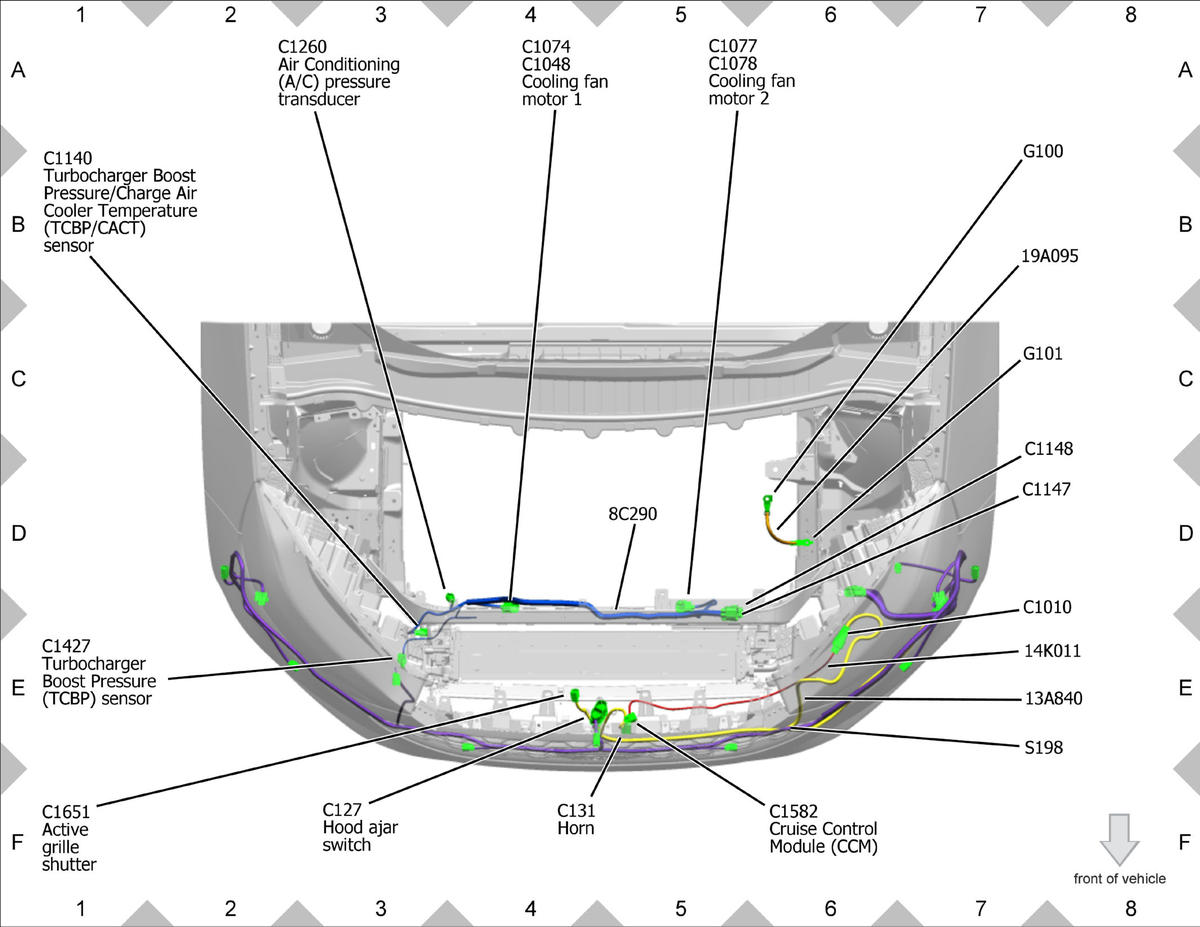

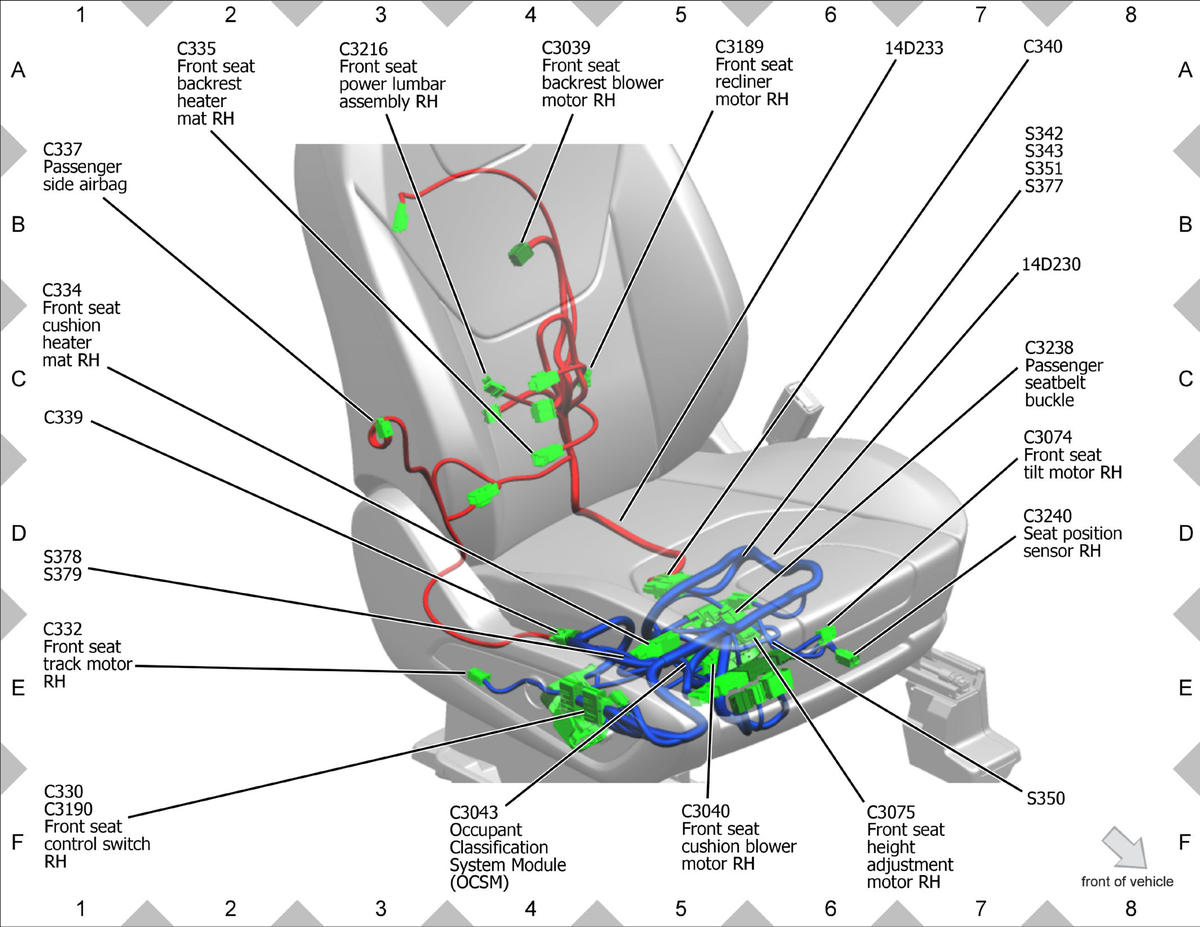

Courtesy of FORD MOTOR COMPANY

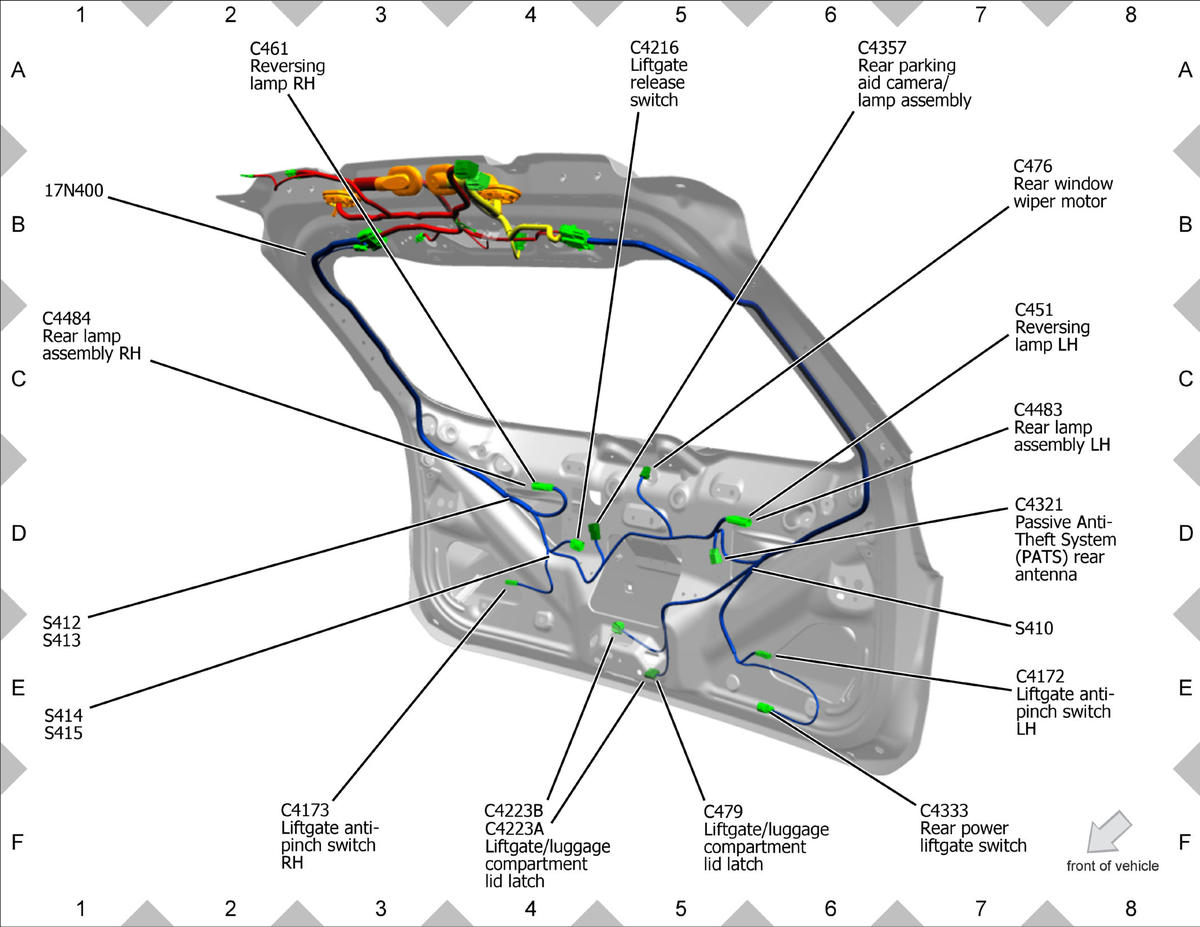

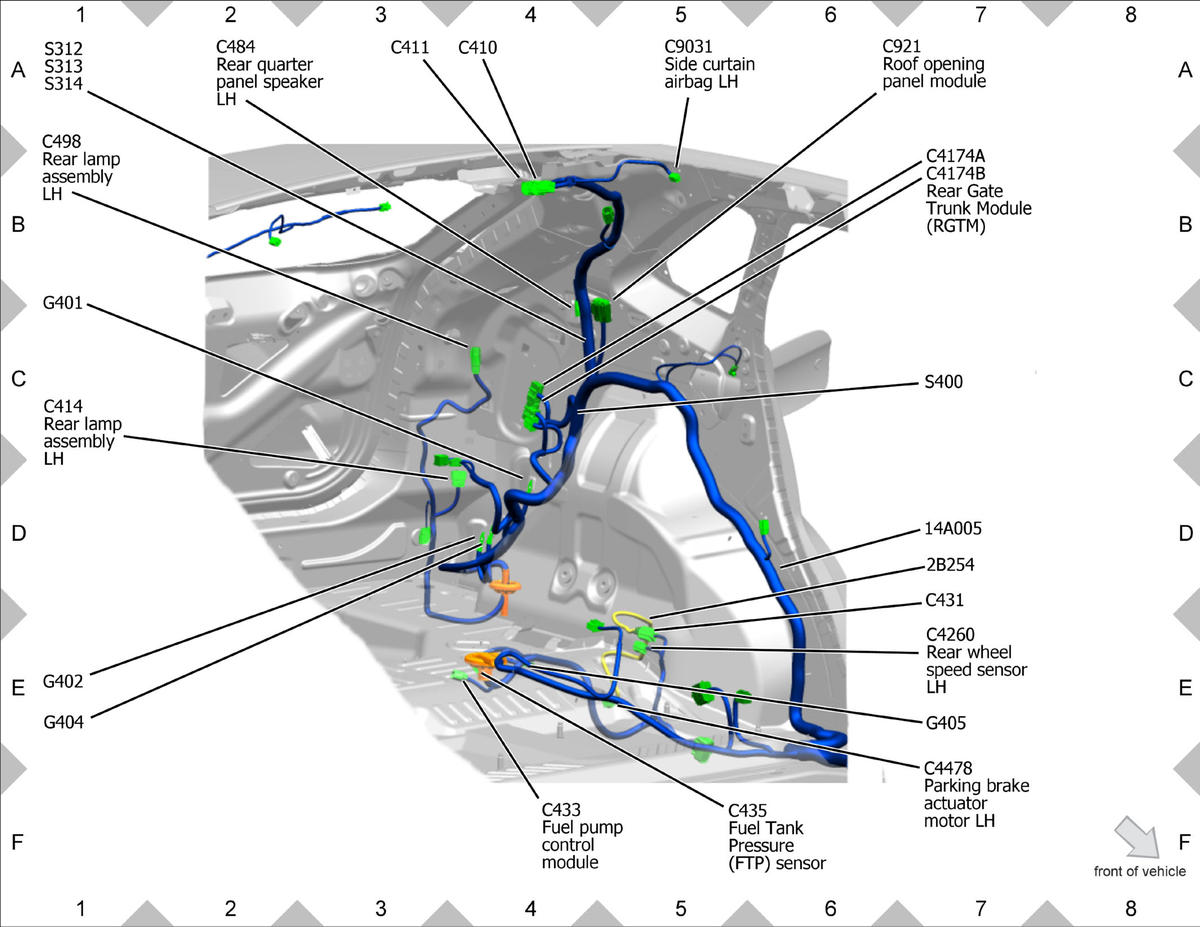

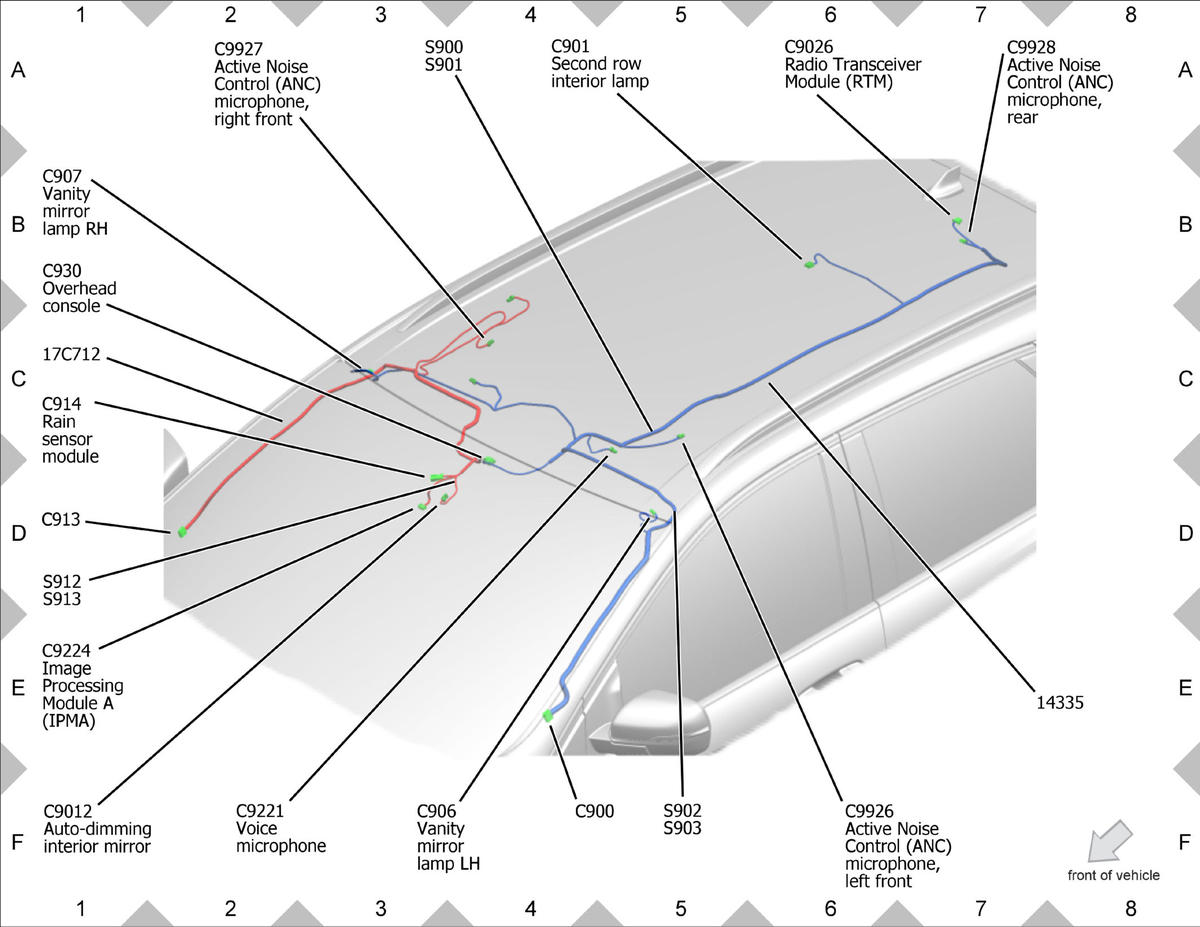

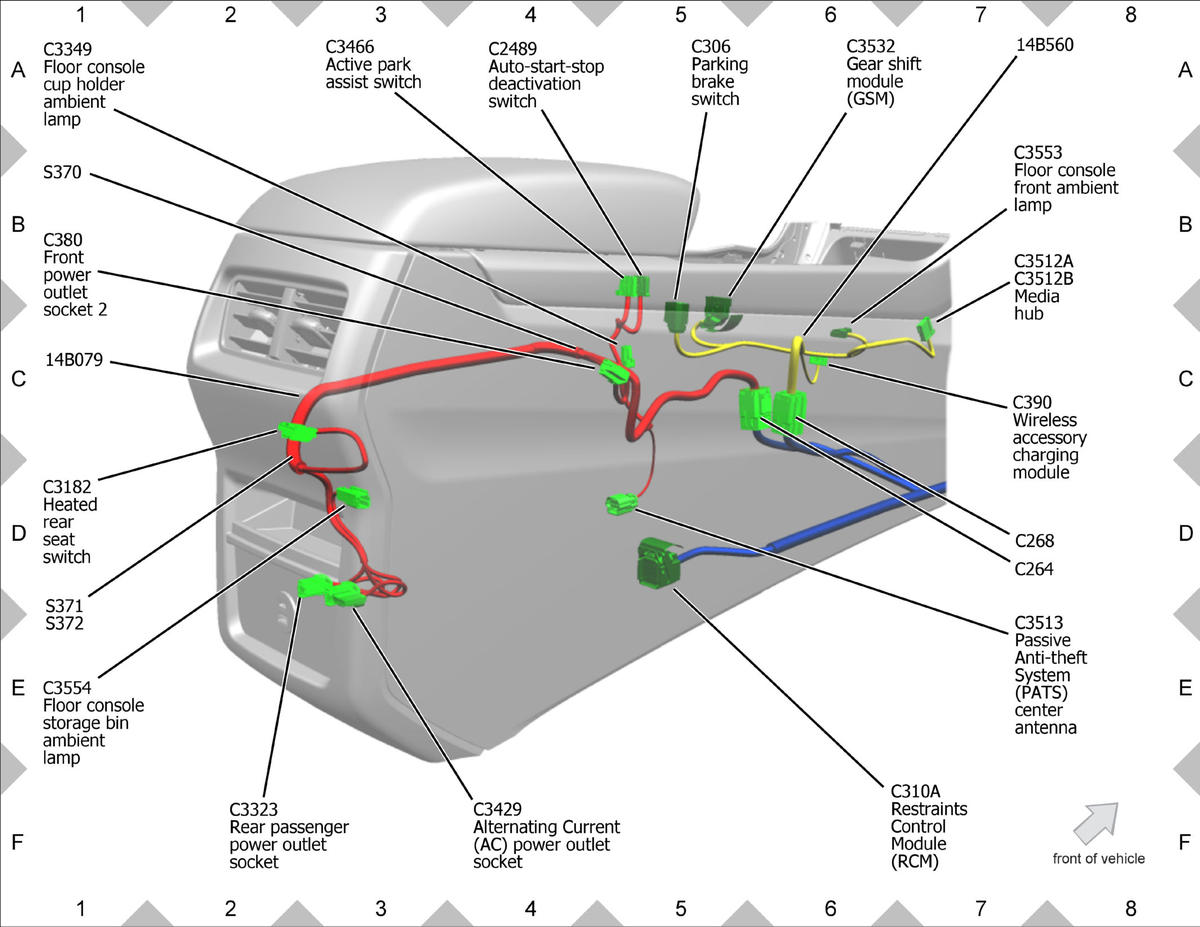

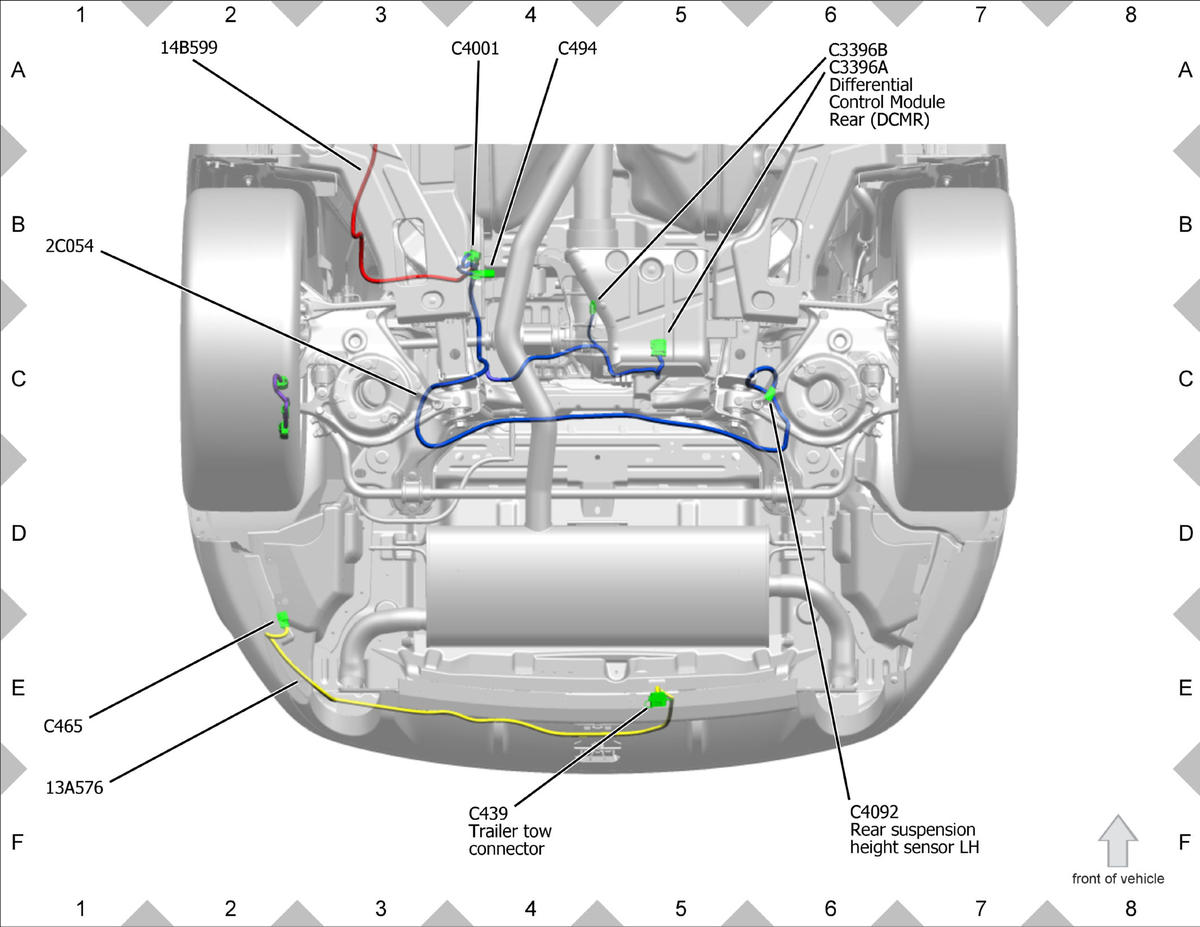

Courtesy of FORD MOTOR COMPANY

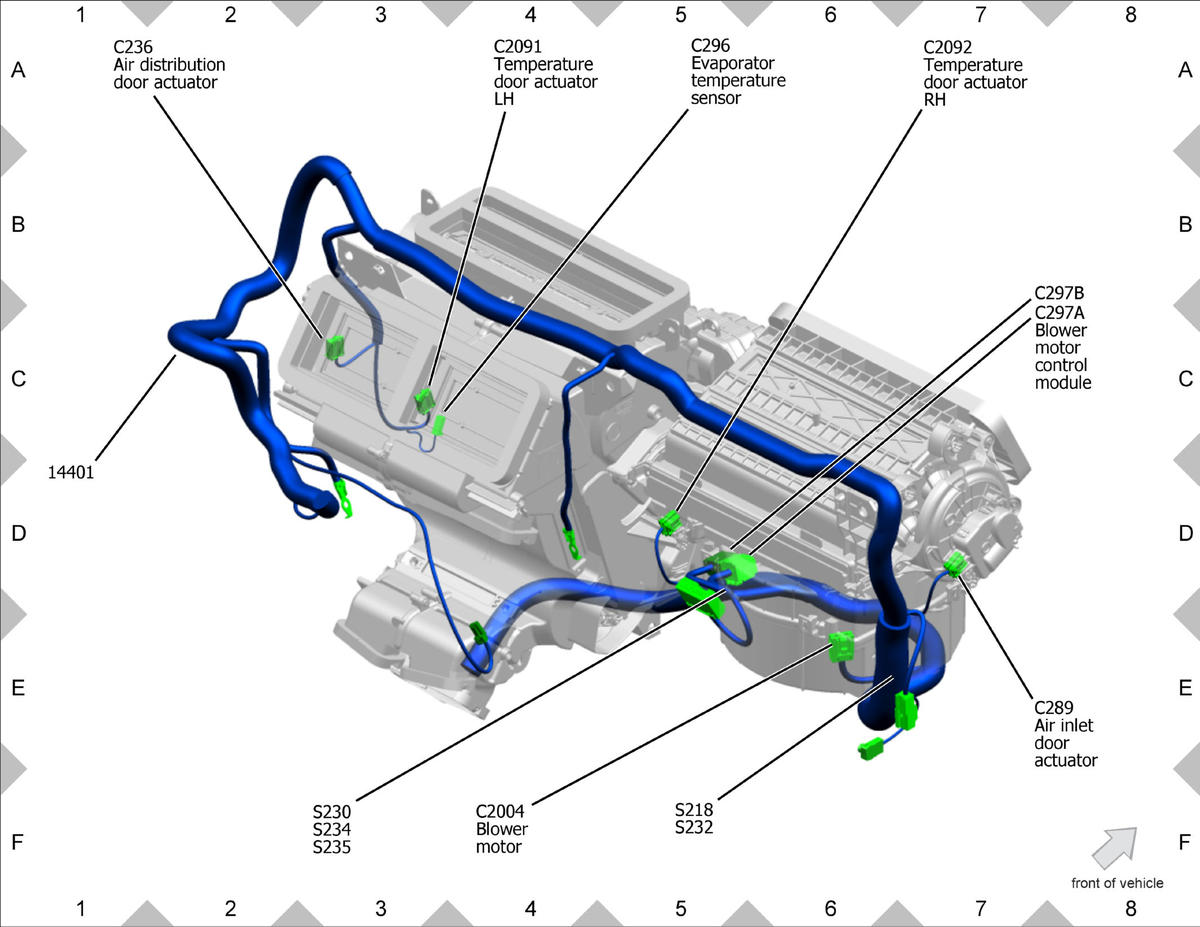

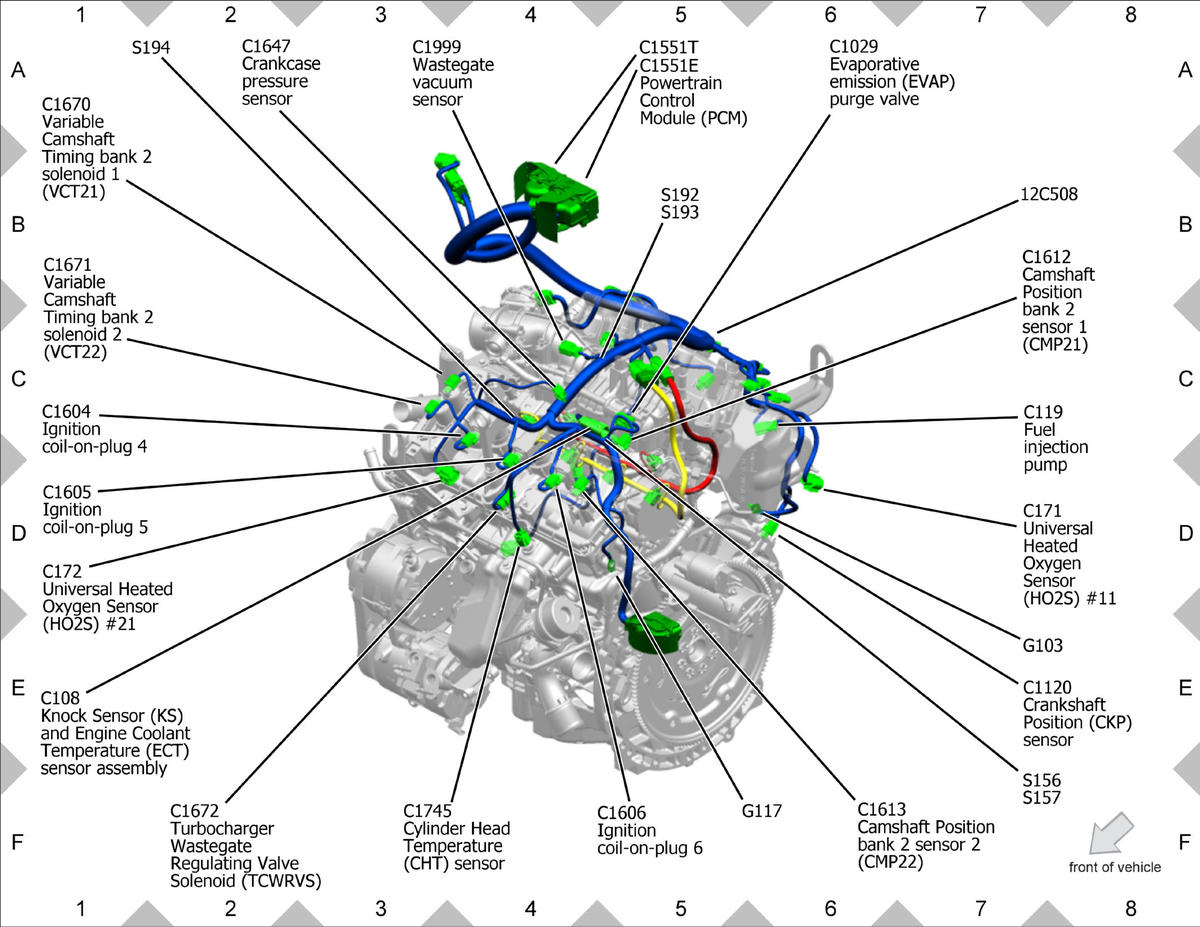

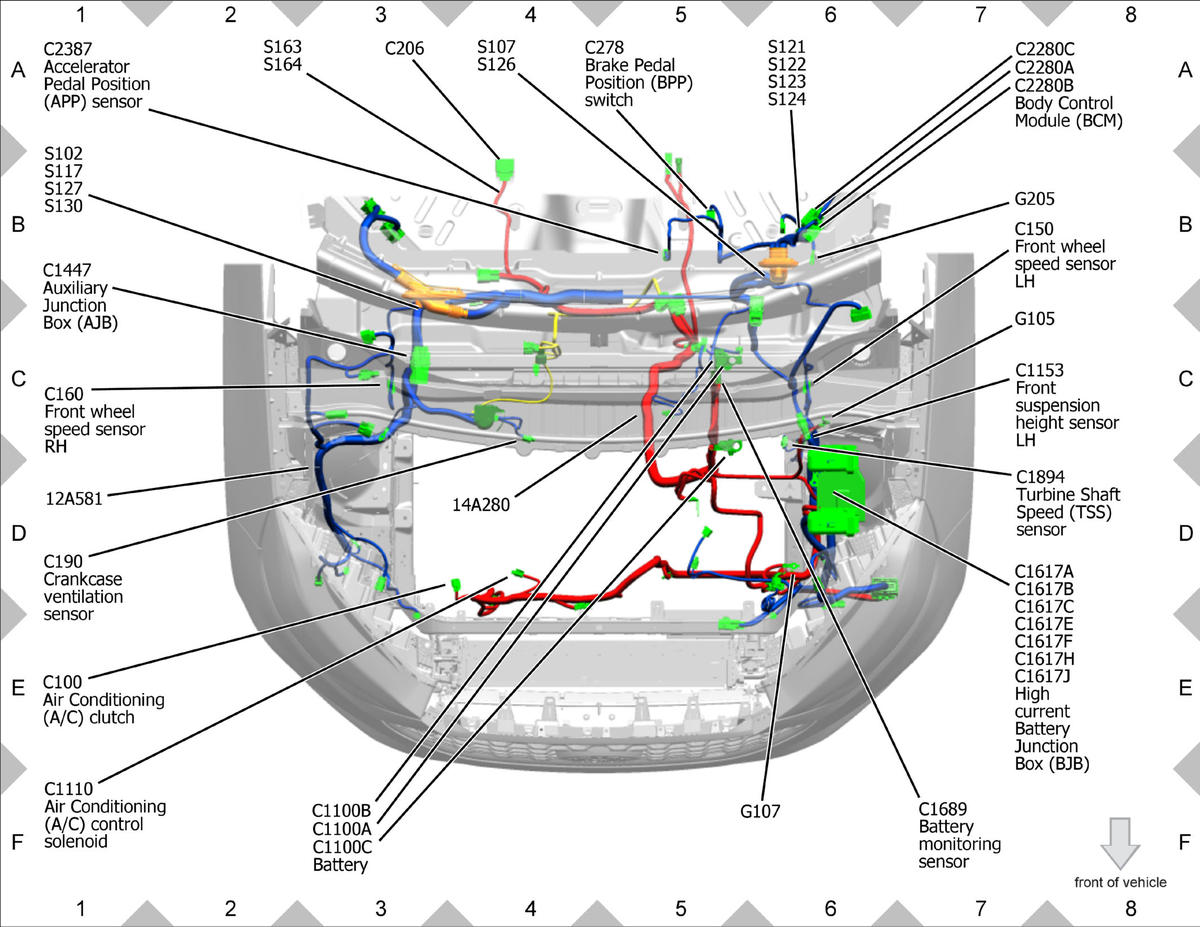

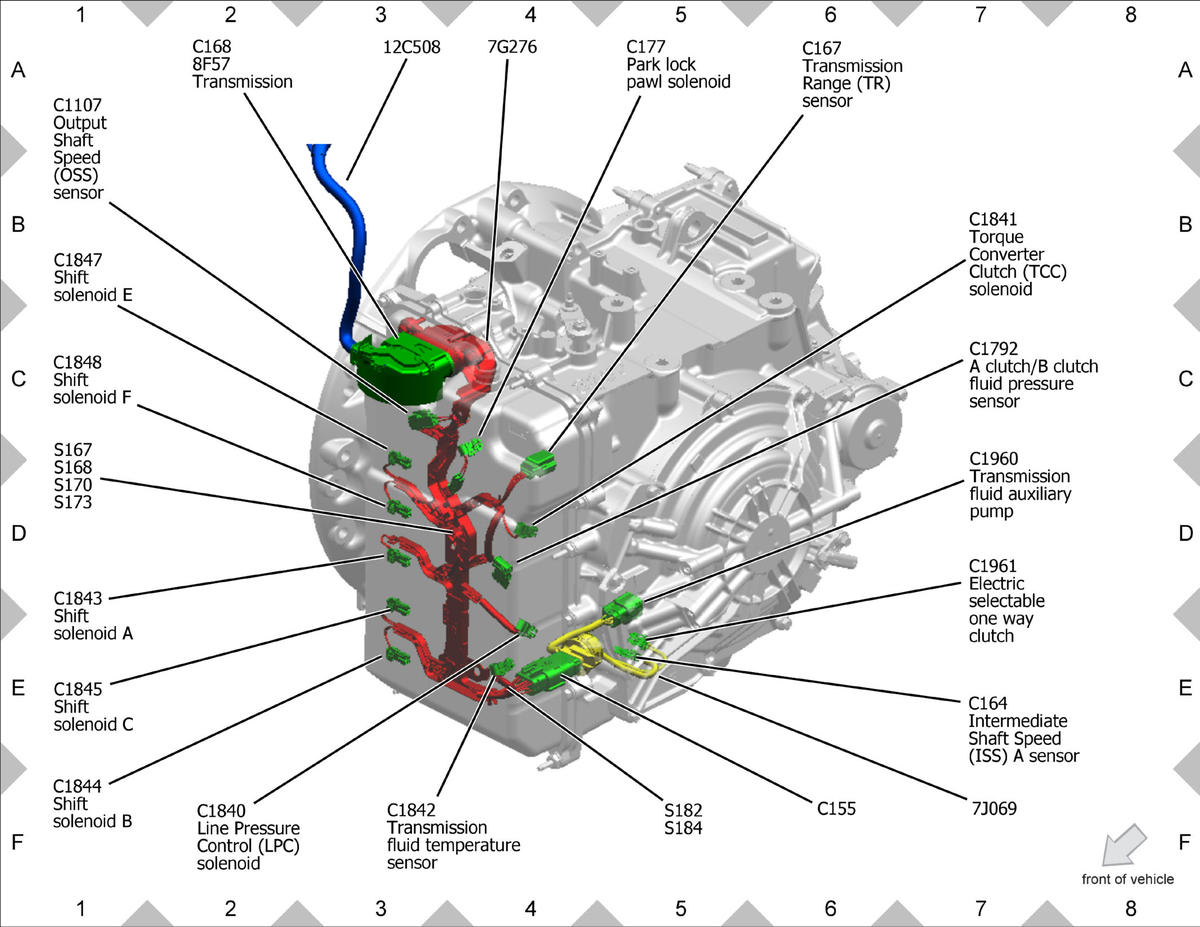

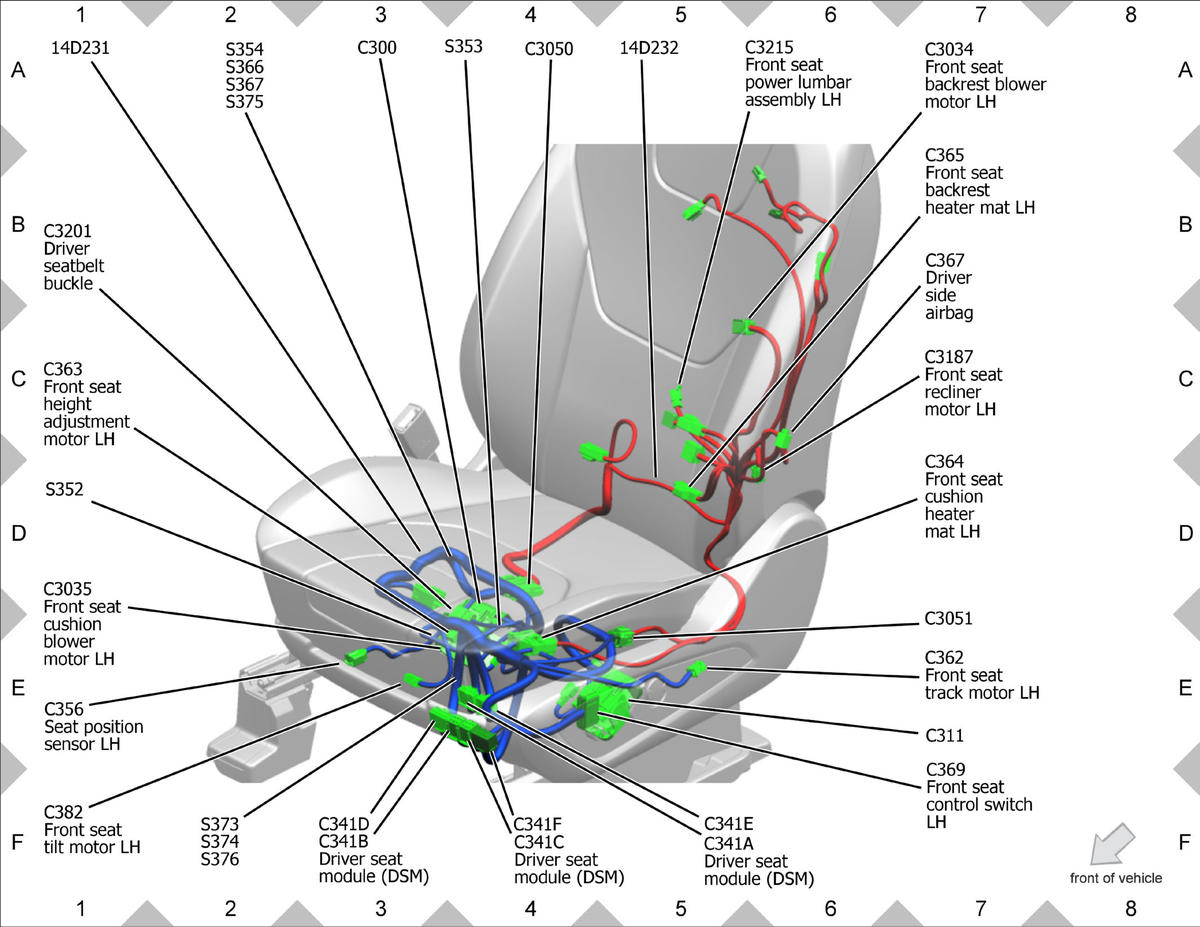

Courtesy of FORD MOTOR COMPANY

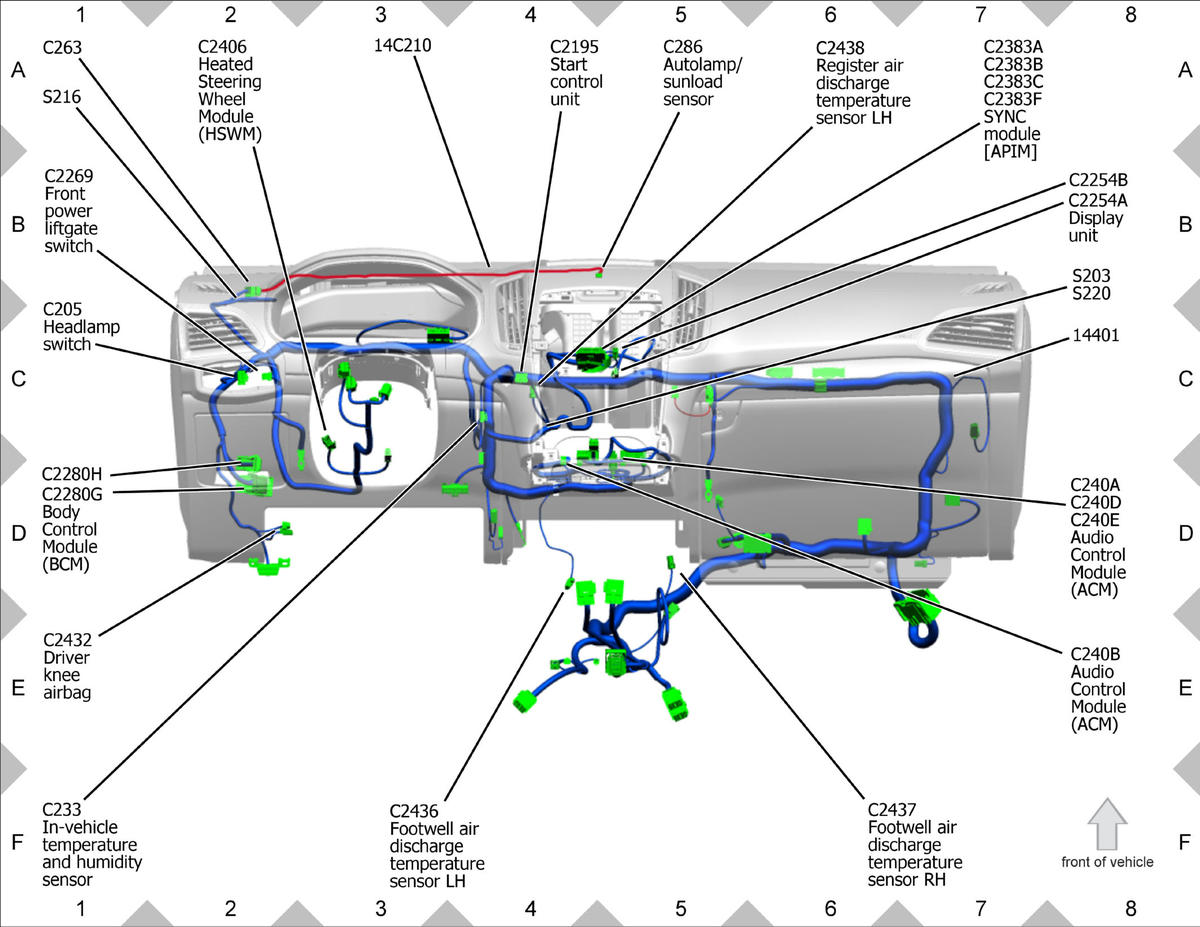

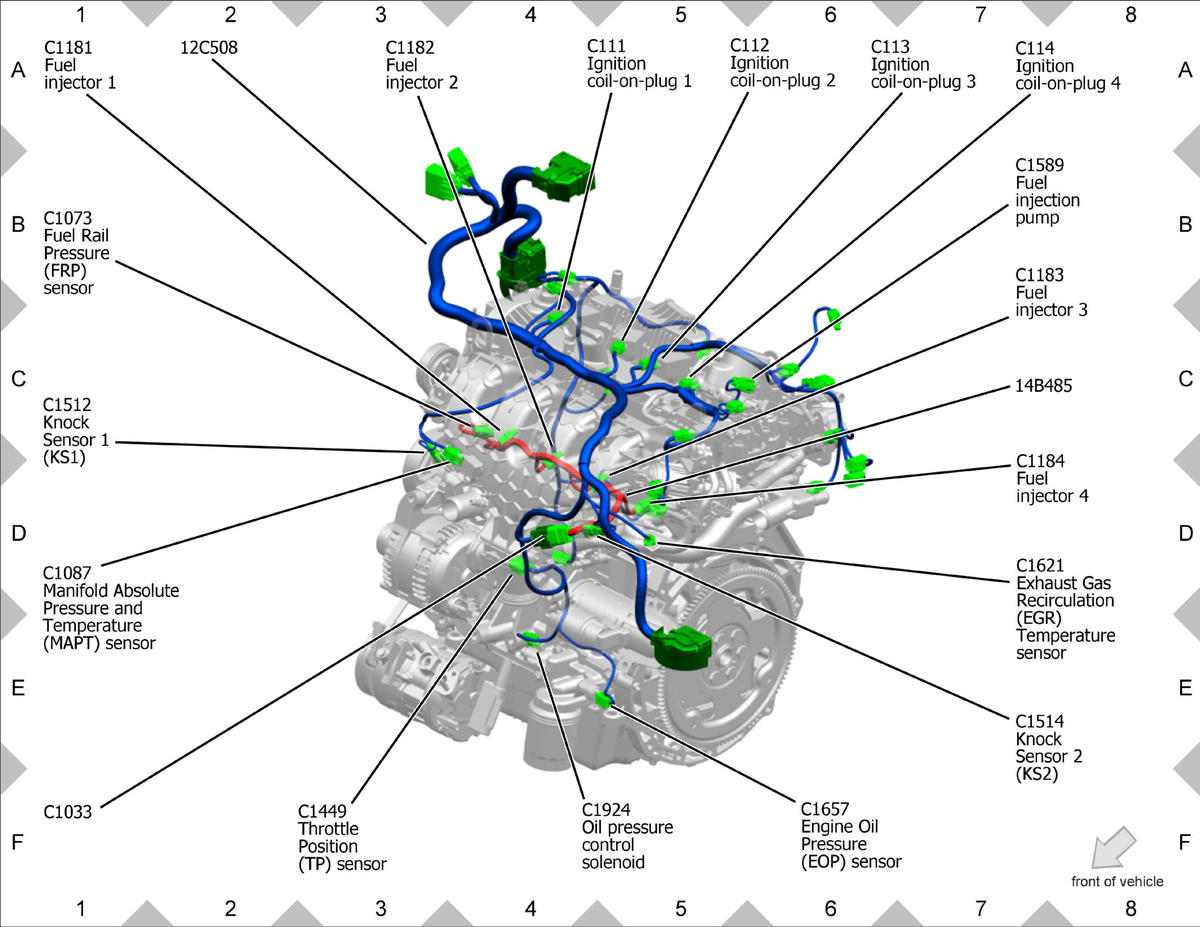

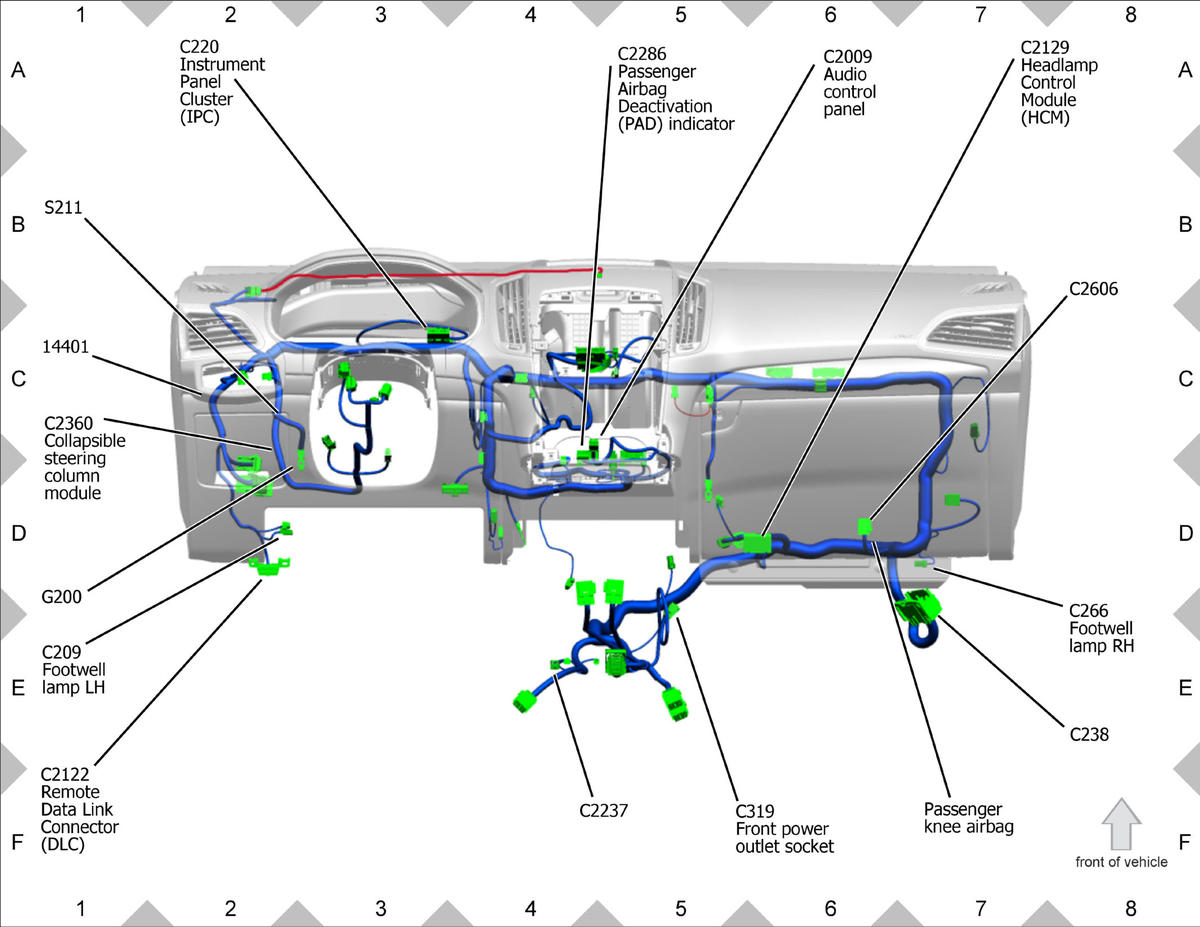

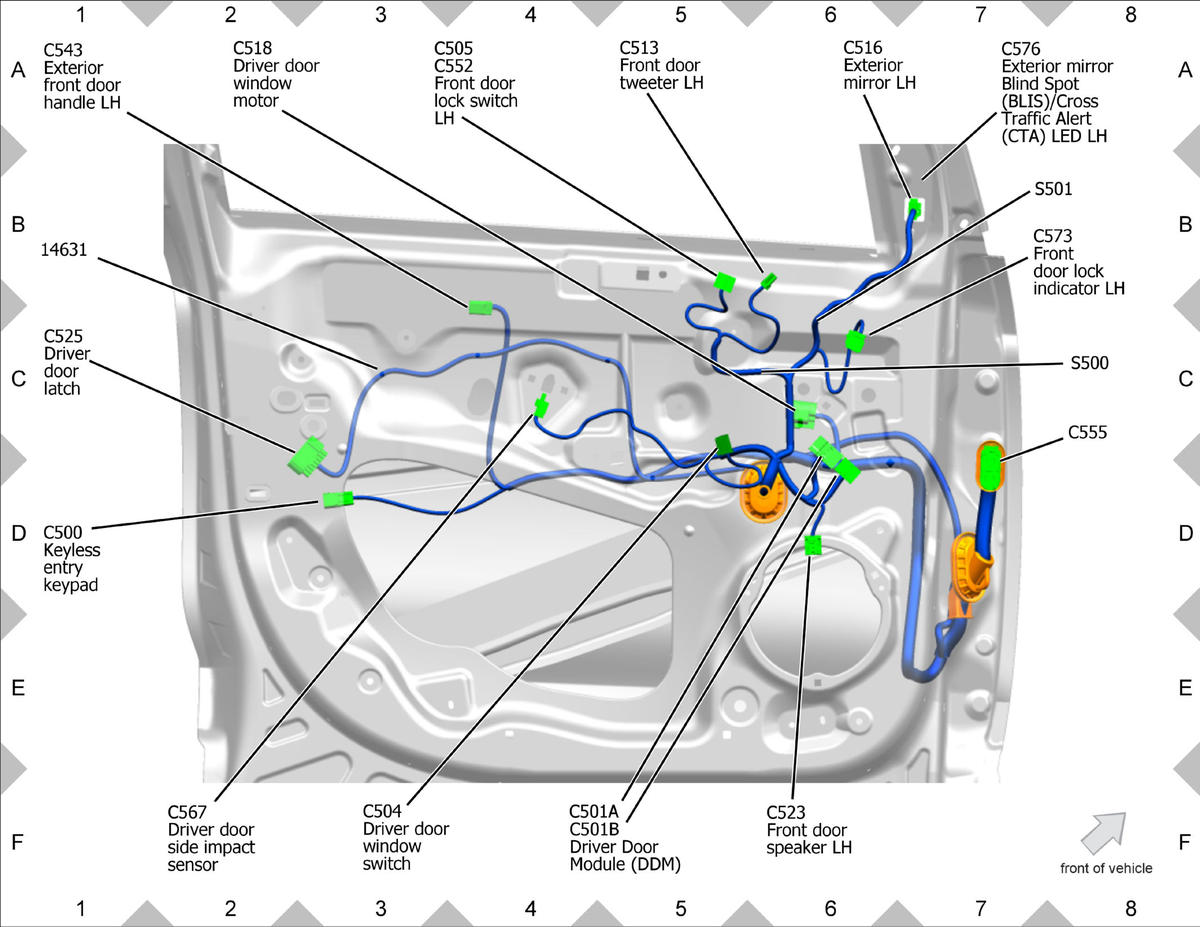

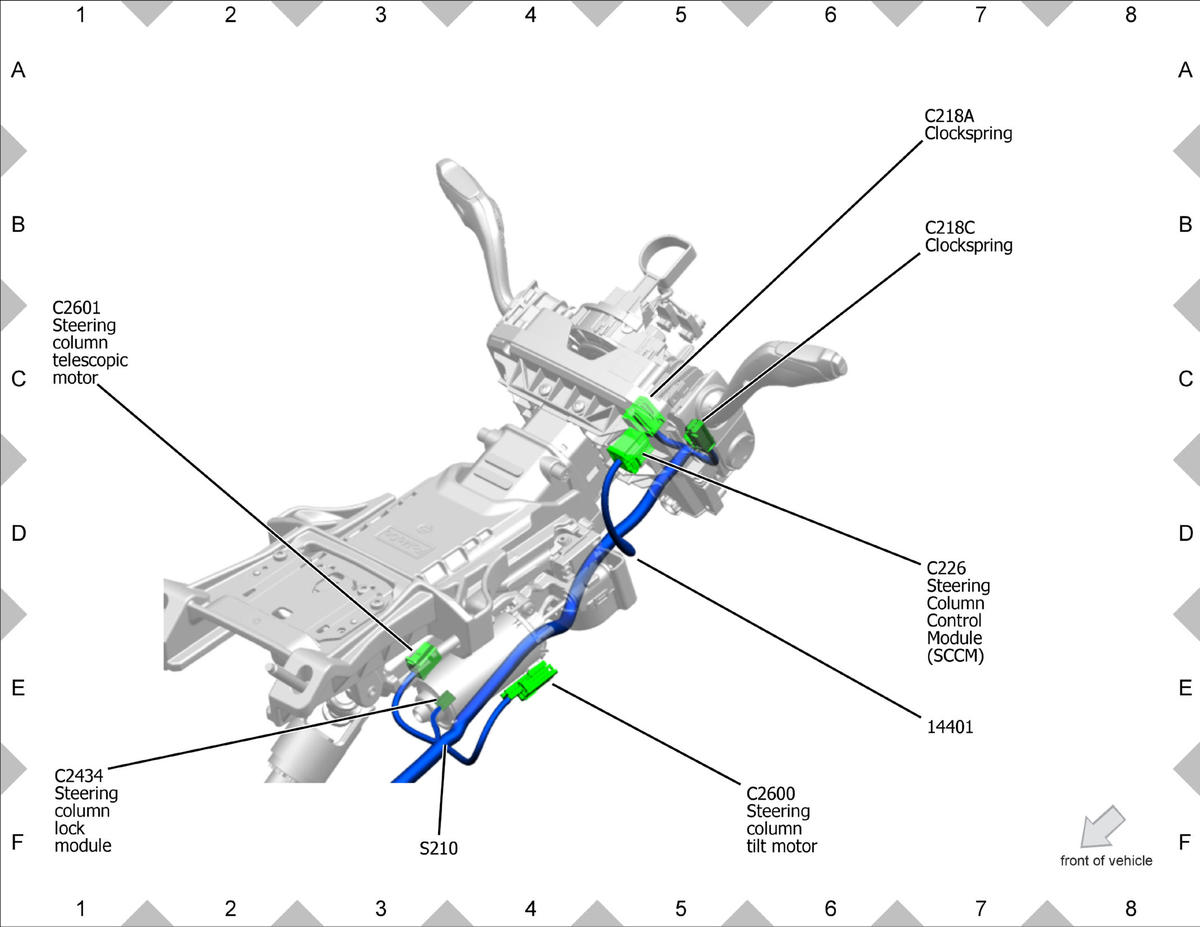

Courtesy of FORD MOTOR COMPANY

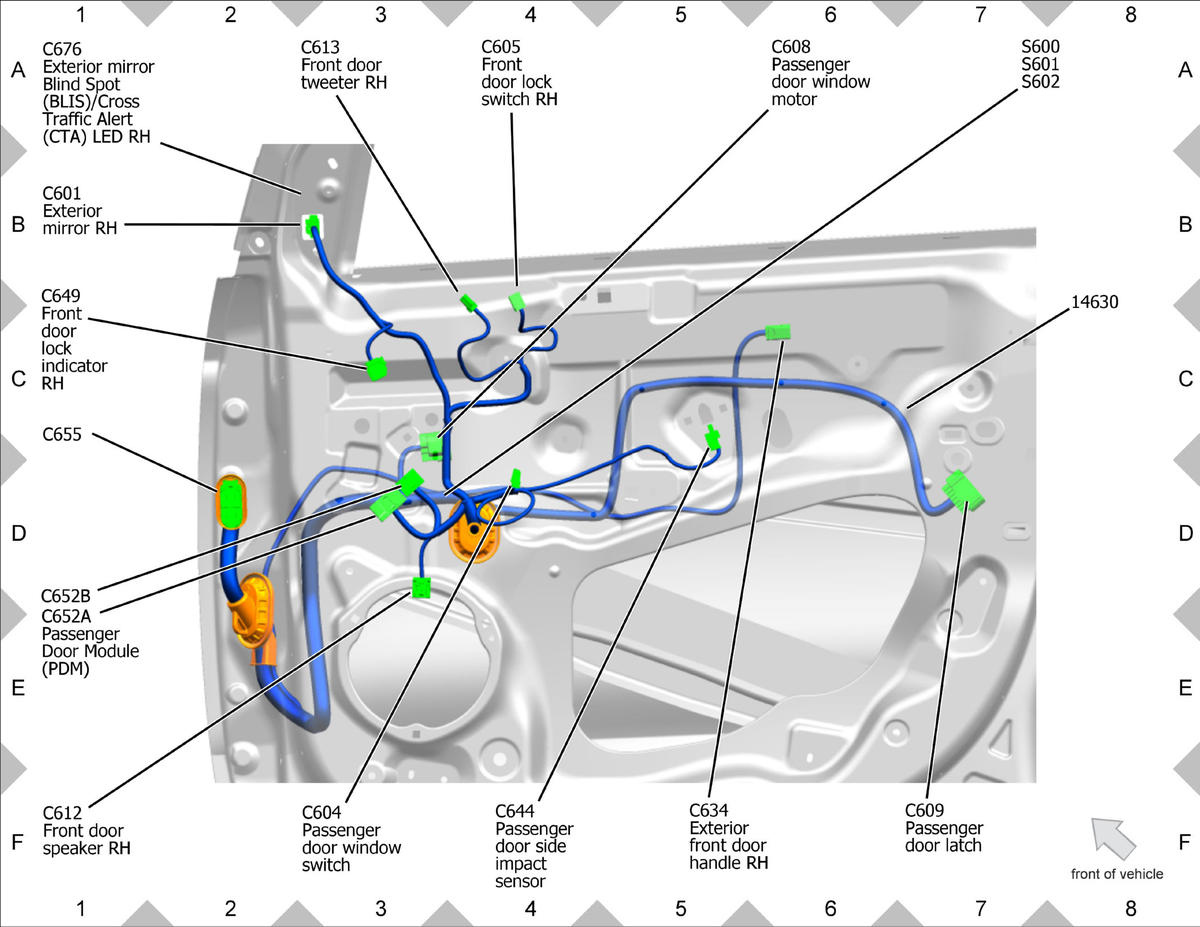

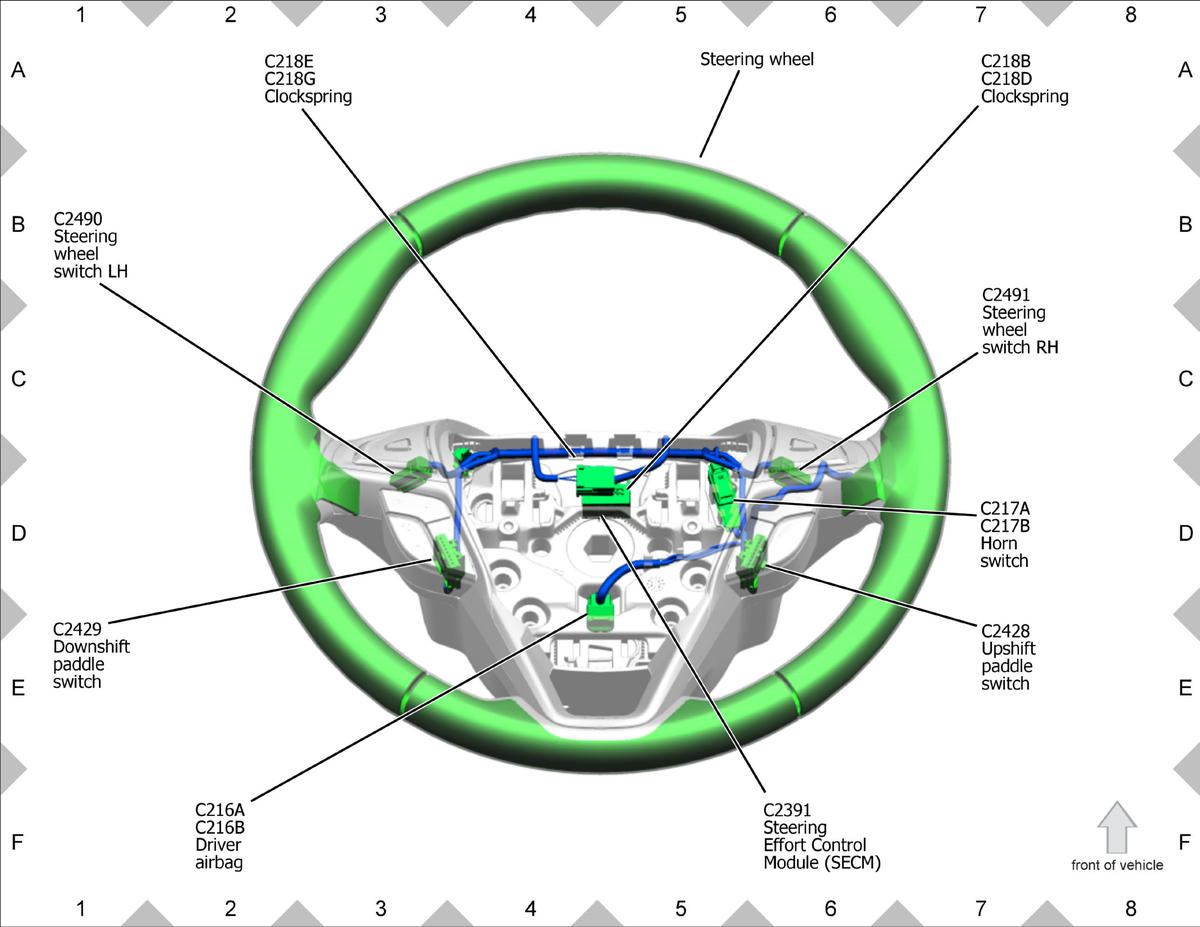

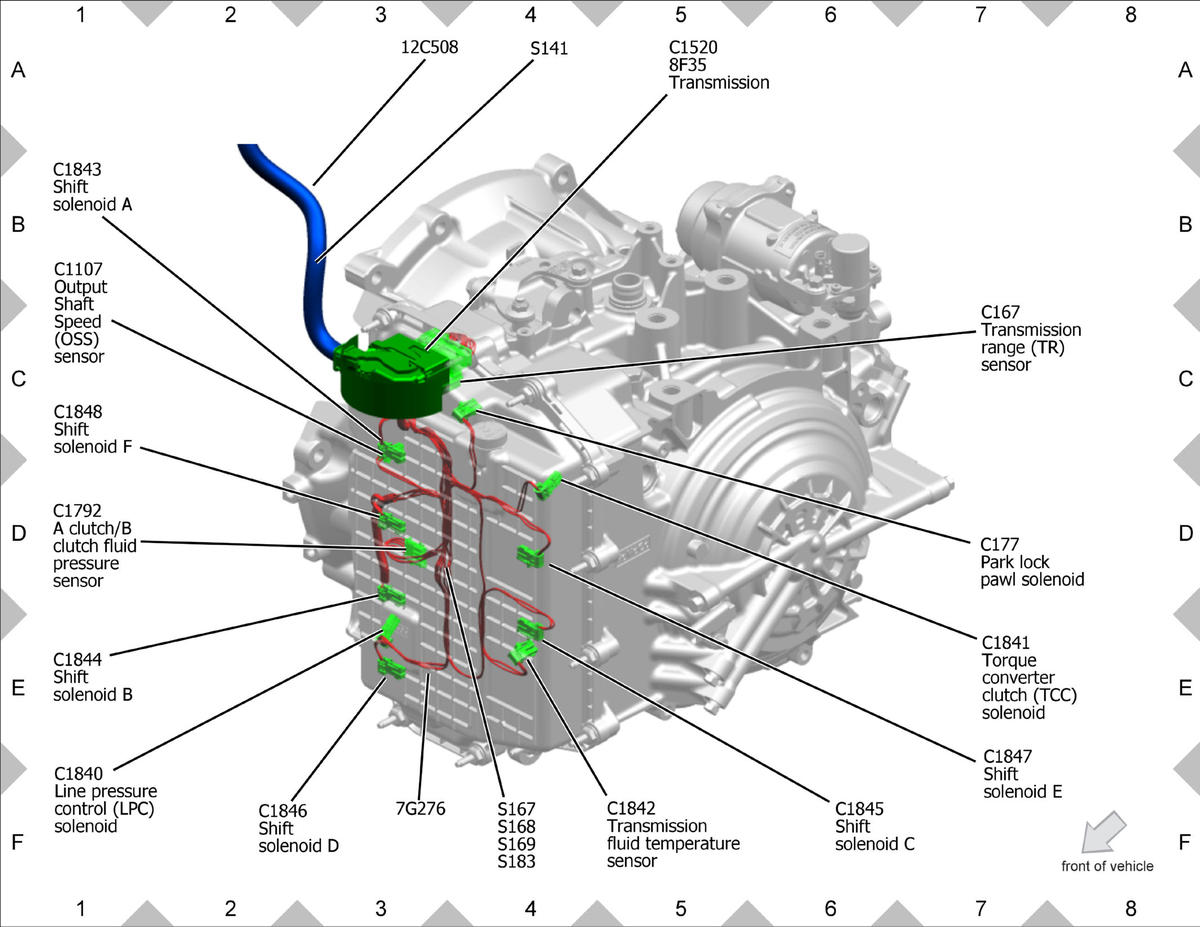

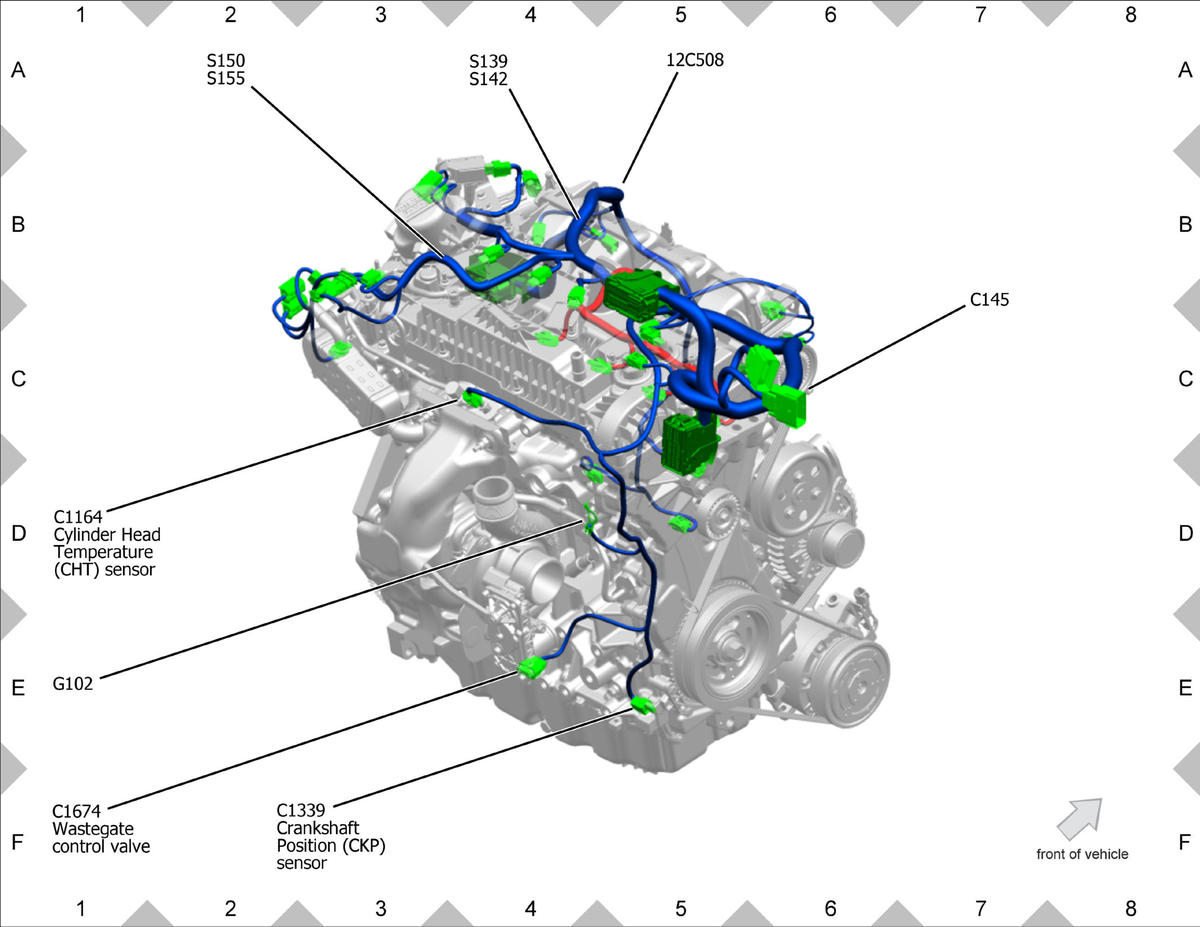

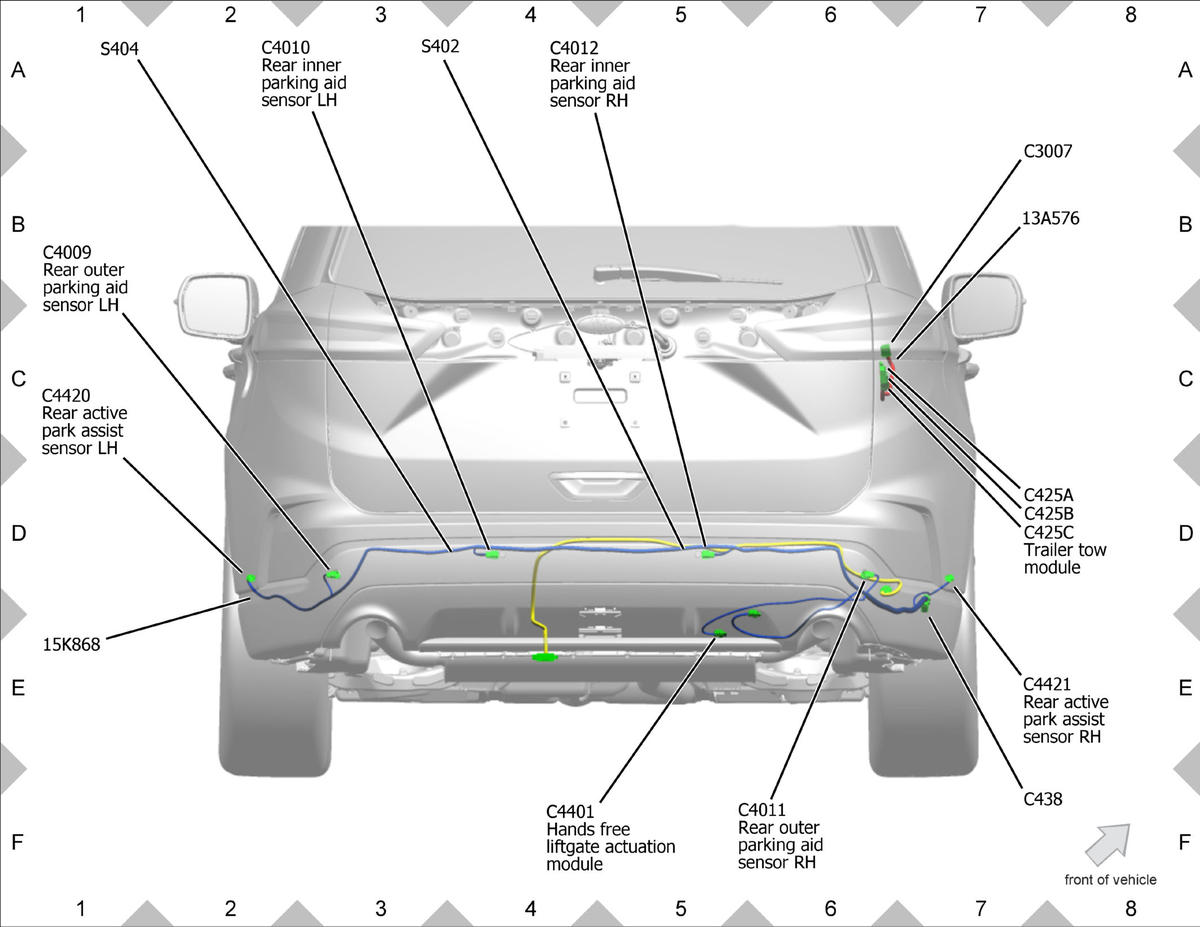

Courtesy of FORD MOTOR COMPANY

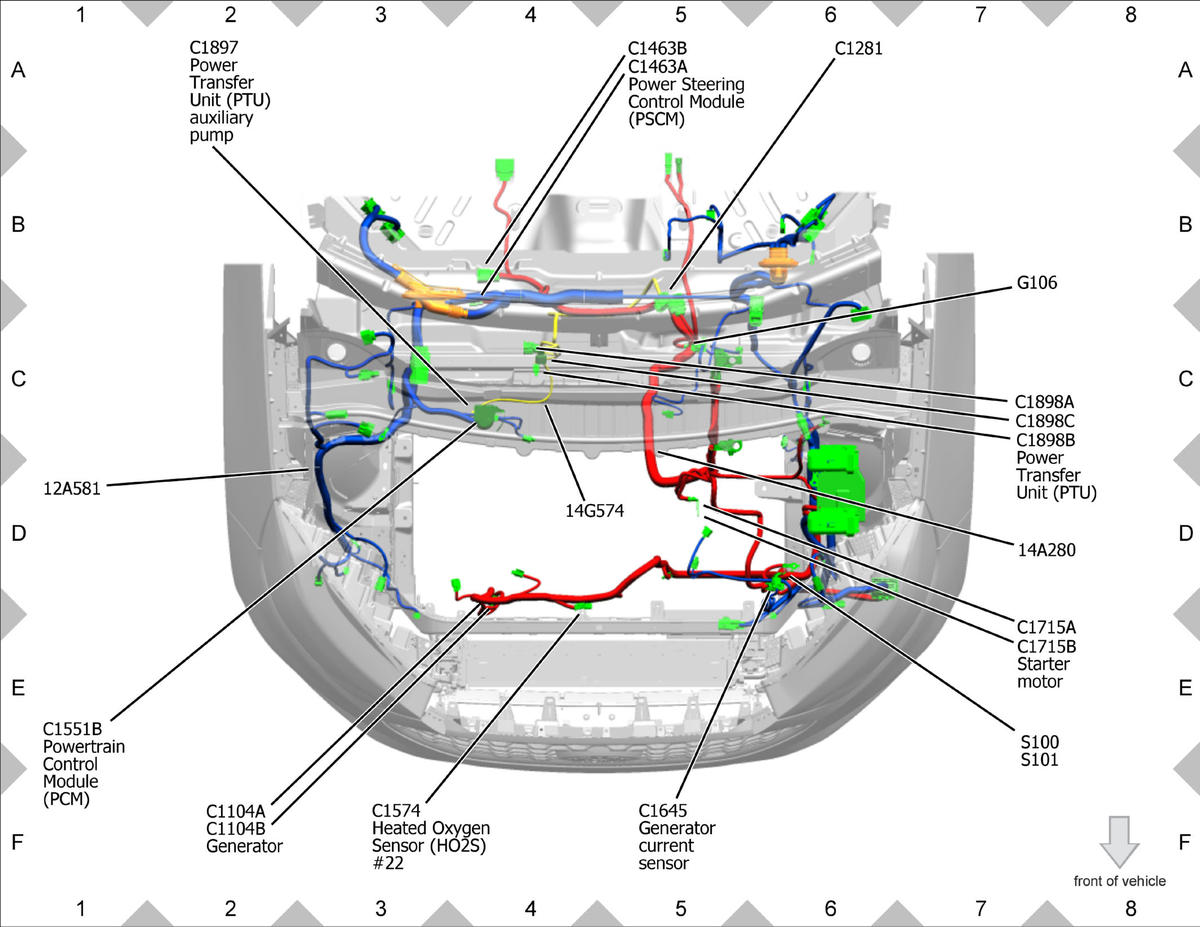

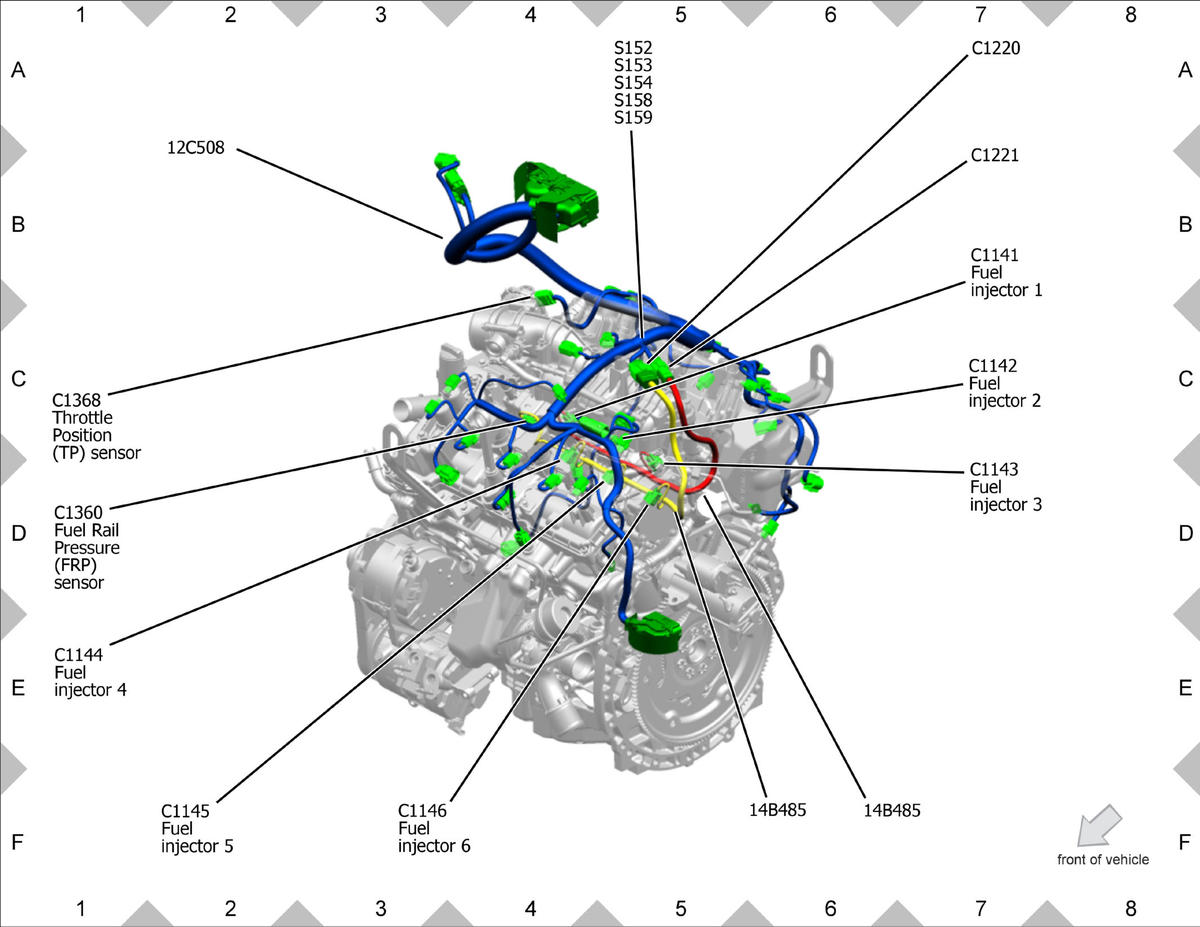

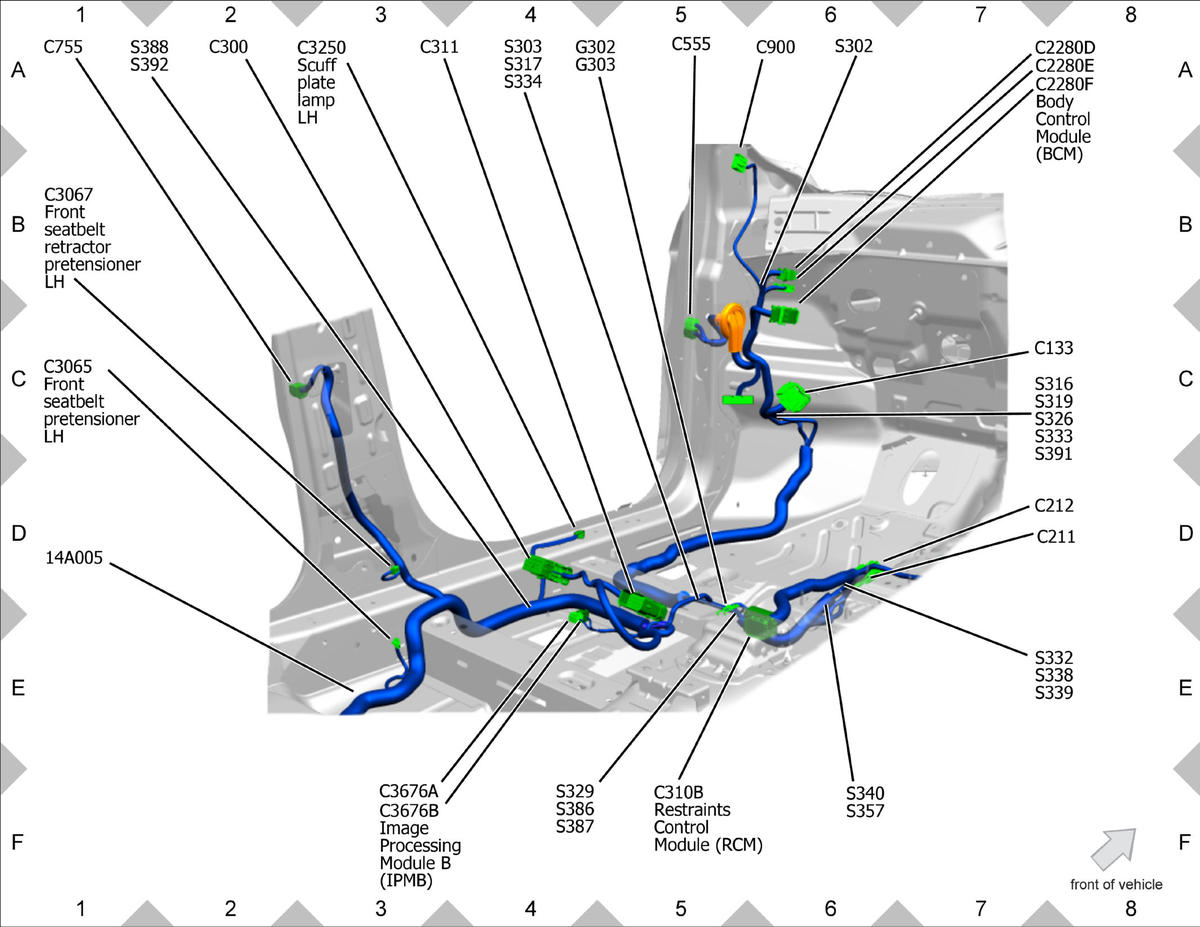

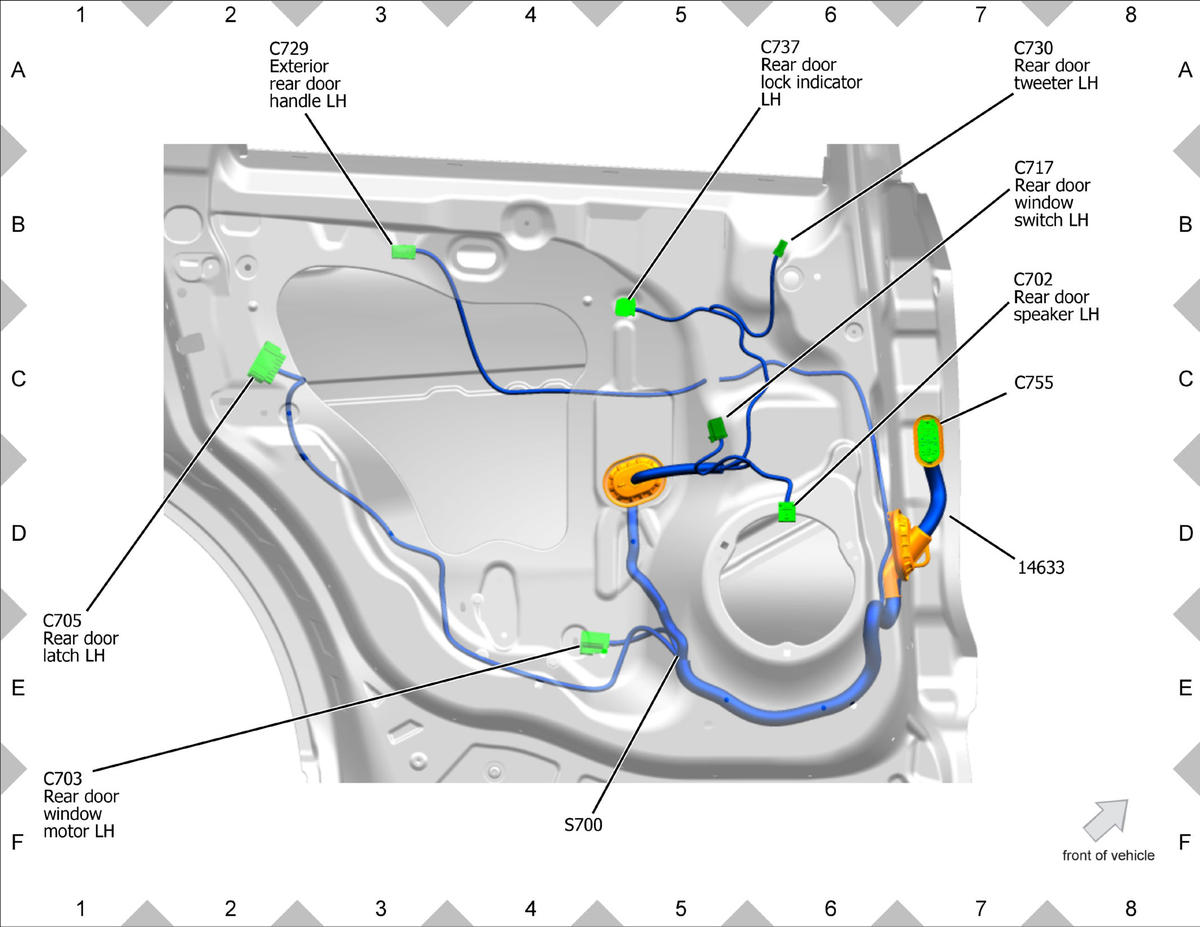

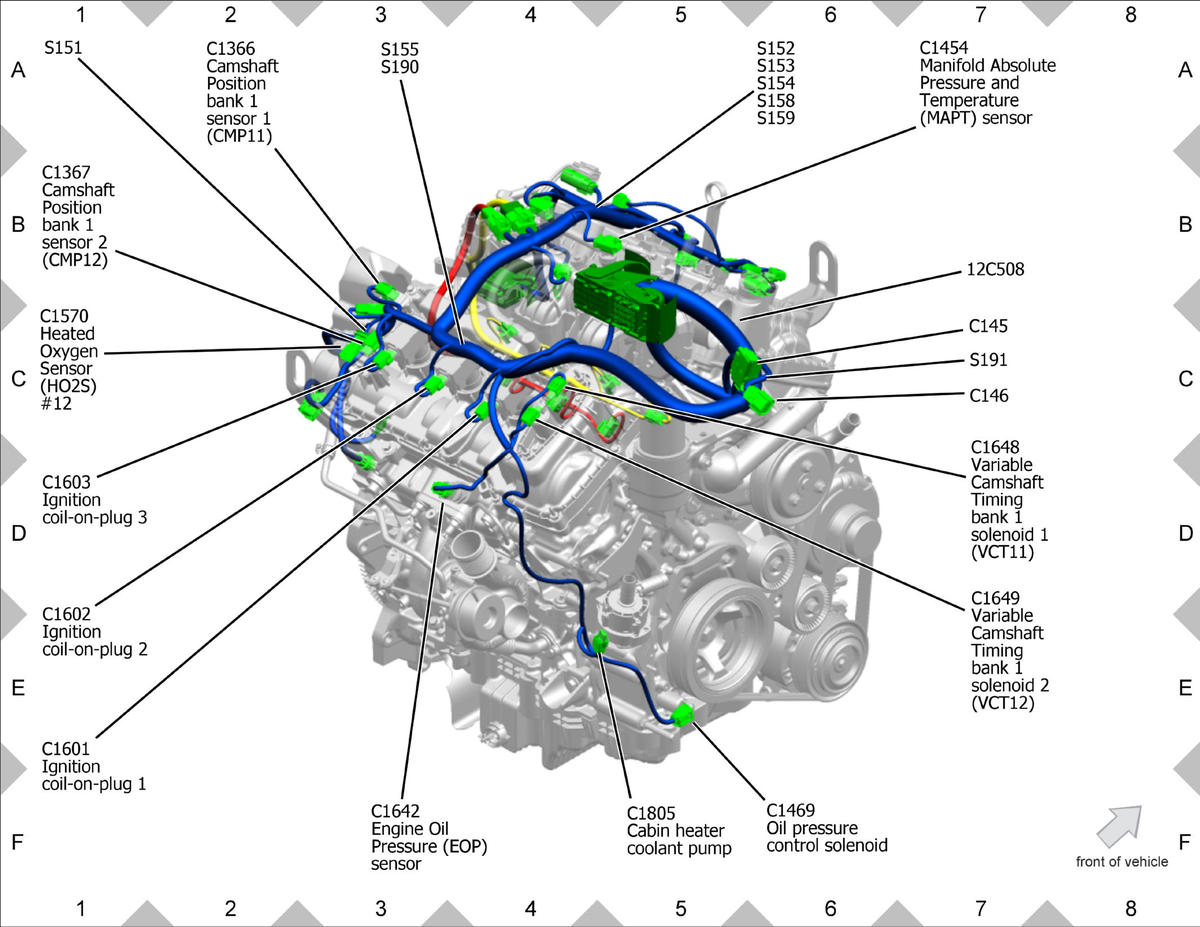

Courtesy of FORD MOTOR COMPANY

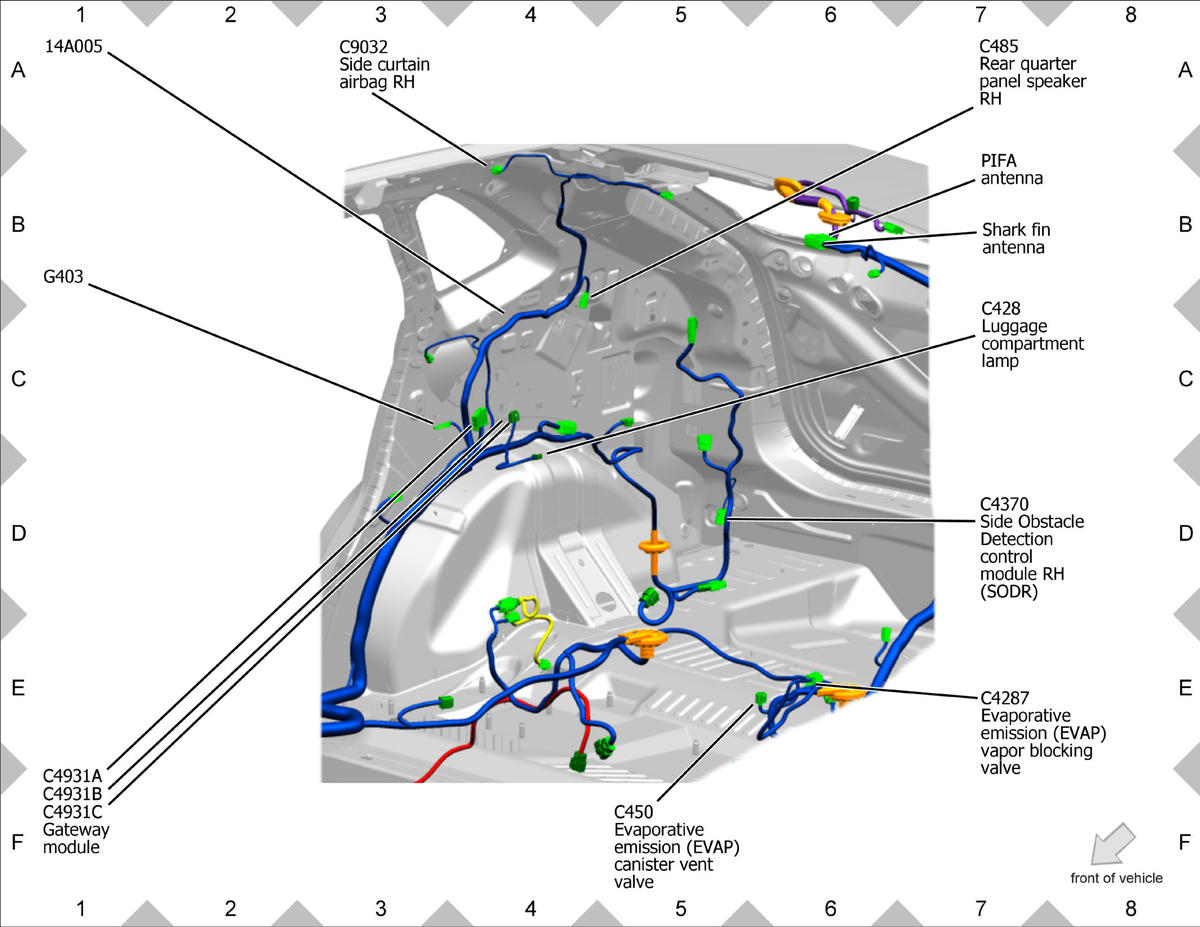

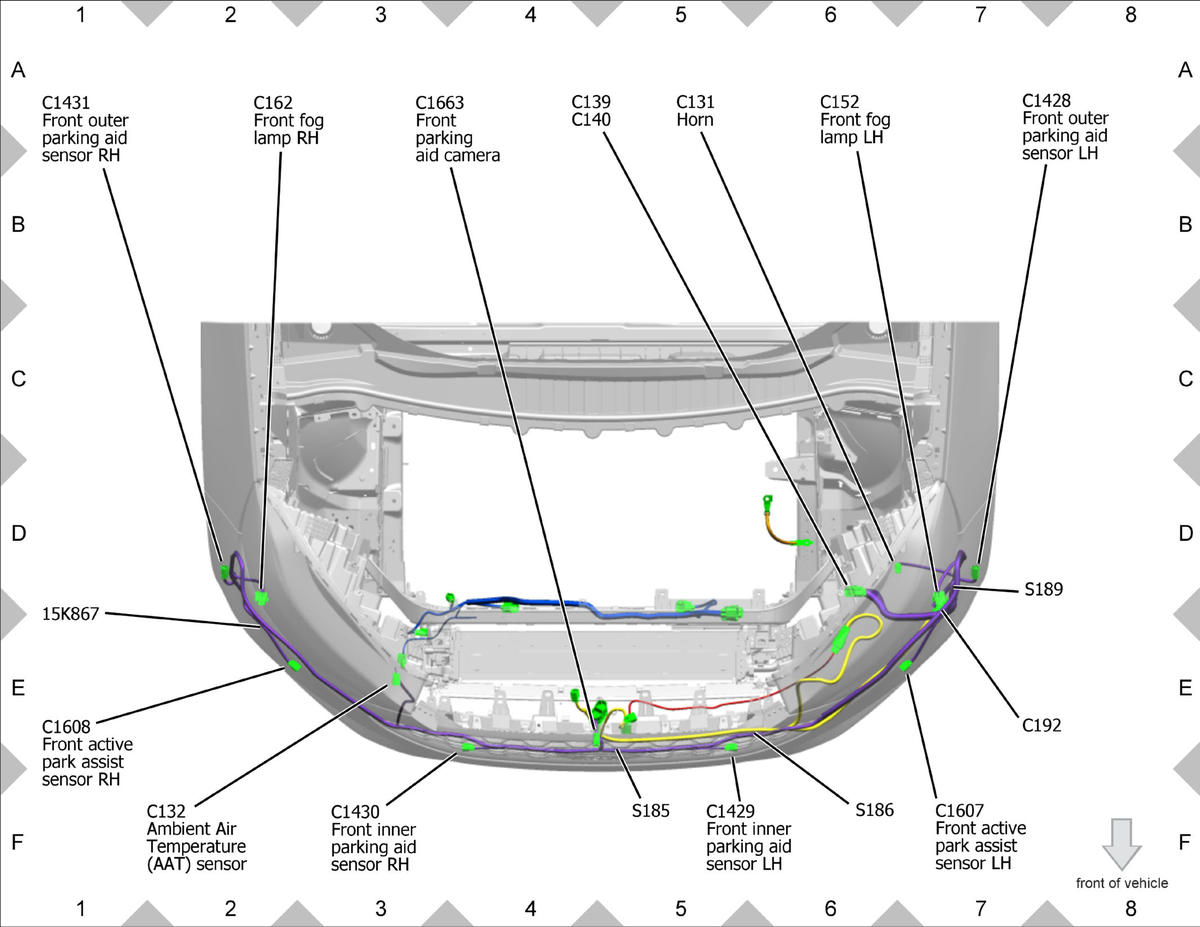

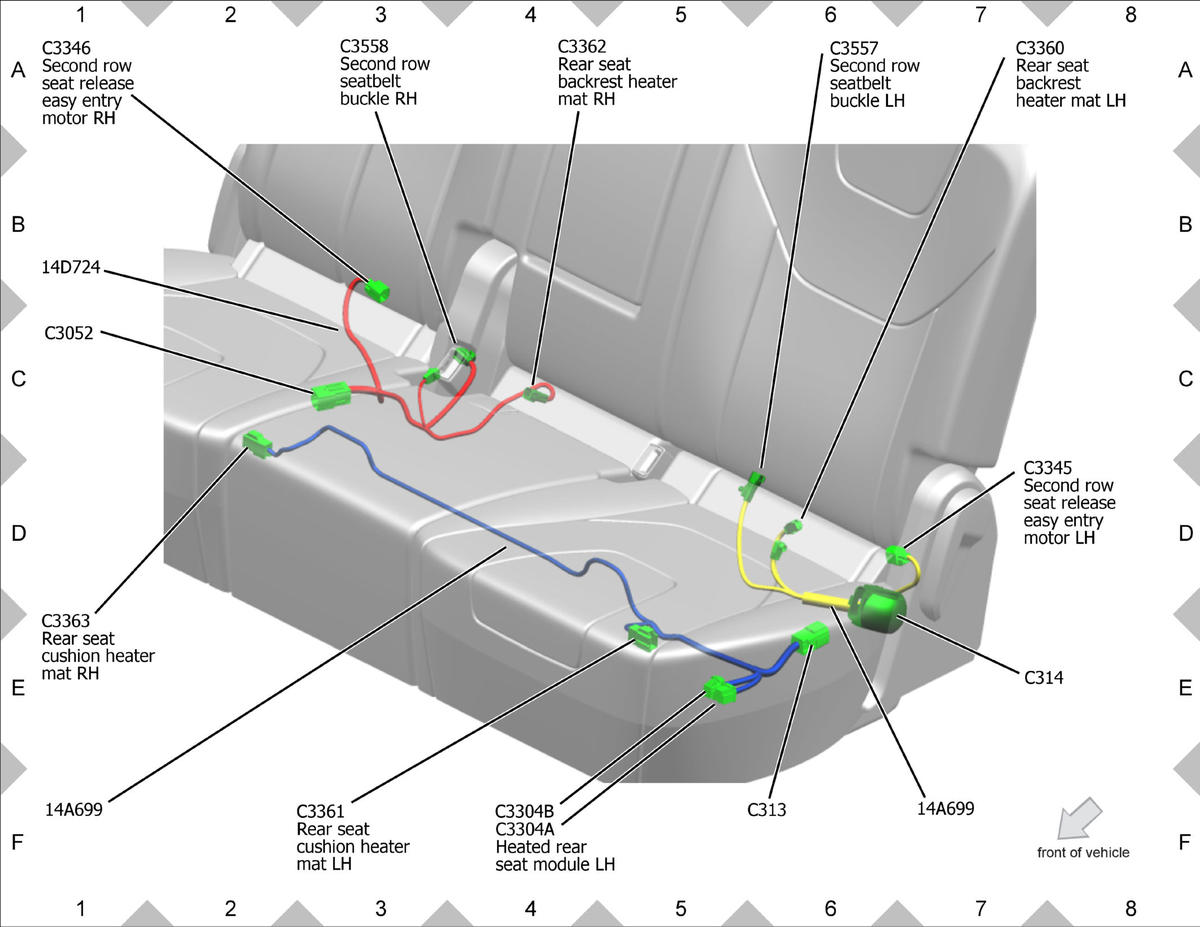

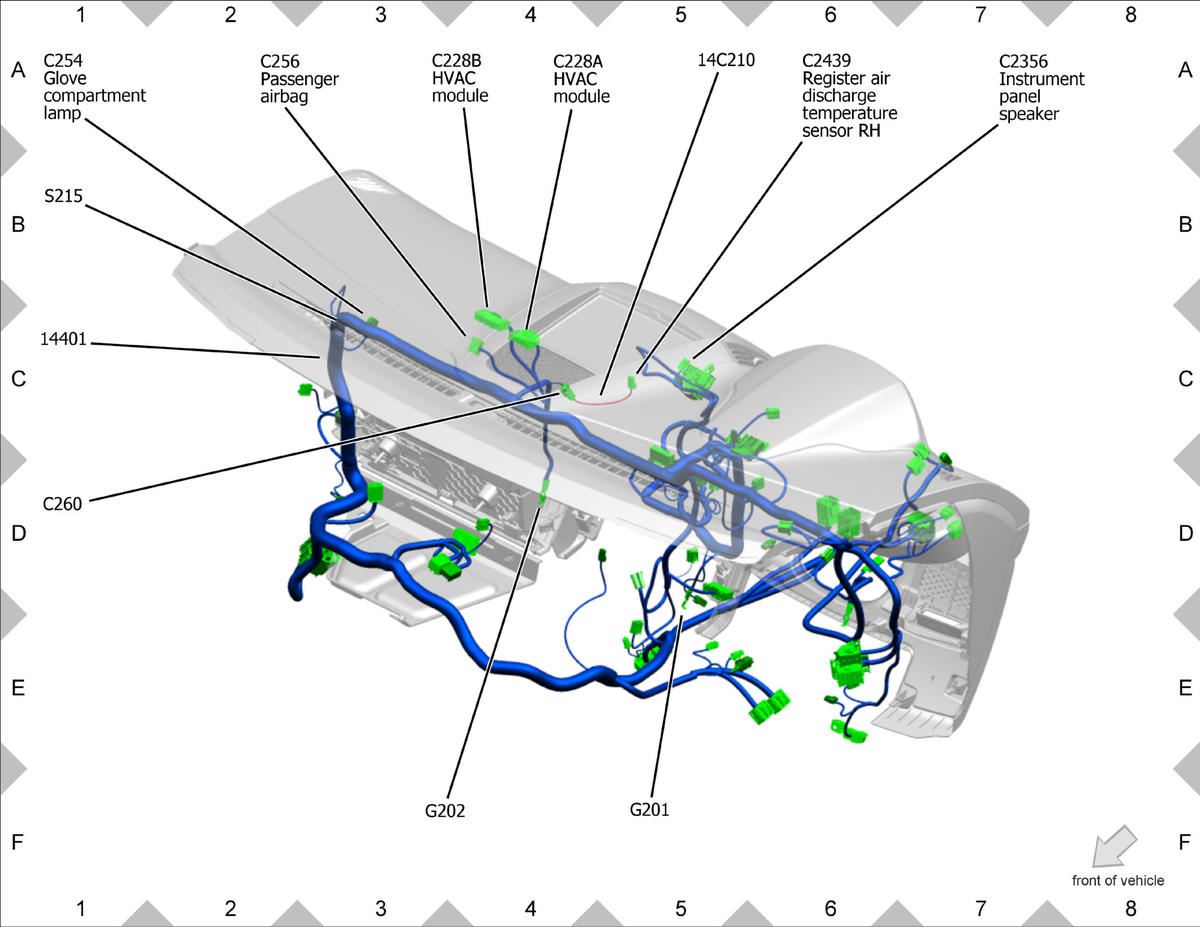

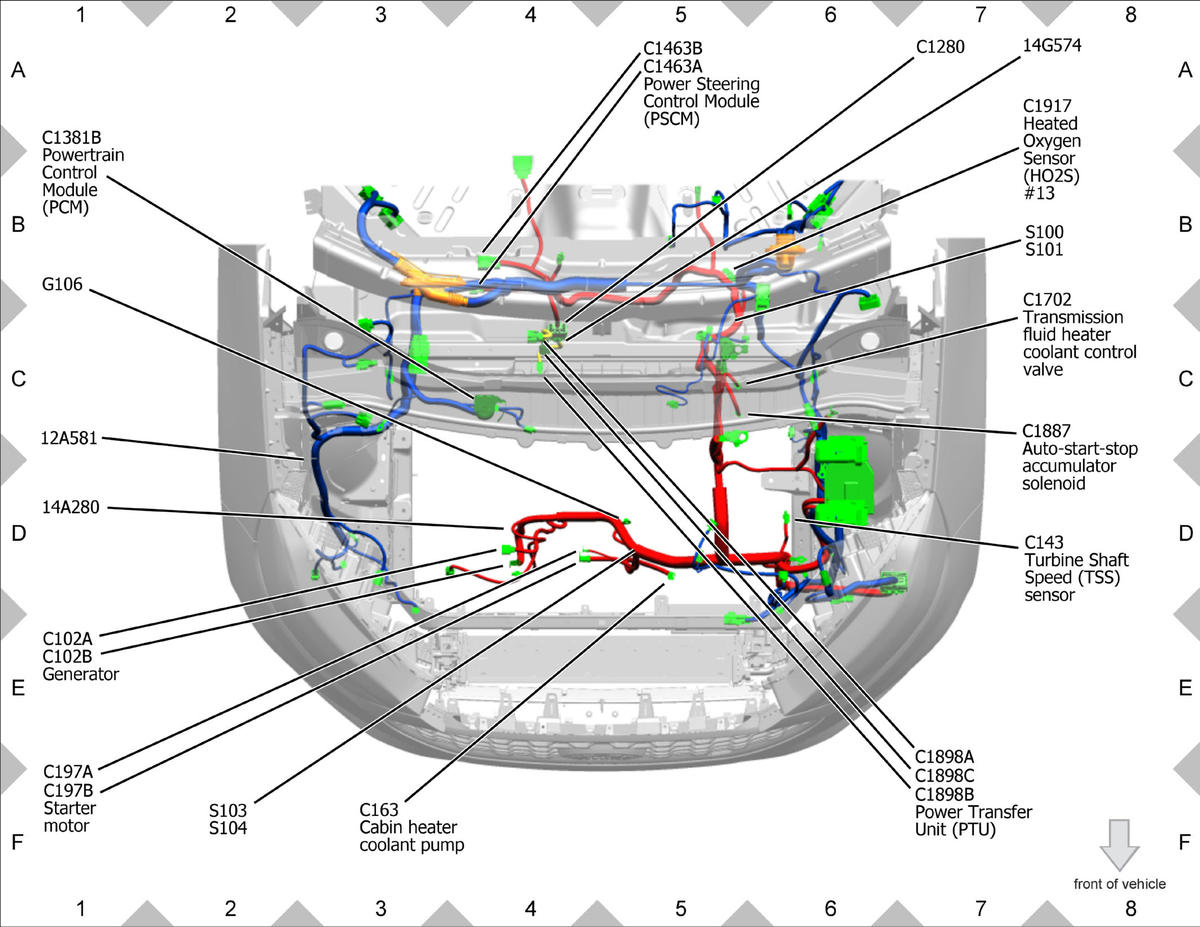

Courtesy of FORD MOTOR COMPANY

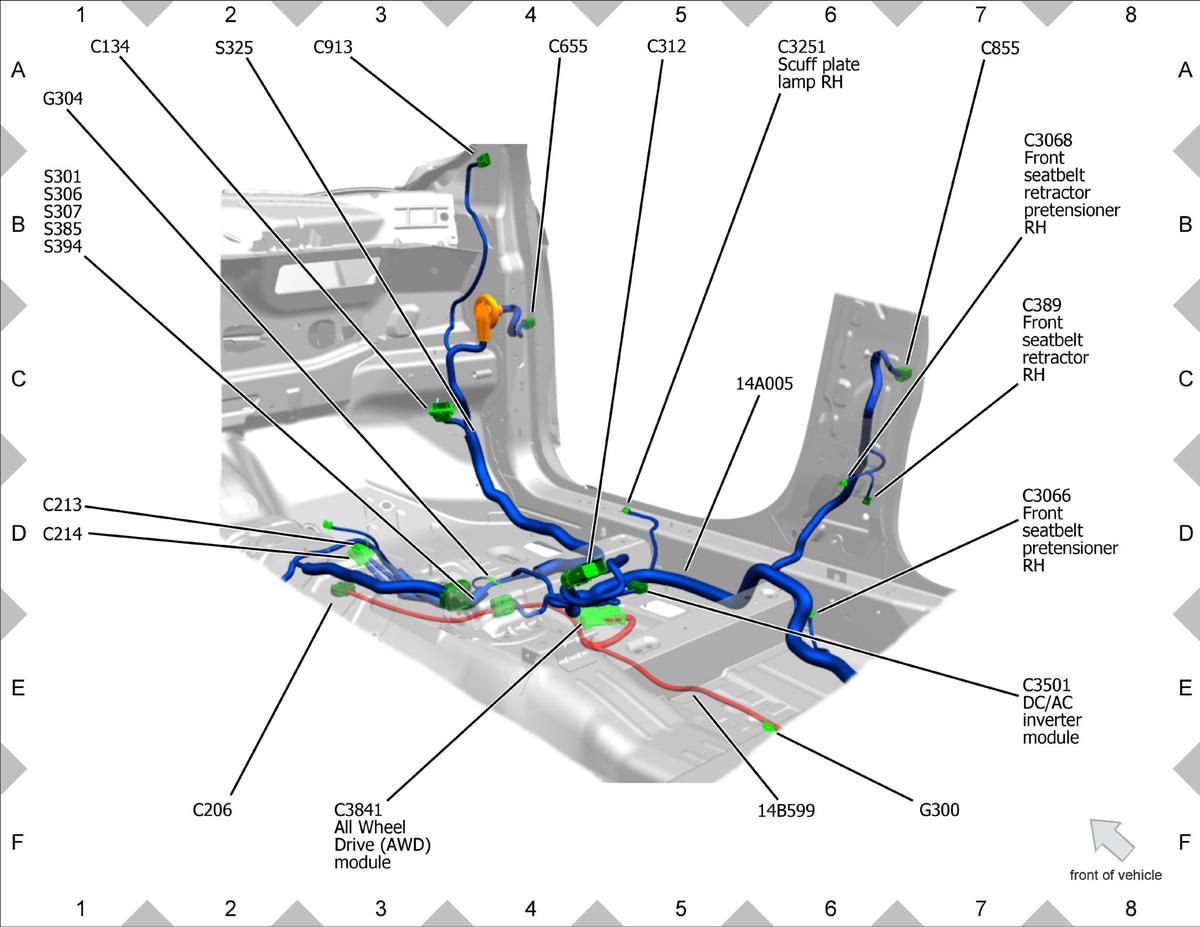

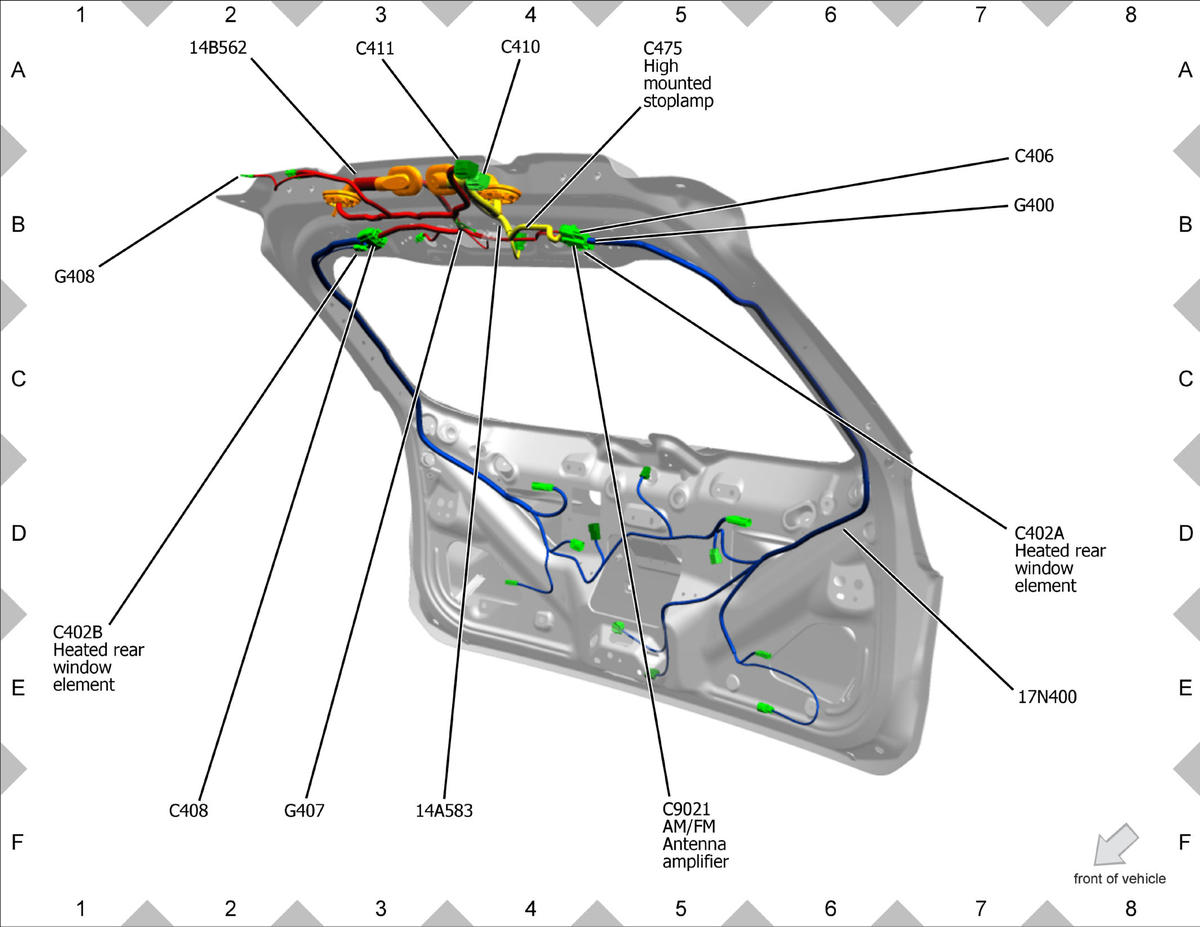

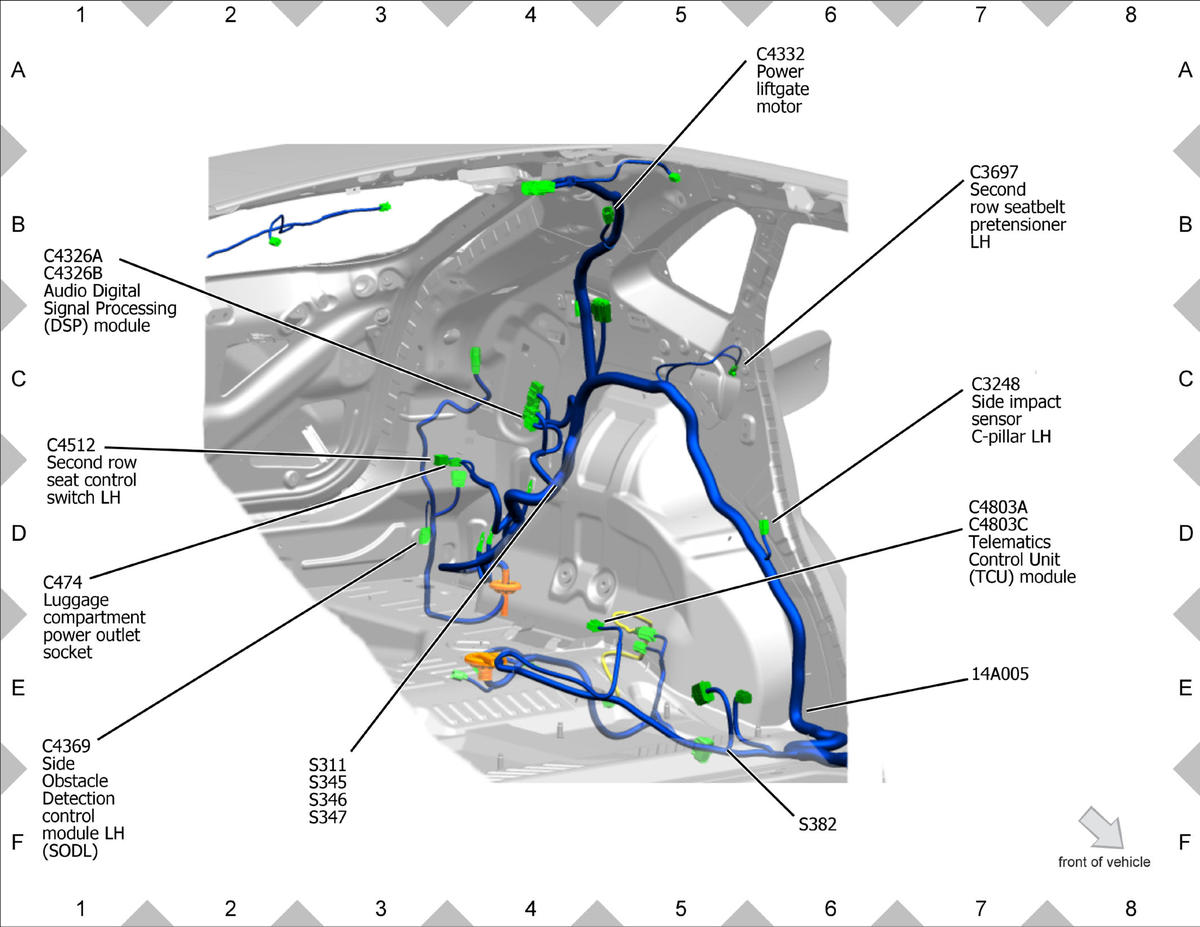

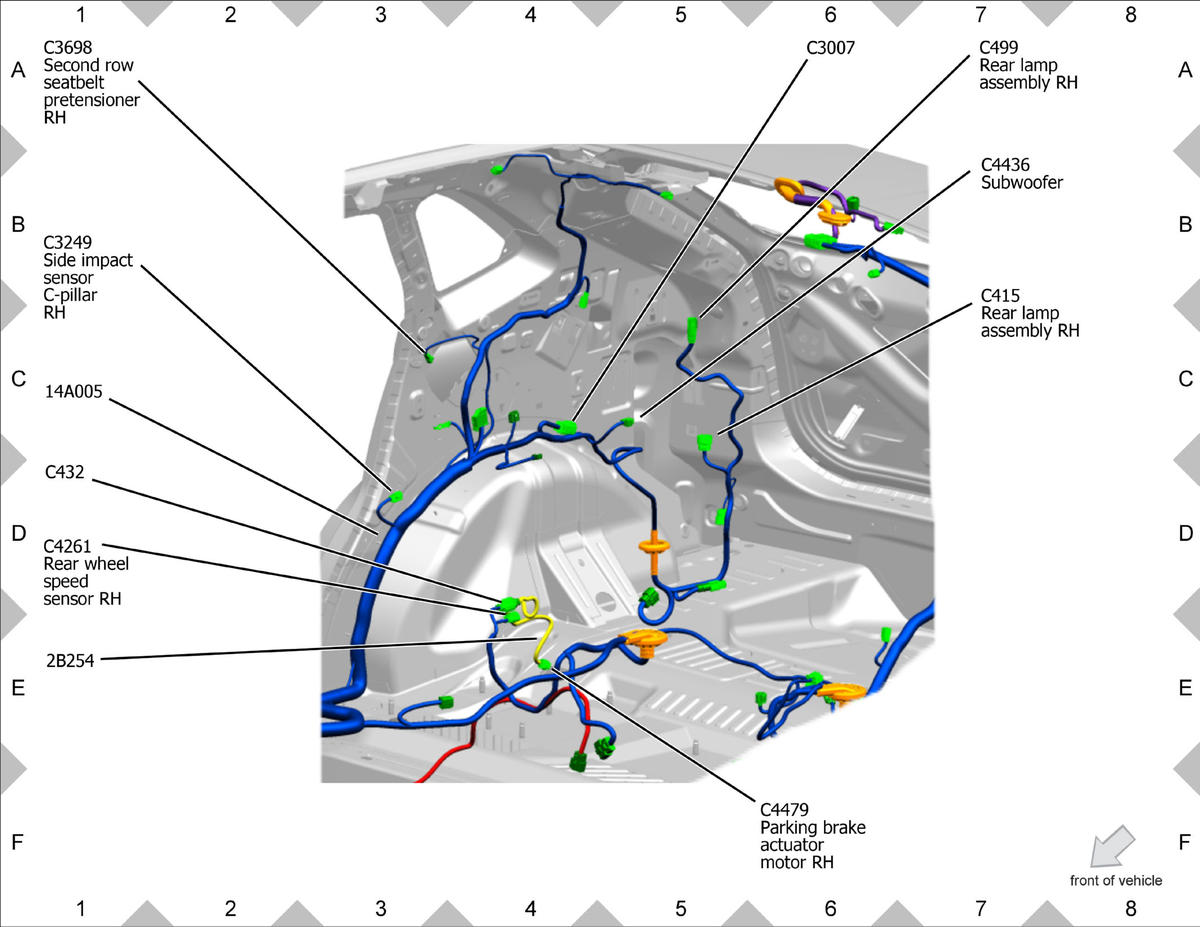

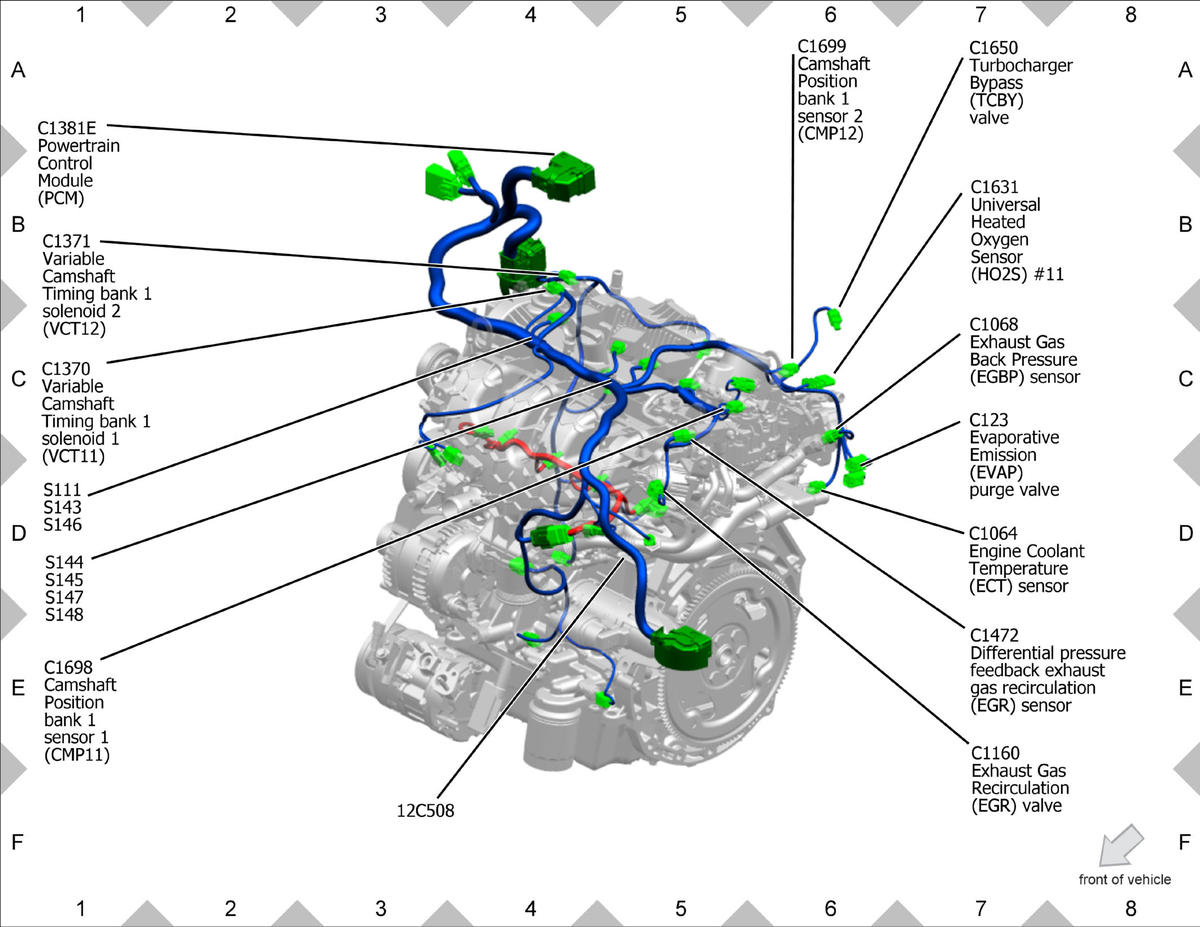

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
