Charging System

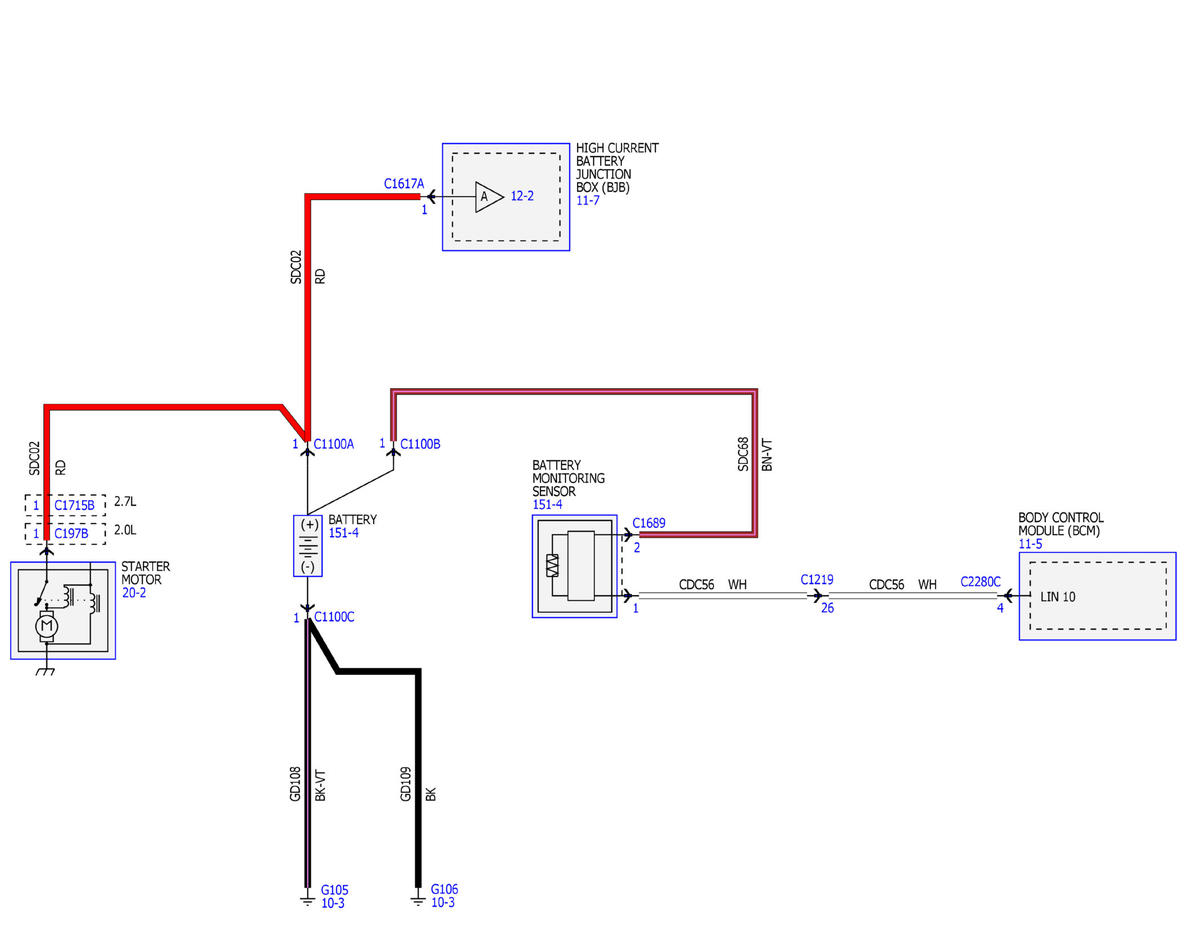

Fig 1: Charging System Wiring Diagram (1 Of 3)
GFDWR139090Courtesy of FORD MOTOR COMPANY

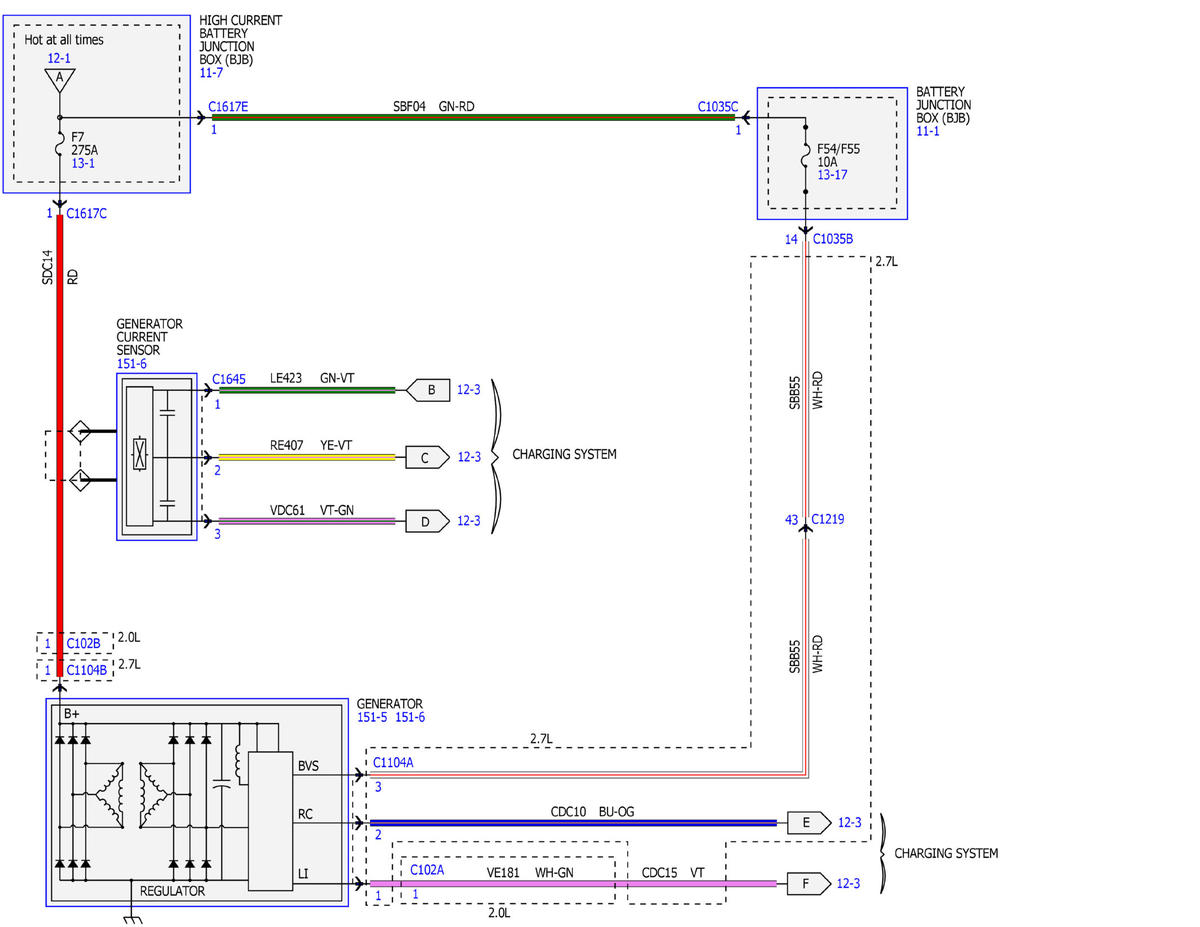

Fig 2: Charging System Wiring Diagram (2 Of 3)
GFDWR139091Courtesy of FORD MOTOR COMPANY

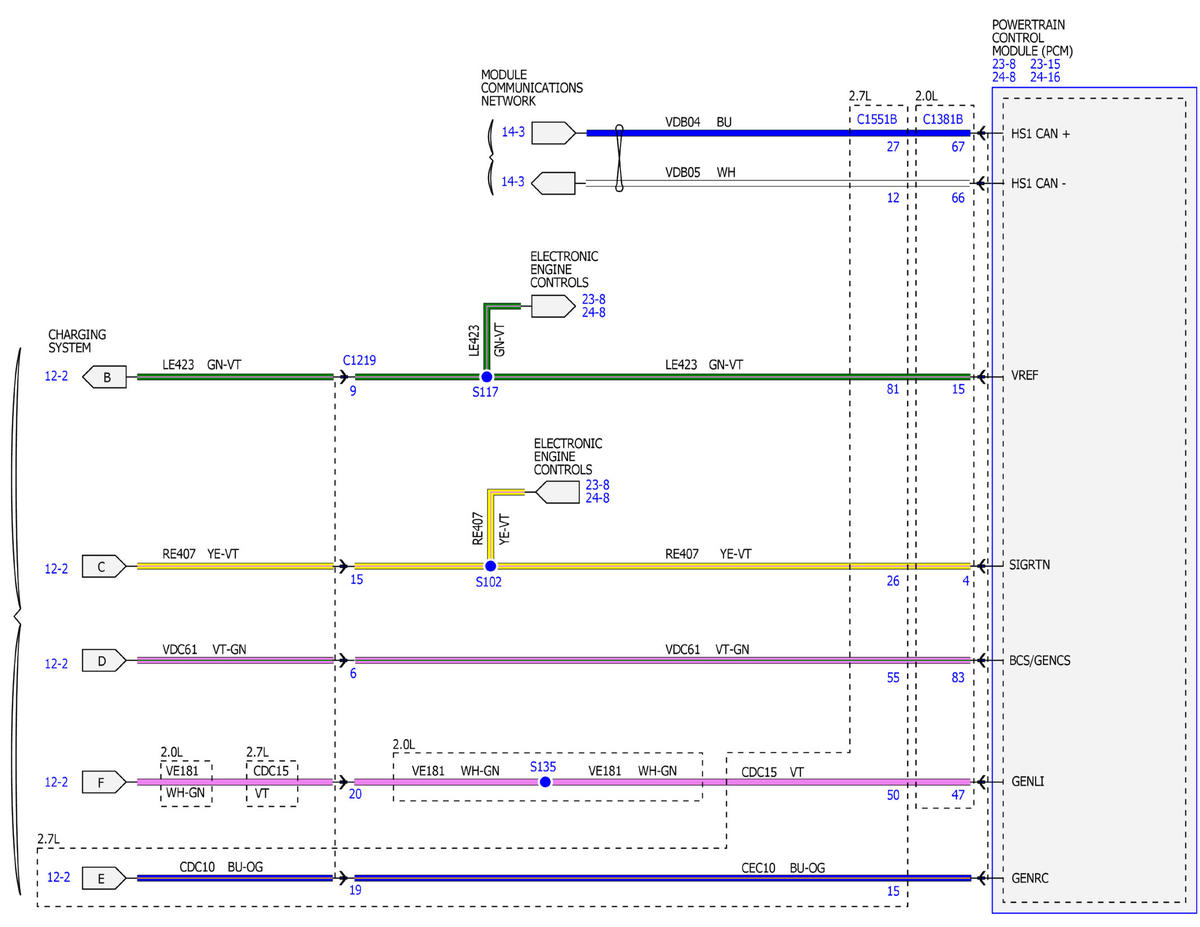

Fig 3: Charging System Wiring Diagram (3 Of 3)
GFDWR139092Courtesy of FORD MOTOR COMPANY
