Vehicle Dynamic Systems

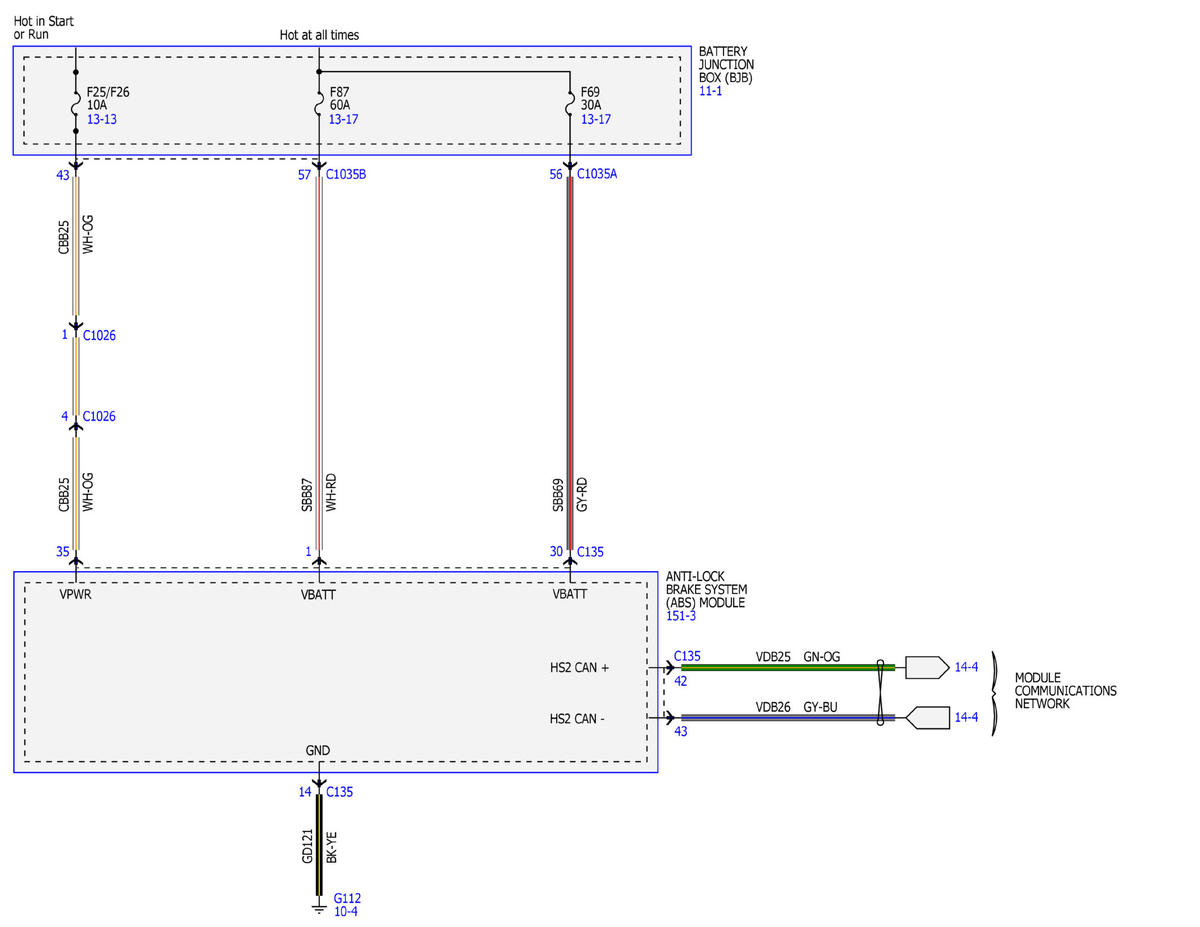

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 Of 4)
GFDWR139337Courtesy of FORD MOTOR COMPANY

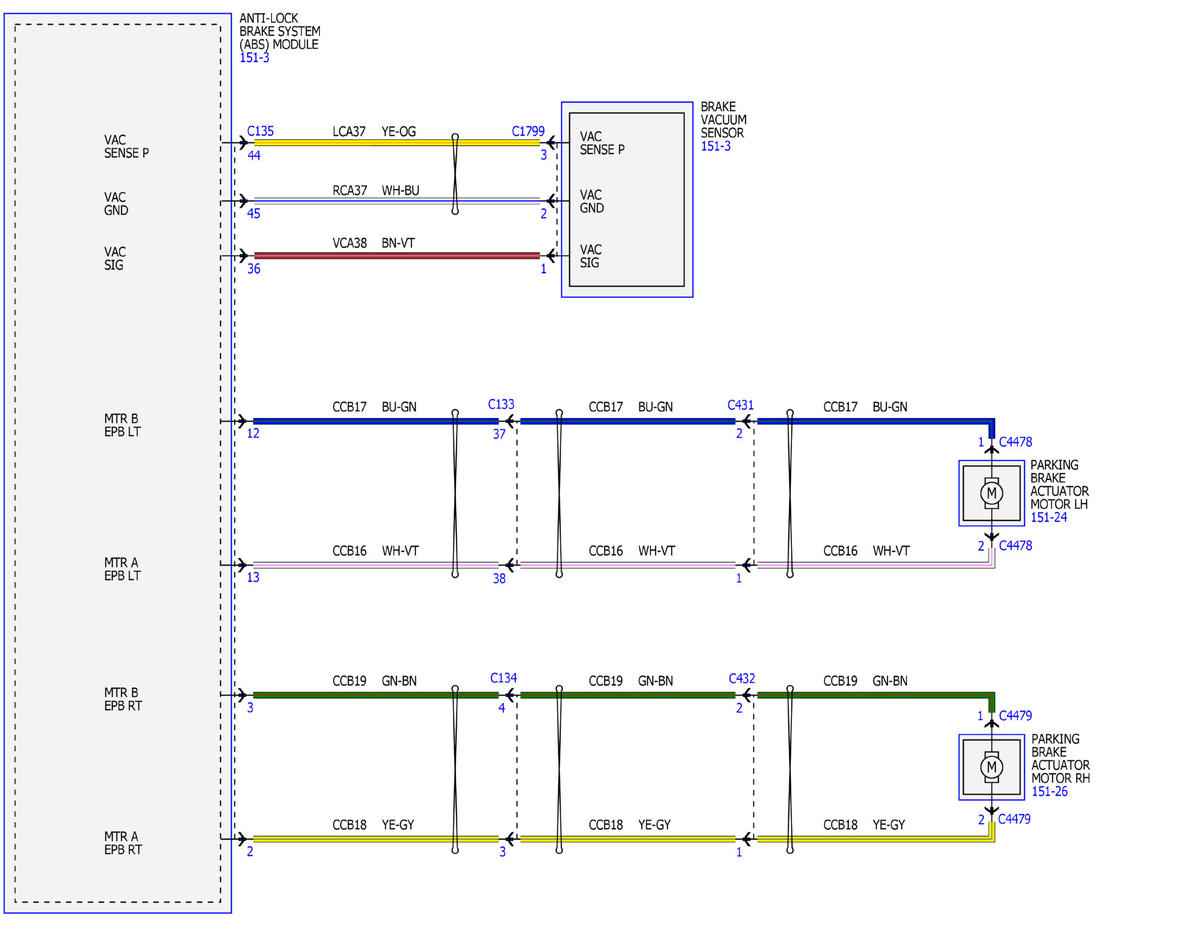

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 Of 4)
GFDWR139338Courtesy of FORD MOTOR COMPANY

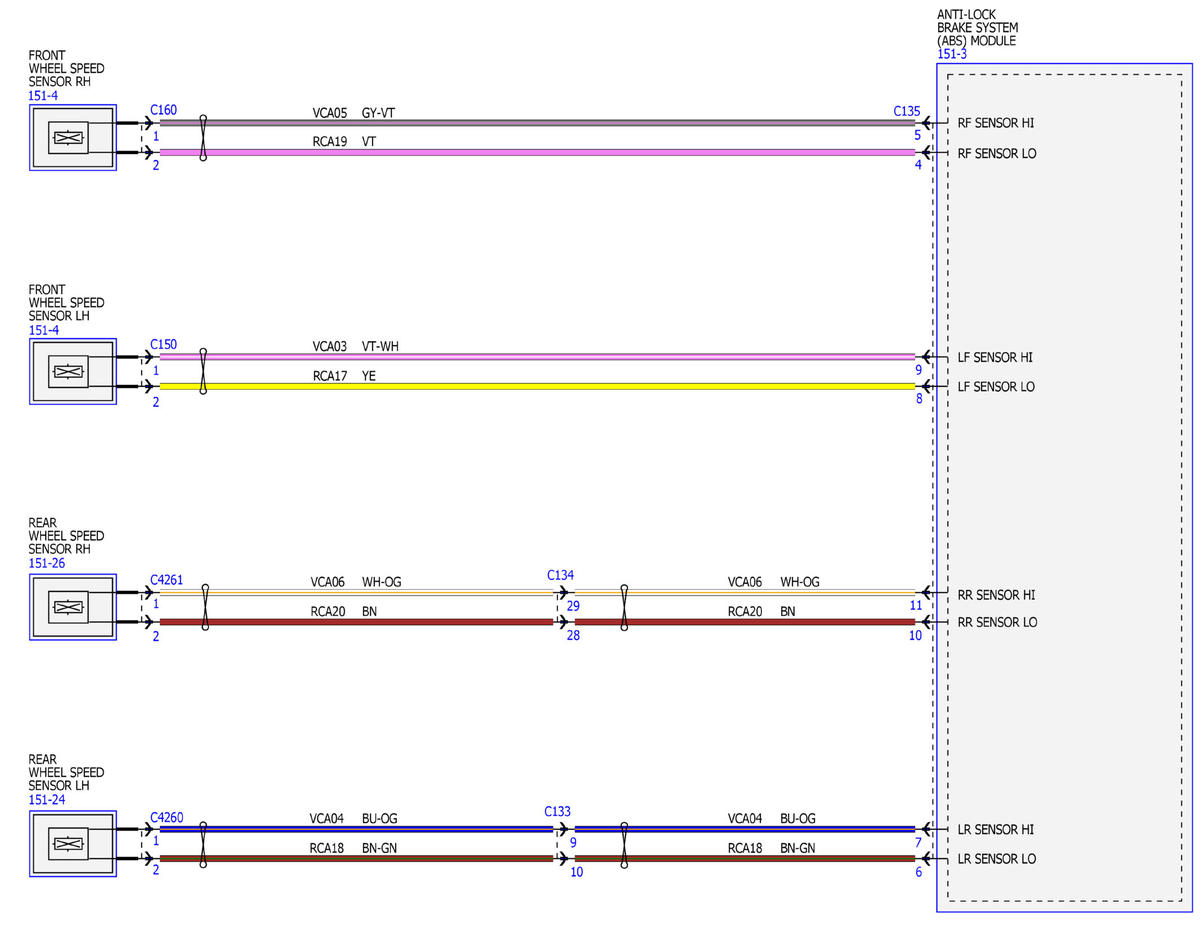

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 Of 4)
GFDWR139339Courtesy of FORD MOTOR COMPANY

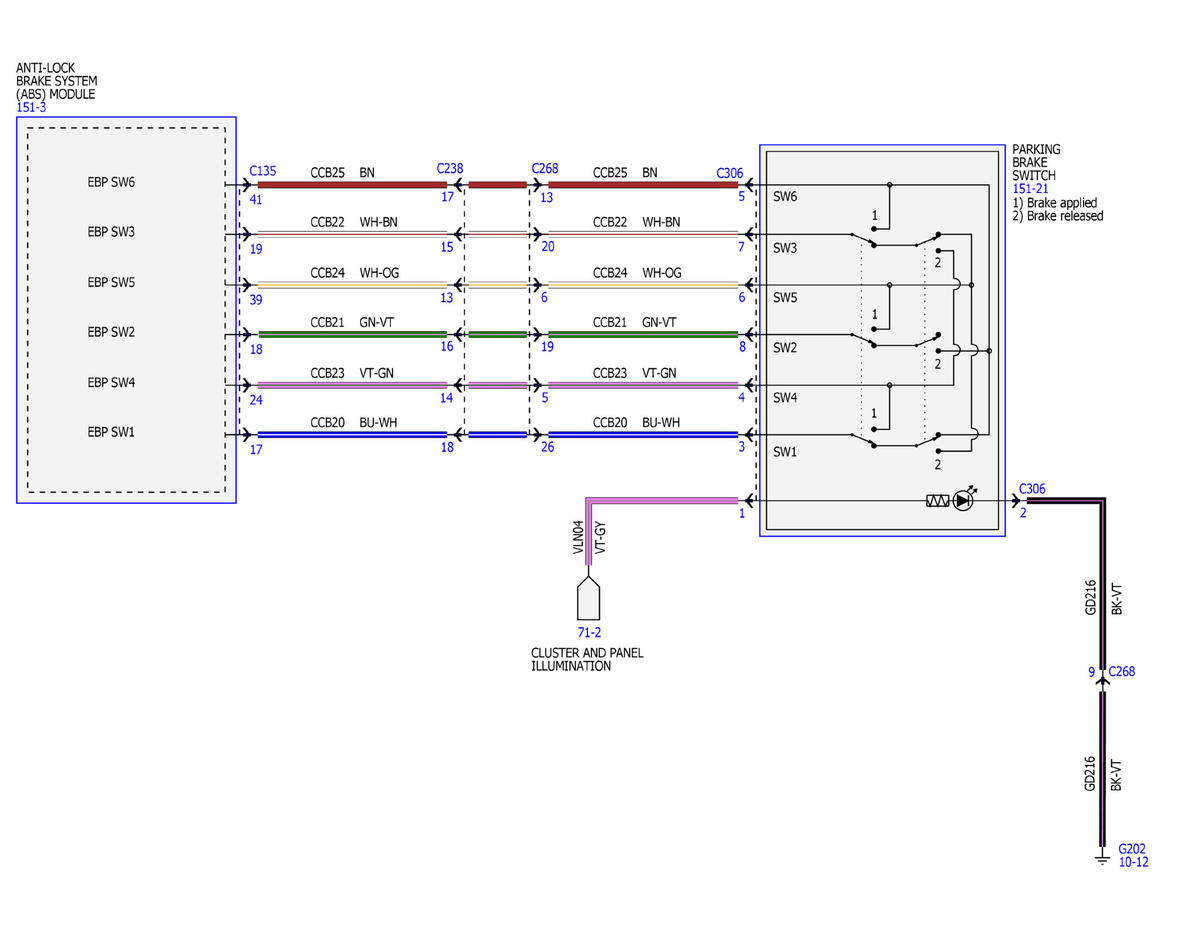

Fig 4: Vehicle Dynamic Systems Wiring Diagram (4 Of 4)
GFDWR139340Courtesy of FORD MOTOR COMPANY
