Section 301 (OEM Ground Distribution): Grounds
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

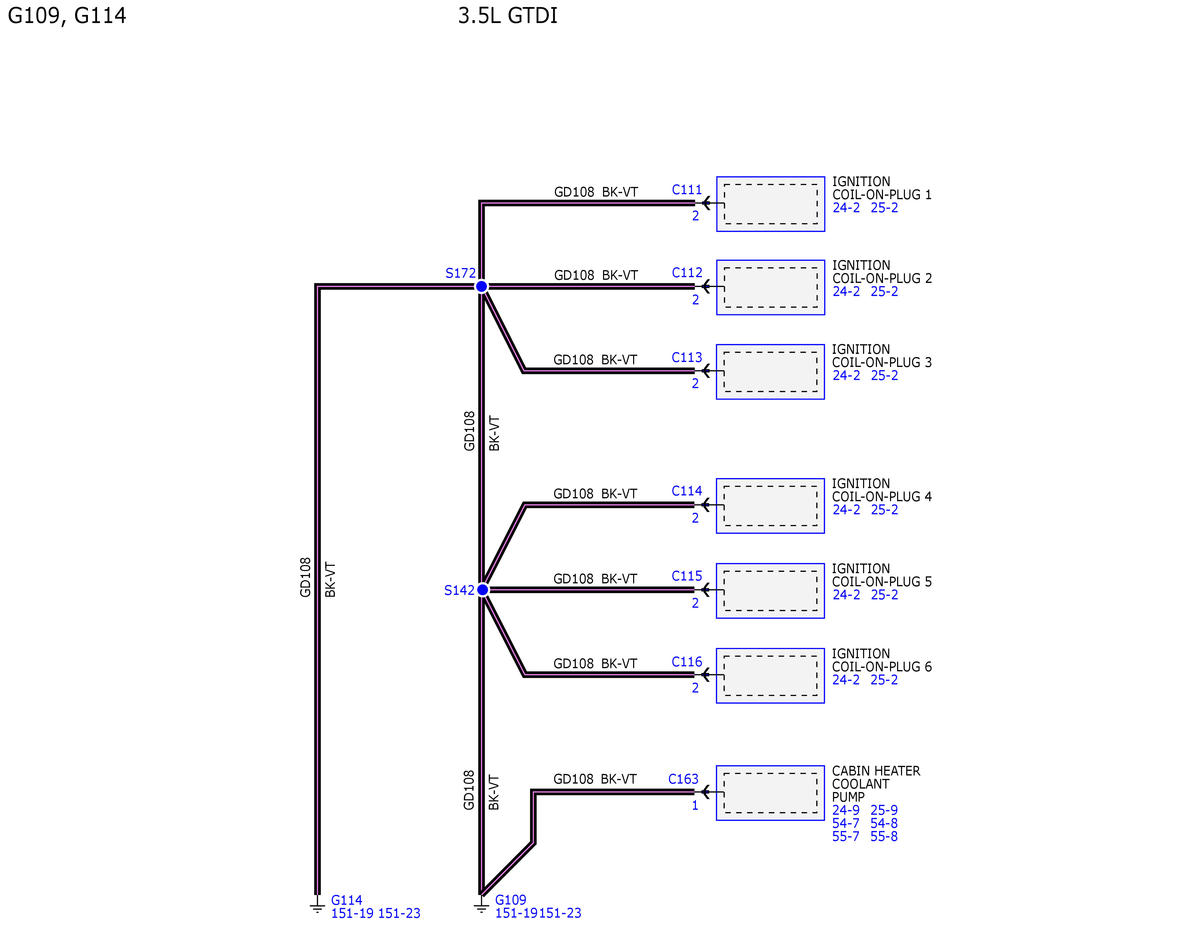

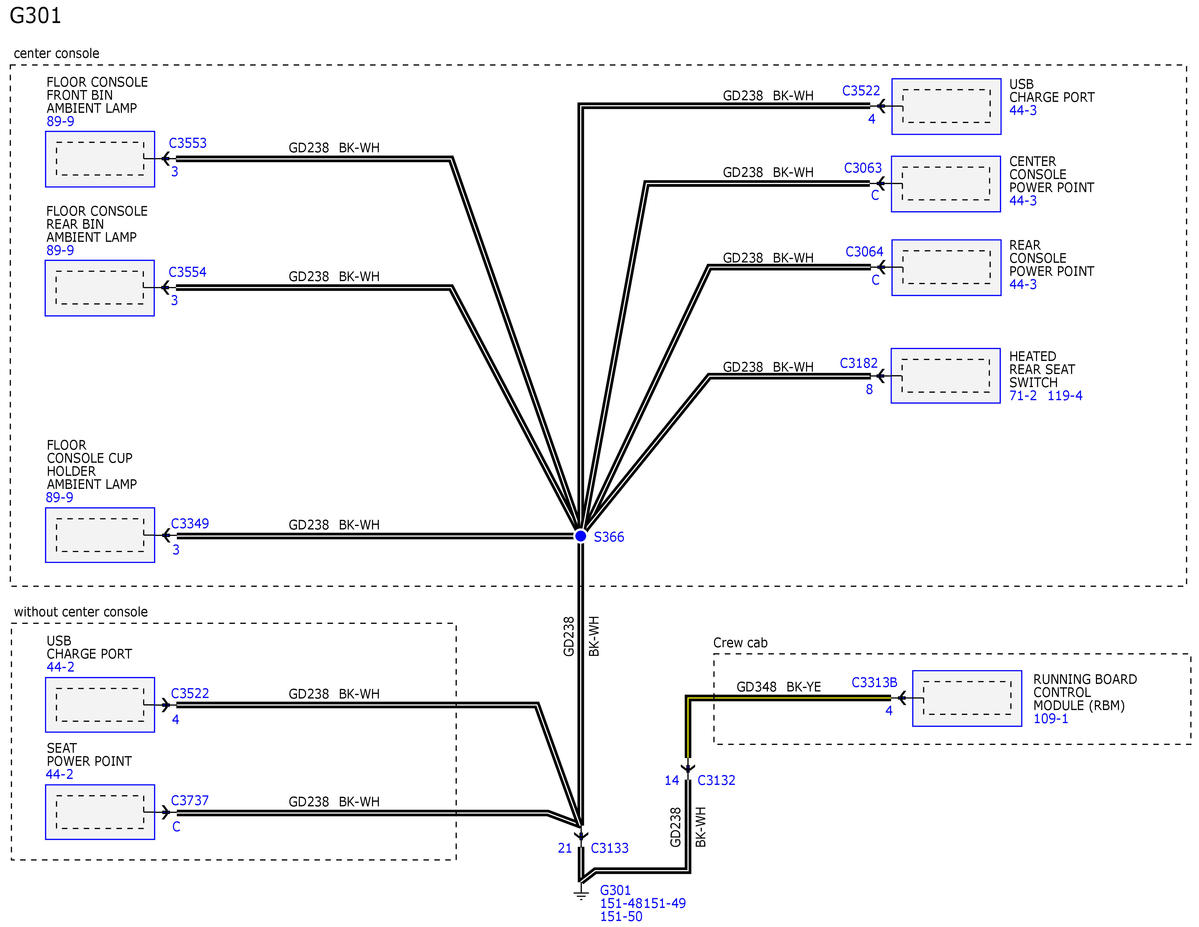

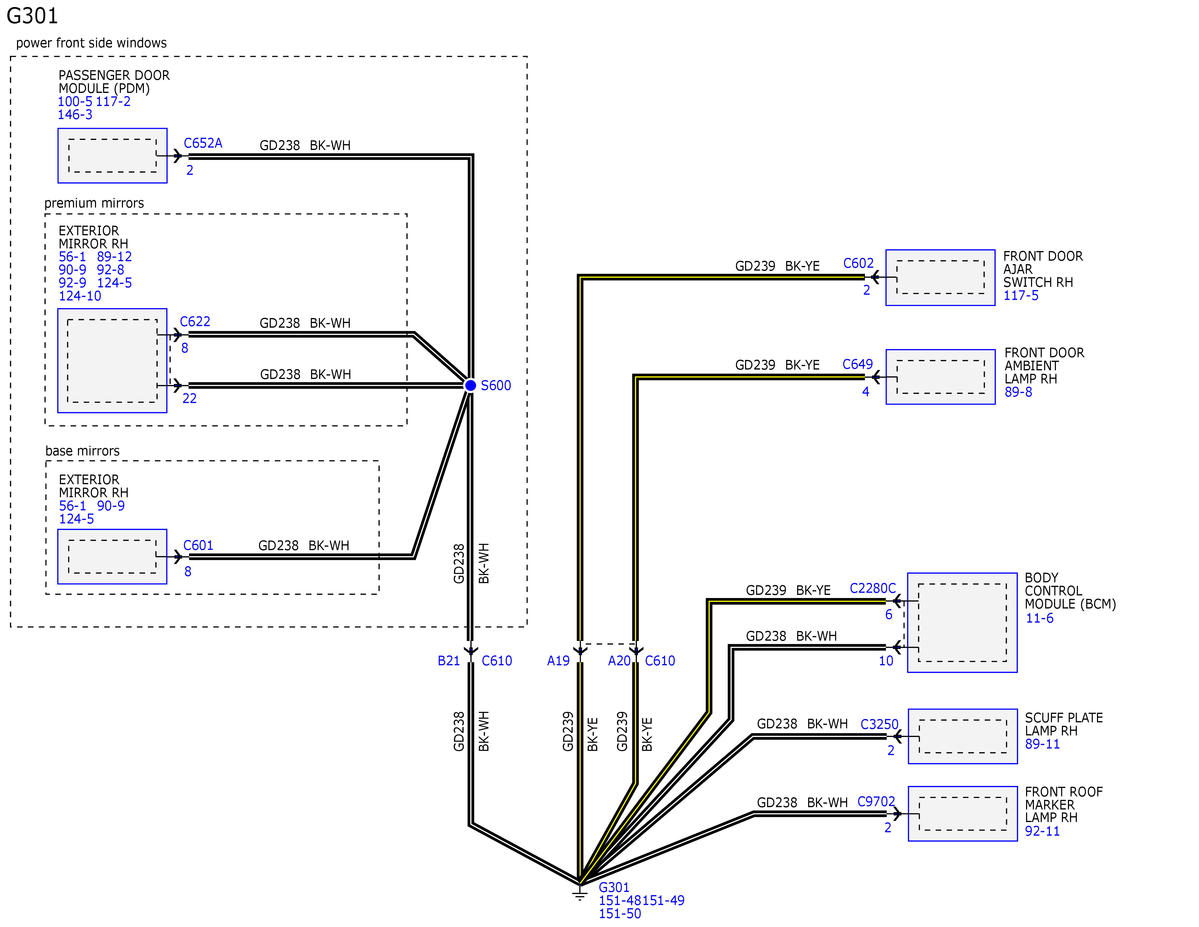

Courtesy of FORD MOTOR COMPANY

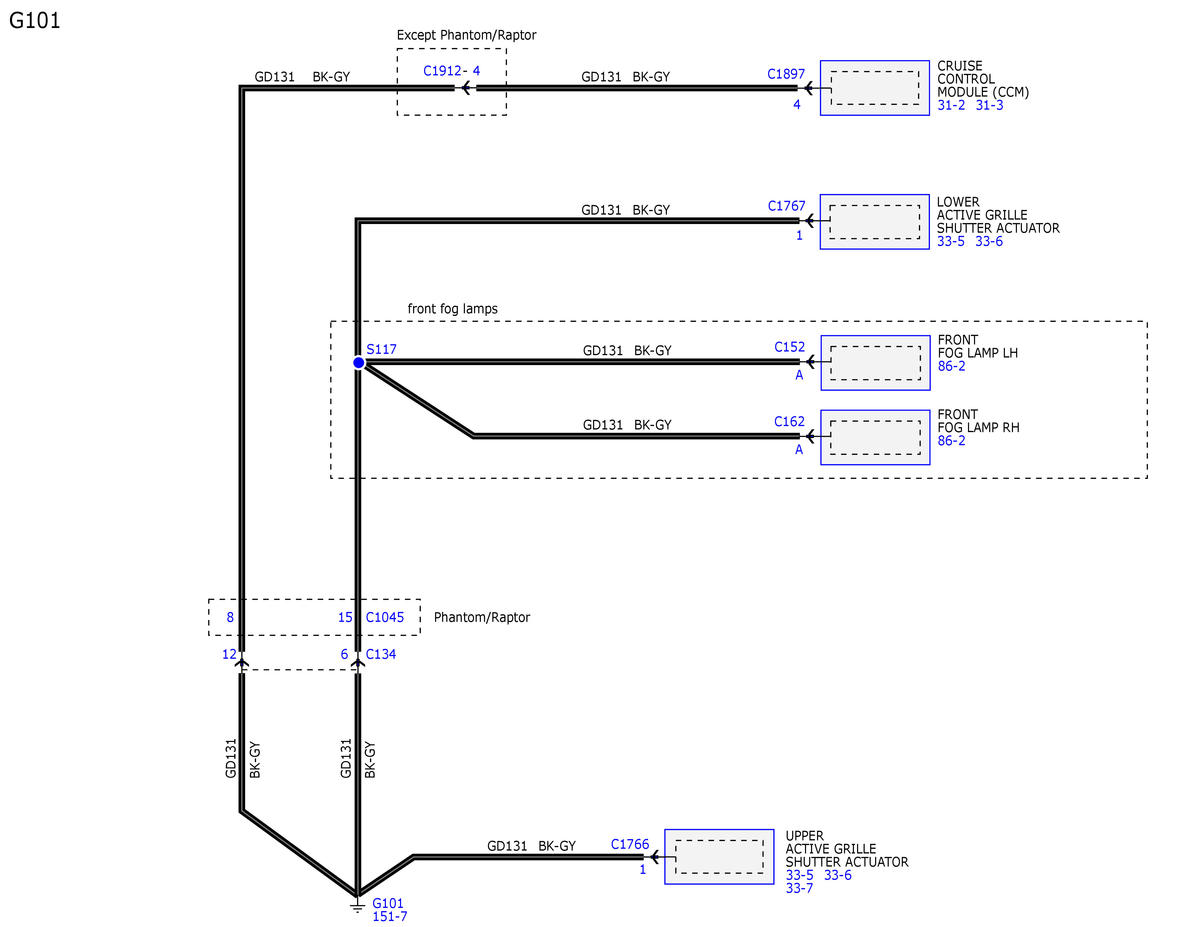

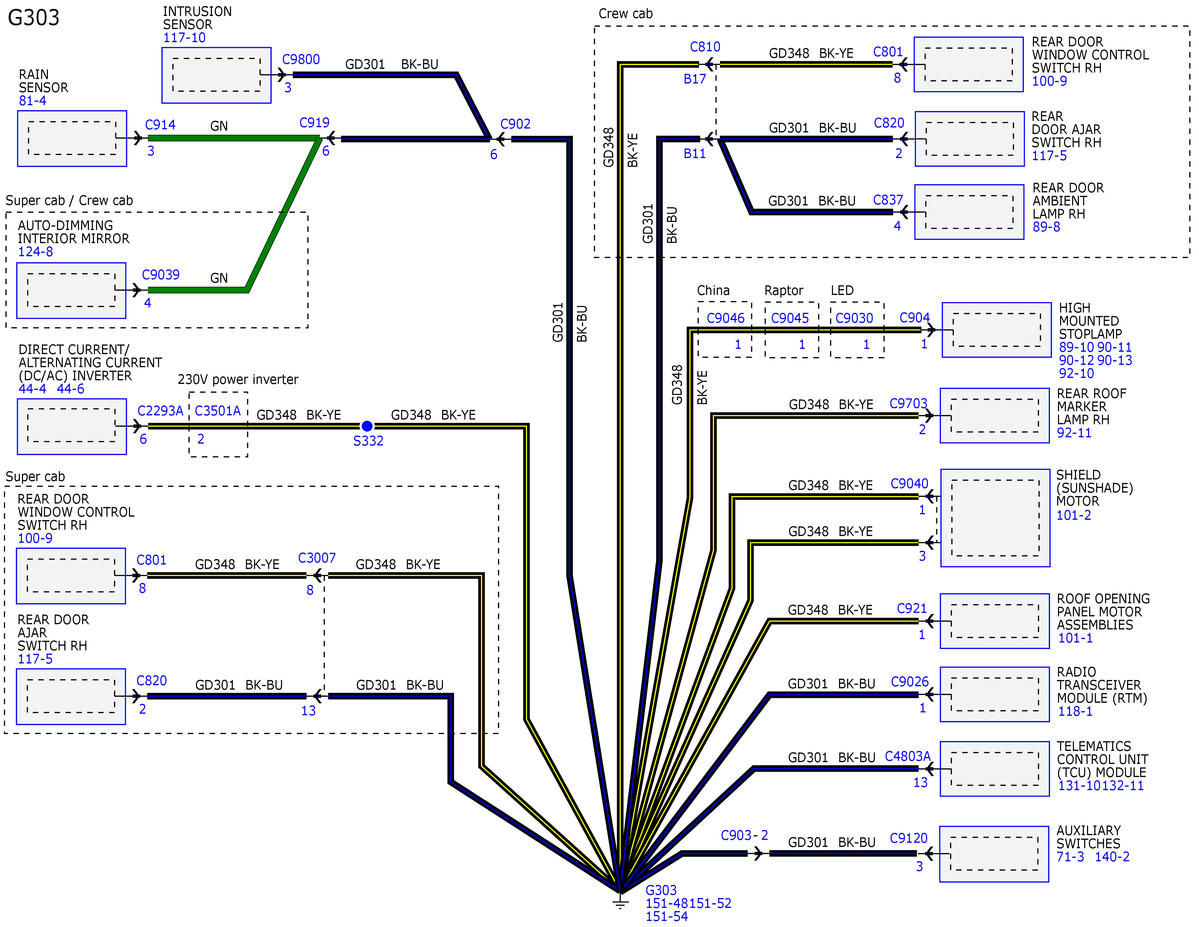

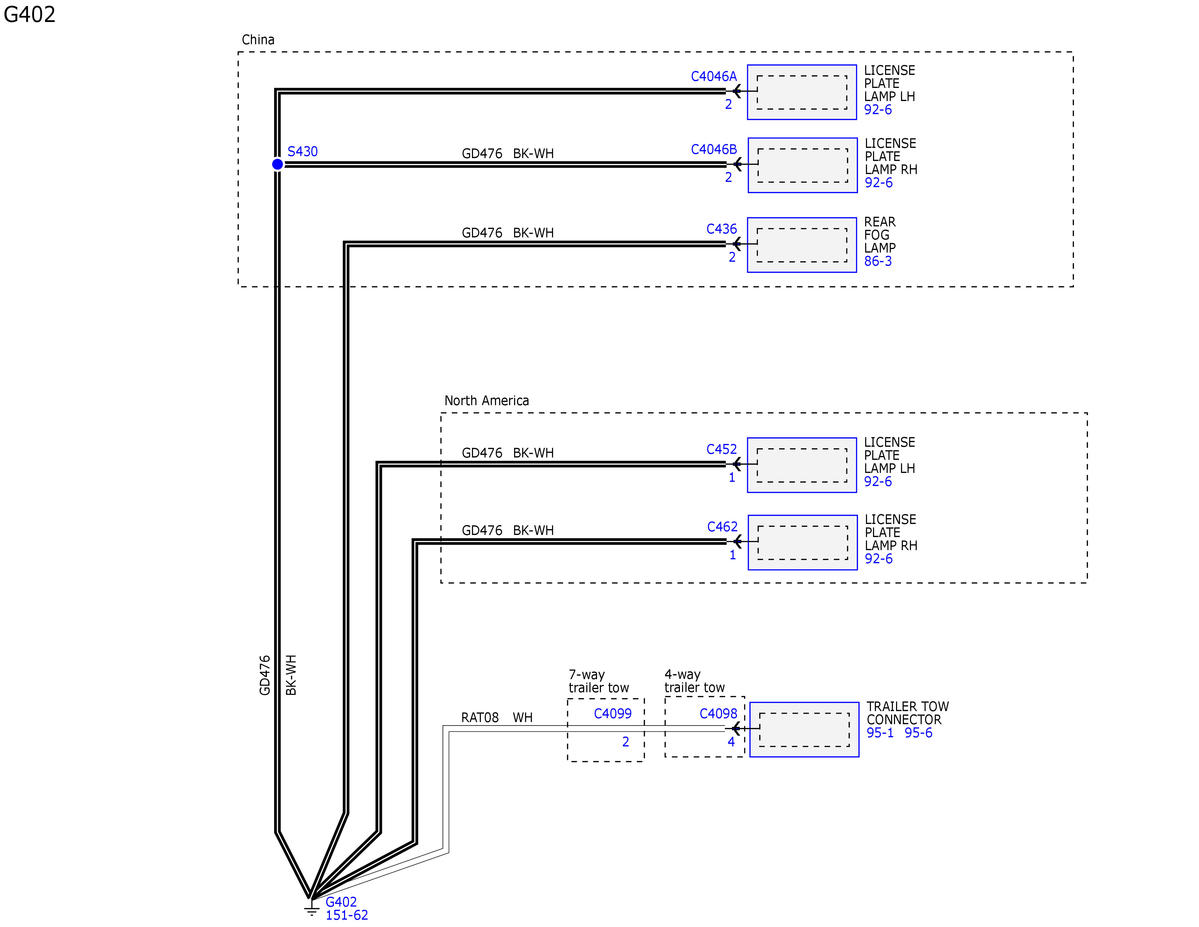

Courtesy of FORD MOTOR COMPANY

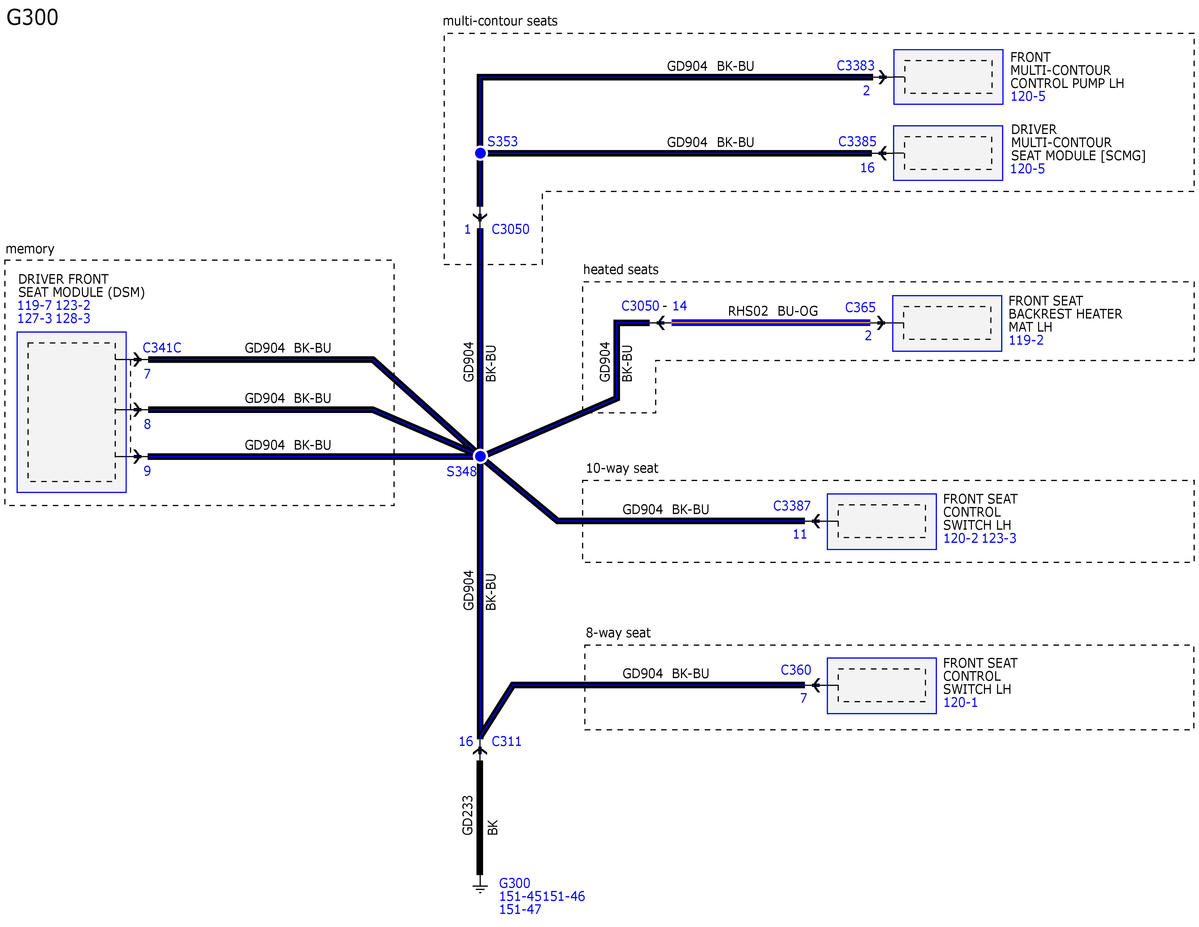

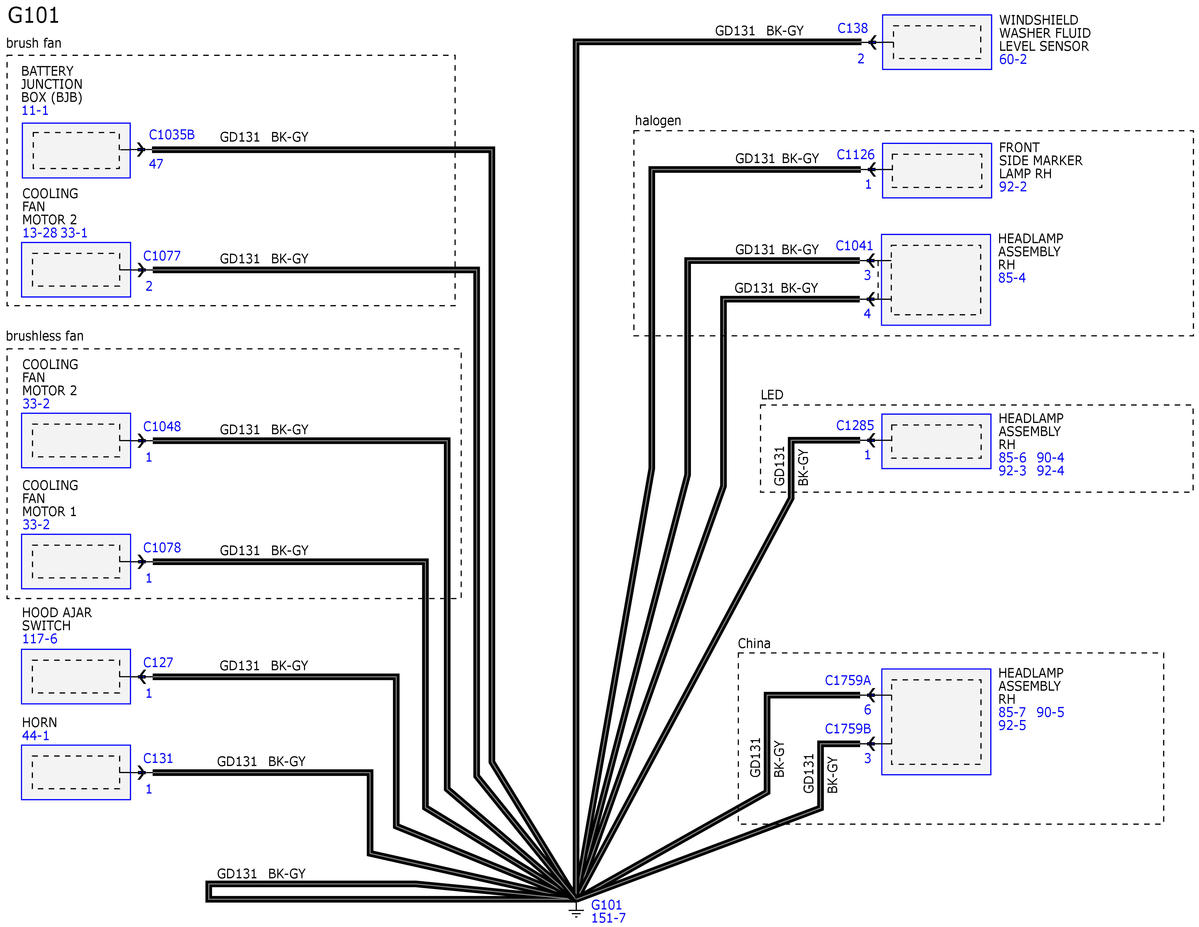

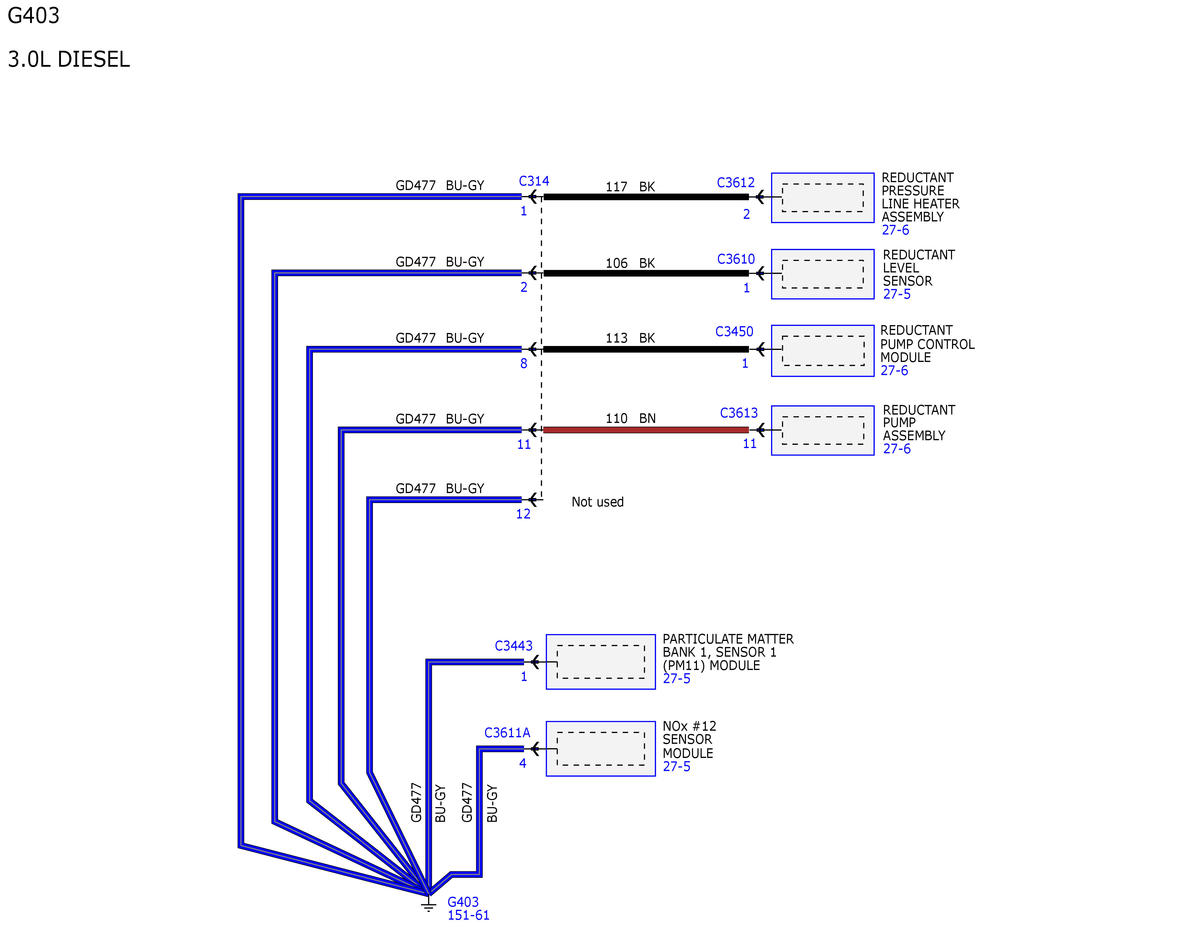

Courtesy of FORD MOTOR COMPANY

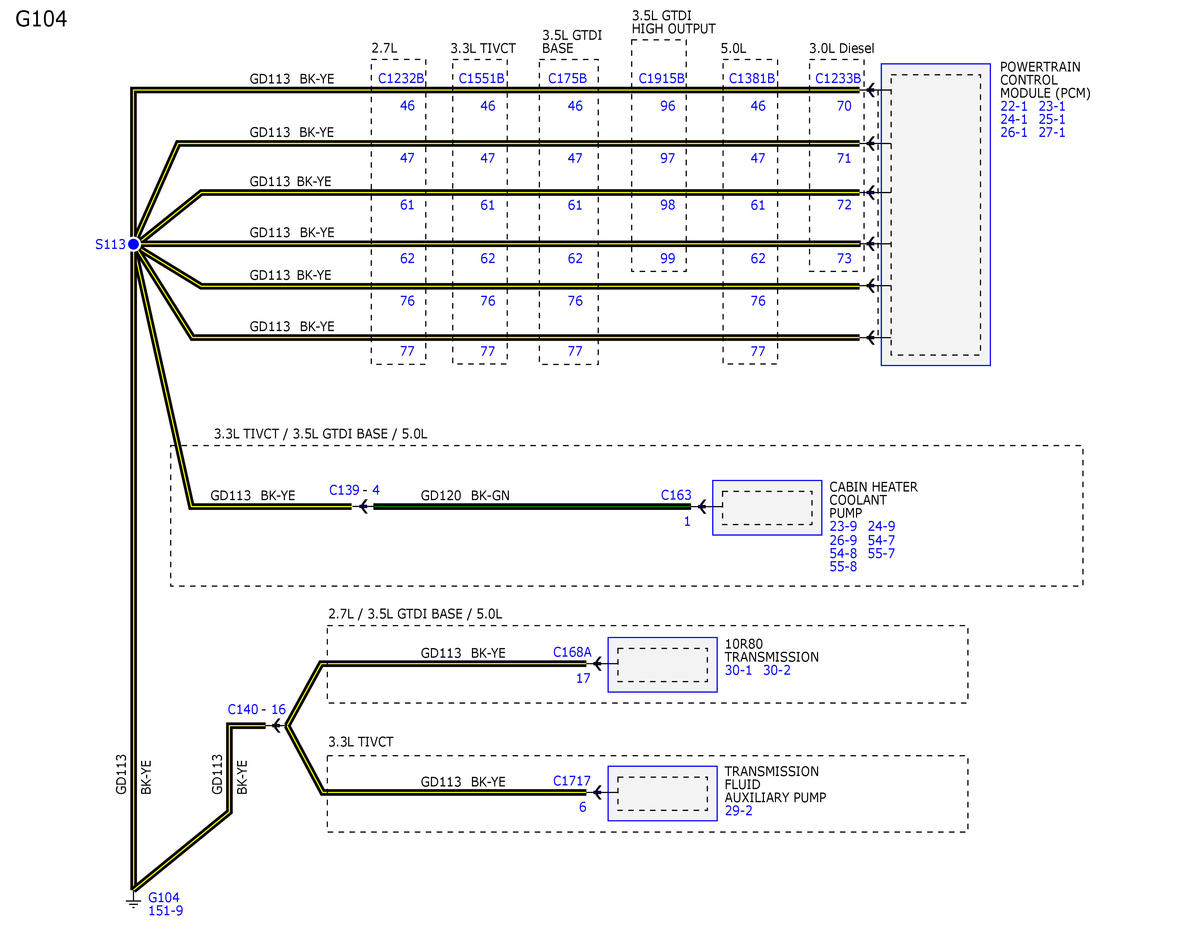

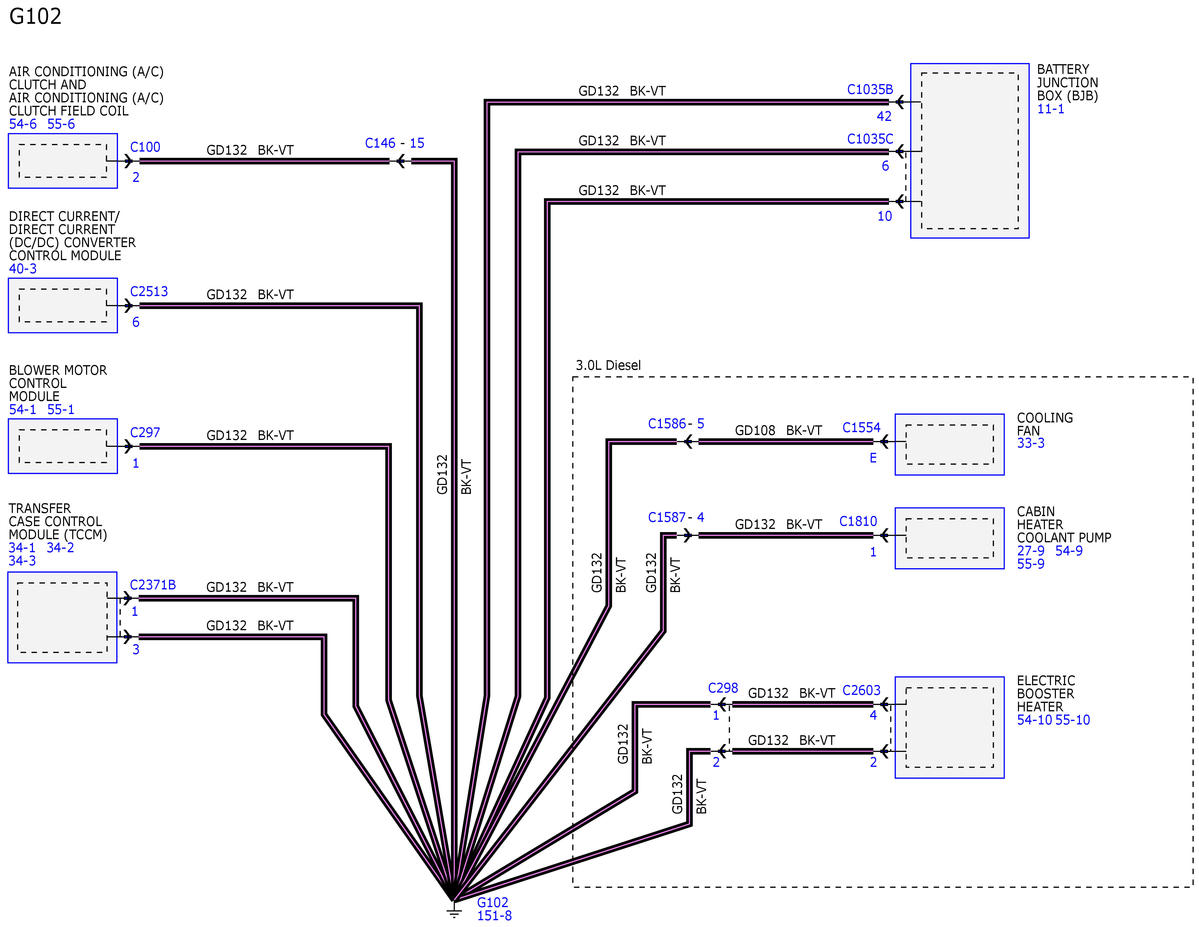

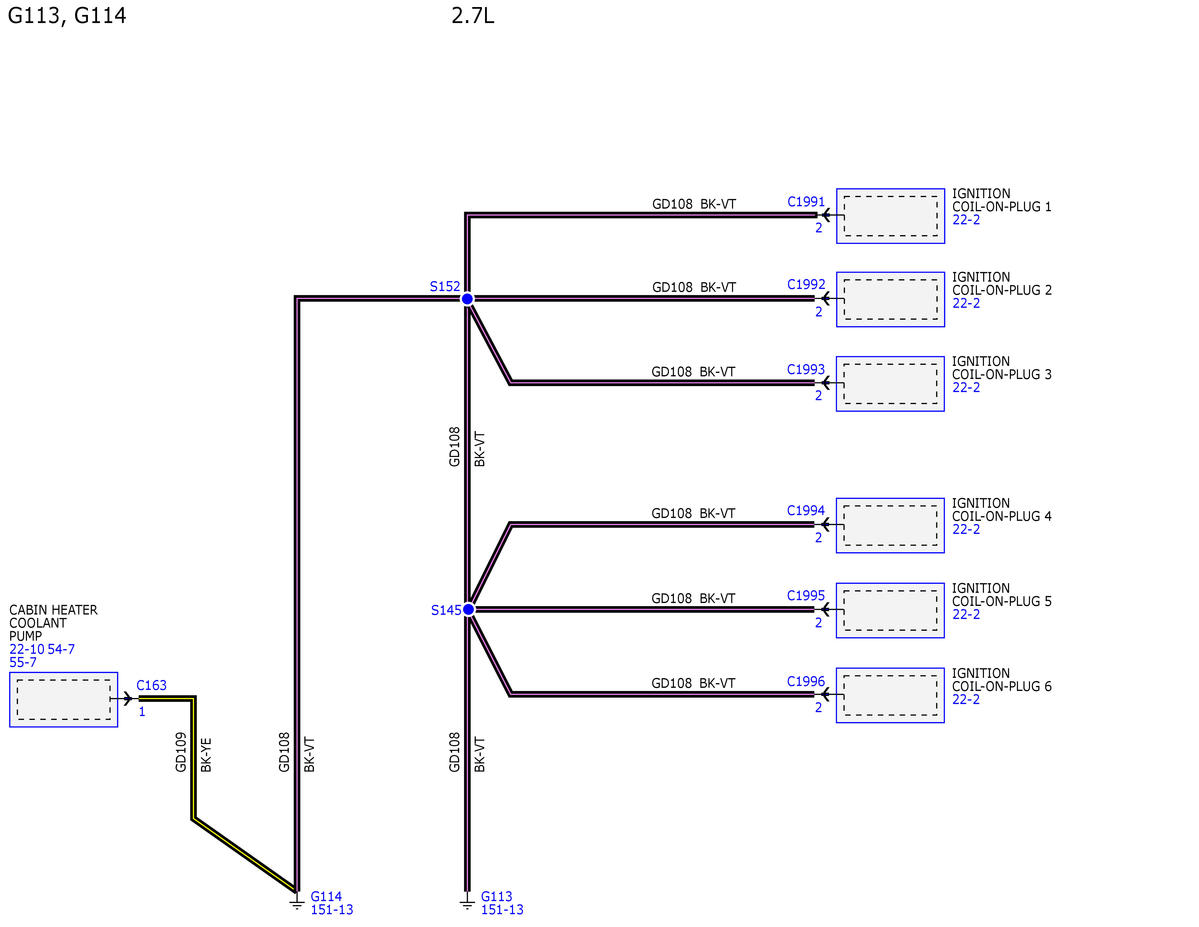

Courtesy of FORD MOTOR COMPANY

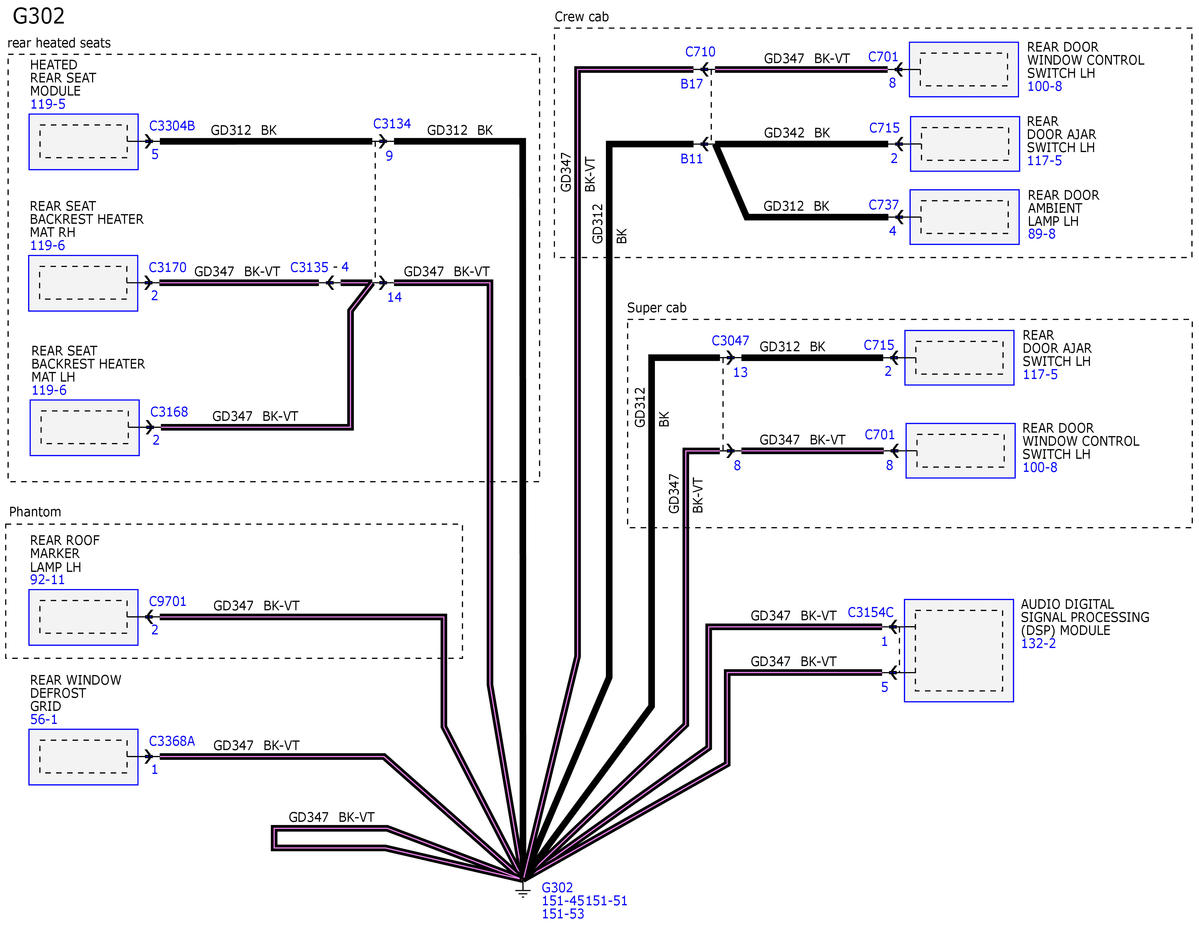

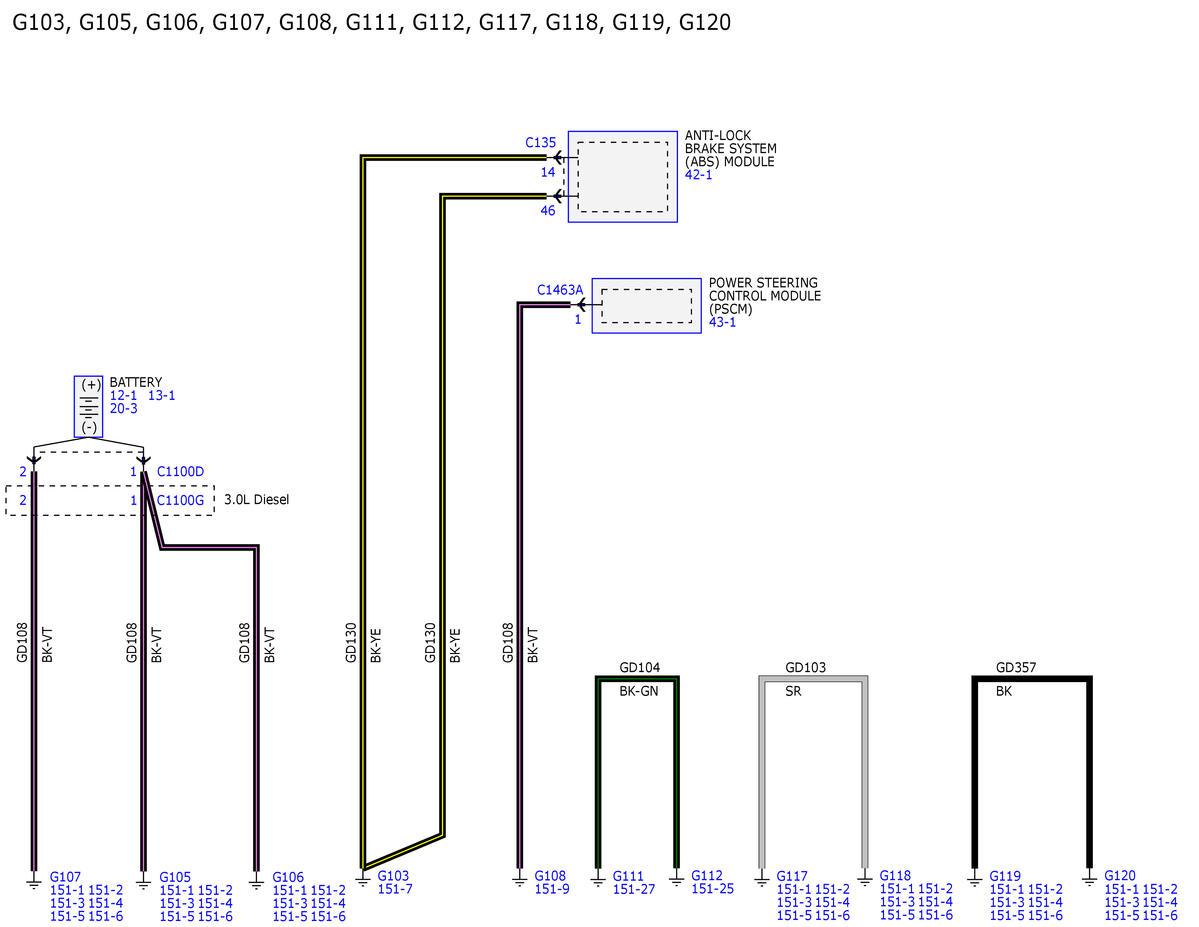

Courtesy of FORD MOTOR COMPANY

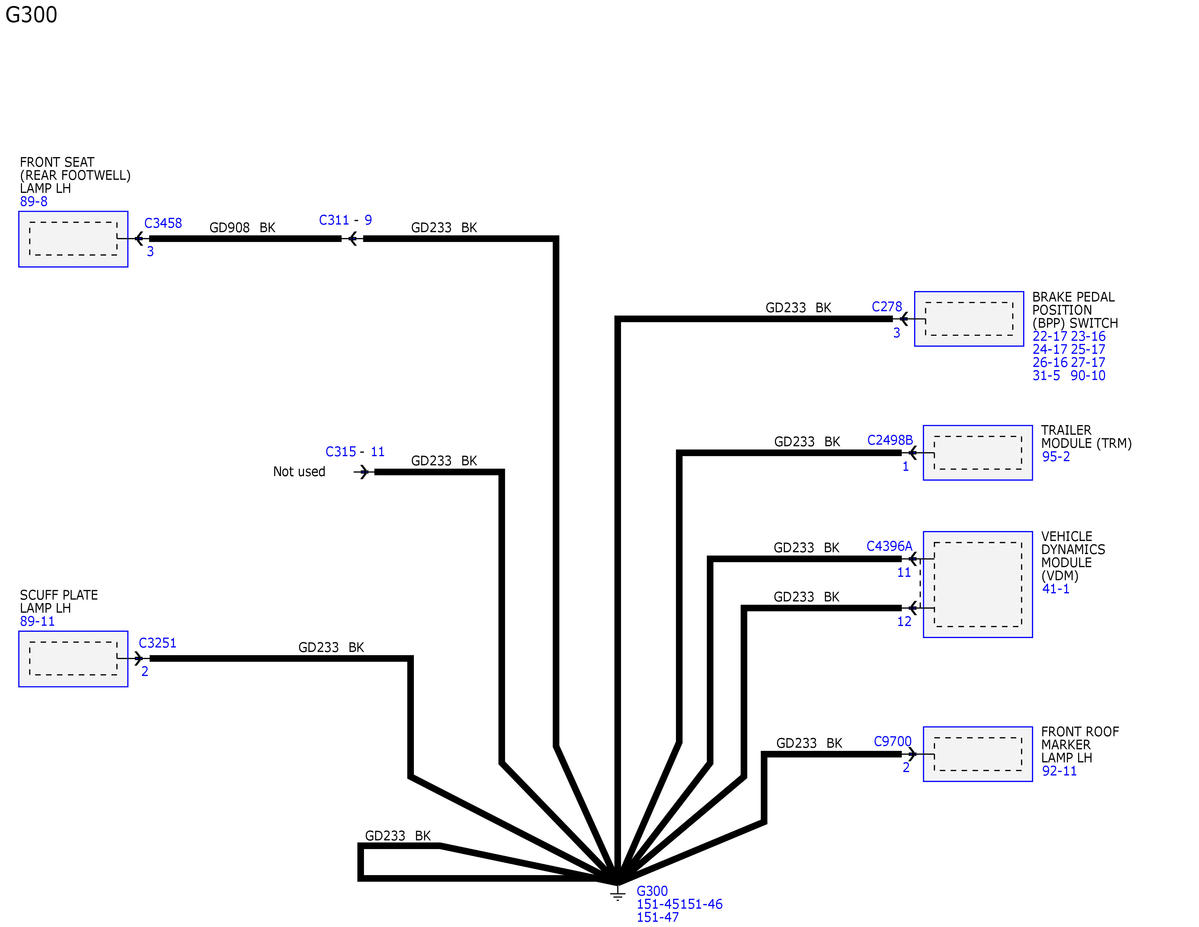

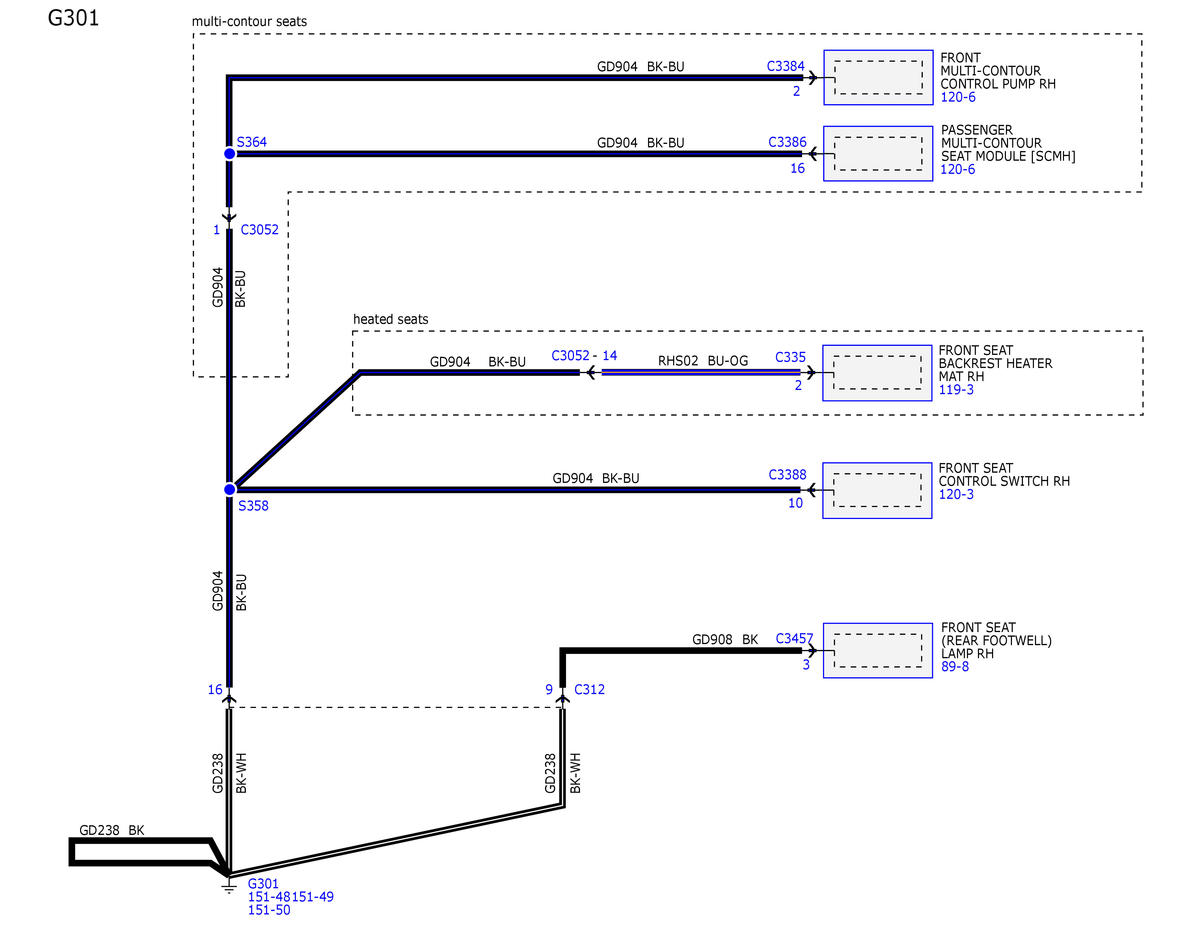

Courtesy of FORD MOTOR COMPANY

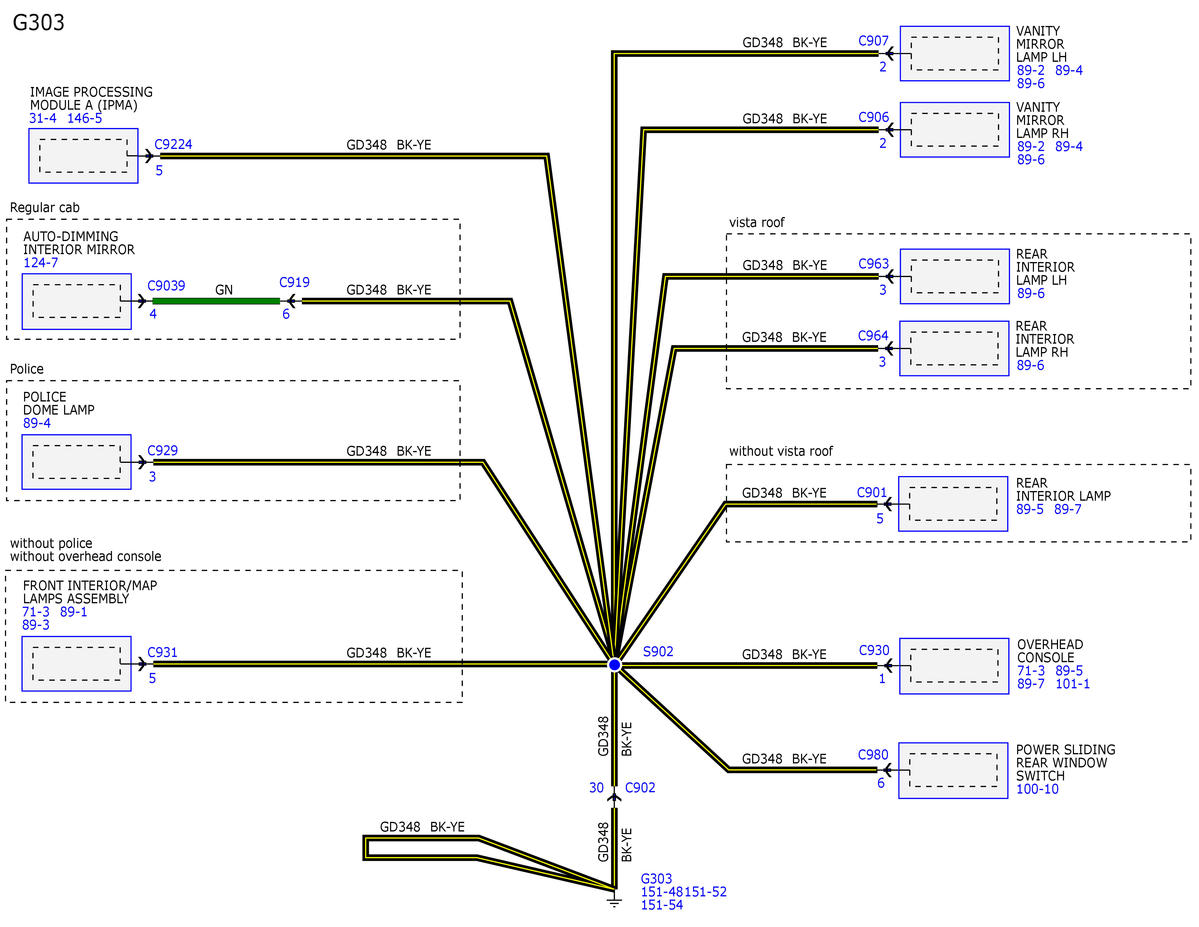

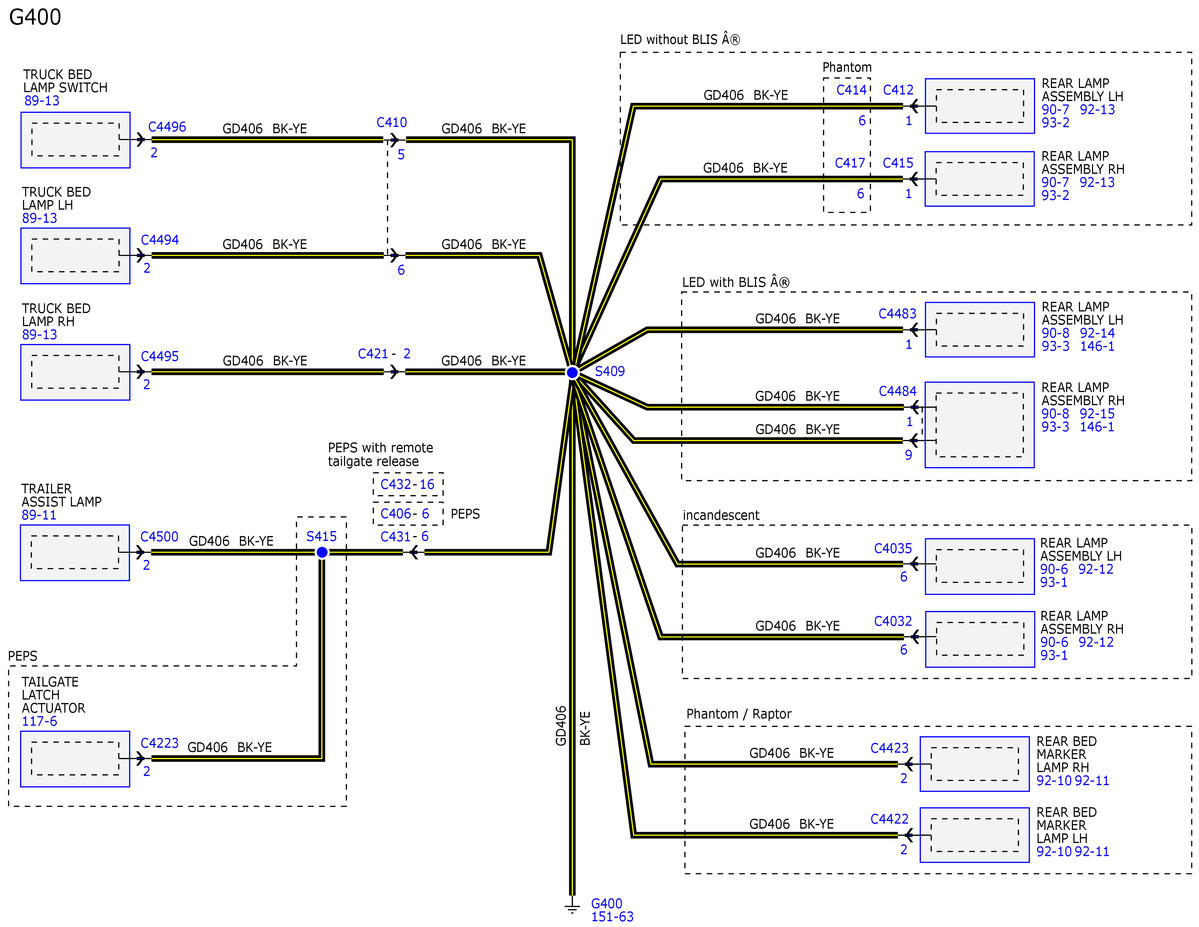

Courtesy of FORD MOTOR COMPANY

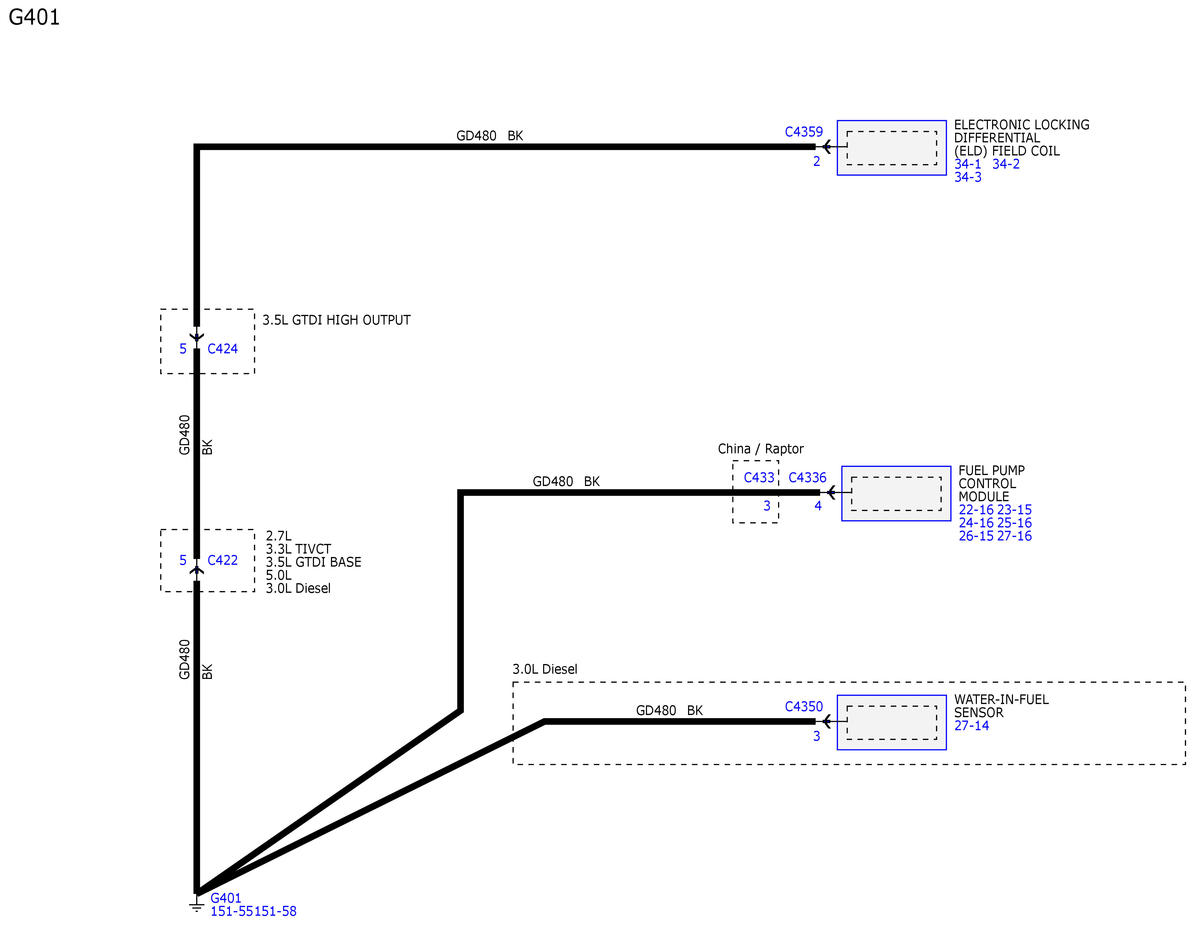

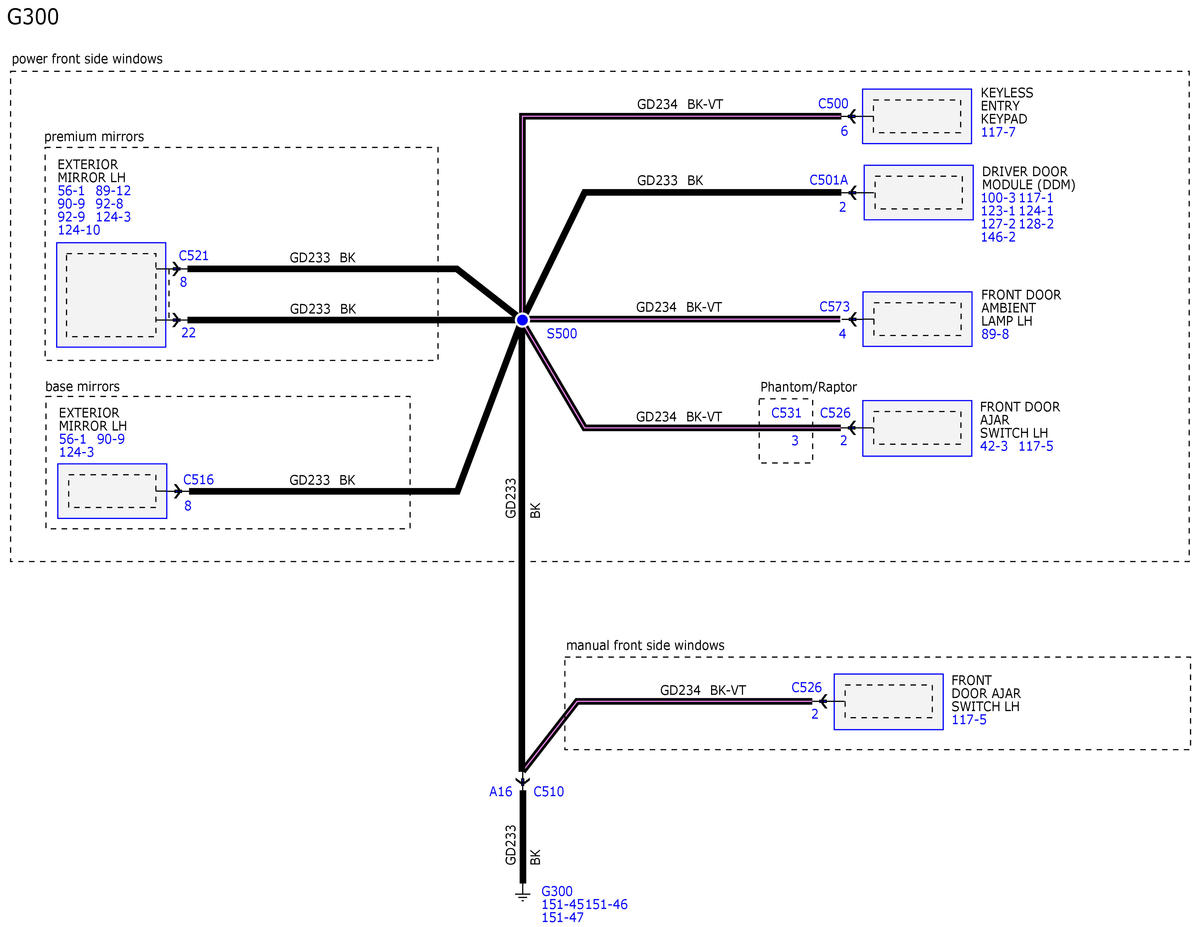

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
