Pedestrian Alert Control Module (PACM): Removal

1. Remove the RH side loadspace trim panel. Refer to: Loadspace Trim Panel

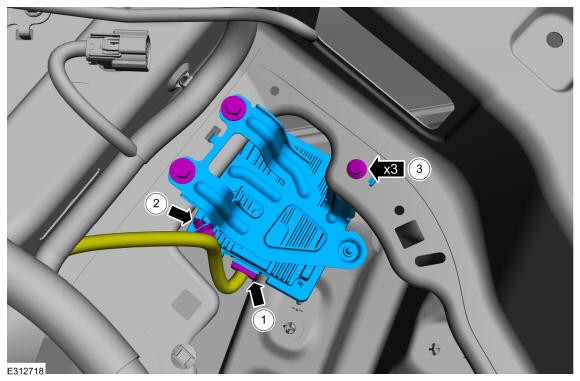

2. 1. Disconnect the electrical connector.
   2. Release the wiring guide from the bracket.
   3. Remove the bolts and the PACM.

      Torque

      : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
