Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

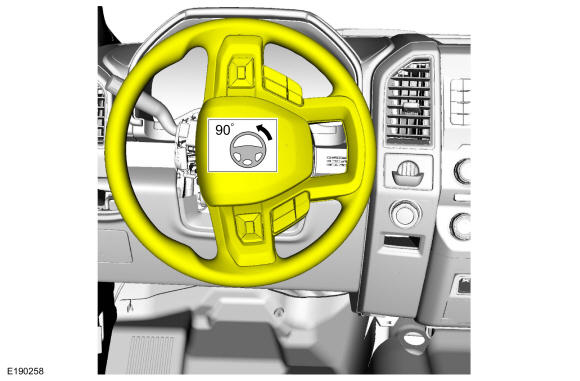

  2. Turn the steering wheel 90 degrees left.
    GFD458695Courtesy of FORD MOTOR COMPANY

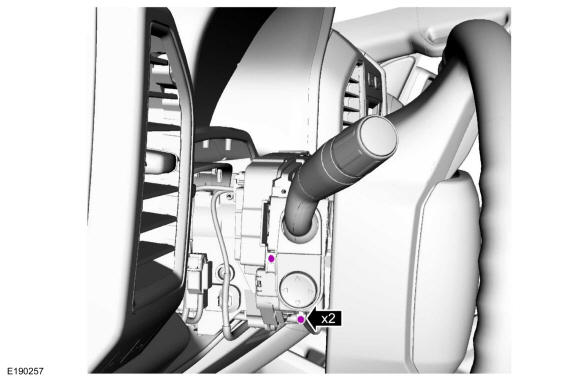

  3. Remove the screws.
    GFD458696Courtesy of FORD MOTOR COMPANY

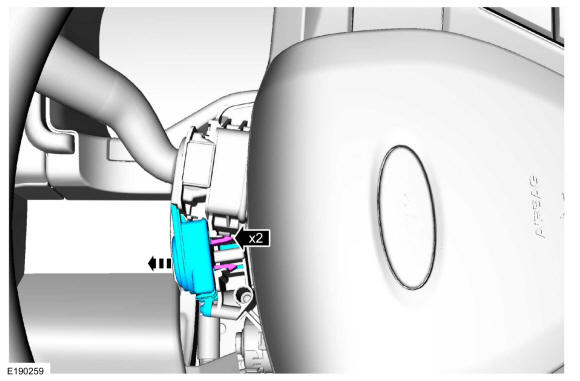

  4. Squeeze the tabs and remove the steering column control switch.
GFD458697Courtesy of FORD MOTOR COMPANY
