Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake disc. Refer to: Brake Disc .

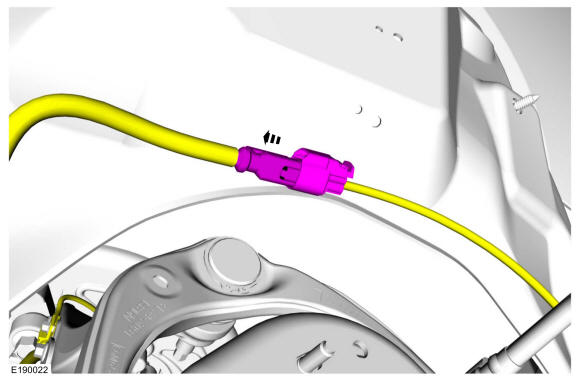

Disconnect the wheel speed sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

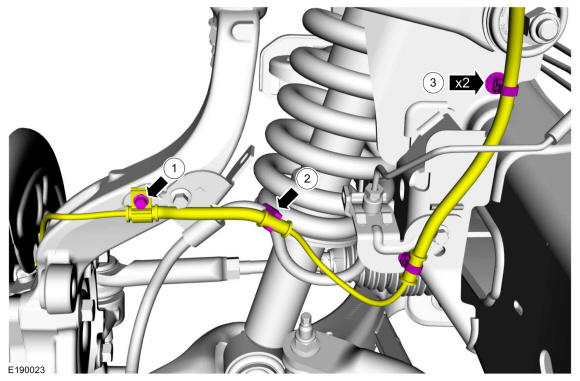

1. Remove the wheel speed sensor harness bracket bolt.
  Torque

  : 106 lb.in (12 Nm)
2. Detach the wheel speed sensor harness from the brake hose.
3. Detach the wheel speed sensor harness pin-type retainers and position aside the wheel speed sensor wire.
Courtesy of FORD MOTOR COMPANY

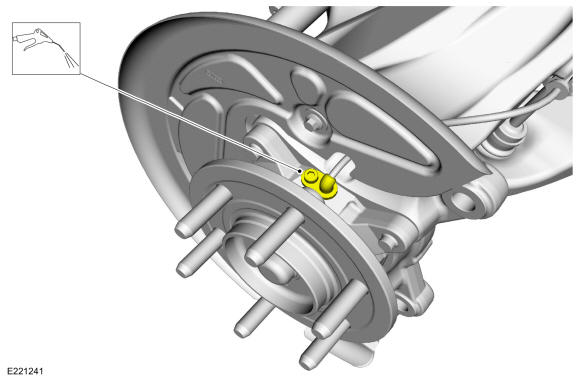

Using compressed air, clean the area surrounding the front wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

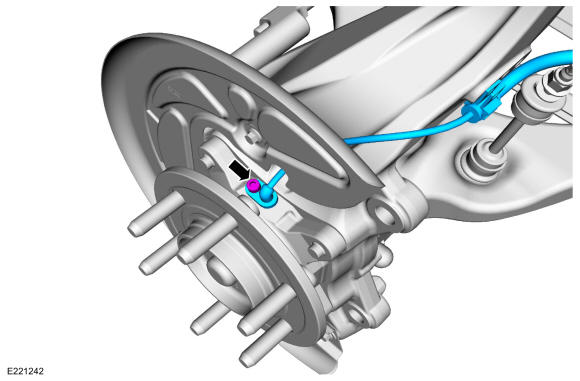

Remove the bolt and the front wheel speed sensor.
Torque

: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
