Wheel Speed Sensor Ring: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

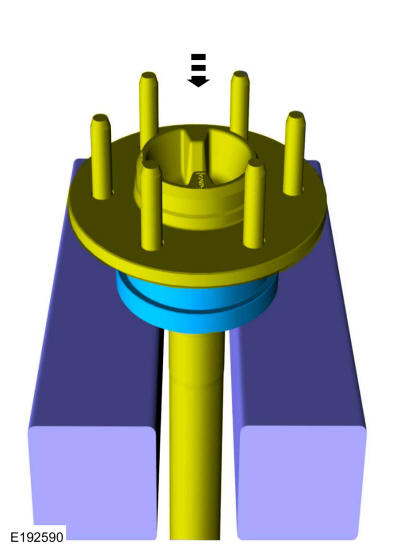

- Using a hydraulic press and wooden blocks, install the wheel speed sensor ring. Use the General Equipment: Hydraulic Press Use the General Equipment: Wooden Block
- Install the axle shaft. Refer to: Axle Shaft - 8.8 Inch Ring Gear . Refer to: Axle Shaft - 9.75 Inch Ring Gear .
