Axle Assembly: Removal

All vehicles

1. Remove the front driveshaft. Refer to: Front Driveshaft .
2. Remove the front halfshafts. Refer to: Halfshaft .

   All vehicles except 3.0L Diesel

3. Remove the bolt and the spacer from the front underbody skid plate.

   Torque: 41 lb.ft (55 Nm)

   Courtesy of FORD MOTOR COMPANY

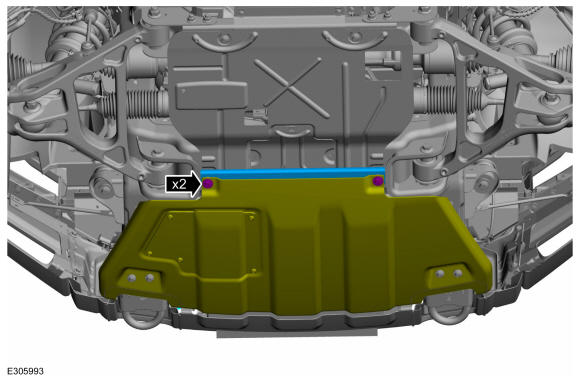

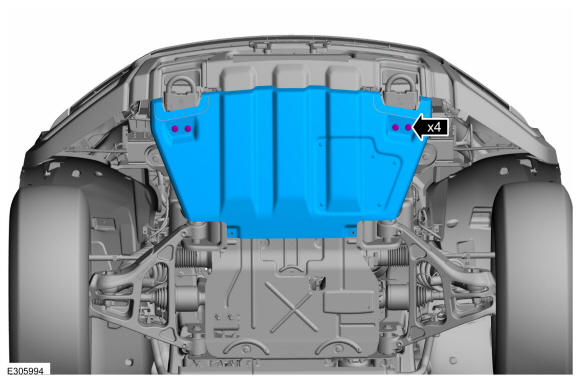

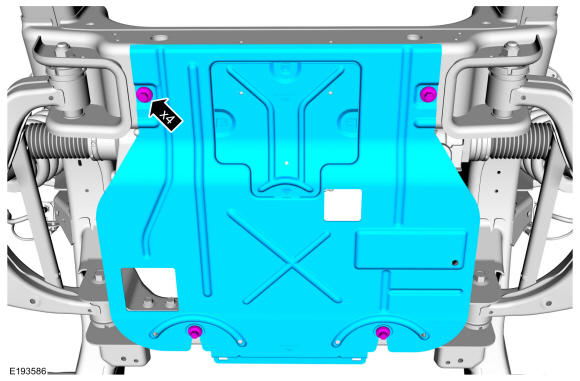

4. If equipped. Remove the bolts and the front underbody skid plate.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

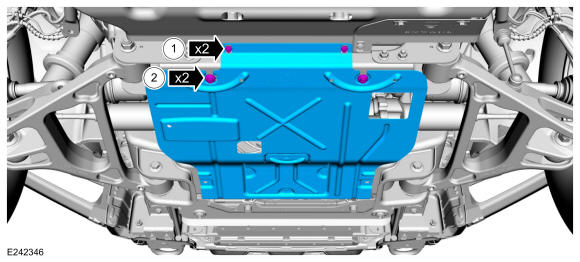

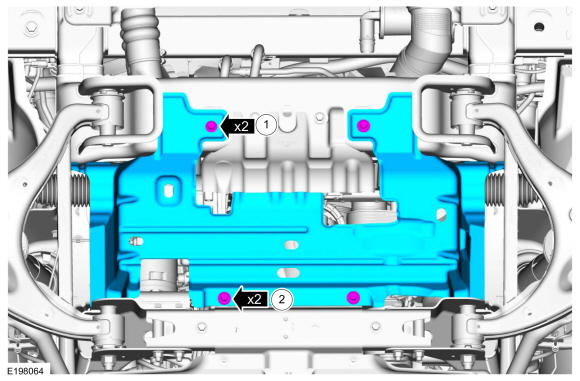

5. If equipped.
   1. Remove the bolts.

      Torque: 35 lb.ft (48 Nm)

   2. Remove the bolts and the middle underbody skid plate.

      Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

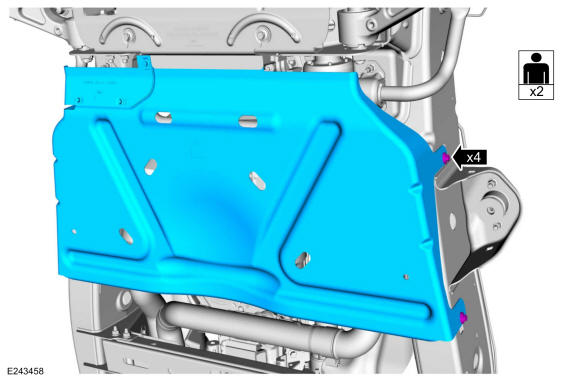

6. If equipped. Remove the bolts and the rear underbody skid plate.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. If equipped. Remove the bolts and the rear underbody shield.

   Torque: 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

8. If equipped. Remove the bolts and the rear underbody shield.

   Torque: 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

9. If equipped. Remove the engine front underbody shield.
   1. Remove the bolts.

      Torque: 30 lb.ft (40 Nm)

   2. Remove the bolts.

      Torque: 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

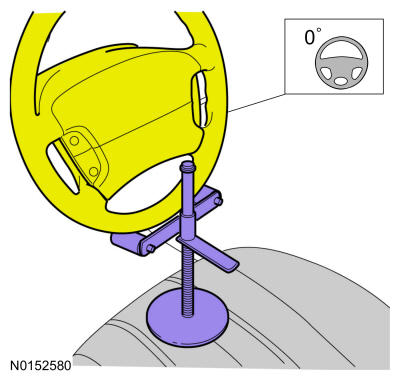

10. Using a holding device, hold the steering wheel in the straight-ahead position.

    Courtesy of FORD MOTOR COMPANY

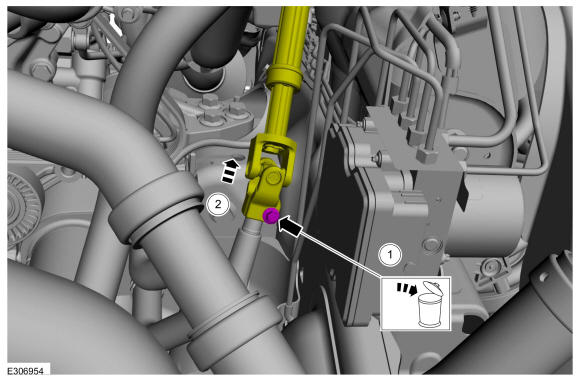

11. NOTE: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    1. Remove and discard the steering column shaft bolt.

       Torque: 22 lb.ft (30 Nm)

    2. Separate the steering column shaft U-joint from the steering gear.

    Courtesy of FORD MOTOR COMPANY

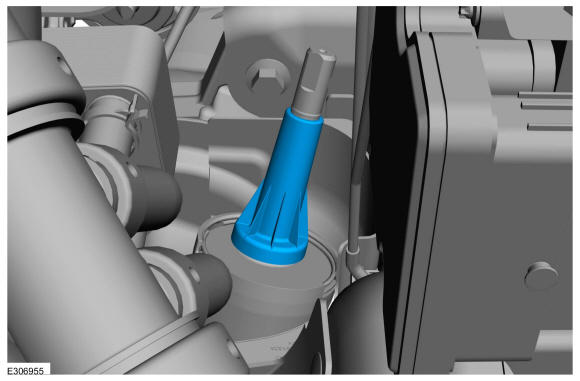

12. Remove the steering gear boot.

    Courtesy of FORD MOTOR COMPANY

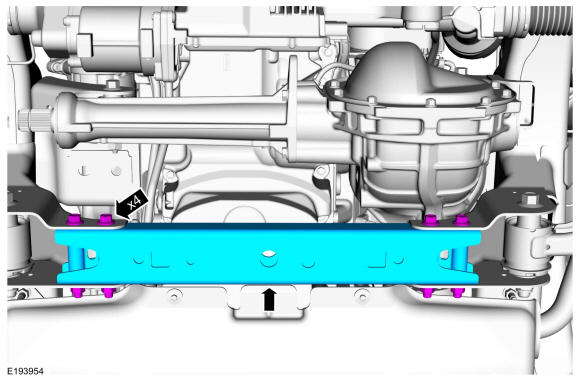

13. Remove the nuts, bolts and the crossmember.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

    3.0L Diesel Only

14. Remove the steering gear. Refer to: Steering Gear .
15. Remove the nuts, bolts and the crossmember.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

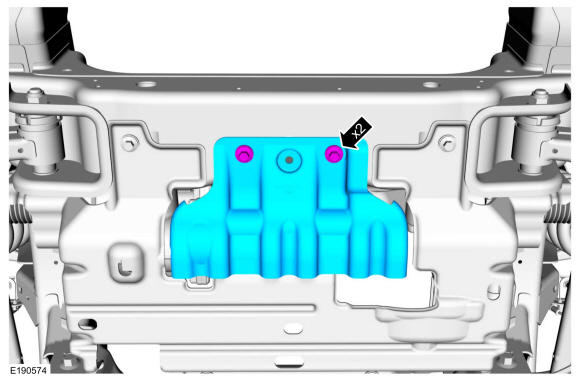

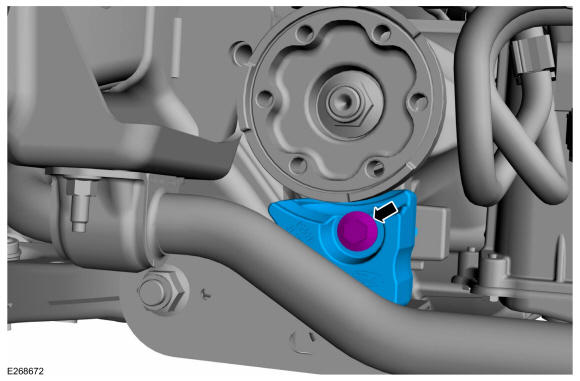

16. Remove the bolt and the vibration damper from the front differential.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with 3.5L and 5.0L excludes Raptor

17. NOTE: 3.5L Shown, 5.0L similar.

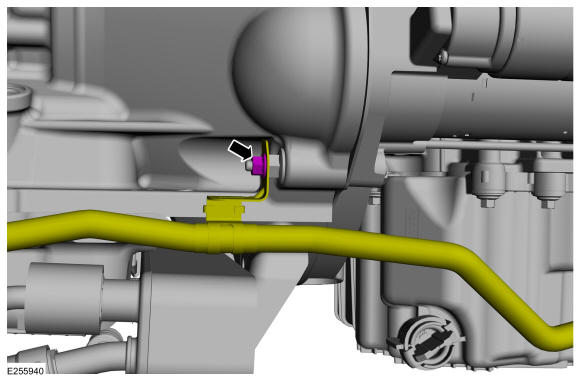

    Remove the nut and position the transmission cooler tube bracket aside.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

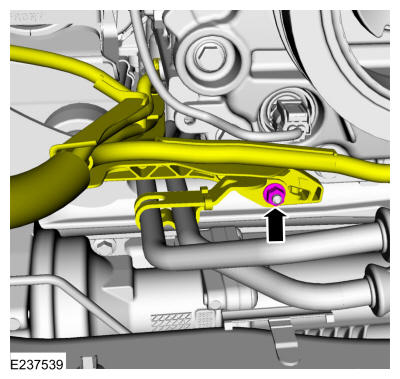

18. Remove the nut and position the transmission cooler tube bracket and wiring harness aside.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

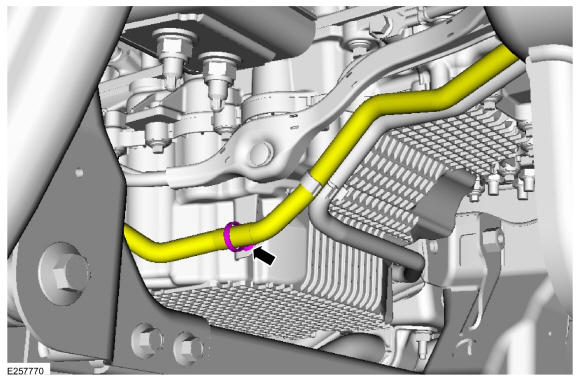

19. Remove the pin-type retainer and position the transmission cooler tube aside.

    Courtesy of FORD MOTOR COMPANY

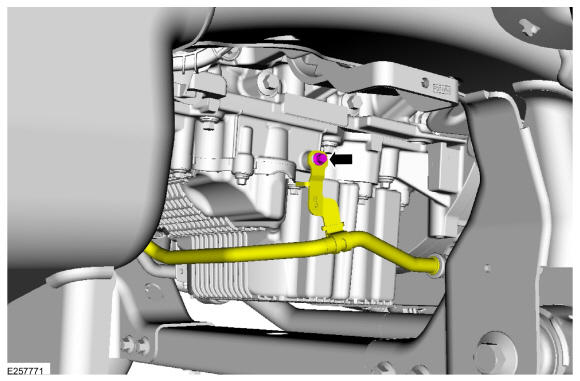

20. Remove the bolt and position the transmission cooler tube aside.

    Torque: 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

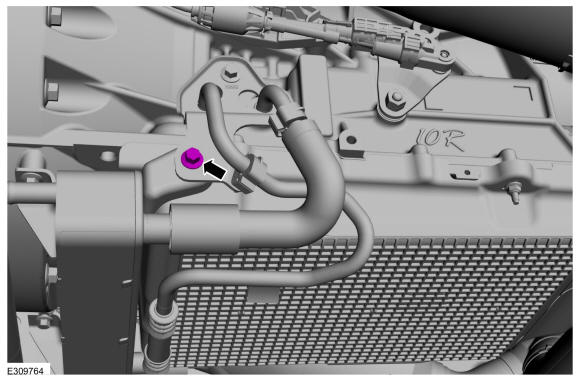

21. Remove the transmission cooler bracket bolt.

    Courtesy of FORD MOTOR COMPANY

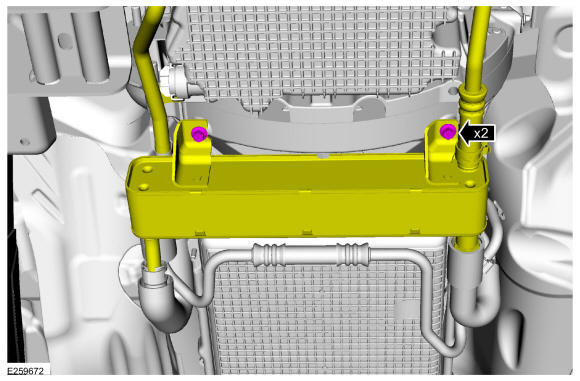

22. Remove the bolts and position the transmission cooler down.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

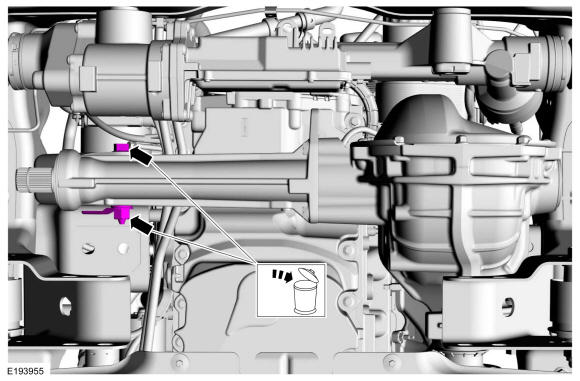

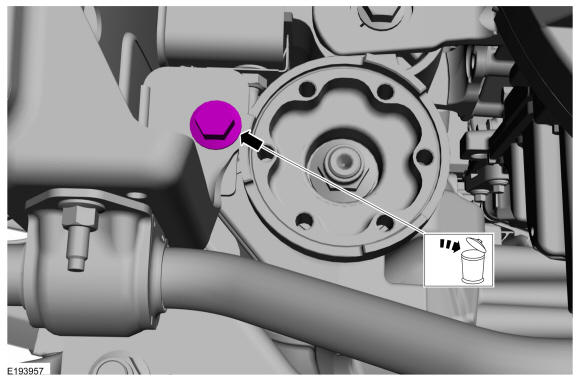

23. Remove and discard the front axle tube bushing bolt and flagnut.

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

24. NOTE: The transmission jack is not shown for clarity.

    Using the transmission jack for support, remove and discard the front axle housing bushing bolt. Use the General Equipment: Transmission Jack

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

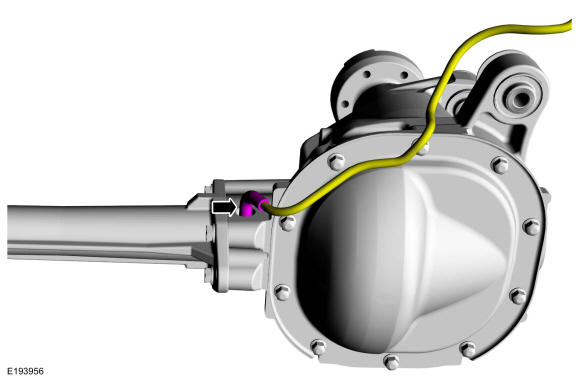

25. Disconnect the front differential breather hose and position aside.

    Courtesy of FORD MOTOR COMPANY

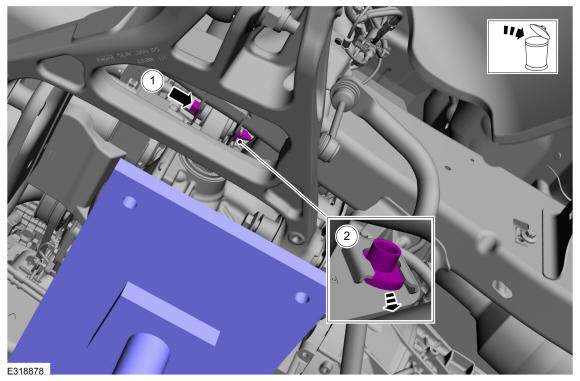

26. 1. With the transmission jack in place to secure the front differential, remove and discard the front axle housing bushing bolt. Use the General Equipment: Transmission Jack

       Torque: 129 lb.ft (175 Nm)

    2. Remove and discard the T-nut.

    Courtesy of FORD MOTOR COMPANY

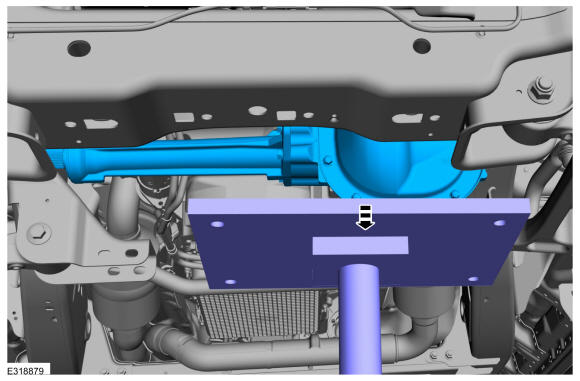

27. Lower the transmission jack and the remove the front axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
