Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

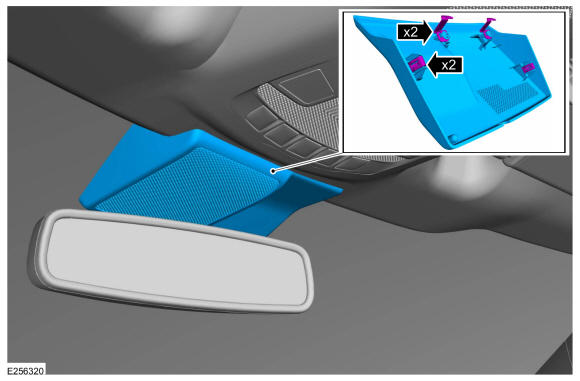

  2. Remove the clips and the IPMA cover.
    GFD466087Courtesy of FORD MOTOR COMPANY

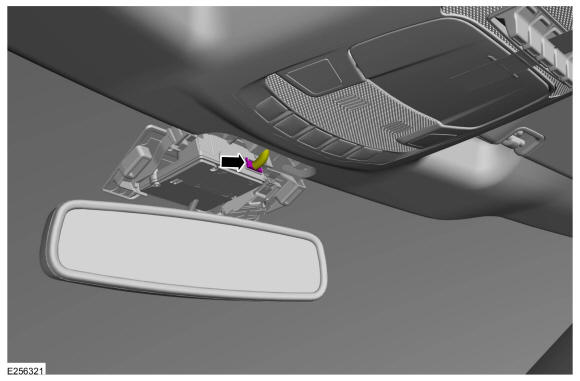

  3. Disconnect the electrical connector.
    GFD466088Courtesy of FORD MOTOR COMPANY

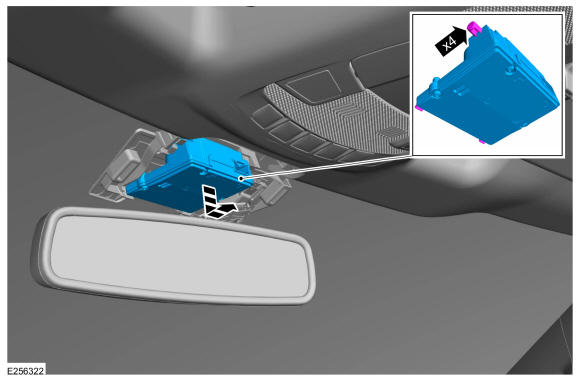

  4. Release the tabs, remove the IPMA.
GFD466089Courtesy of FORD MOTOR COMPANY
