Hood Alignment
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
NOTE:
Removal steps in this procedure may contain installation details.

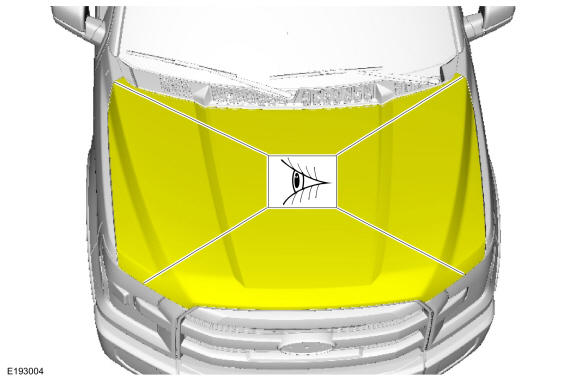

- Inspect the hood-to-body dimensions.
All alignments
- Remove the hood latch. Refer to: Hood Latch
.
Hood fore and aft, left and right alignments

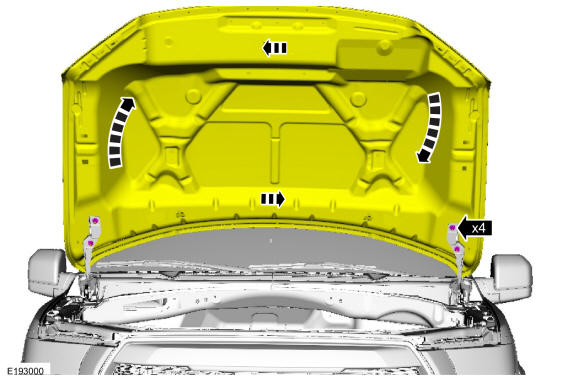

- Loosen the nuts enough to permit movement of the hood and adjust as required.

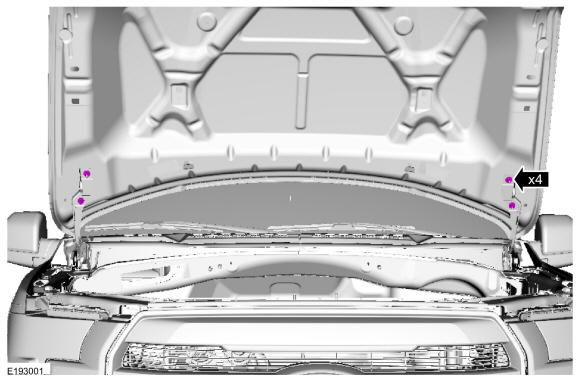

- Tighten the nuts.
Torque: 18 lb.ft (25 Nm)
Hood front up and down alignments

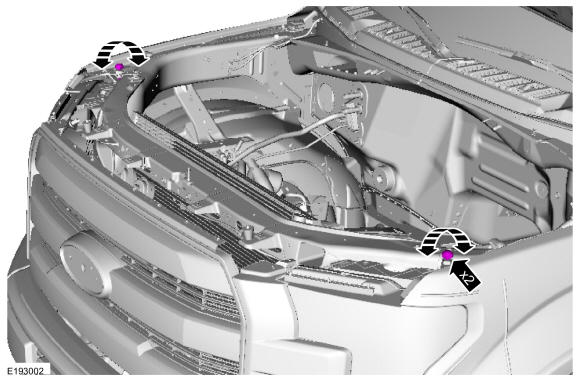

- Adjust the bump stop rubbers.

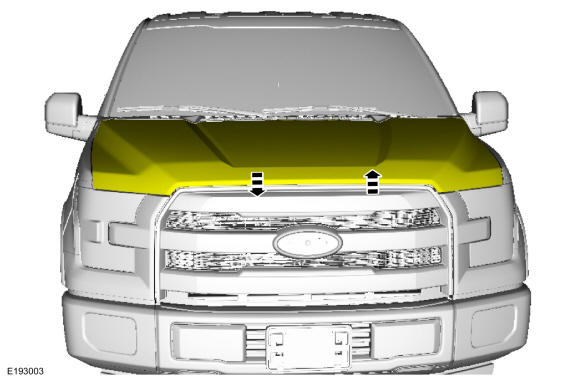

- Adjust the hood as required.
All alignments
- Inspect the body-to-hood dimensions.
- Install the removed components.
