Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH wheel speed sensor shown in illustration, RH similar.

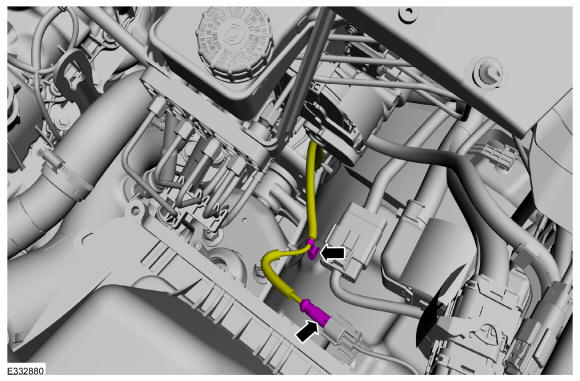

Disconnect the wheel speed sensor electrical connector and detach the harness retainer.

Courtesy of FORD MOTOR COMPANY
Remove the wheel and tire. Refer to: Wheel and Tire .

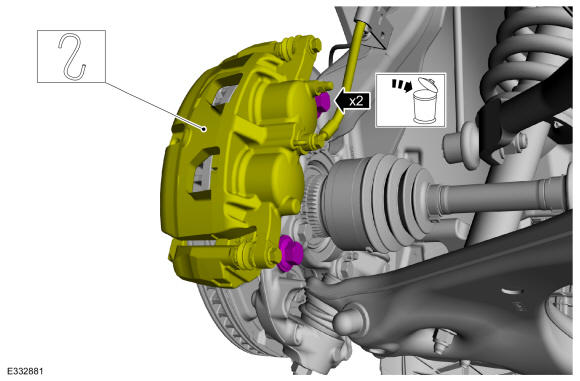

Remove the bolts and position the caliper and anchor plate assembly aside. Discard the bolts.
Torque

: 184 lb.ft (250 Nm)

Courtesy of FORD MOTOR COMPANY

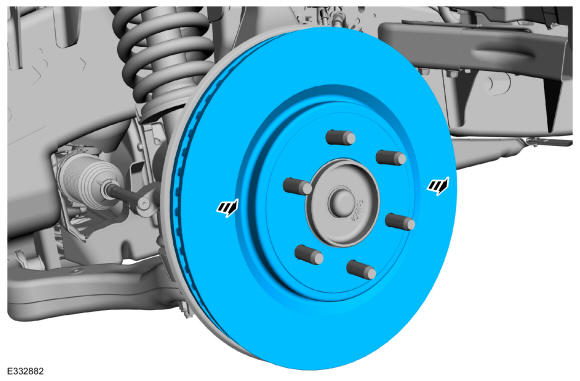

Remove the brake disc.

Courtesy of FORD MOTOR COMPANY

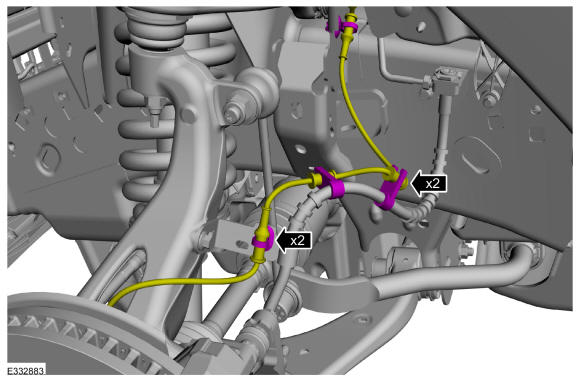

Detach the wheel speed sensor harness retainers and routing clips.

Courtesy of FORD MOTOR COMPANY

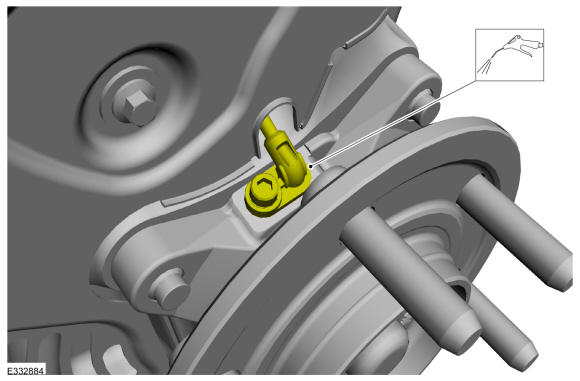

Using compressed air, clean the area surrounding the front wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

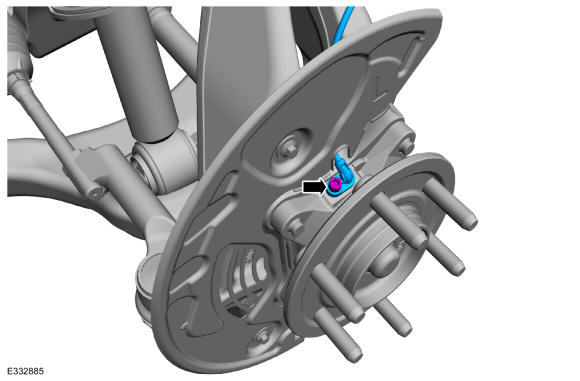

Remove the bolt and the front wheel speed sensor.
Torque

: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
