Overhead Console: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

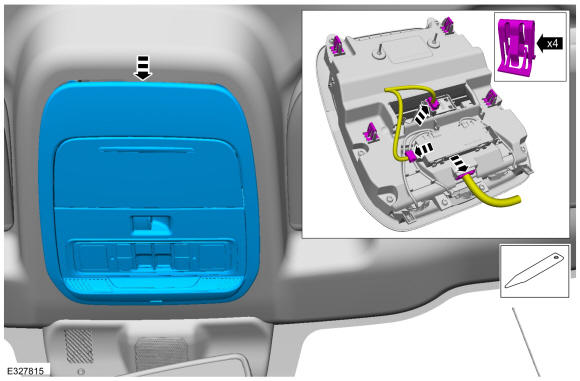

  1. Starting at the rear of the overhead console release the clips and remove the overhead console.

    • Disconnect the electrical connectors.

GFD562062Courtesy of FORD MOTOR COMPANY
