Bearing Inspection

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Inspection

    1. Cratering - fatigue failure
    2. Spot glazing - incorrect seating
    3. Scratching - dirty engine oil
    4. Base exposed - poor lubrication
    5. Both edges worn - journal damaged
    6. One edge worn - journal tapered or bearing not seated

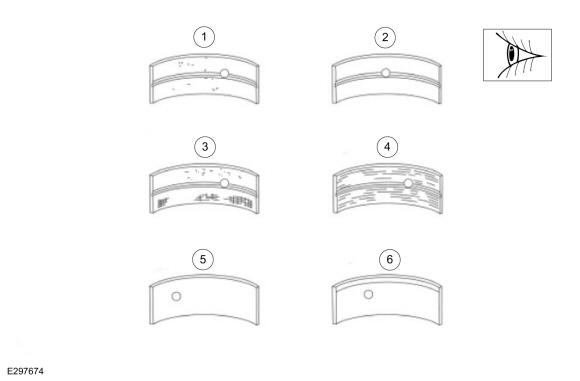

GFD552357Courtesy of FORD MOTOR COMPANY
