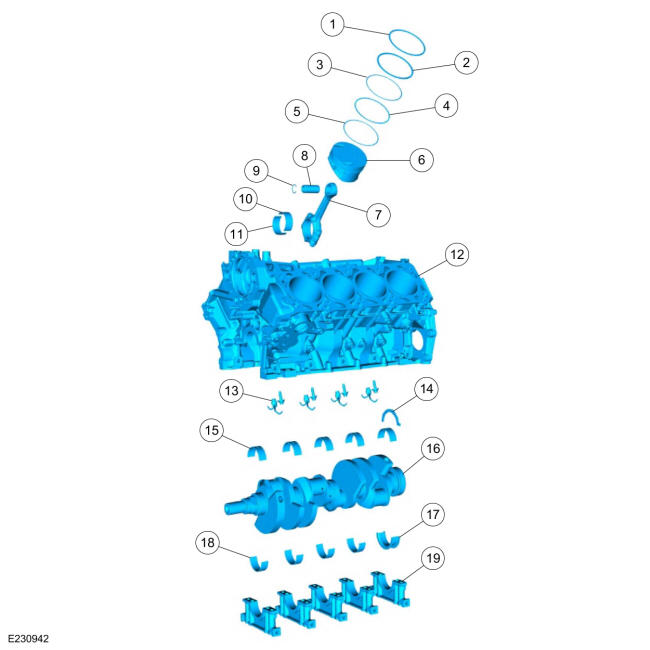

Lower Engine Block Exploded View (View 2)
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Piston compression upper ring (part of 6148) (8 required) |
| 2 | - | Piston compression lower ring (part of 6148) (8 required) |
| 3 | - | Piston oil control upper segment ring (part of 6148) (8 required) |
| 4 | - | Piston oil control spacer (part of 6148) (8 required) |
| 5 | - | Piston oil control lower segment ring (part of 6148) (8 required) |
| 6 | 6108 | Piston |
| 7 | 6200 | Connecting rod (8 required) |
| 8 | 6135 | Piston pin (8 required) |
| 9 | 6140 | Piston pin retainers (16 required) |
| 10 | 6211 | Upper connecting rod bearings (8 required) |
| 11 | 6211 | Lower connecting rod bearings (8 required) |
| 12 | 6010 | Cylinder block |
| 13 | 6K868 | Piston oil cooler valve (4 required) |
| 14 | 6A341 | Crankshaft thrust washer - upper |
| 15 | 6D309A | Crankshaft bearing - upper (5 required) |
| 16 | 6303 | Crankshaft |
| 17 | 6D309B | Crankshaft thrust washer - lower |
| 18 | 6D309A | Crankshaft bearing - lower (4 required) |
| 19 | 6325 | Crankshaft main bearing cap (5 required) |
