Hood Alignment: Inspection
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

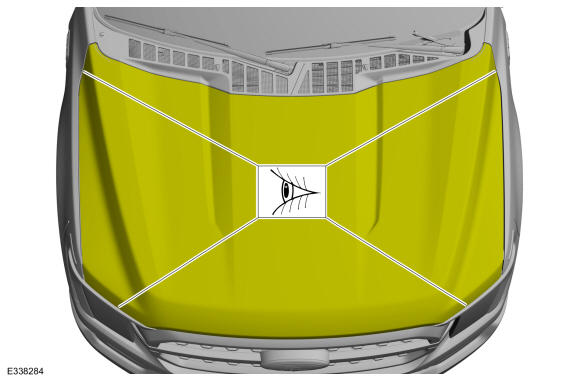

- Inspect the hood-to-body dimensions.
All alignments
- Remove the hood latch. Refer to: Hood Latch
.

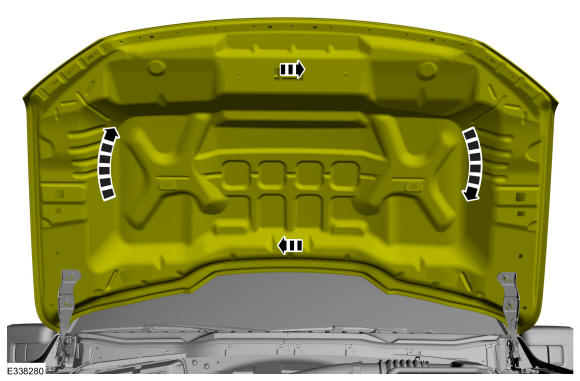

Hood fore and aft, left and right alignments

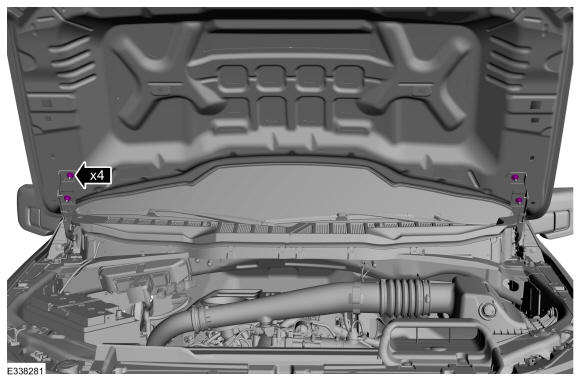

- Loosen the nuts enough to permit movement of the hood.
- Adjust the hood as required.
- Tighten the nuts.
Torque
: 177 lb.in (20 Nm)

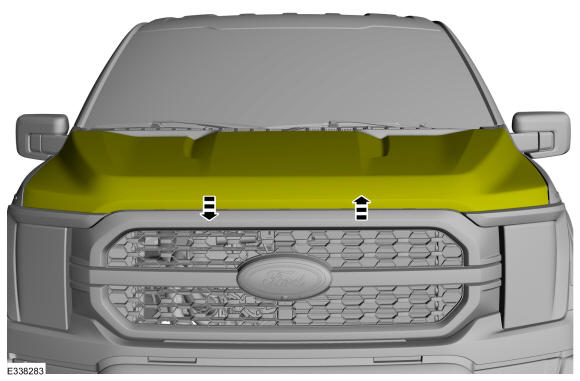

Hood front up and down alignments

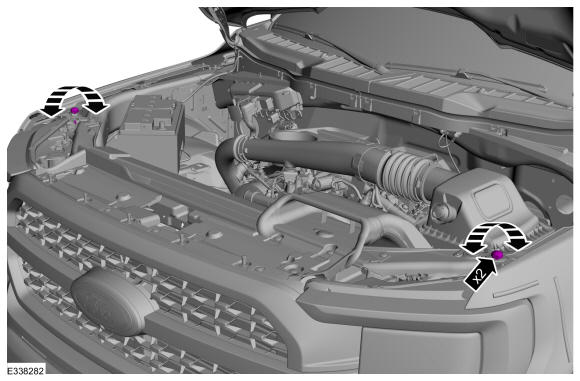

- Adjust the bump stop rubbers.
- Adjust the hood as required.
All alignments
- Inspect the body-to-hood dimensions.
- Install the removed components.
