Steering Column: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Transfer parts as needed.

To install, reverse the removal procedure.

Vehicles with power adjustable steering column
NOTE: This step is only necessary when installing a new component.

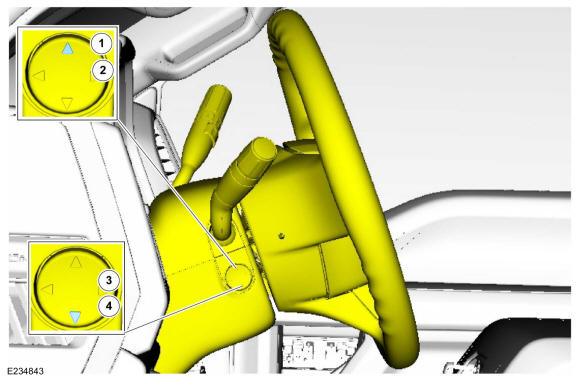

If a new memory steering column has been installed, use the steering column control switch and set the soft stops as follows.
1. Move the column upward until it reaches the end of travel.
2. Move the column in the same direction until it reaches the end of travel again.
3. Move the column downward until it reaches the end of travel.
4. Move the column in the same direction until it reaches the end of travel again.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

If a new memory steering column has been installed, use the steering column control switch and set the soft stops as follows.
1. Move the column rearward until it reaches the end of travel.
2. Move the column in the same direction until it reaches the end of travel again.
3. Move the column forward until it reaches the end of travel.
4. Move the column in the same direction until it reaches the end of travel again.

Courtesy of FORD MOTOR COMPANY
