Component Testing

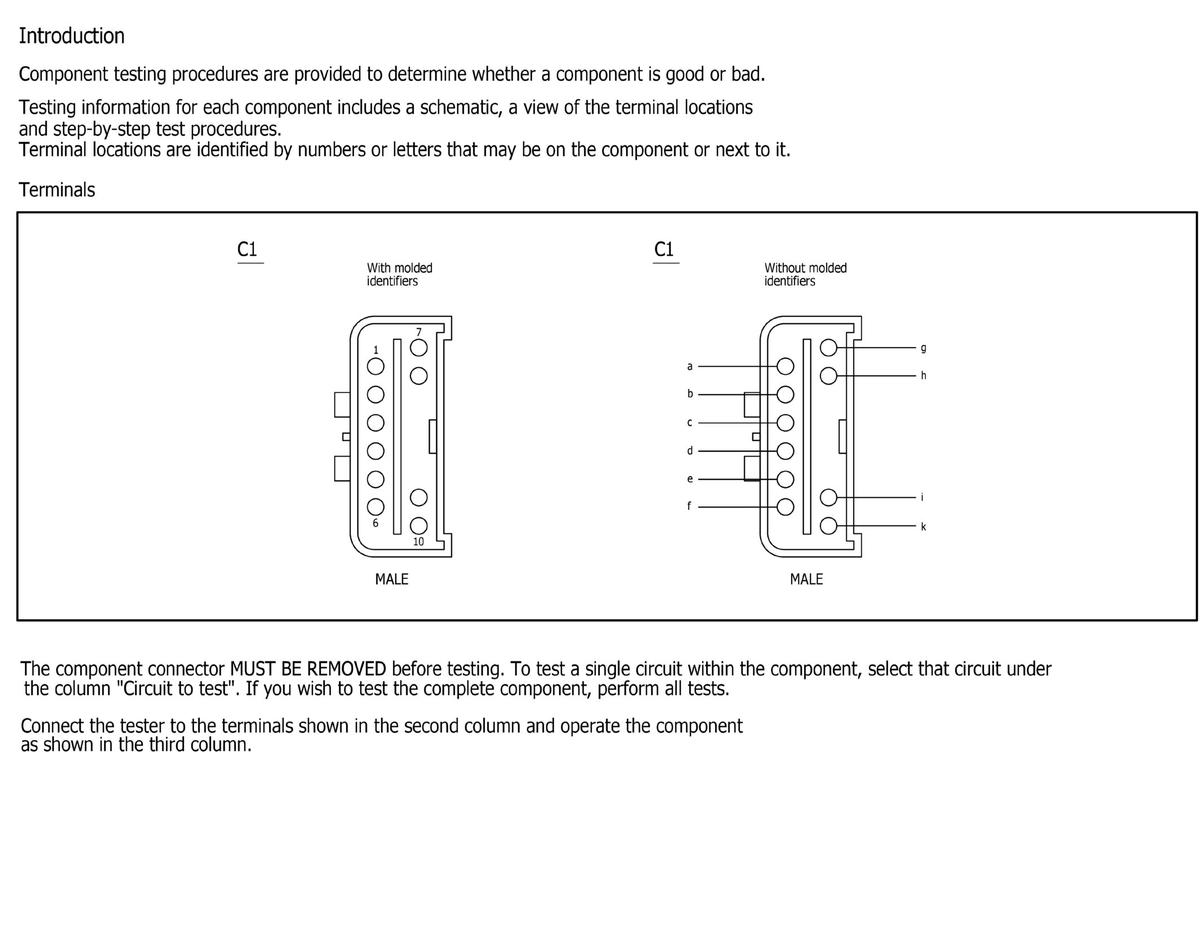

Fig 1: Component Testing Introduction
GFDWR137428Courtesy of FORD MOTOR COMPANY

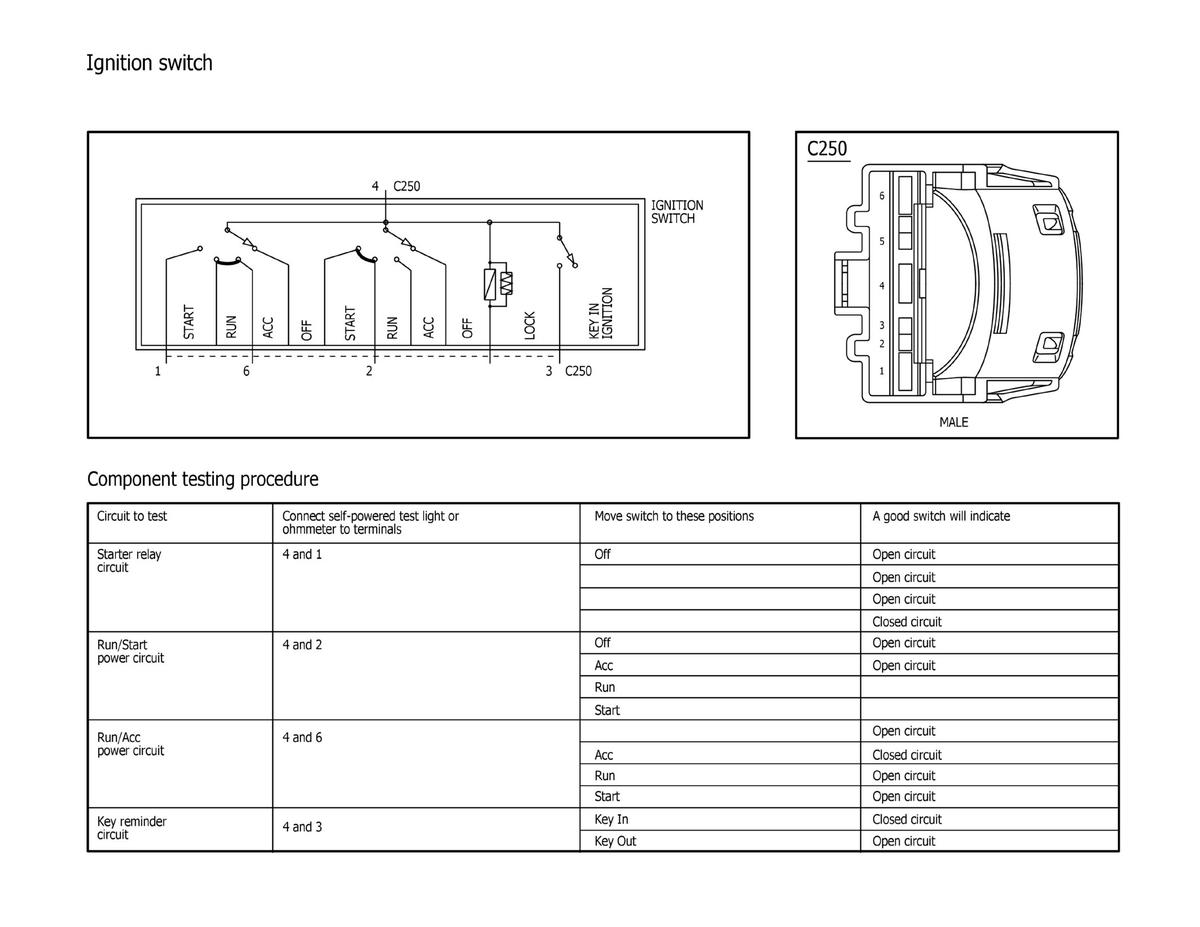

Fig 2: Ignition Switch Component Testing
GFDWR137430Courtesy of FORD MOTOR COMPANY

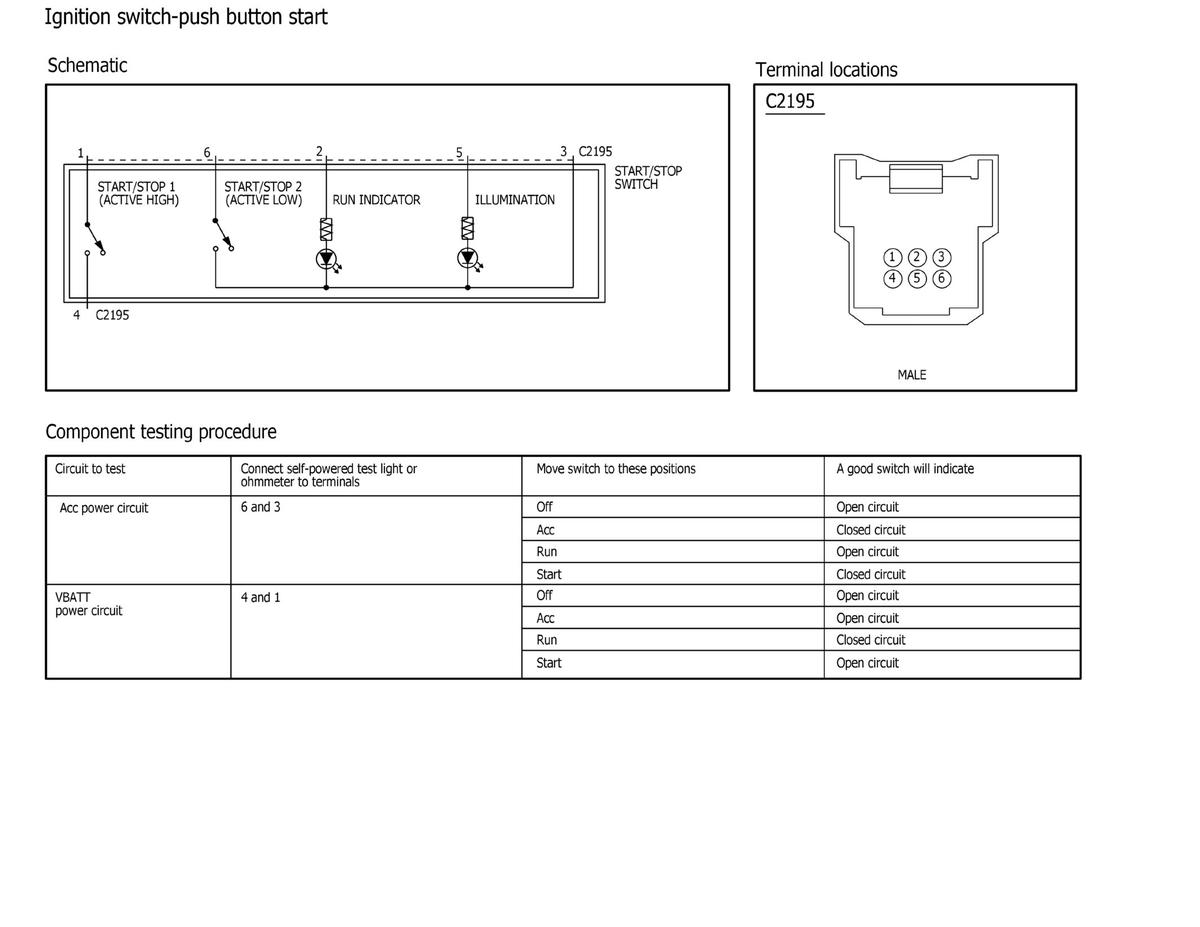

Fig 3: Ignition Switch Push-Button Start Component Testing
GFDWR137431Courtesy of FORD MOTOR COMPANY

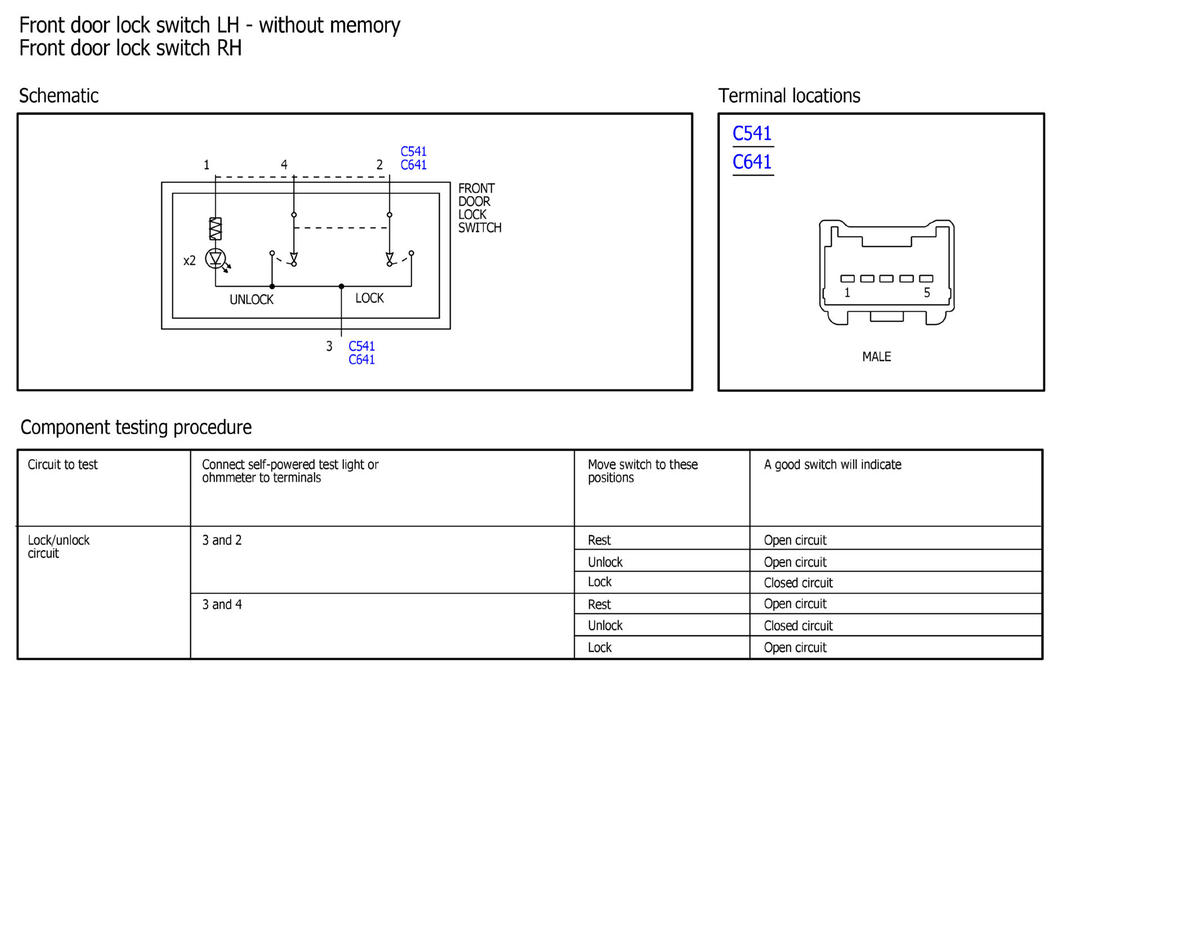

Fig 4: Front Door Lock Switch LH w/o Memory, RH Component Testing
GFDWR137432Courtesy of FORD MOTOR COMPANY

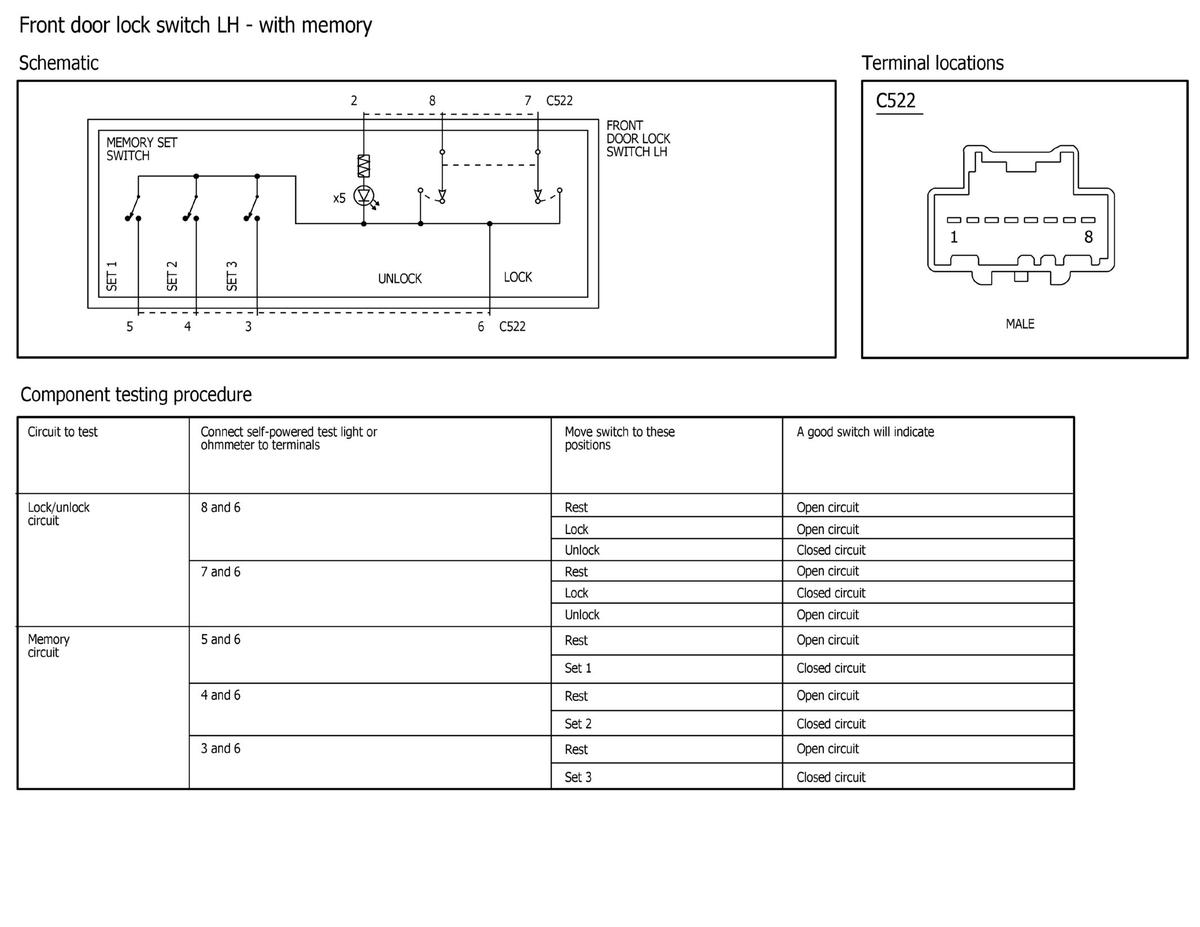

Fig 5: Front Door Lock Switch LH-With Memory Component Testing
GFDWR137433Courtesy of FORD MOTOR COMPANY

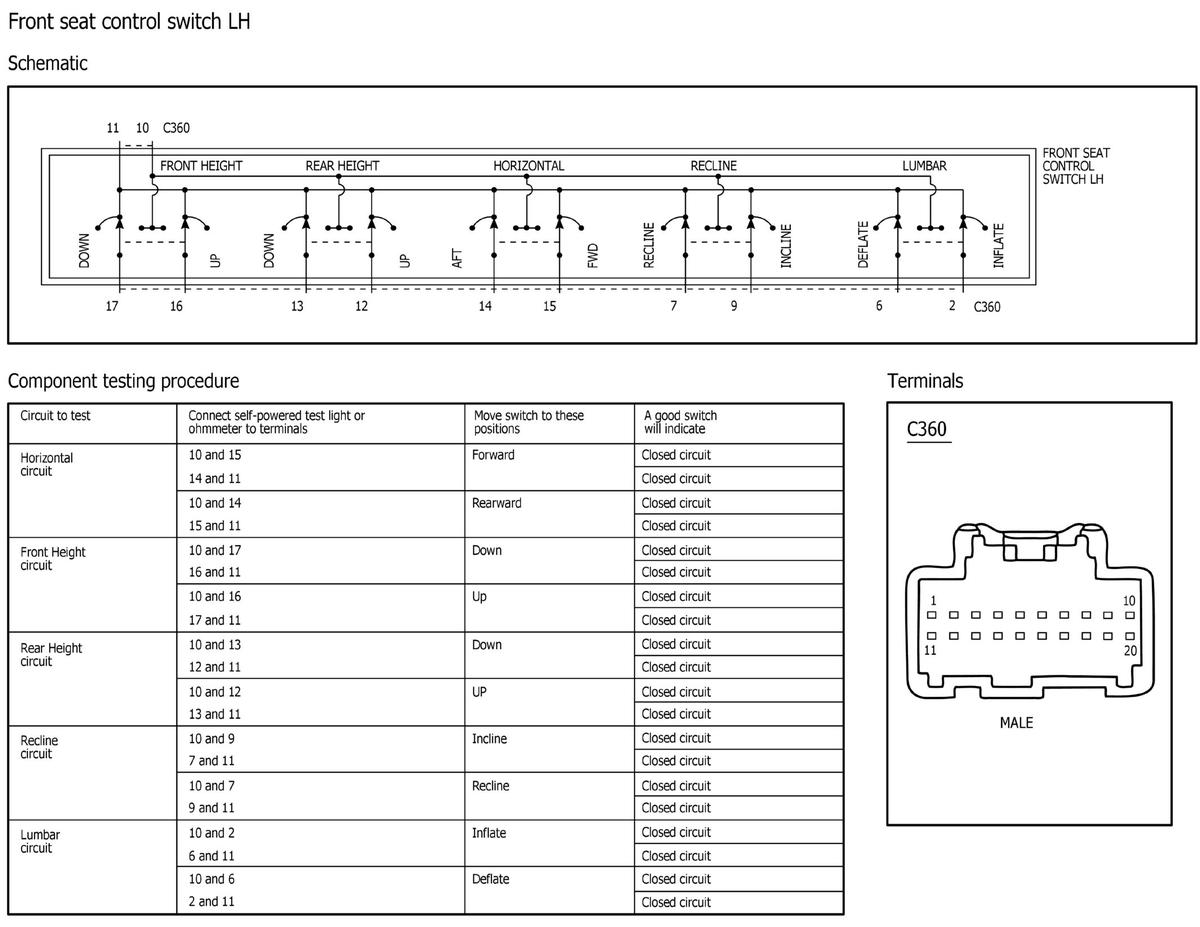

Fig 6: Front Seat Control Switch LH Component Testing
GFDWR137434Courtesy of FORD MOTOR COMPANY

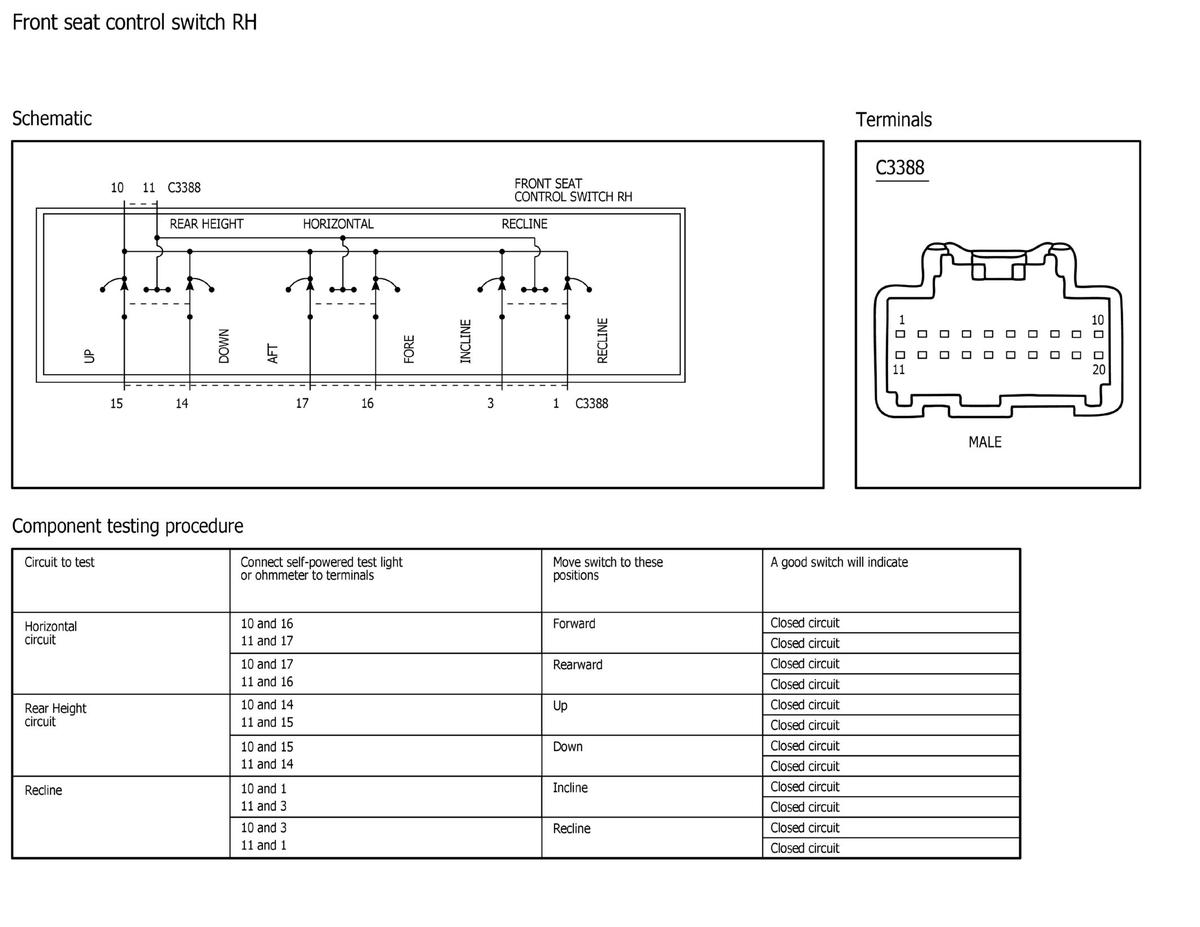

Fig 7: Front Seat Control Switch RH Component Testing
GFDWR137435Courtesy of FORD MOTOR COMPANY

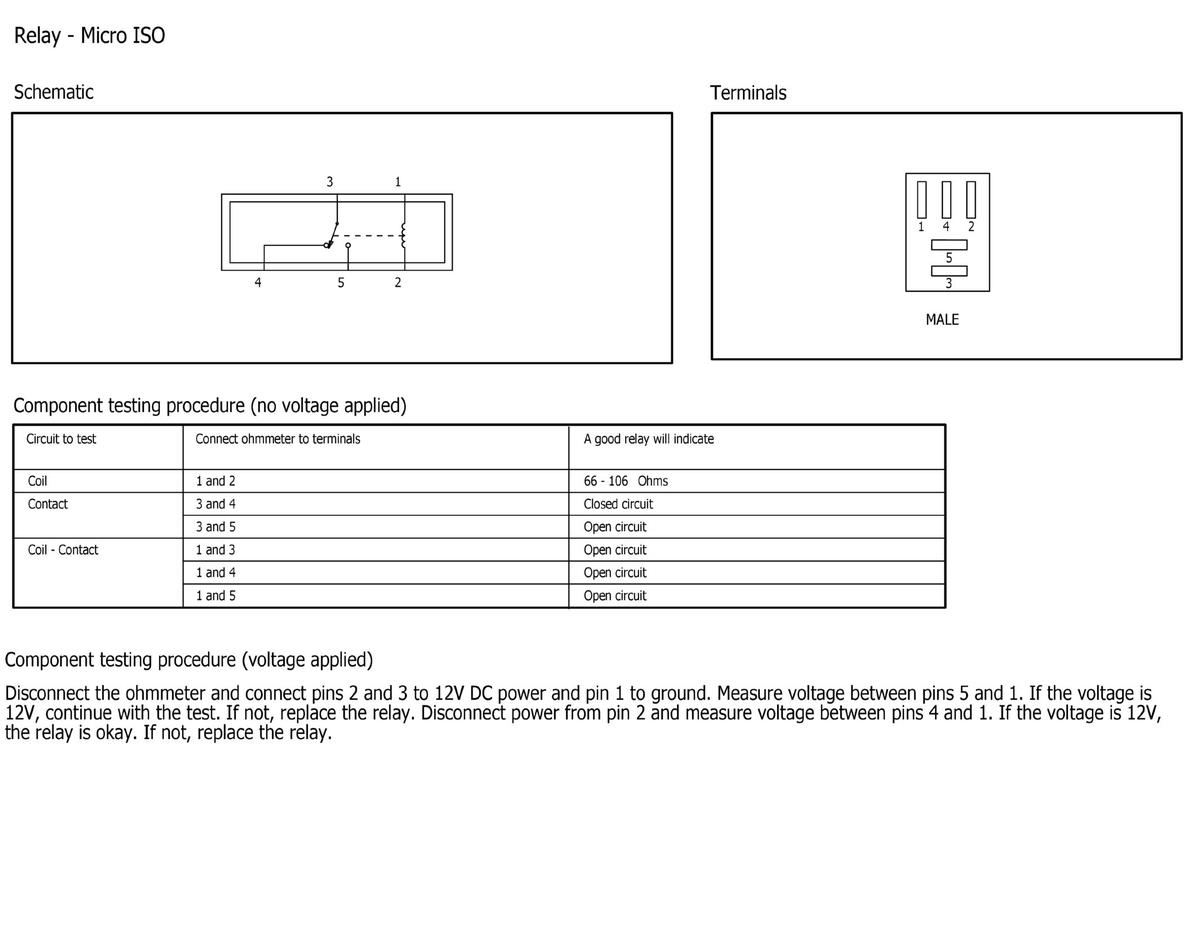

Fig 8: Relay-Micro ISO Component Testing
GFDWR137436Courtesy of FORD MOTOR COMPANY

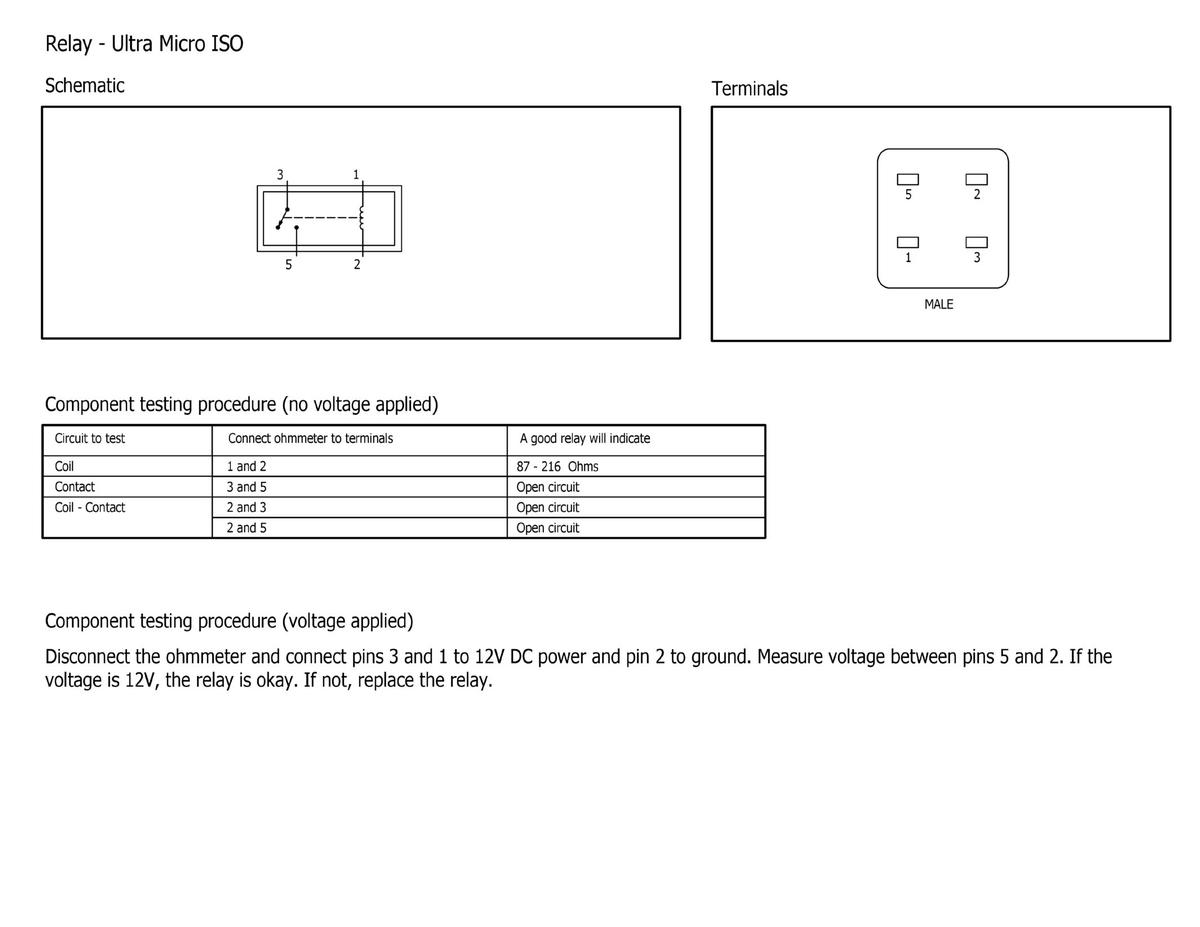

Fig 9: Relay-Ultra Micro ISO Component Testing
GFDWR137437Courtesy of FORD MOTOR COMPANY

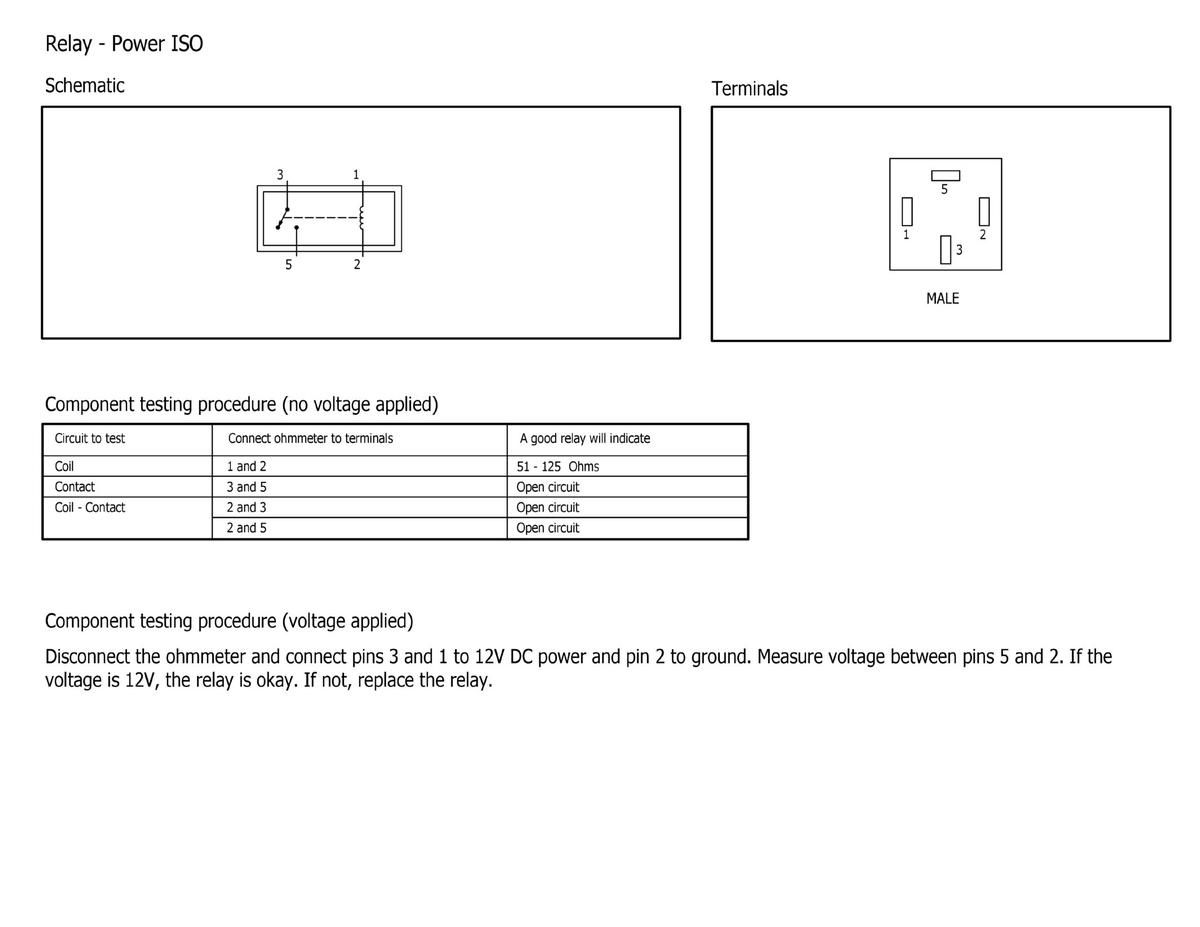

Fig 10: Relay-Power ISO Component Testing
GFDWR137429Courtesy of FORD MOTOR COMPANY
