Cruise Control

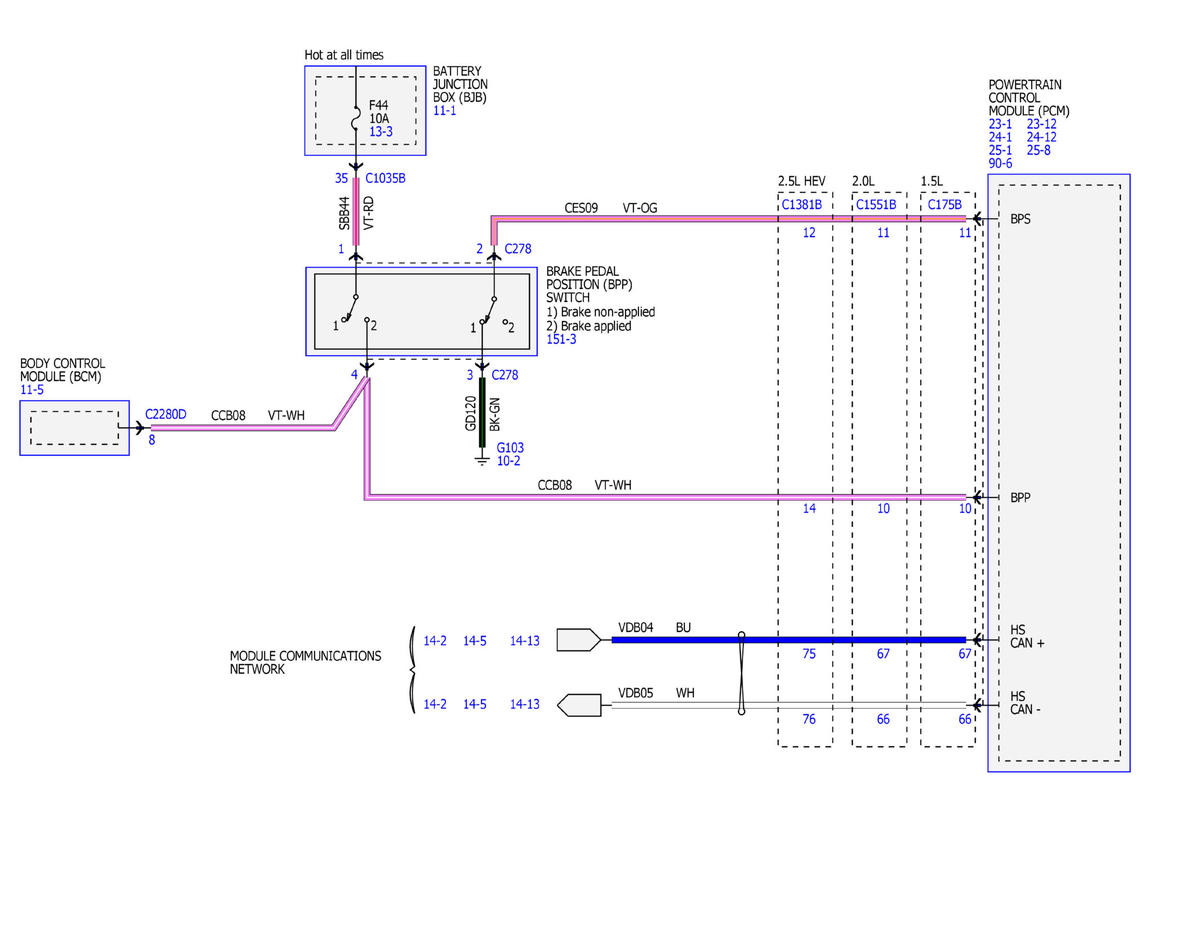

Fig 1: Cruise Control Wiring Diagram (1 Of 5)
GFDWR137172Courtesy of FORD MOTOR COMPANY

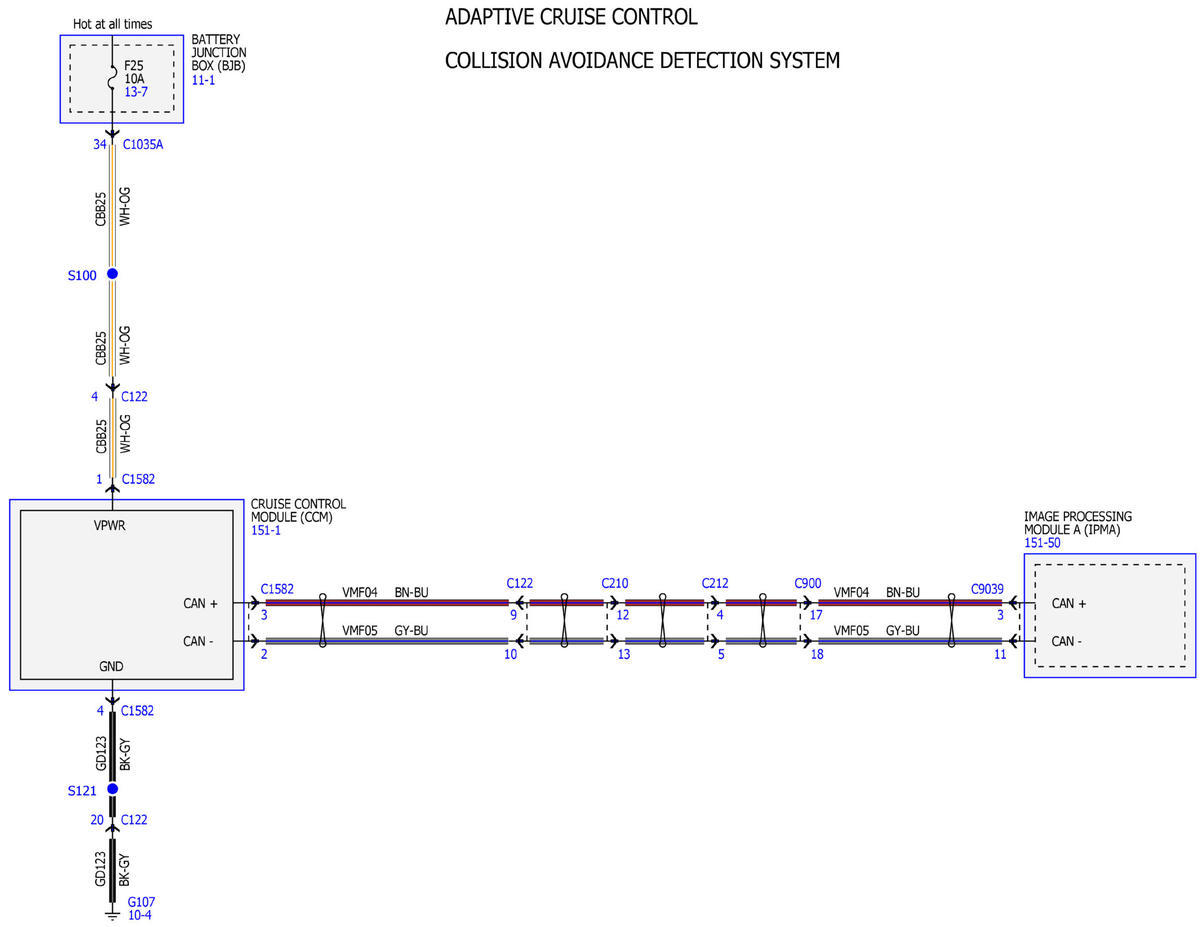

Fig 2: Cruise Control Wiring Diagram (2 Of 5)
GFDWR137173Courtesy of FORD MOTOR COMPANY

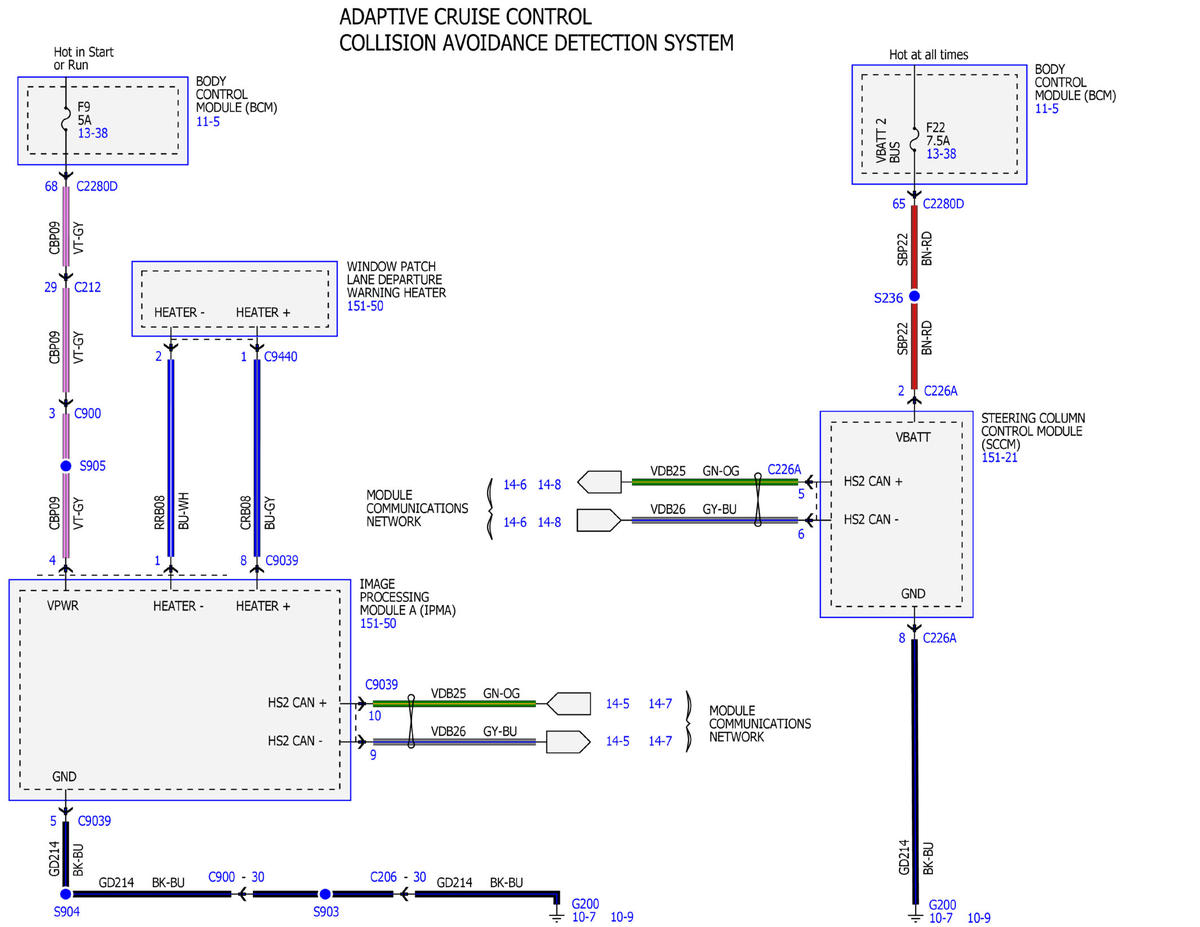

Fig 3: Cruise Control Wiring Diagram (3 Of 5)
GFDWR137174Courtesy of FORD MOTOR COMPANY

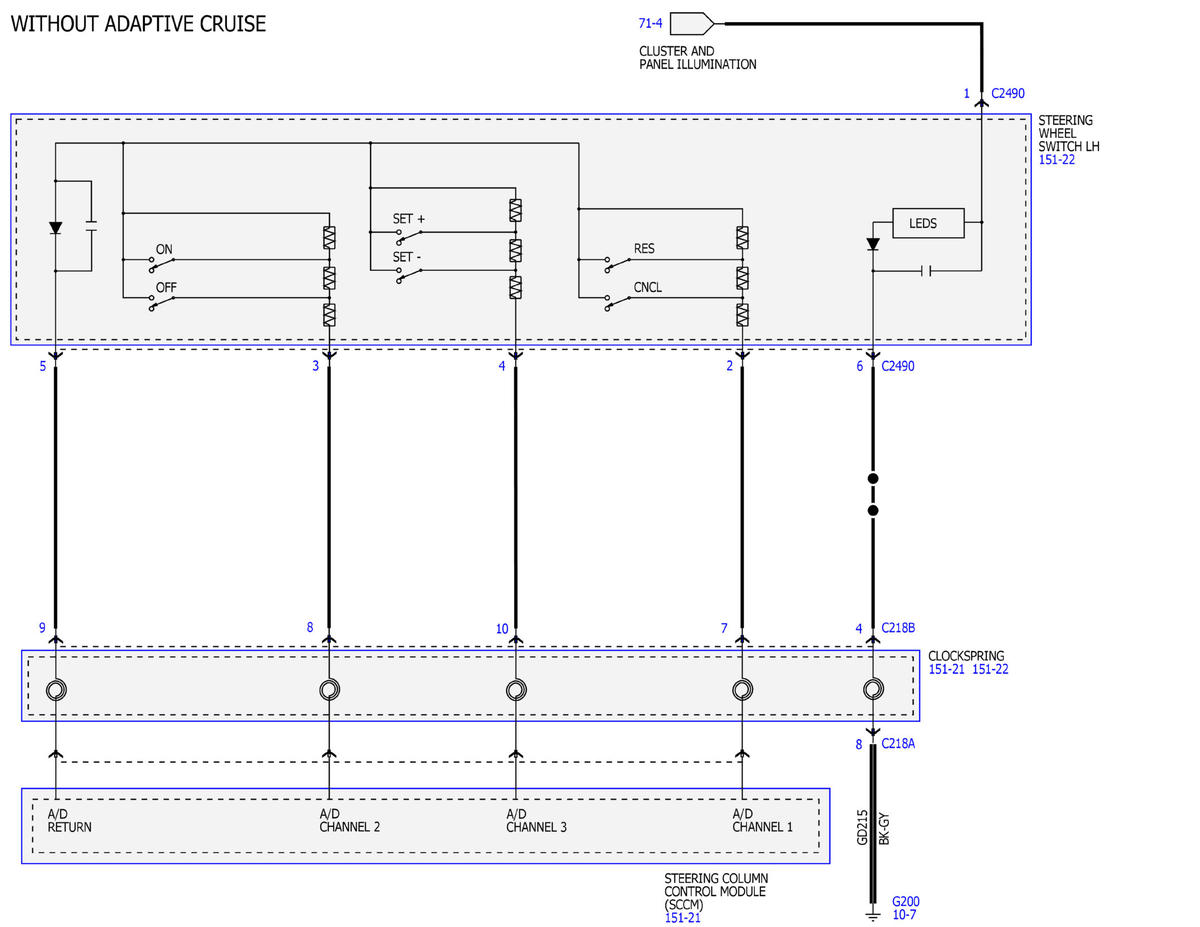

Fig 4: Cruise Control Wiring Diagram (4 Of 5)
GFDWR137175Courtesy of FORD MOTOR COMPANY

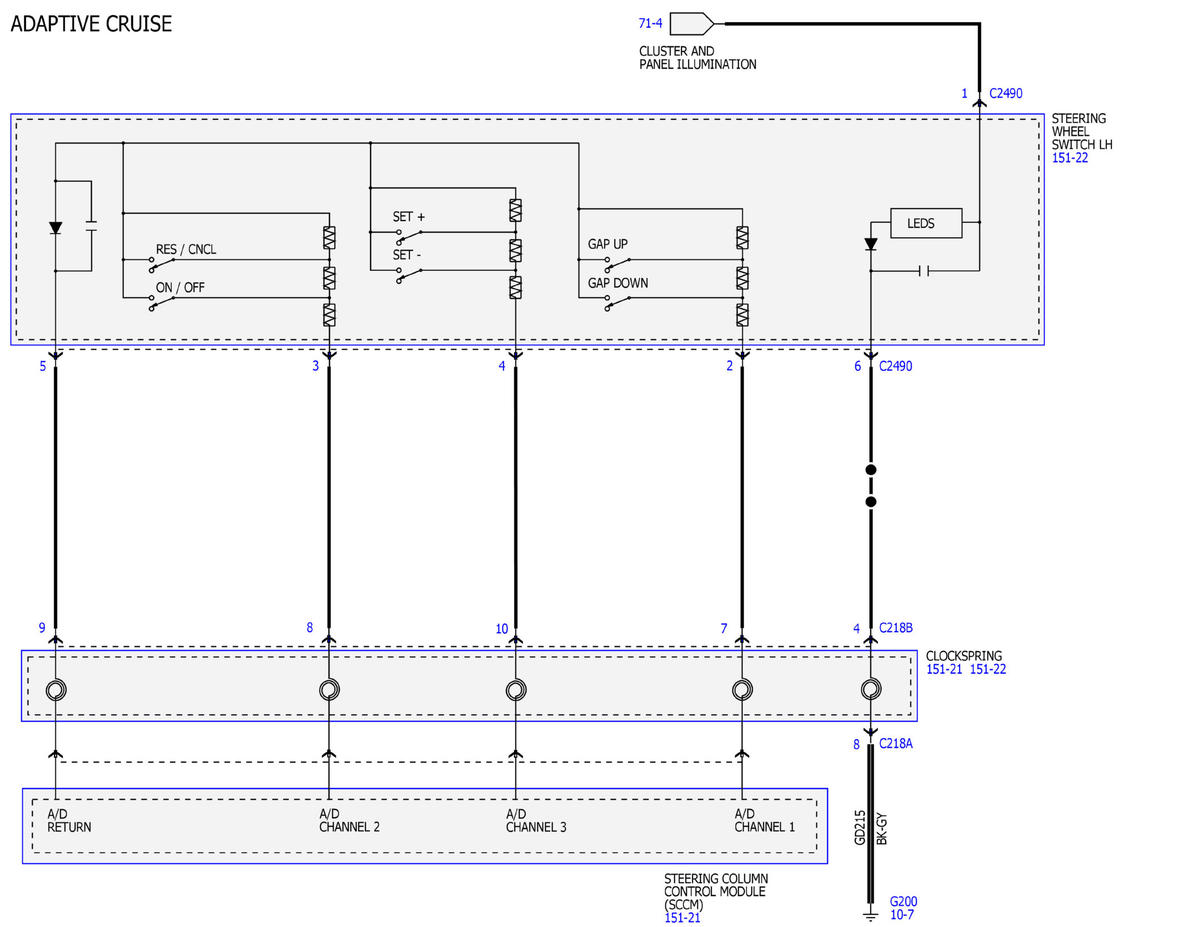

Fig 5: Cruise Control Wiring Diagram (5 Of 5)
GFDWR137176Courtesy of FORD MOTOR COMPANY
