Power Distribution/BCM

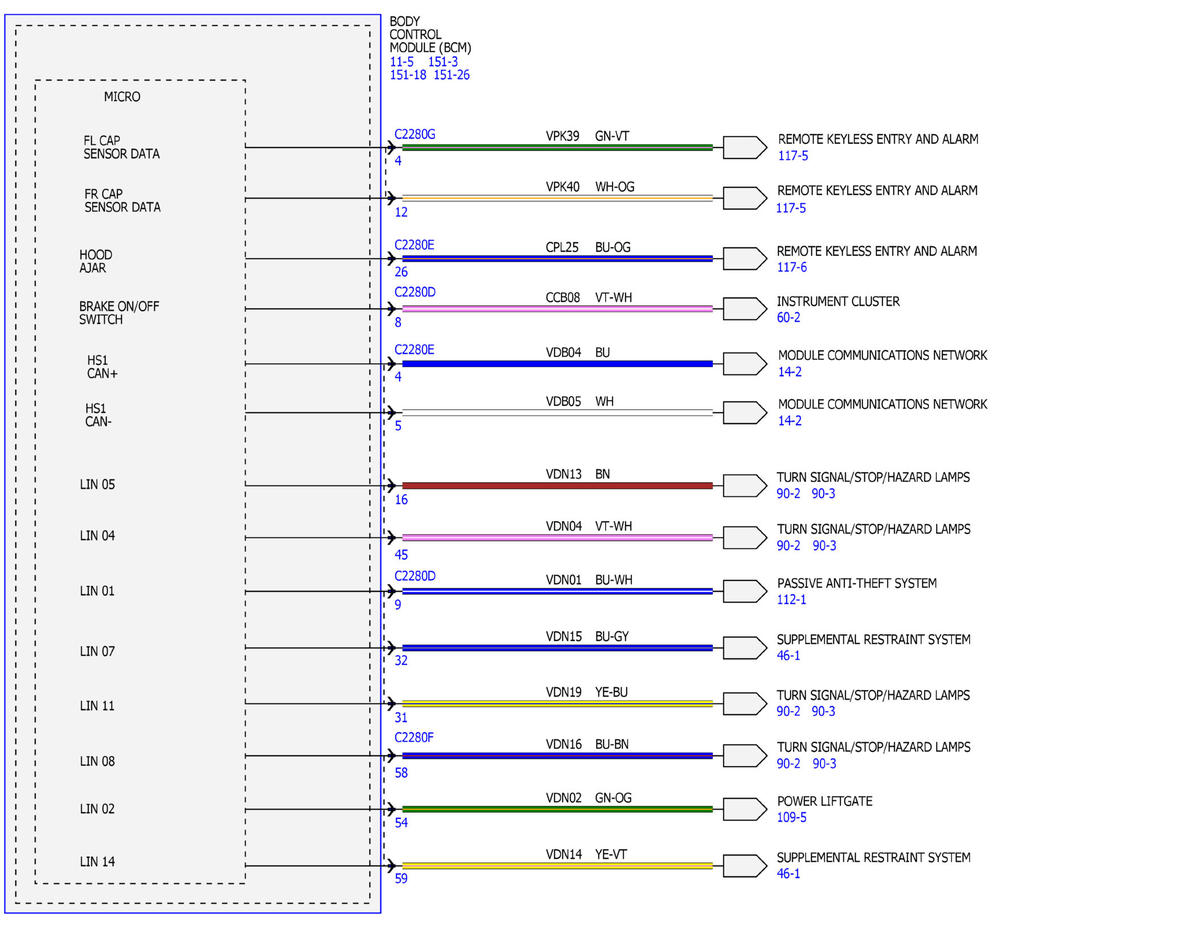

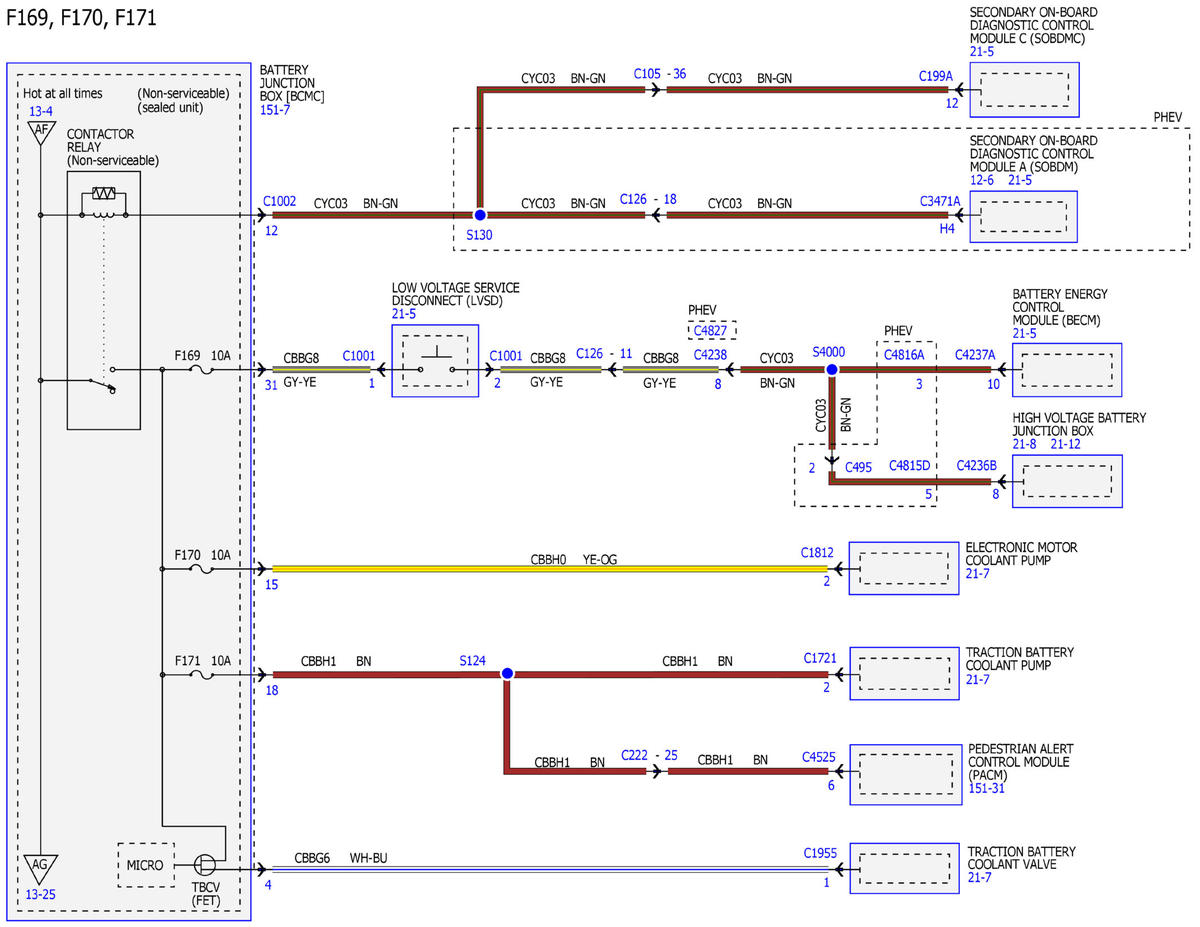

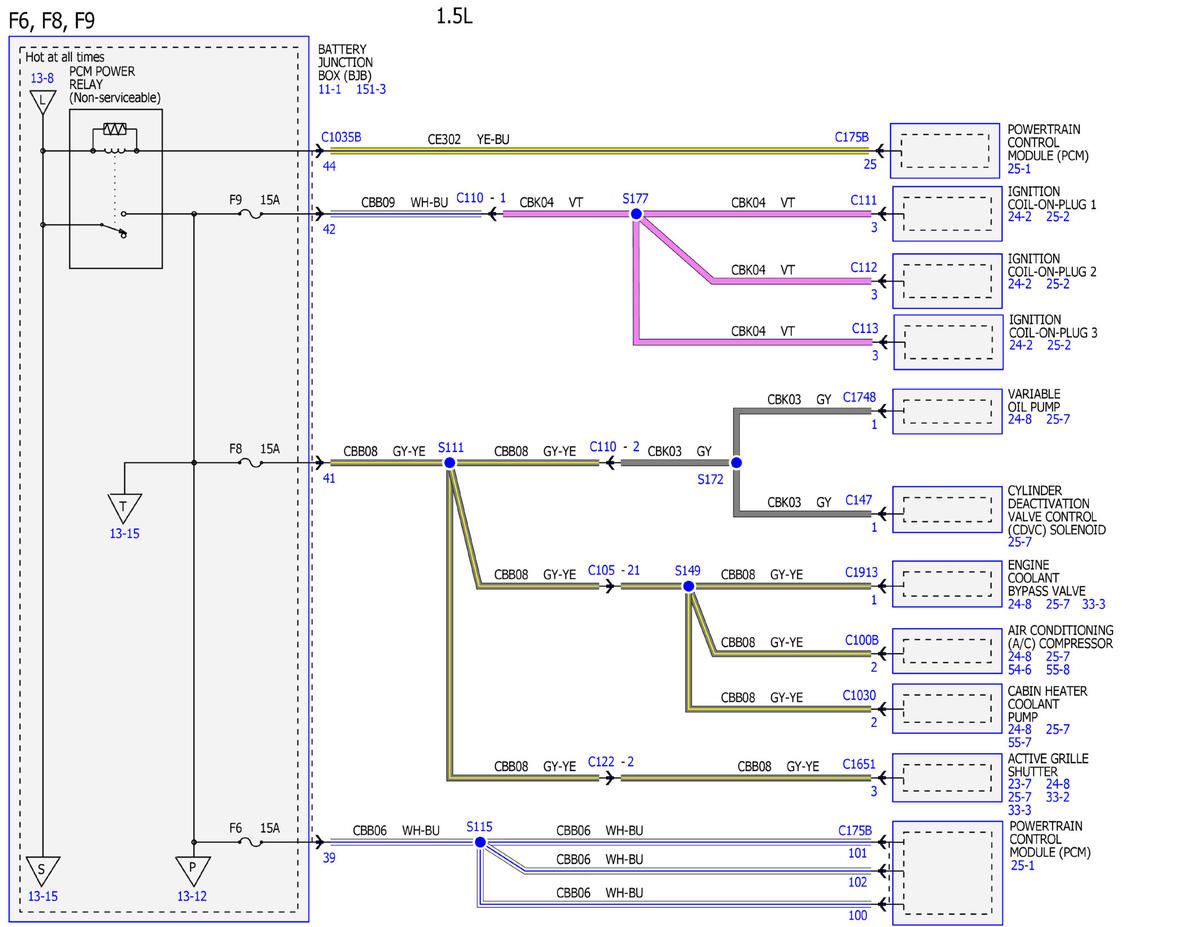

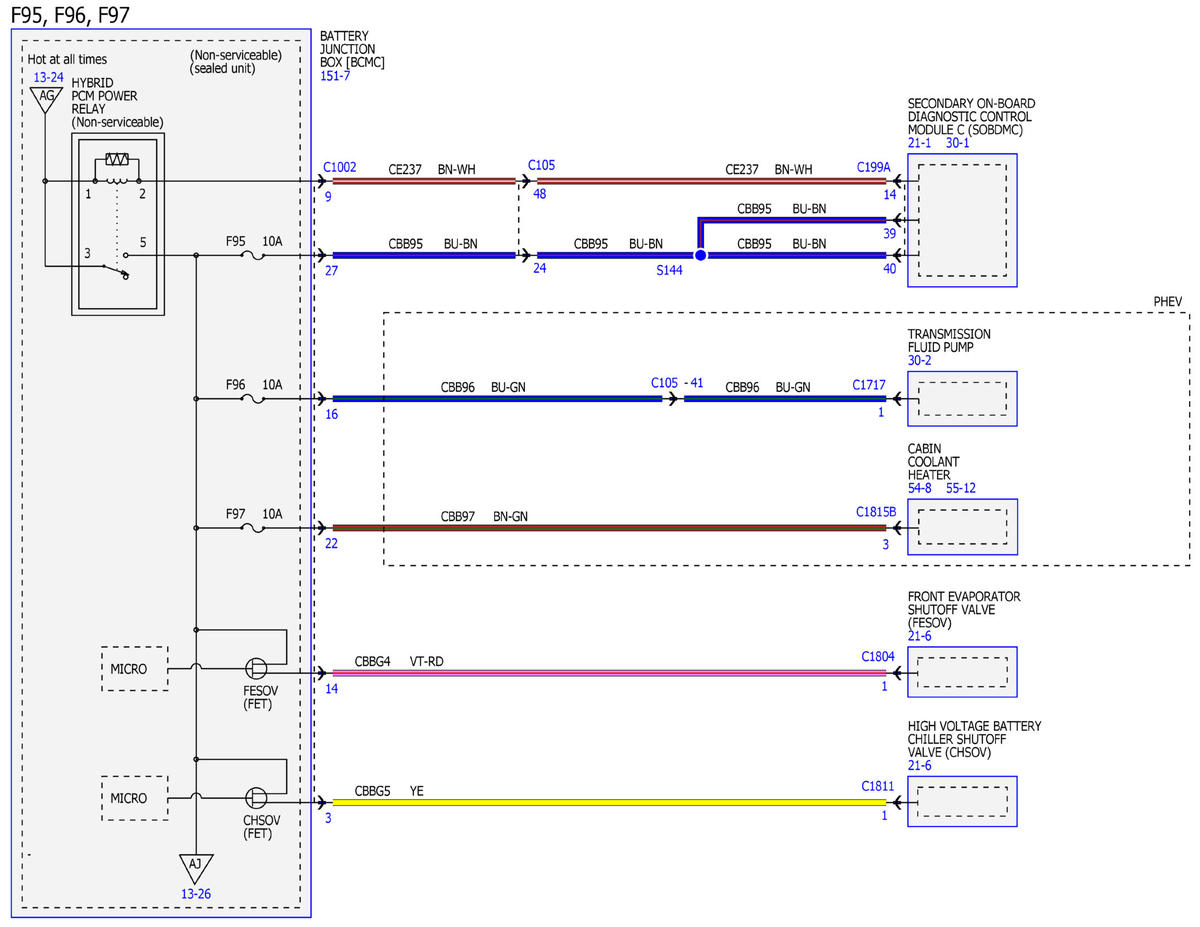

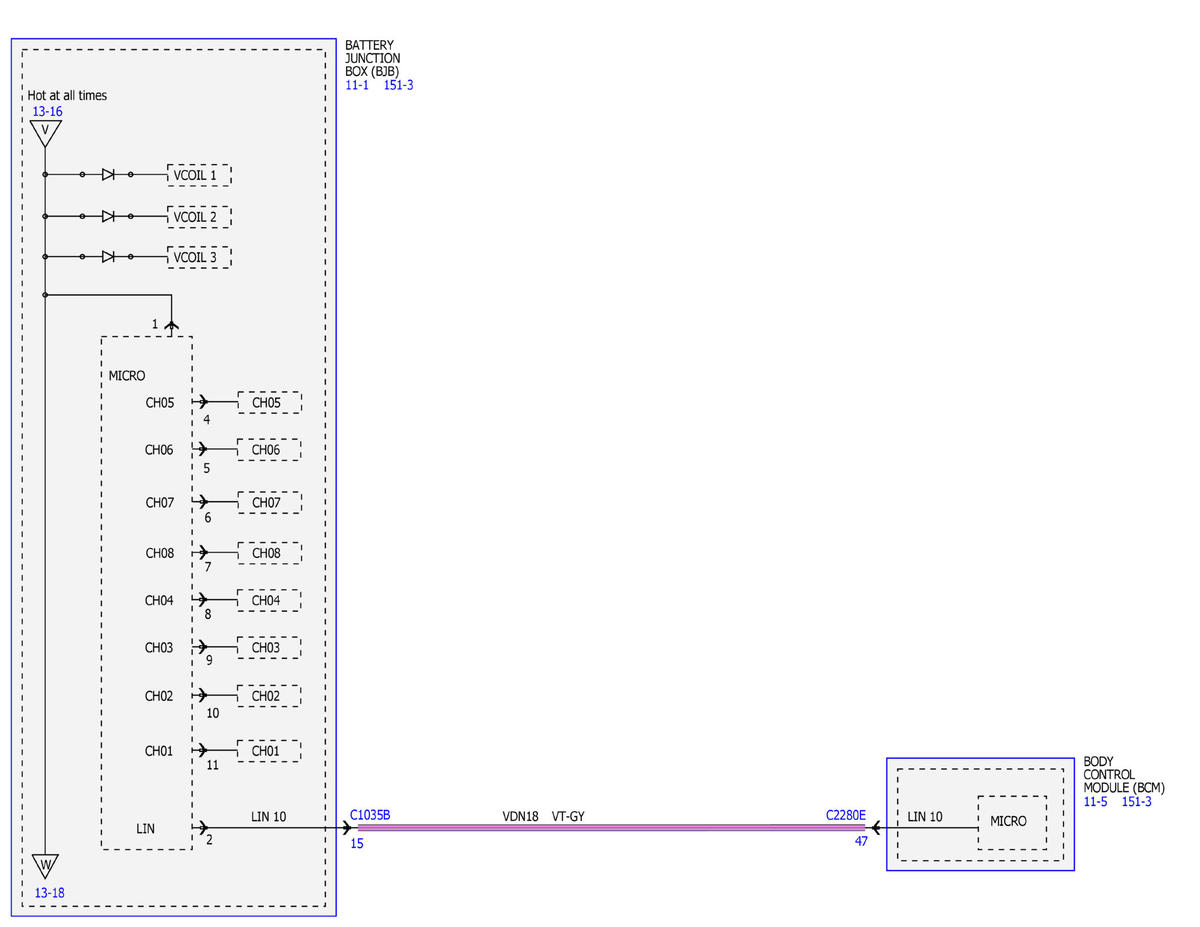

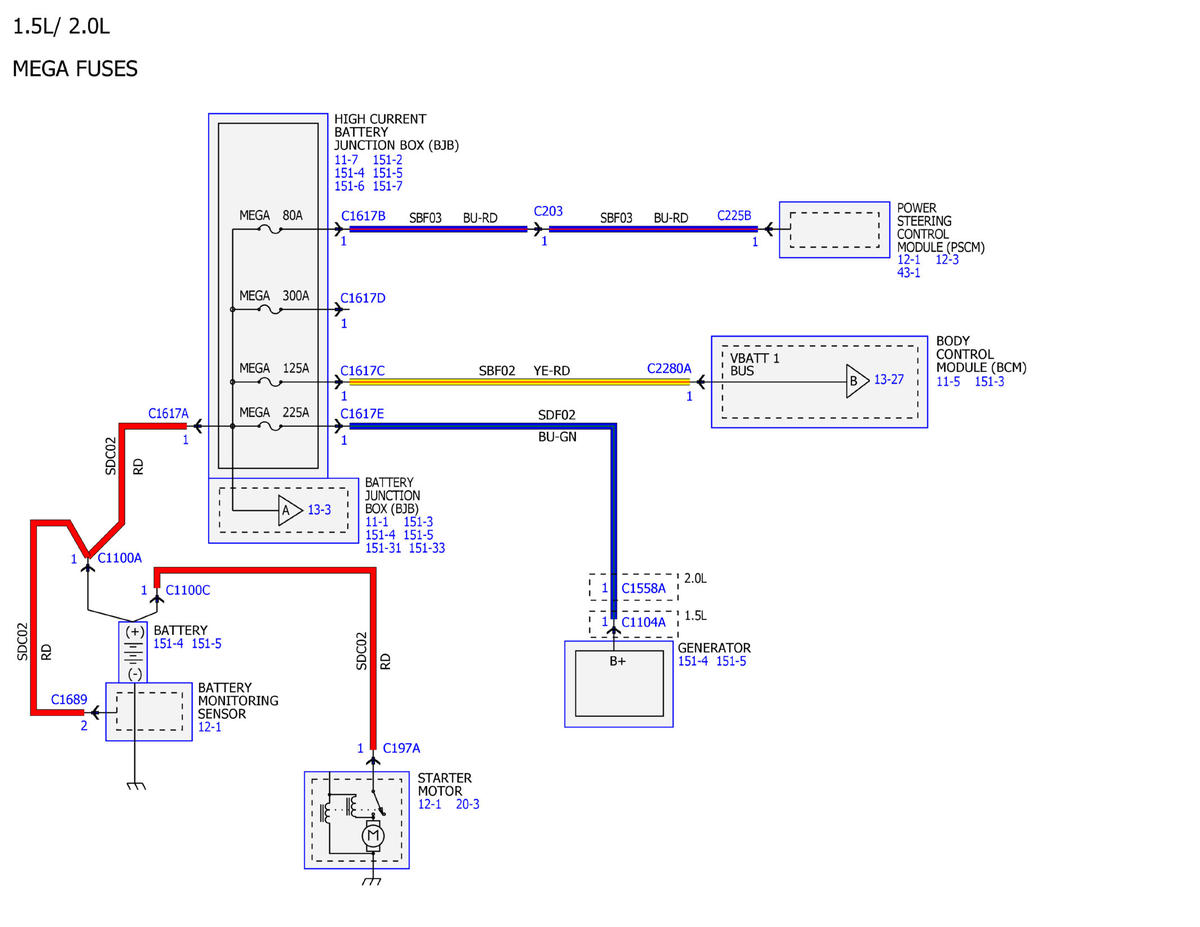

Fig 1: Power Distribution/BCM Wiring Diagram (1 Of 44)
Courtesy of FORD MOTOR COMPANY

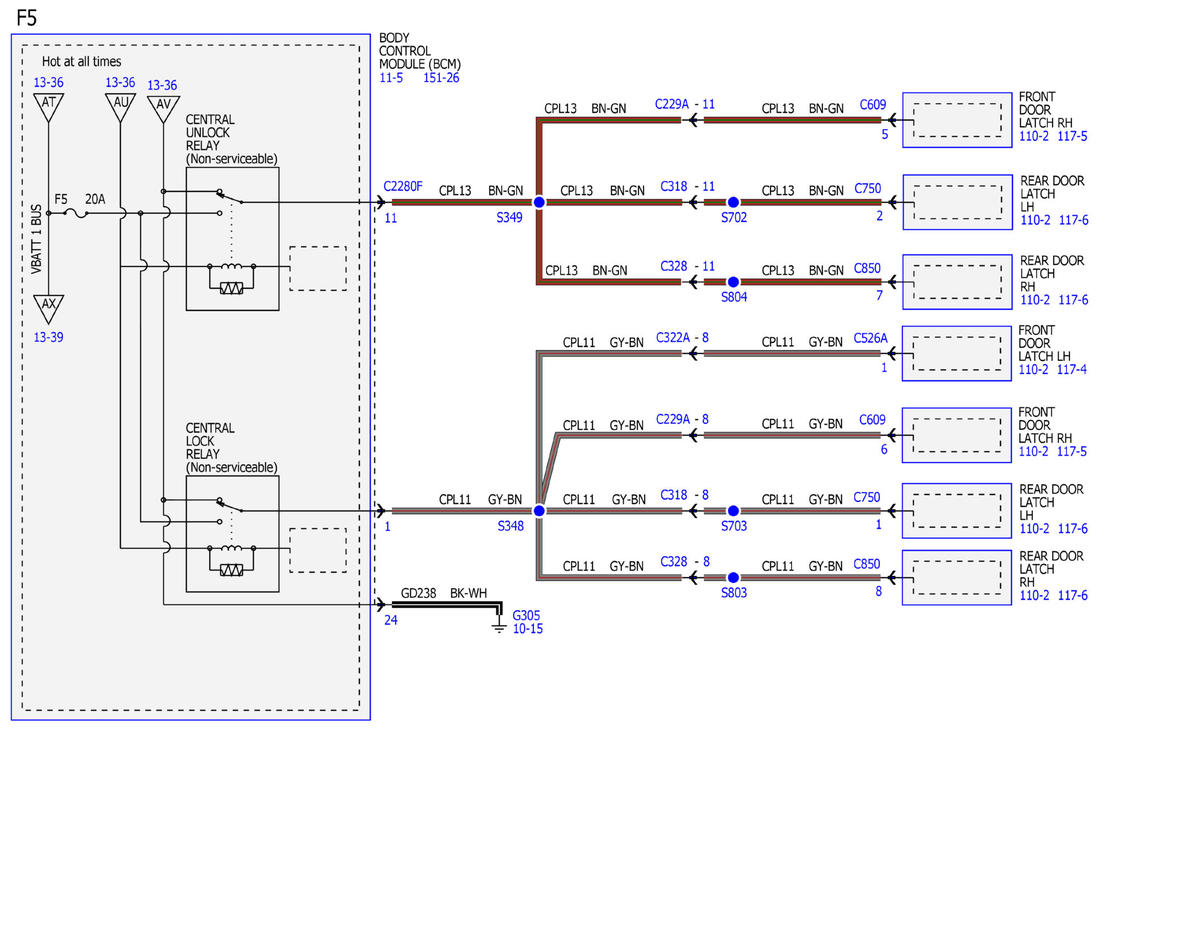

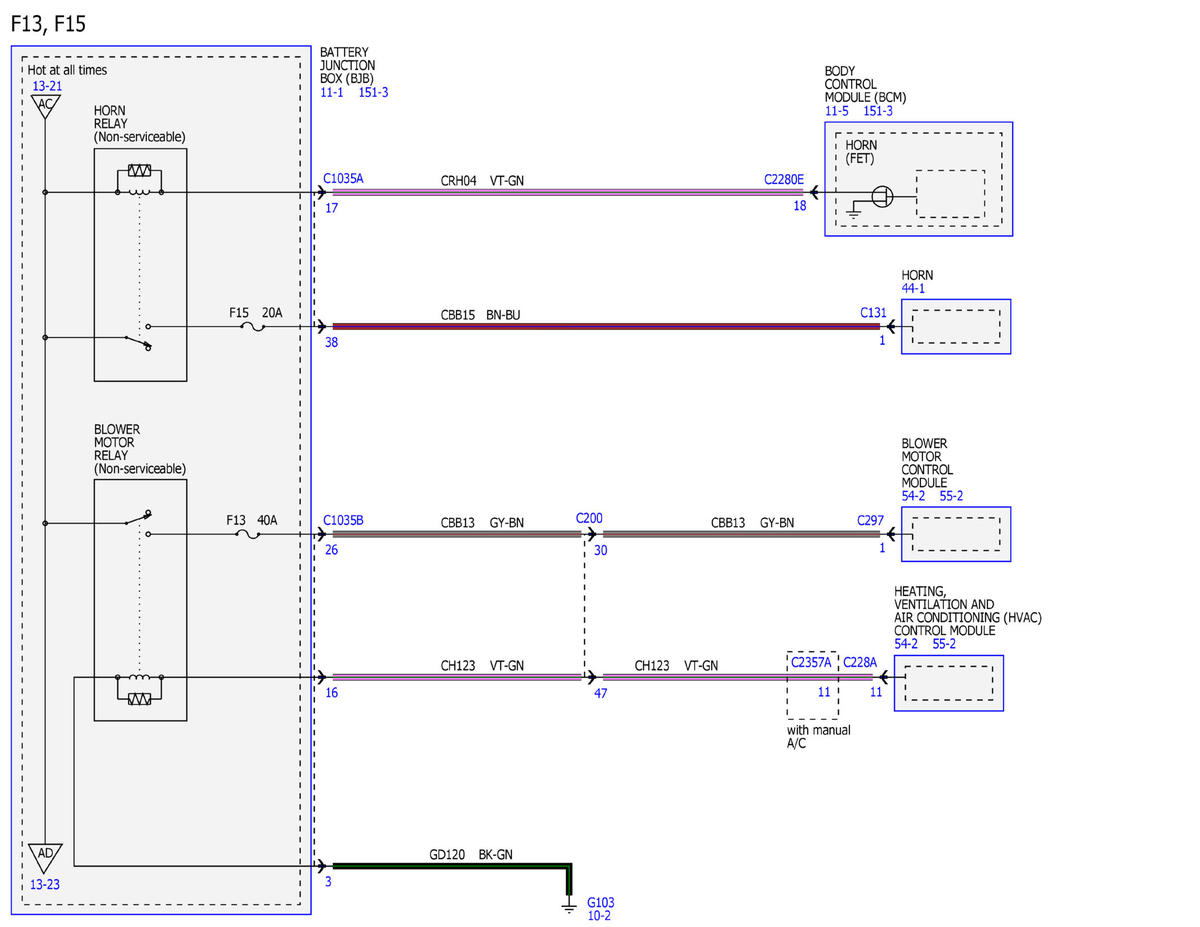

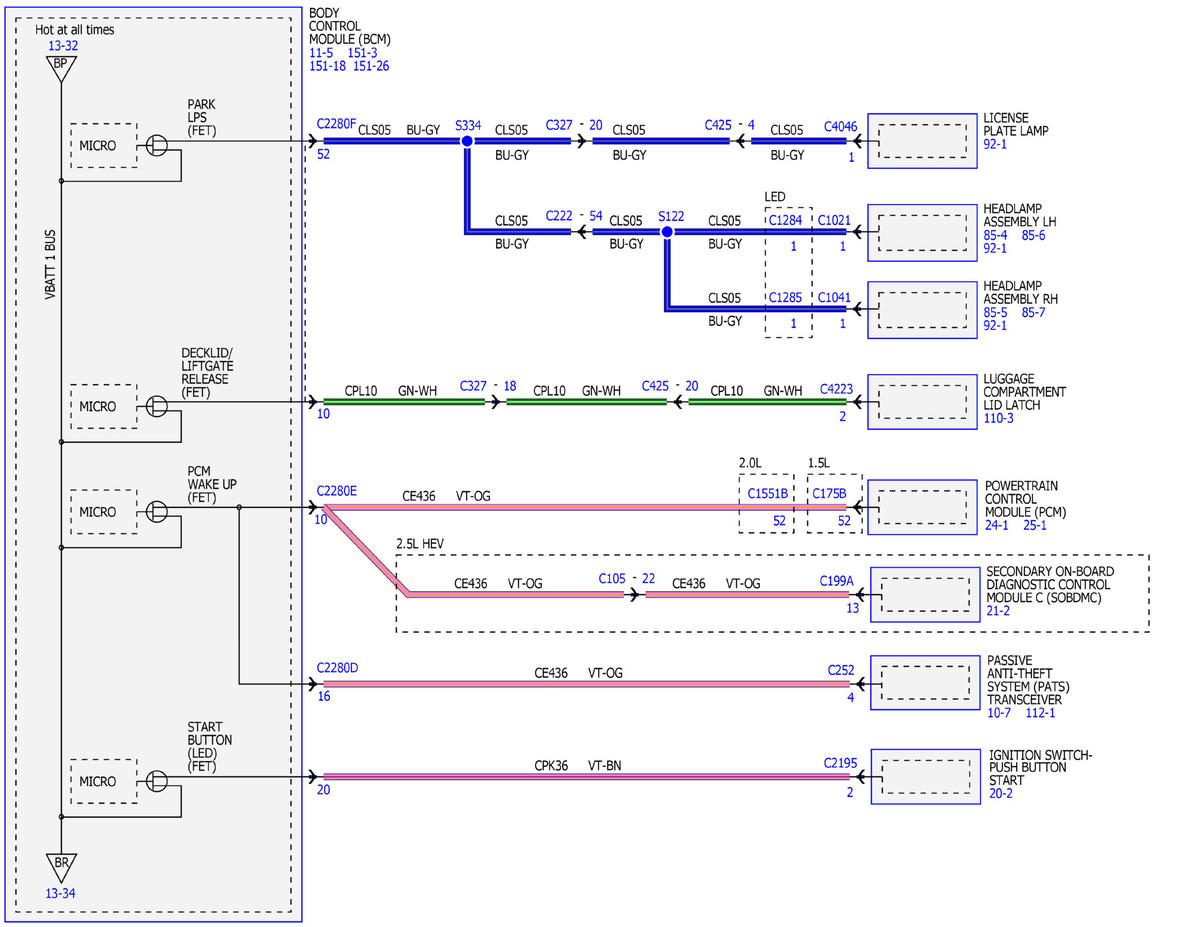

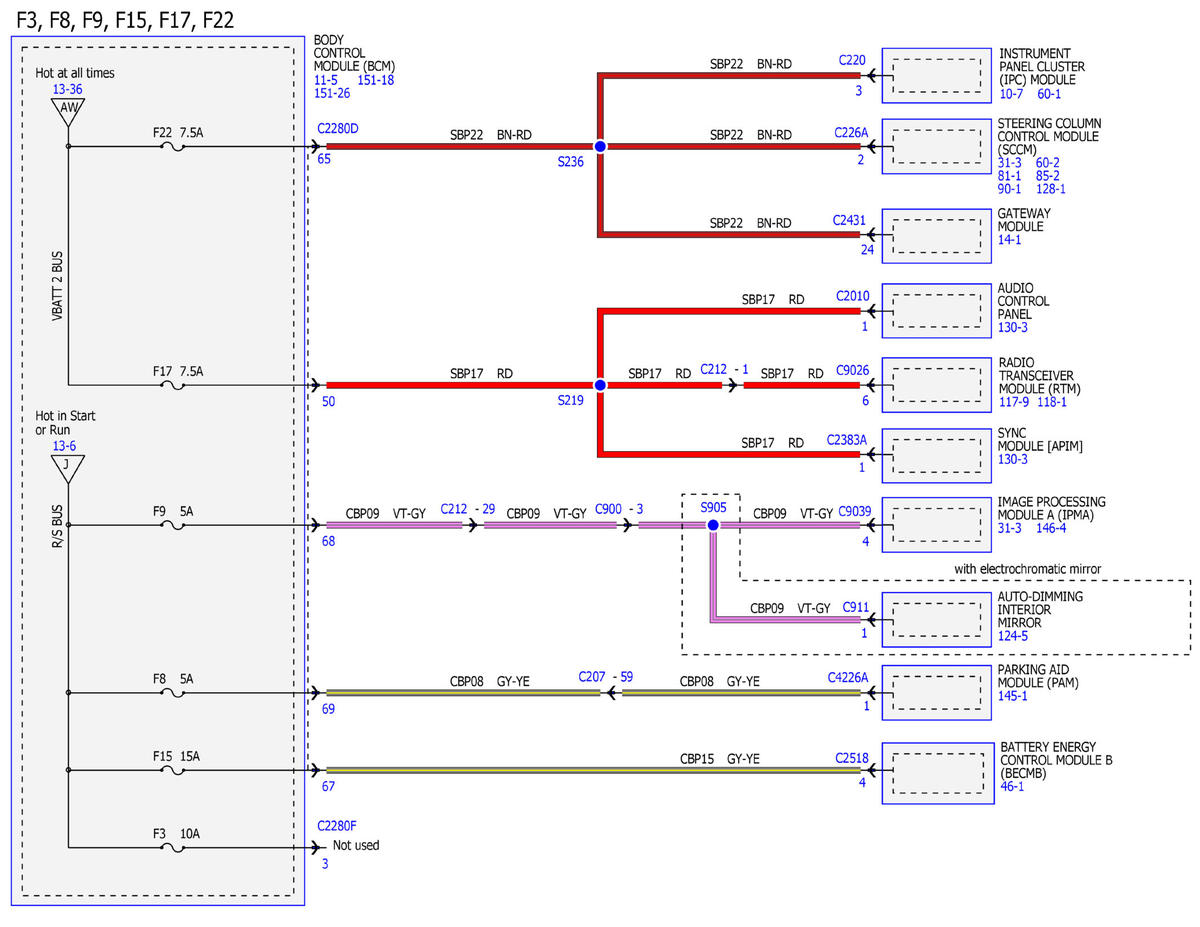

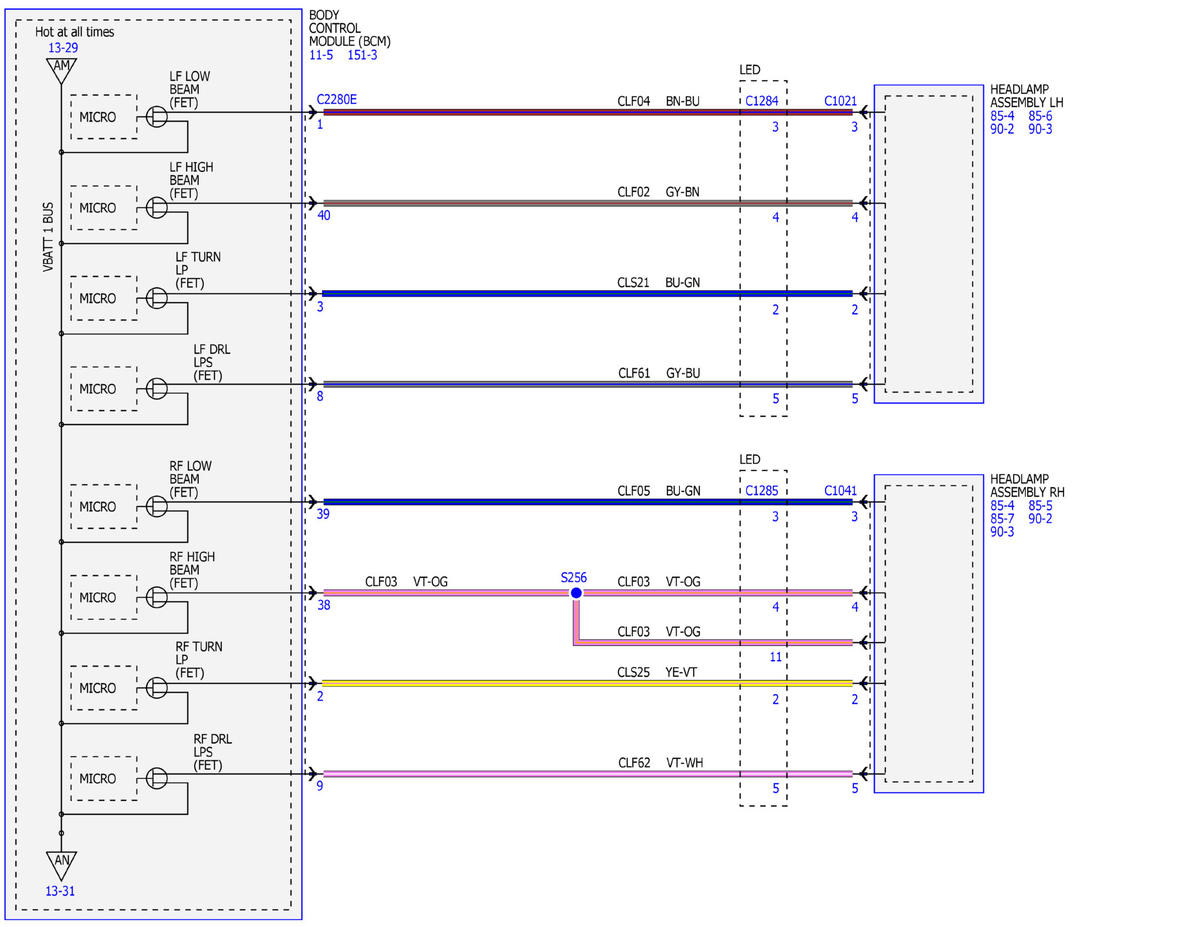

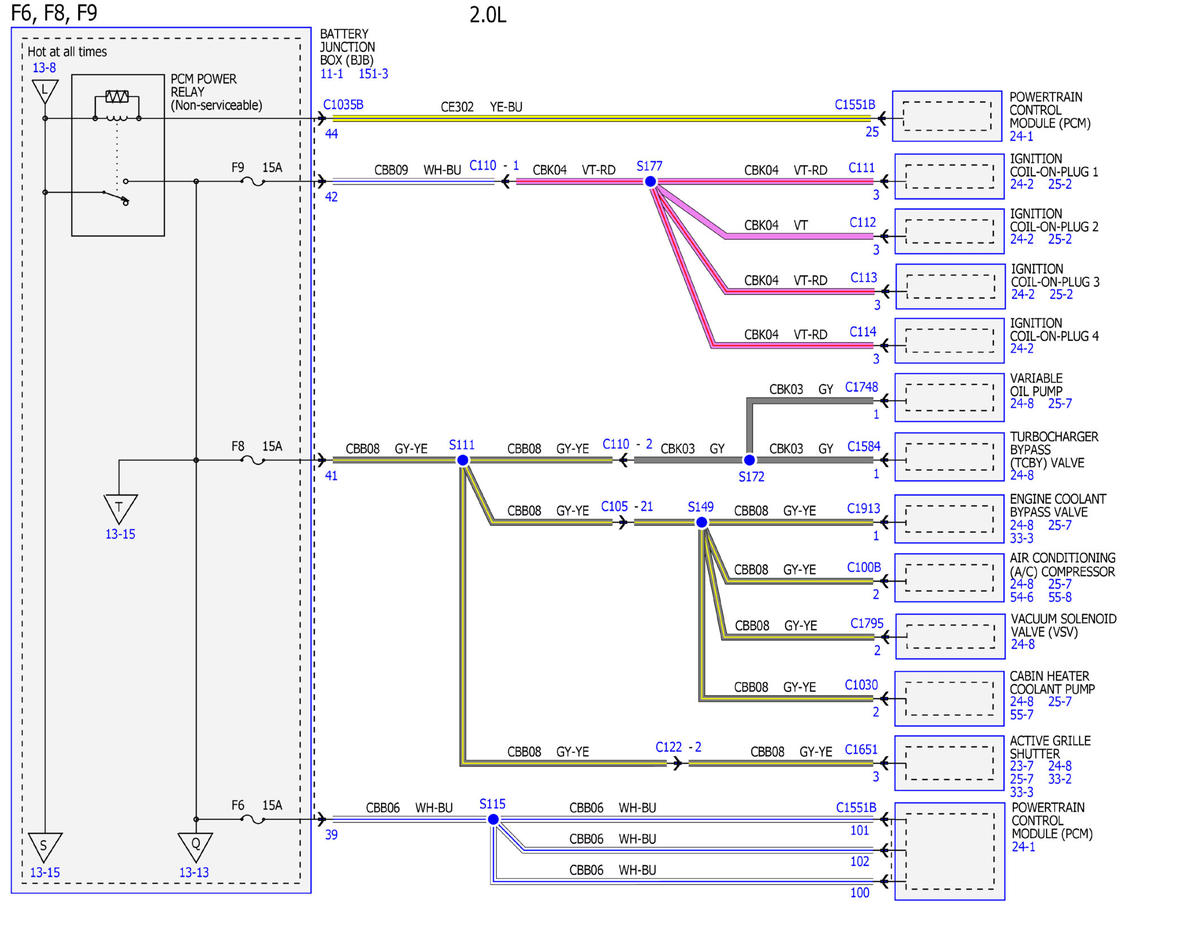

Fig 2: Power Distribution/BCM Wiring Diagram (2 Of 44)
Courtesy of FORD MOTOR COMPANY

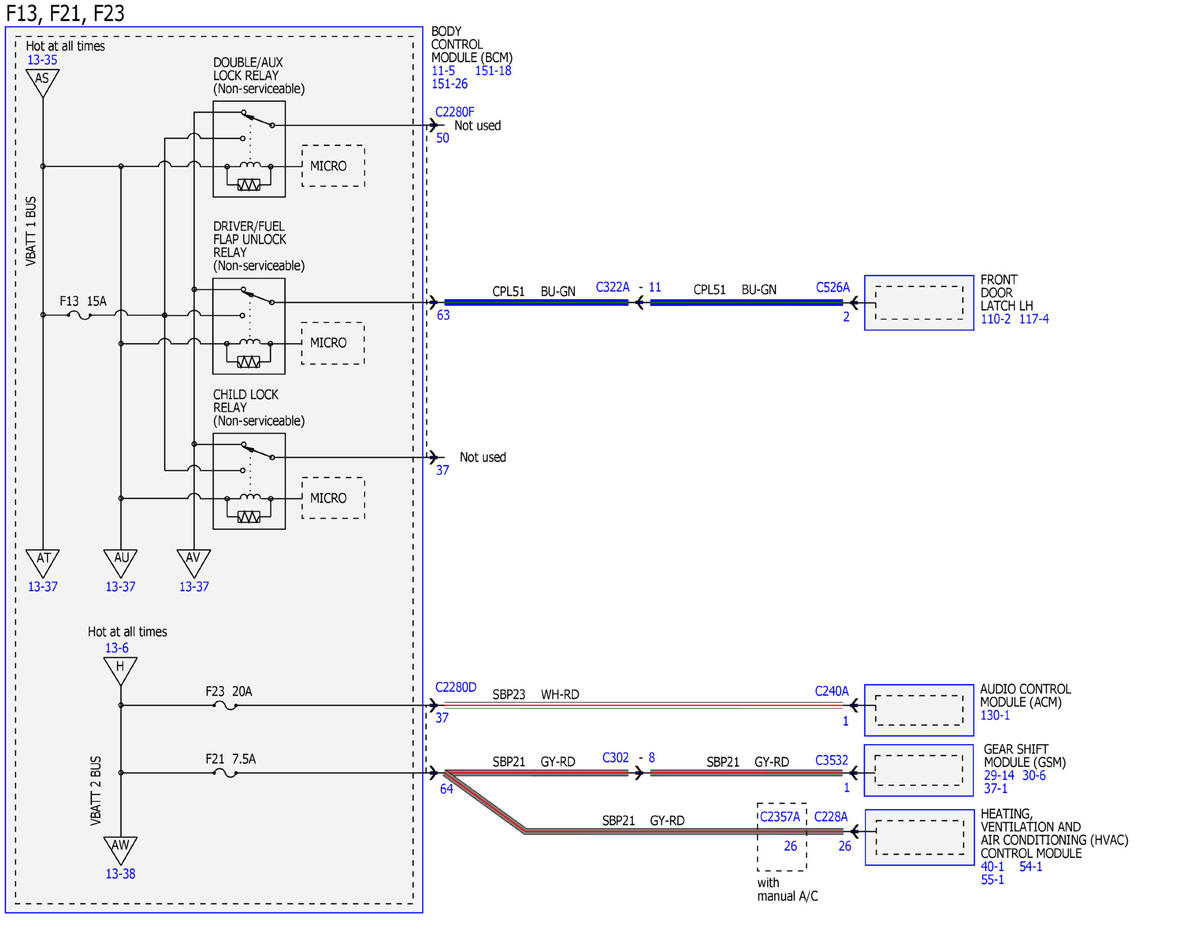

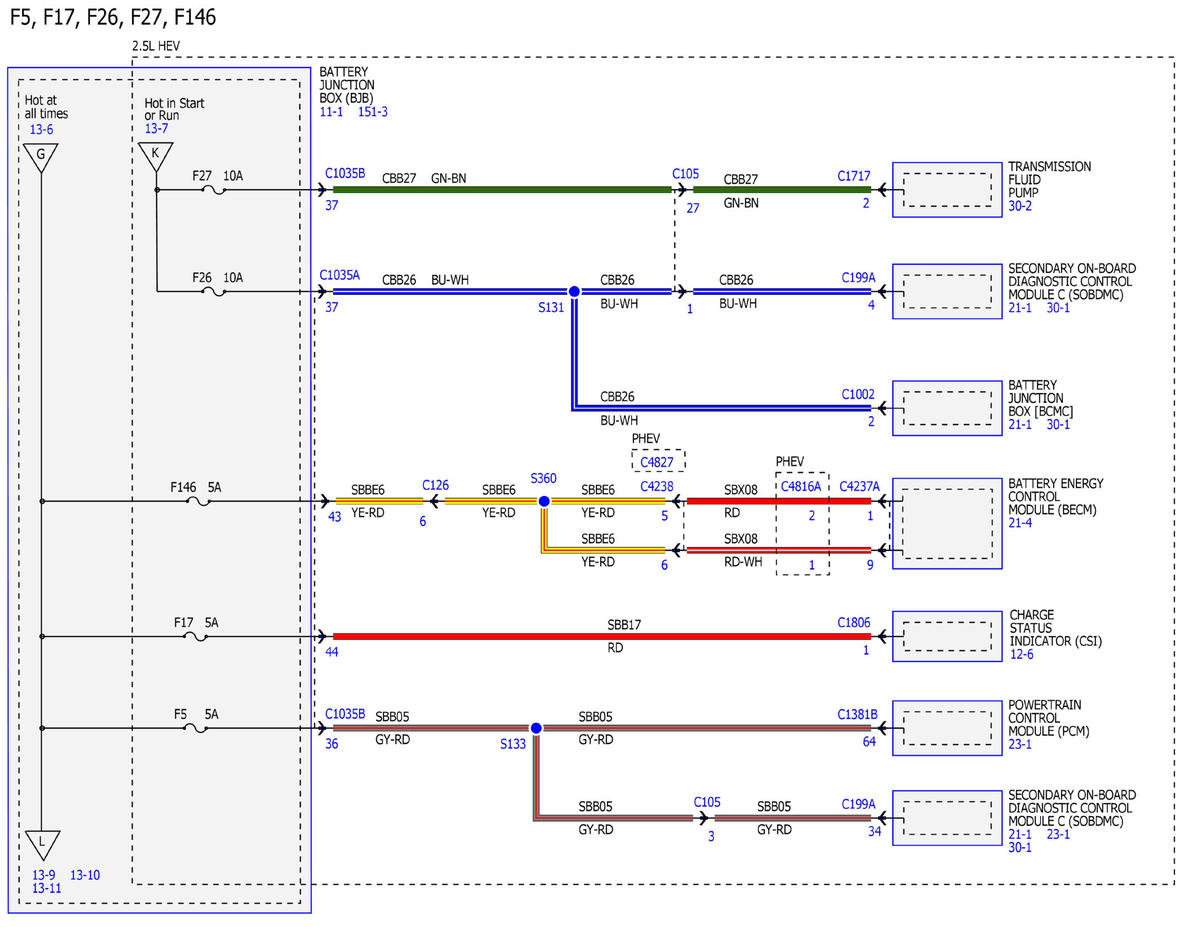

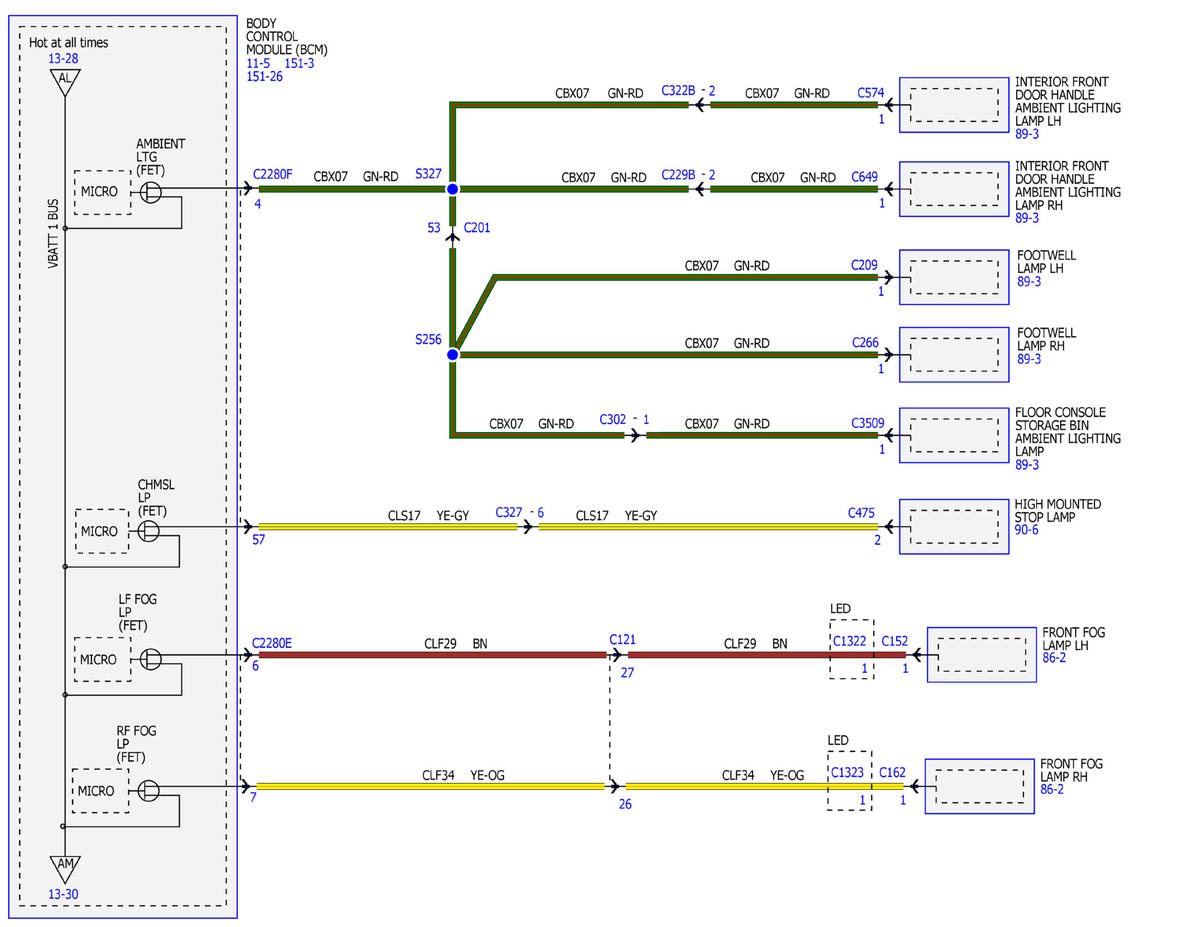

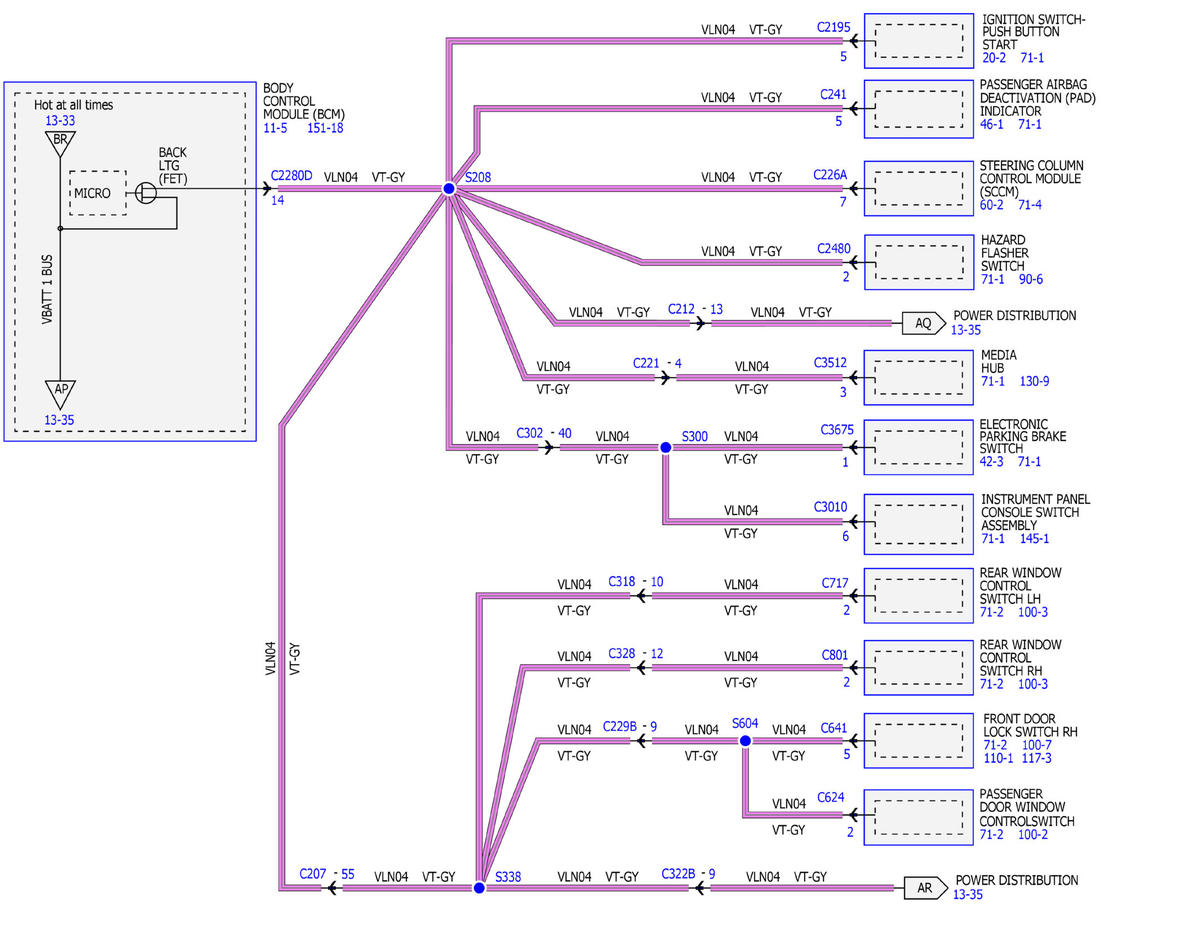

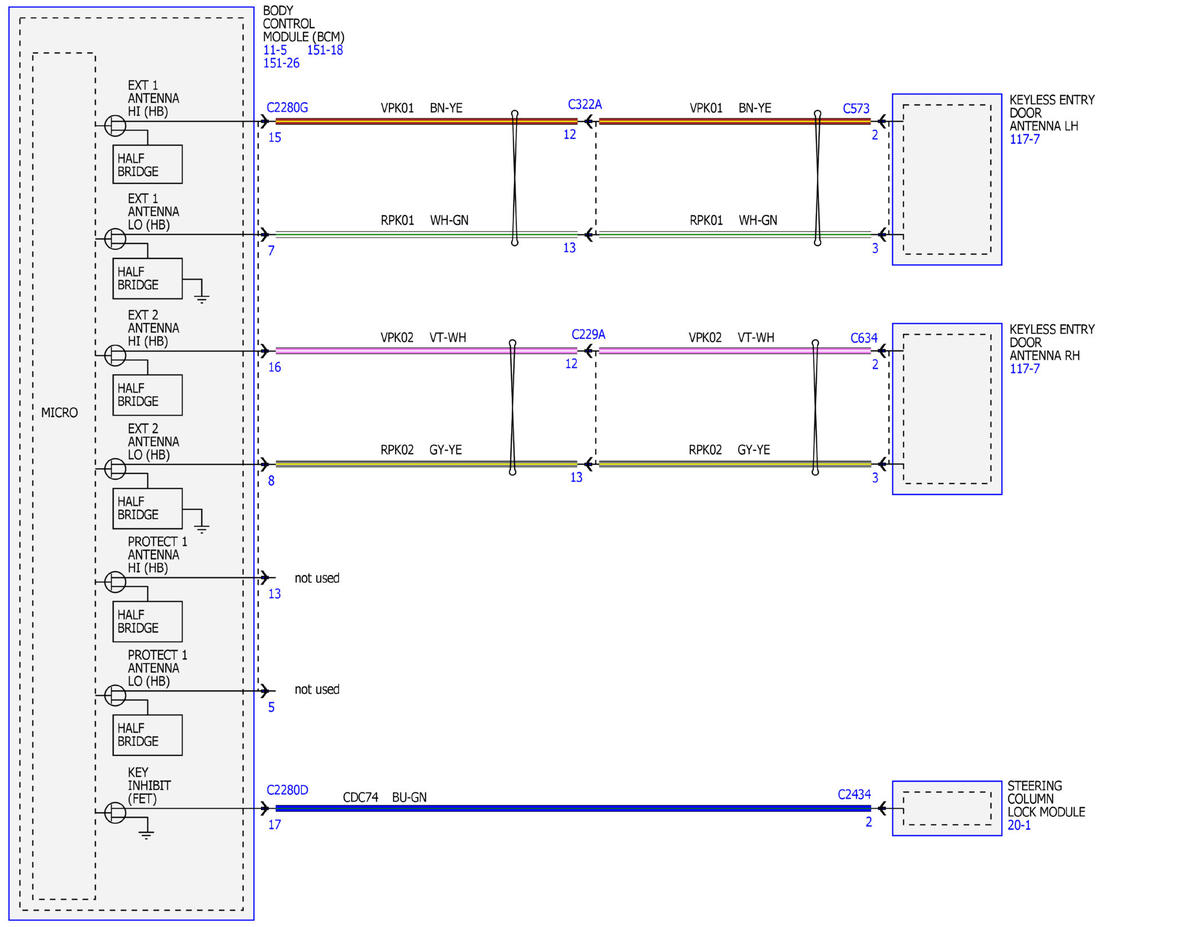

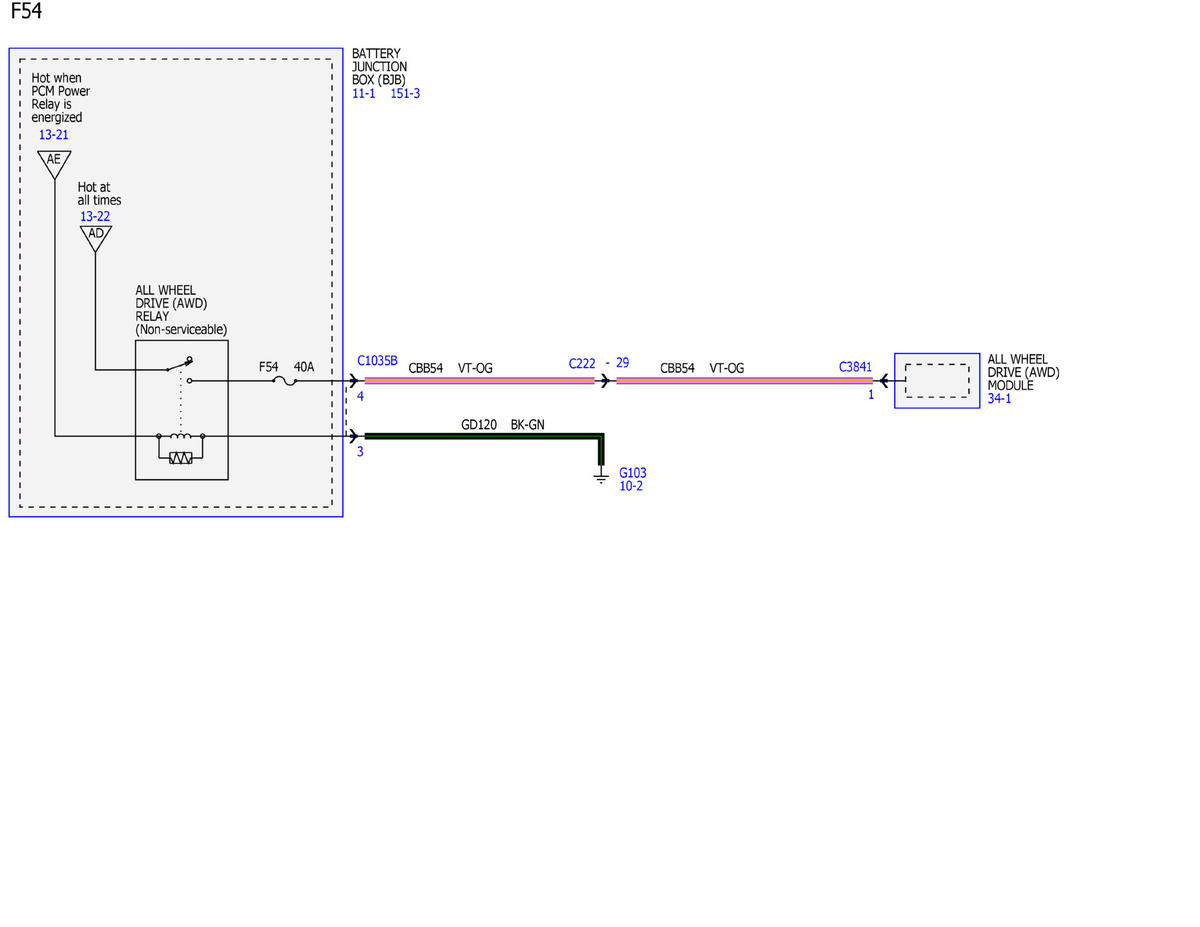

Fig 3: Power Distribution/BCM Wiring Diagram (3 Of 44)
Courtesy of FORD MOTOR COMPANY

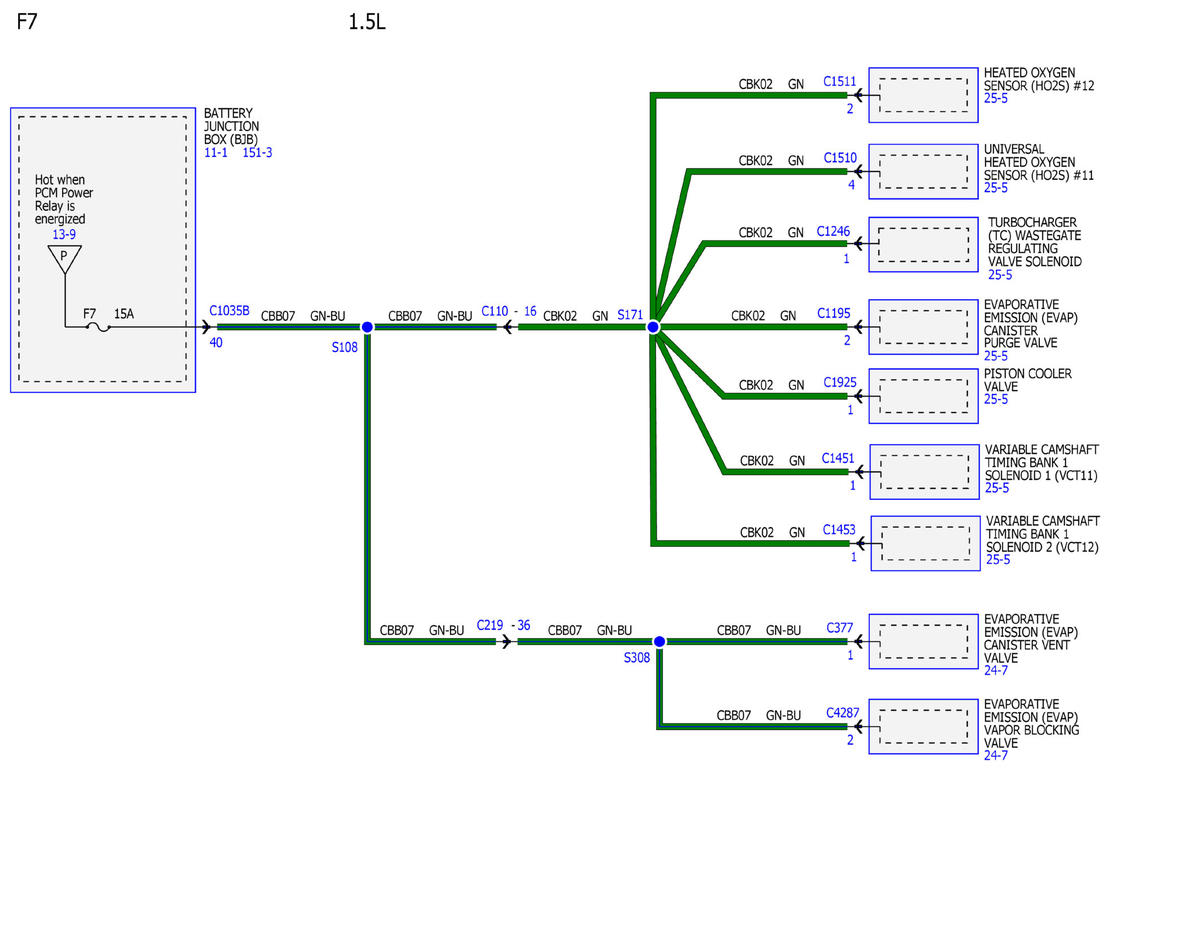

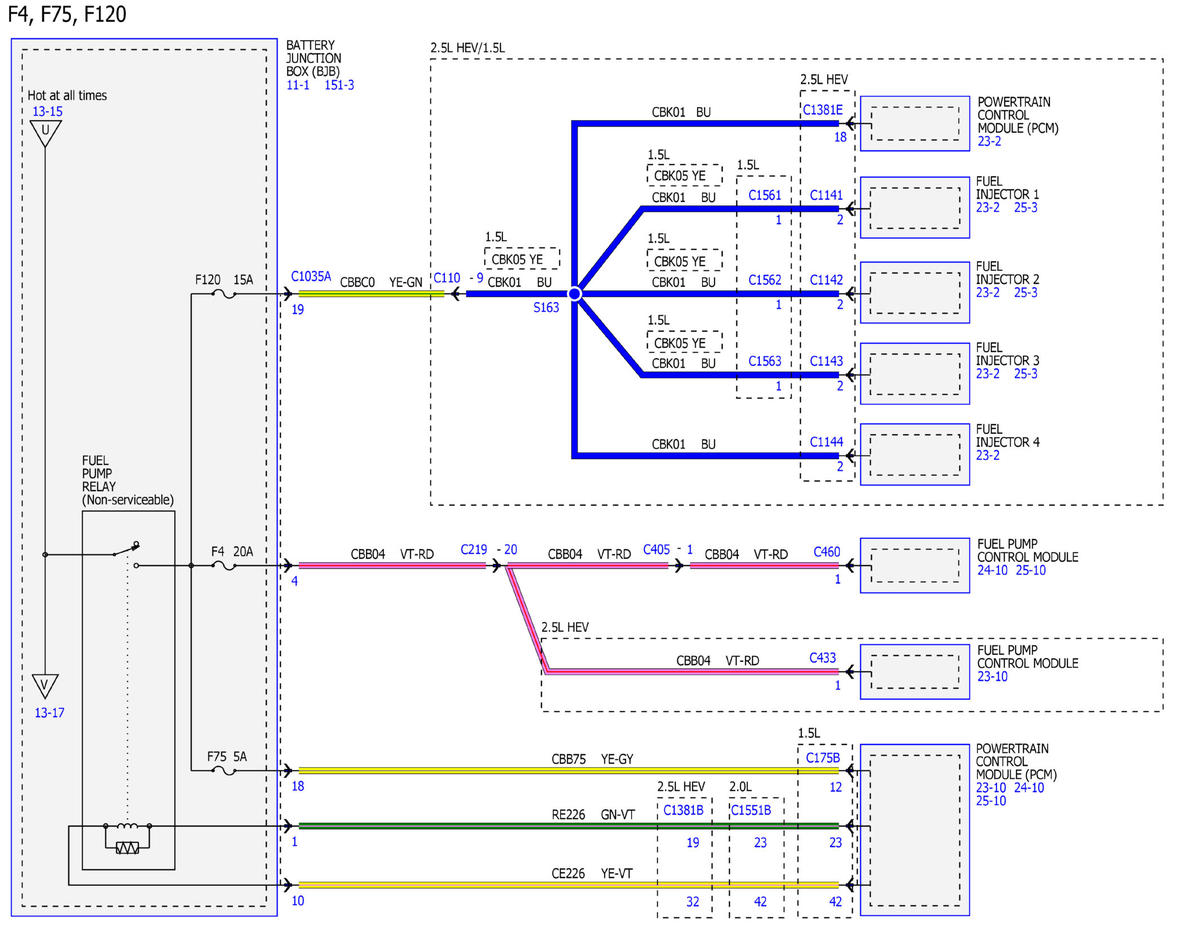

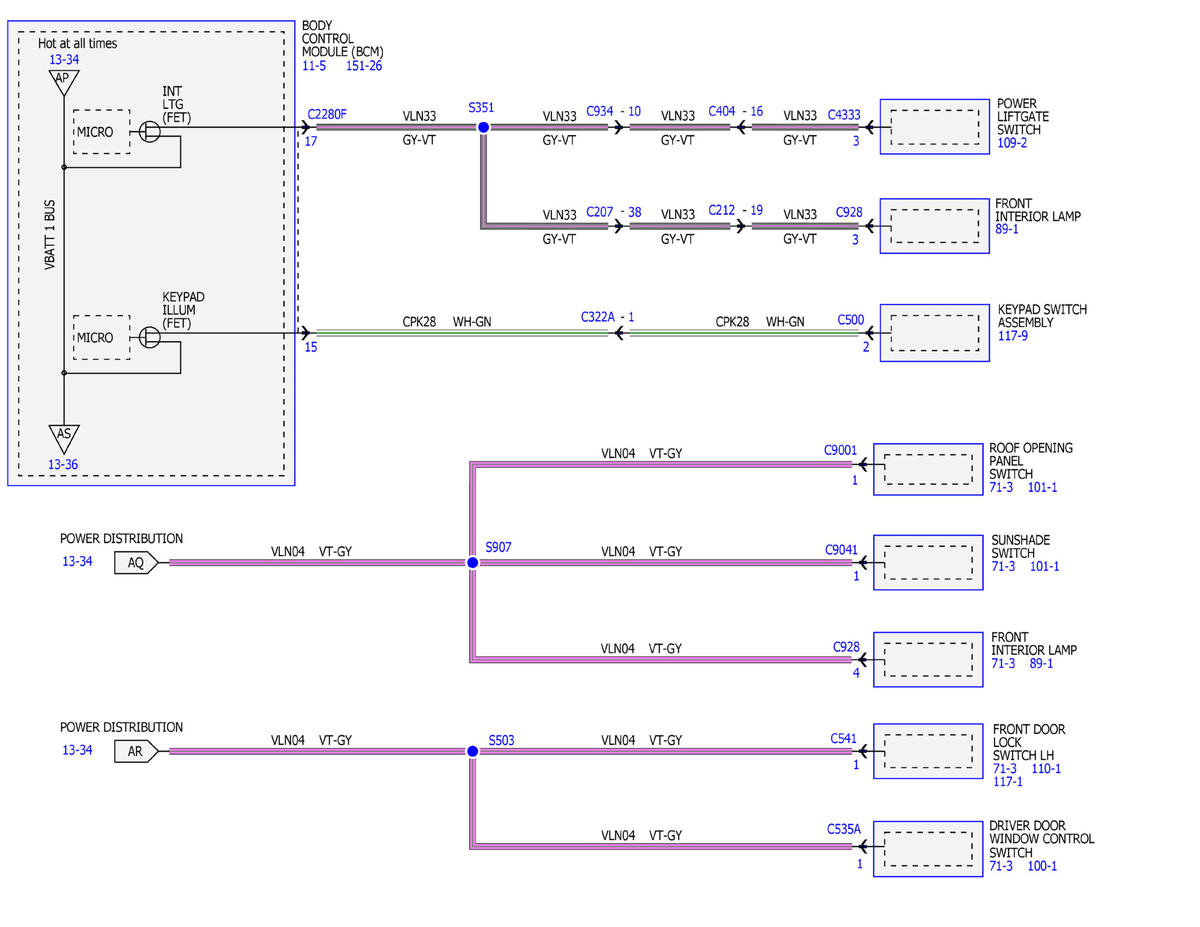

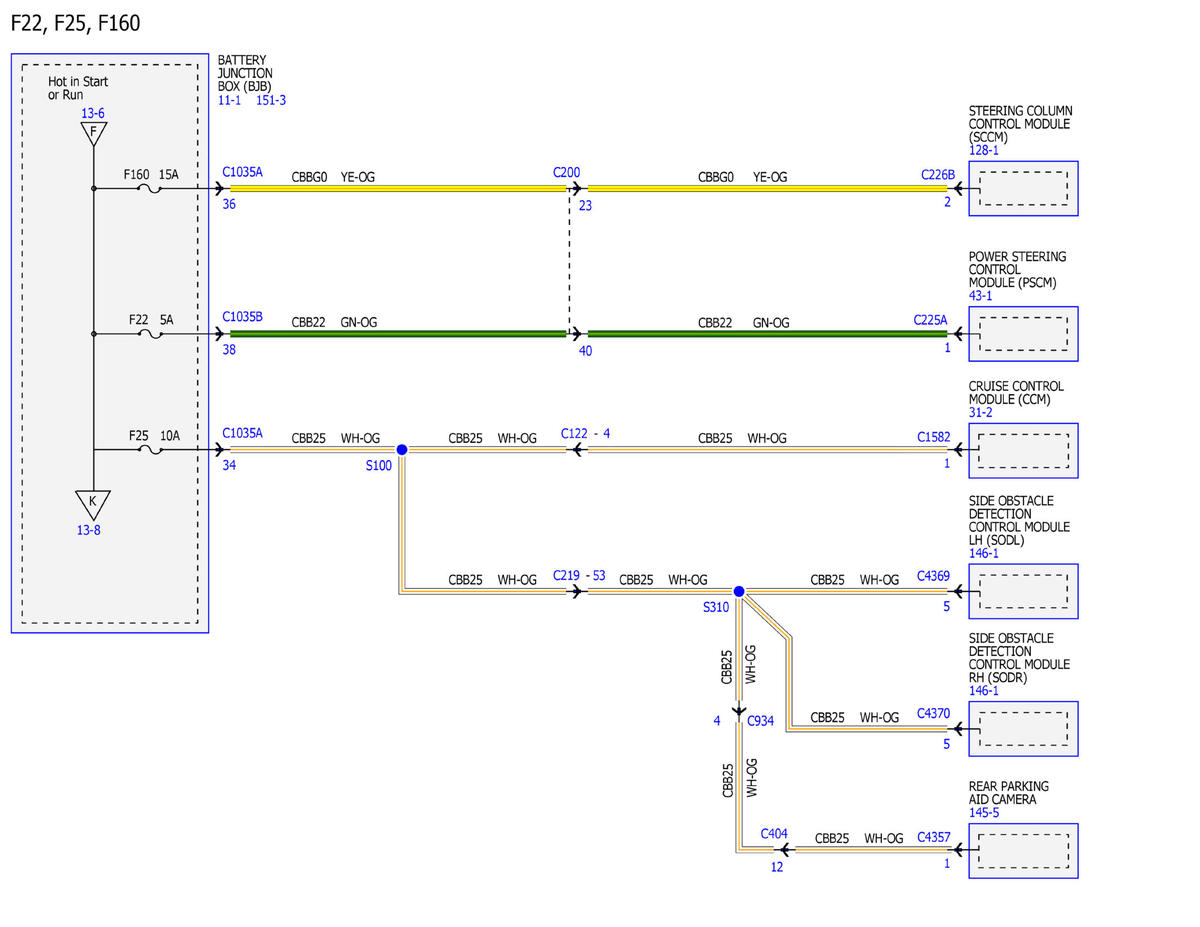

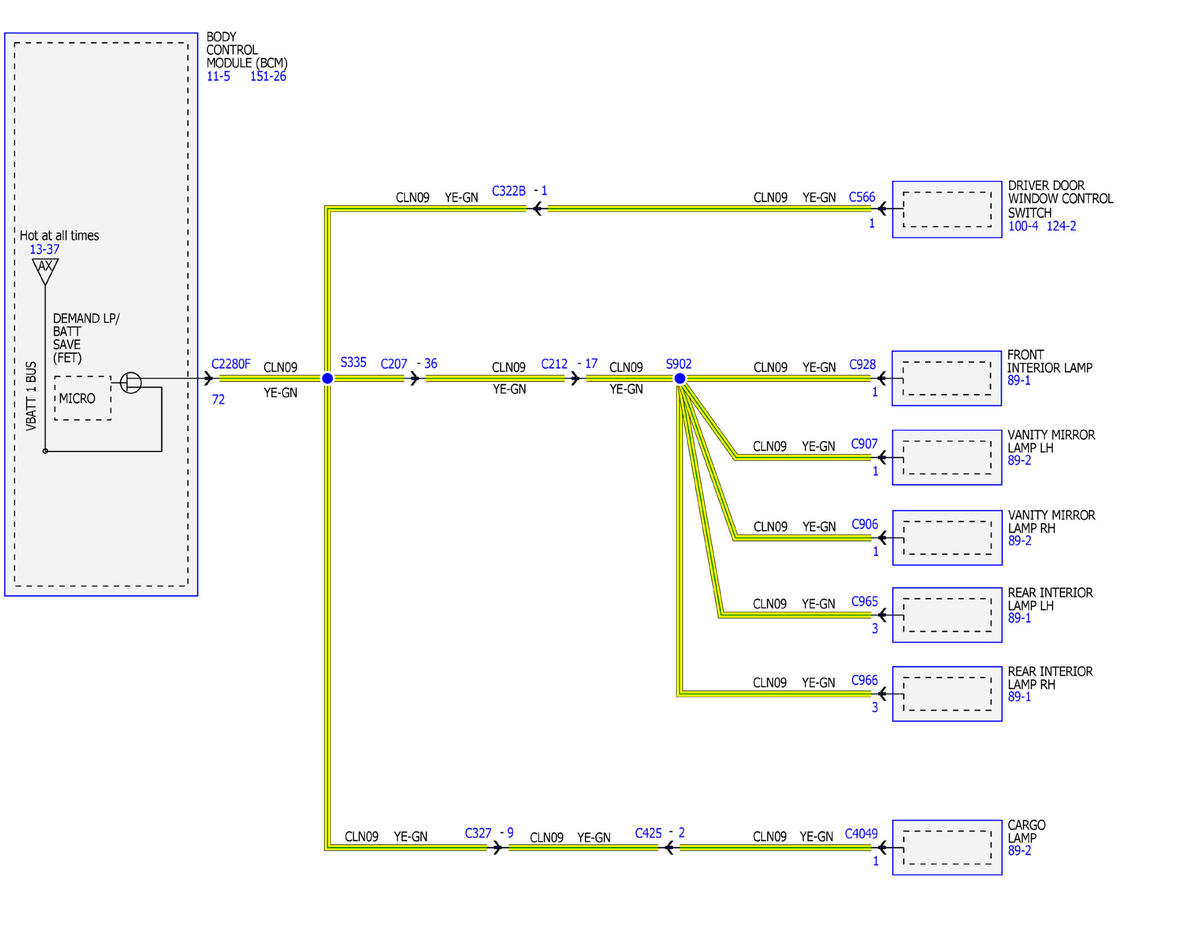

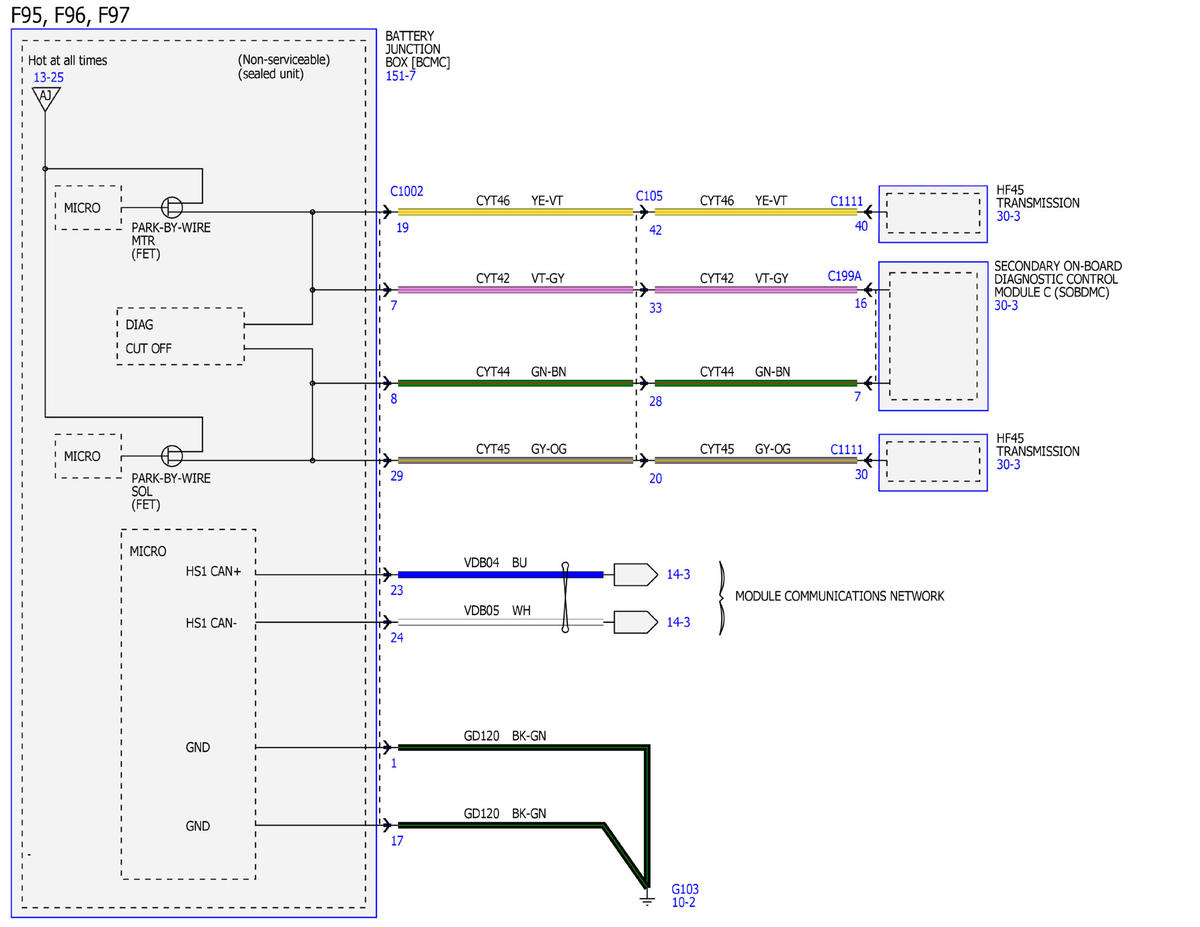

Fig 4: Power Distribution/BCM Wiring Diagram (4 Of 44)
Courtesy of FORD MOTOR COMPANY

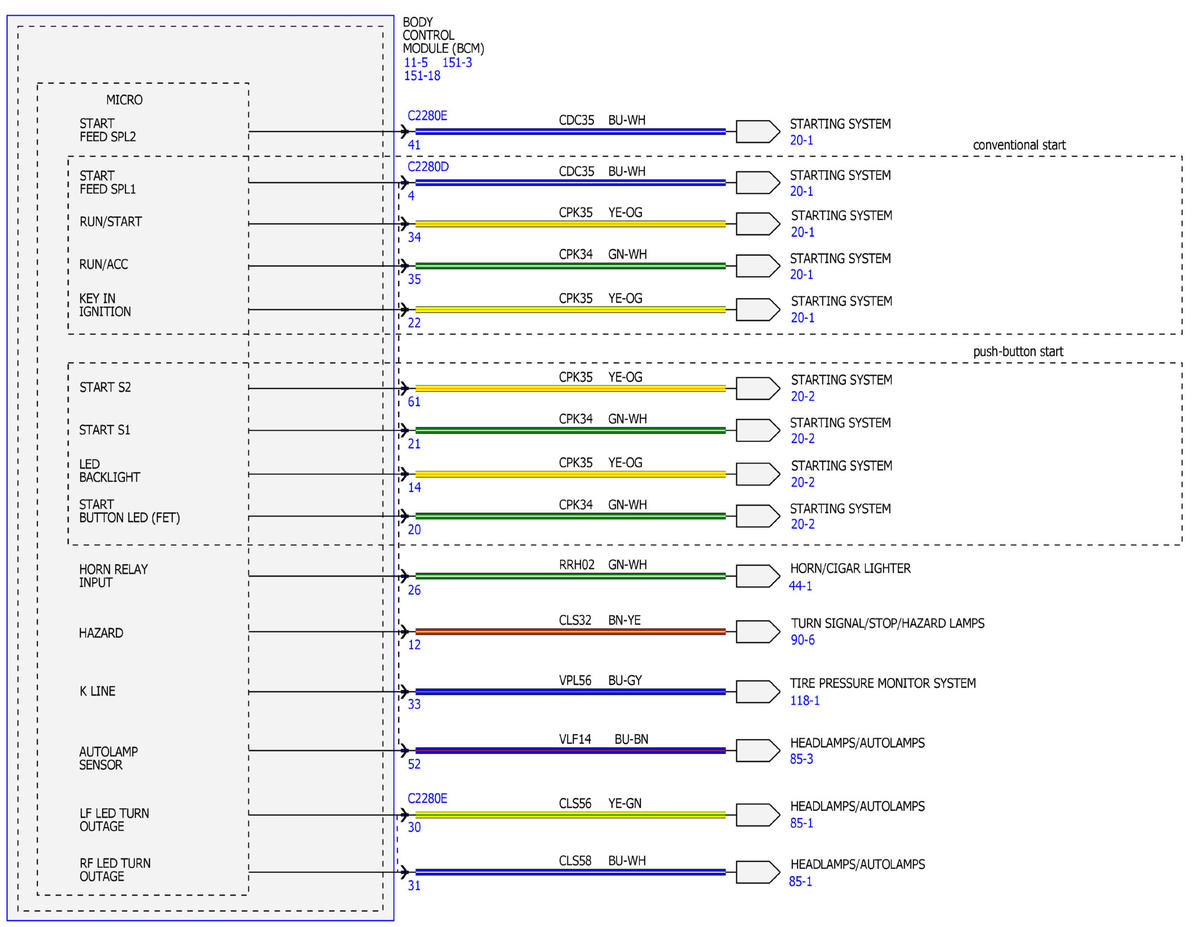

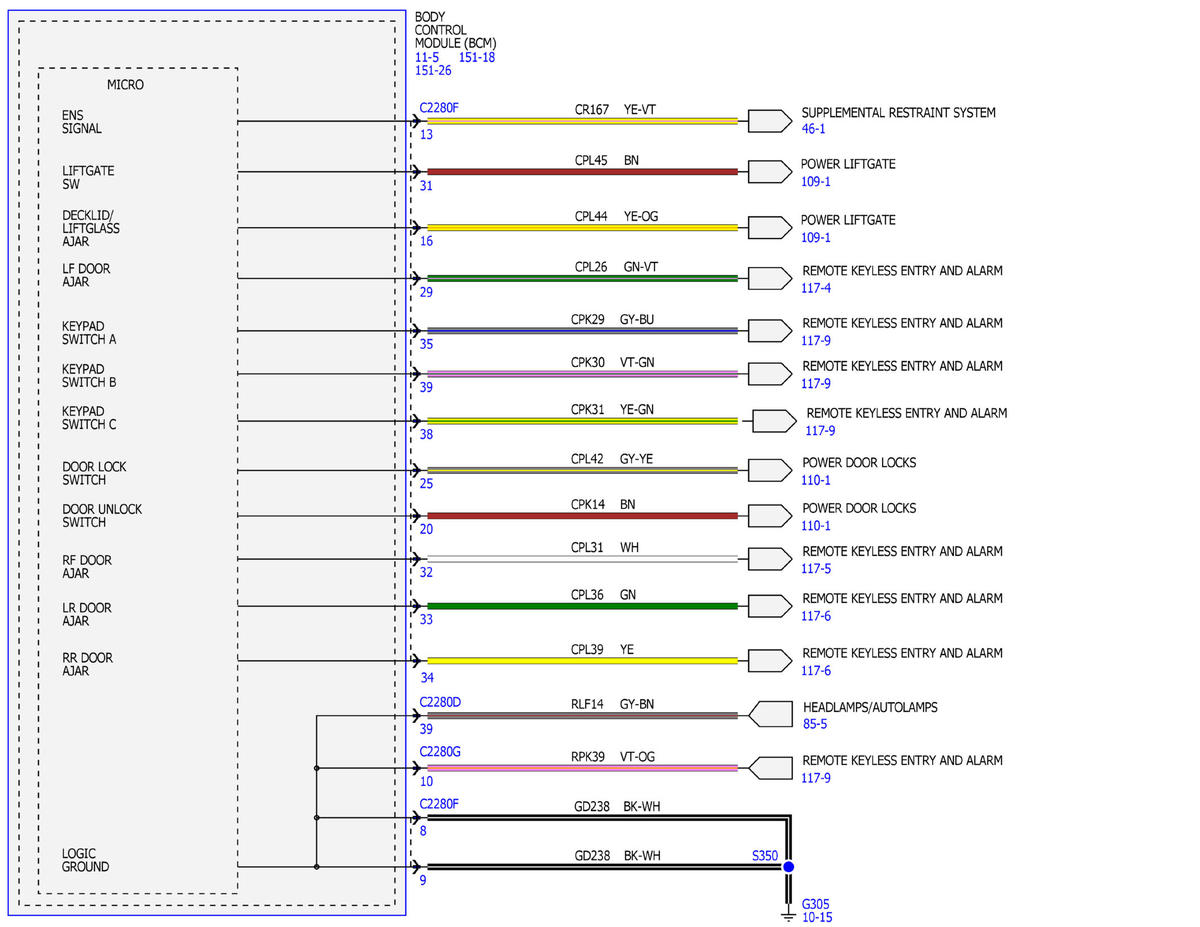

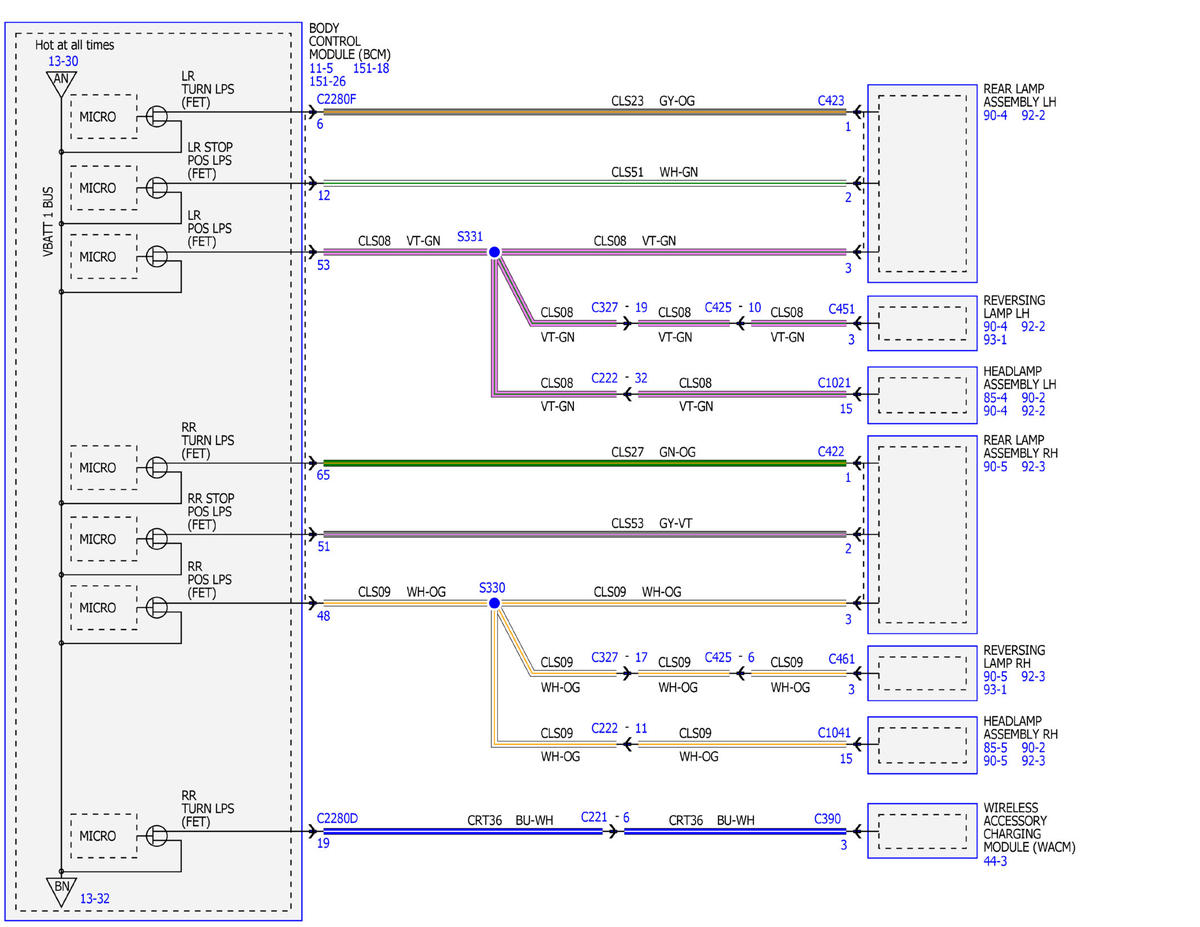

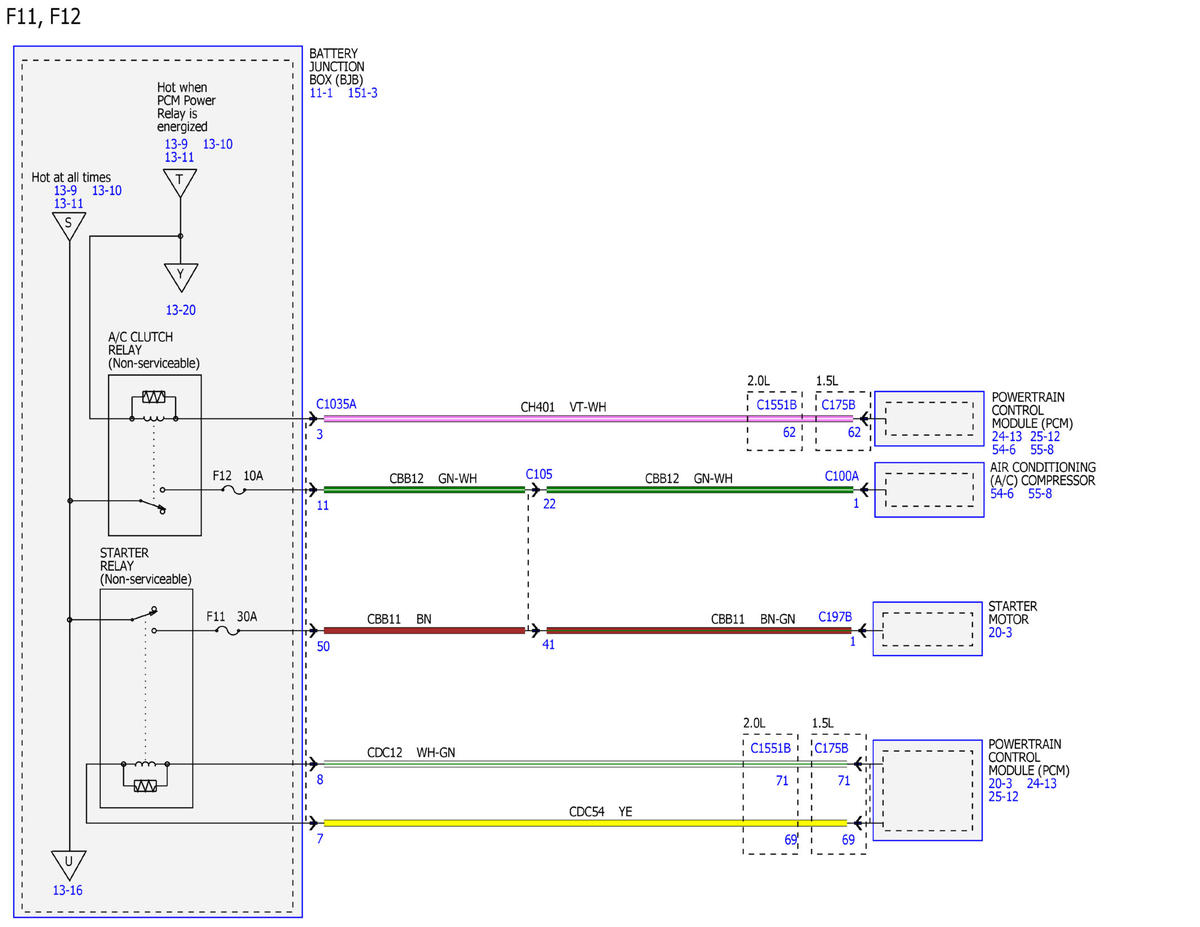

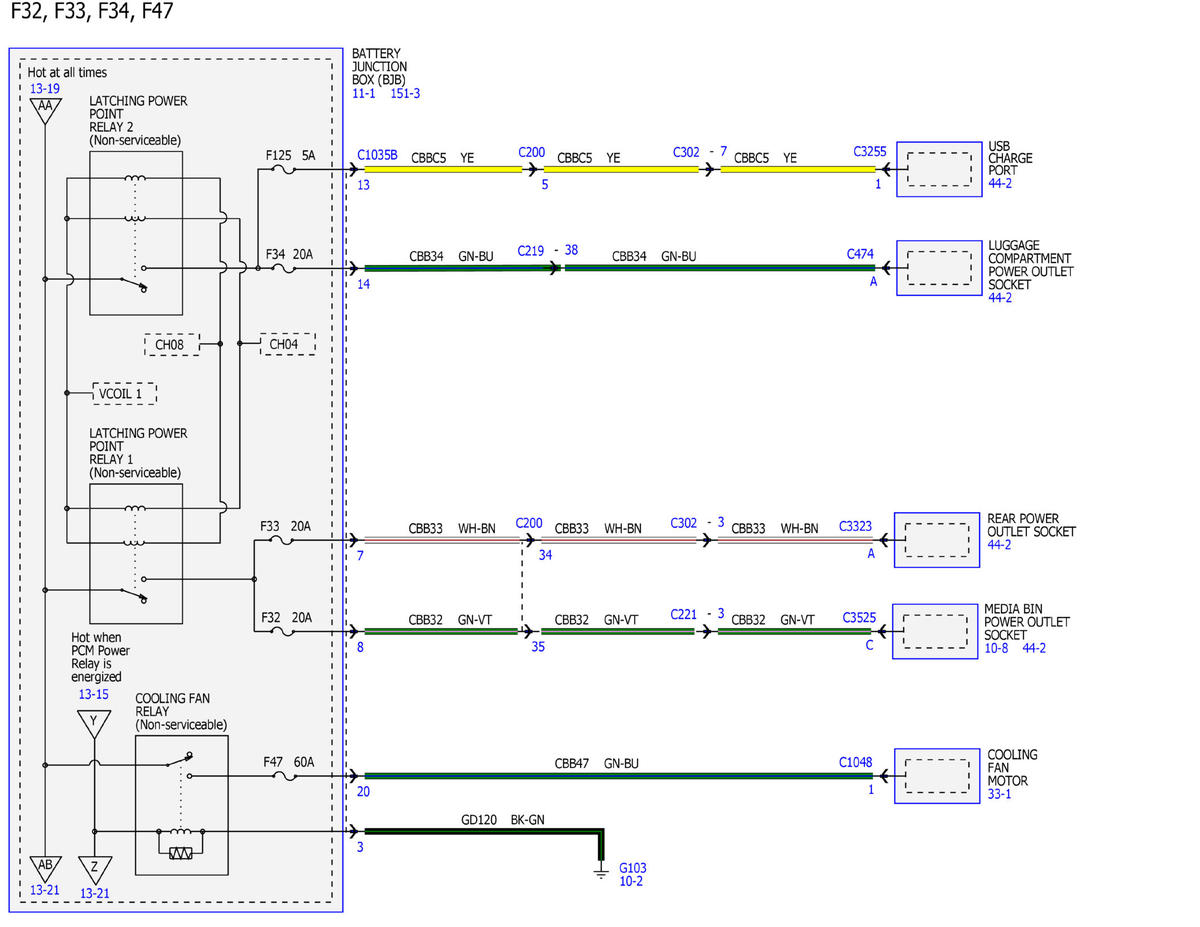

Fig 5: Power Distribution/BCM Wiring Diagram (5 Of 44)
Courtesy of FORD MOTOR COMPANY

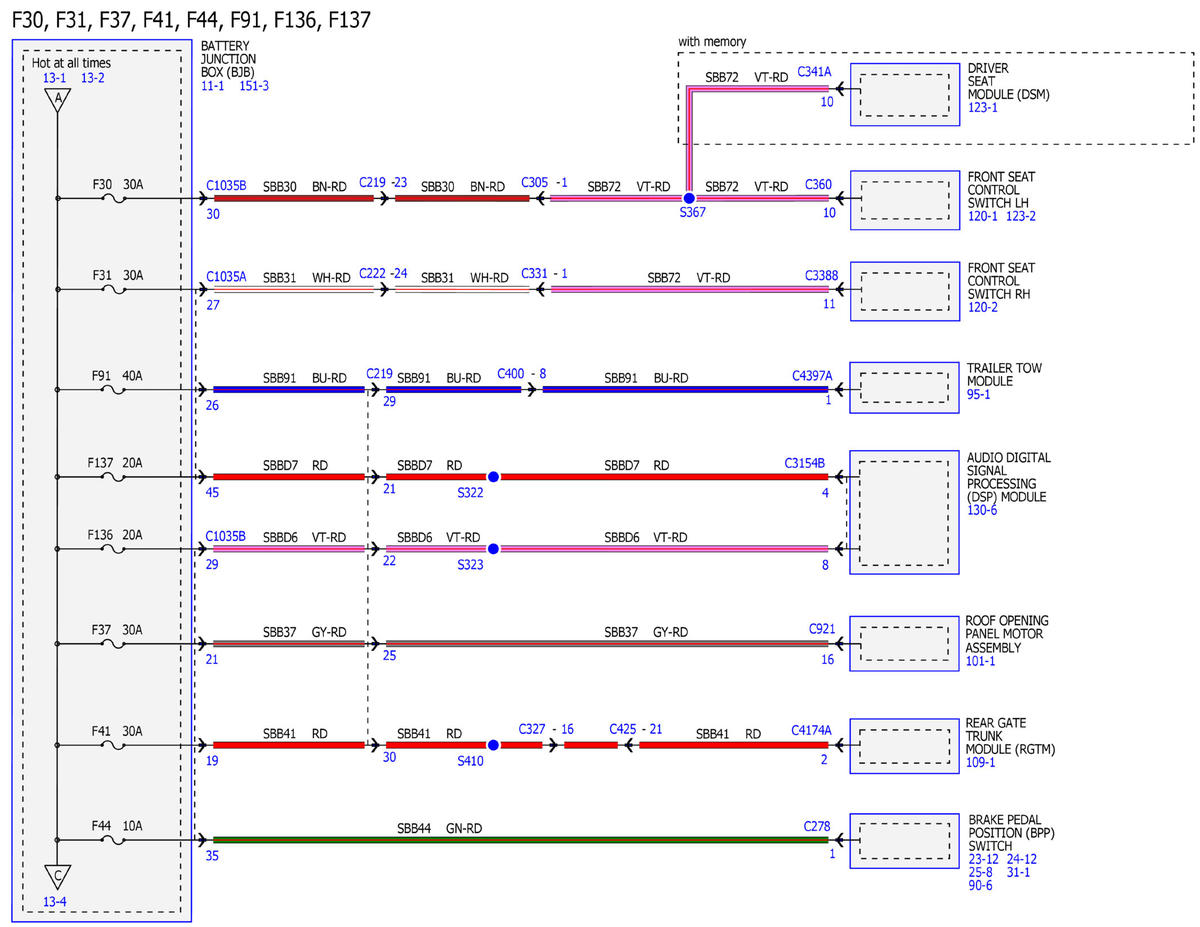

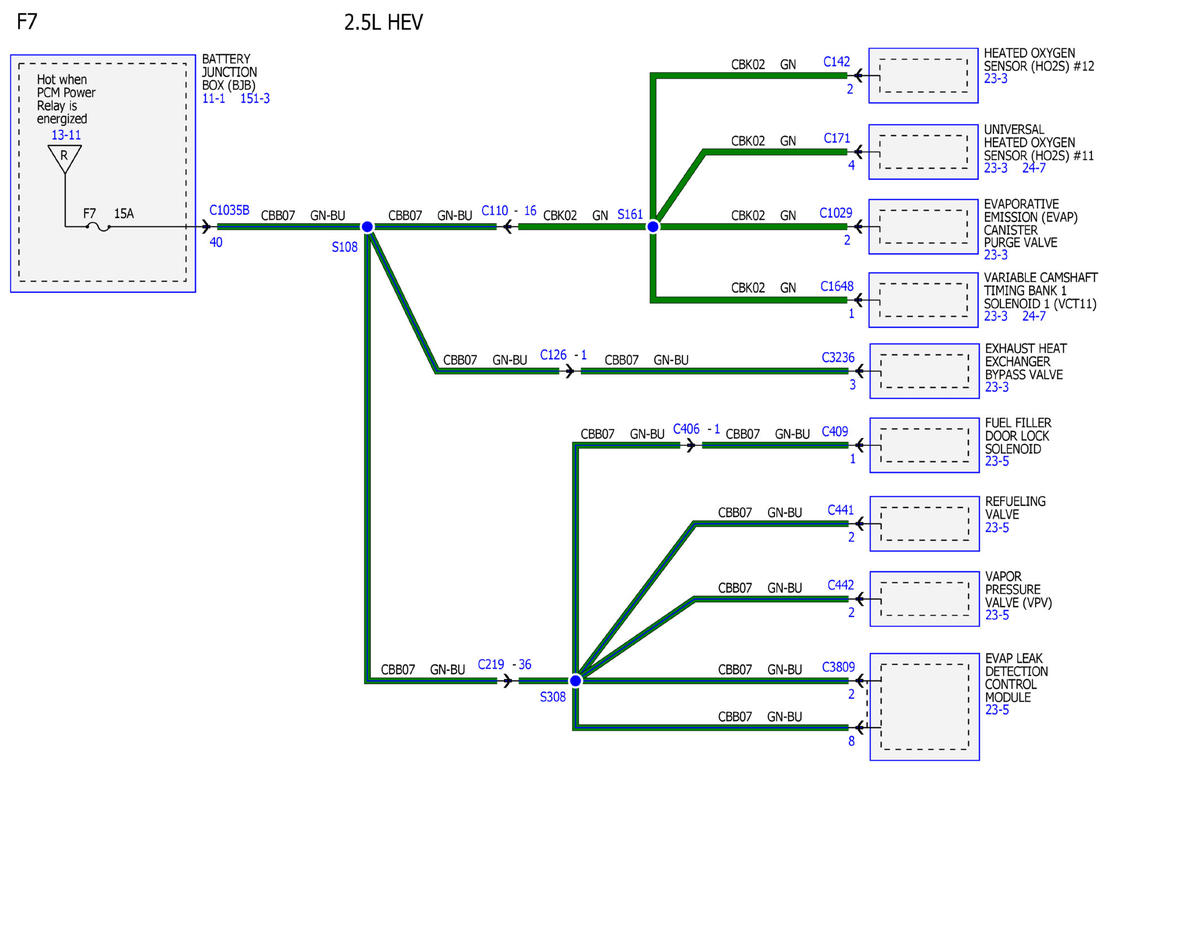

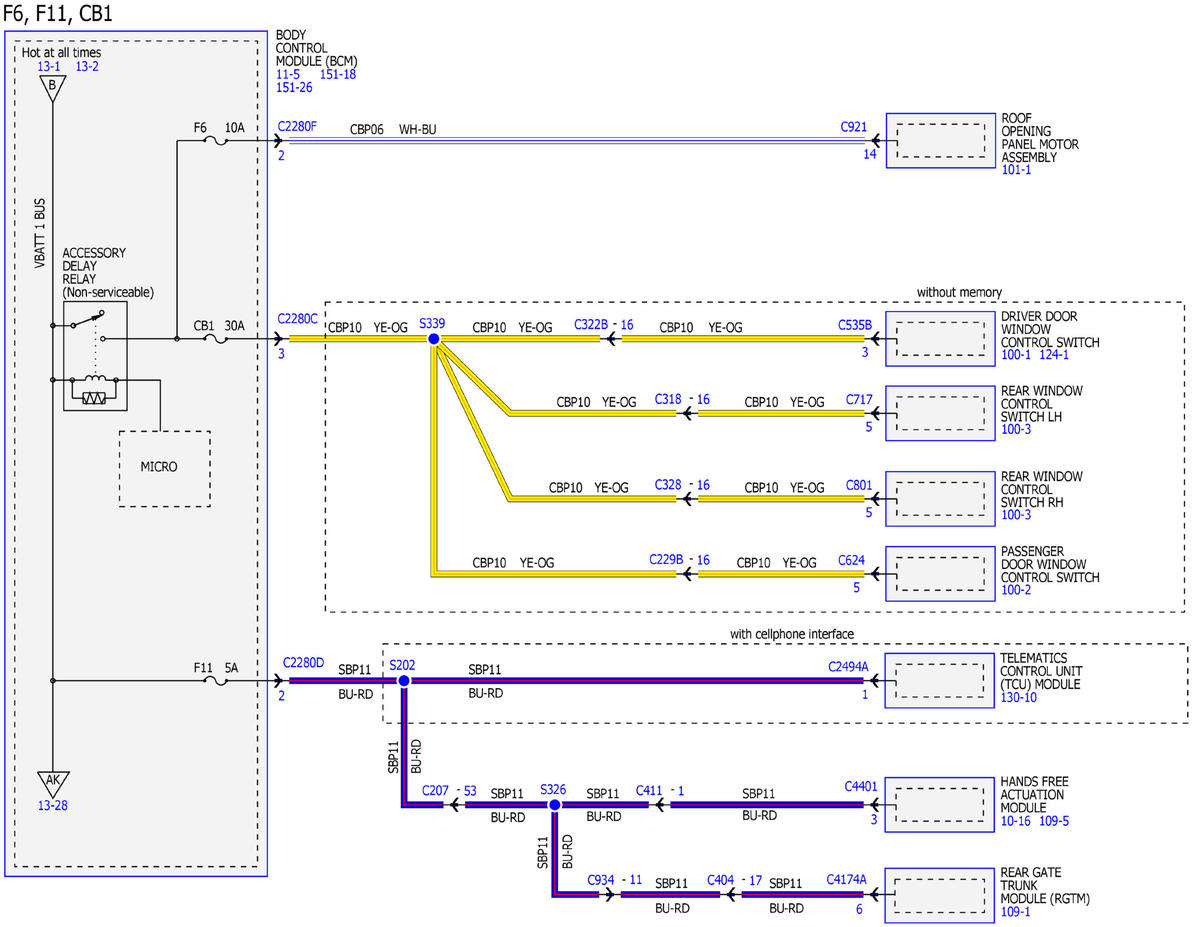

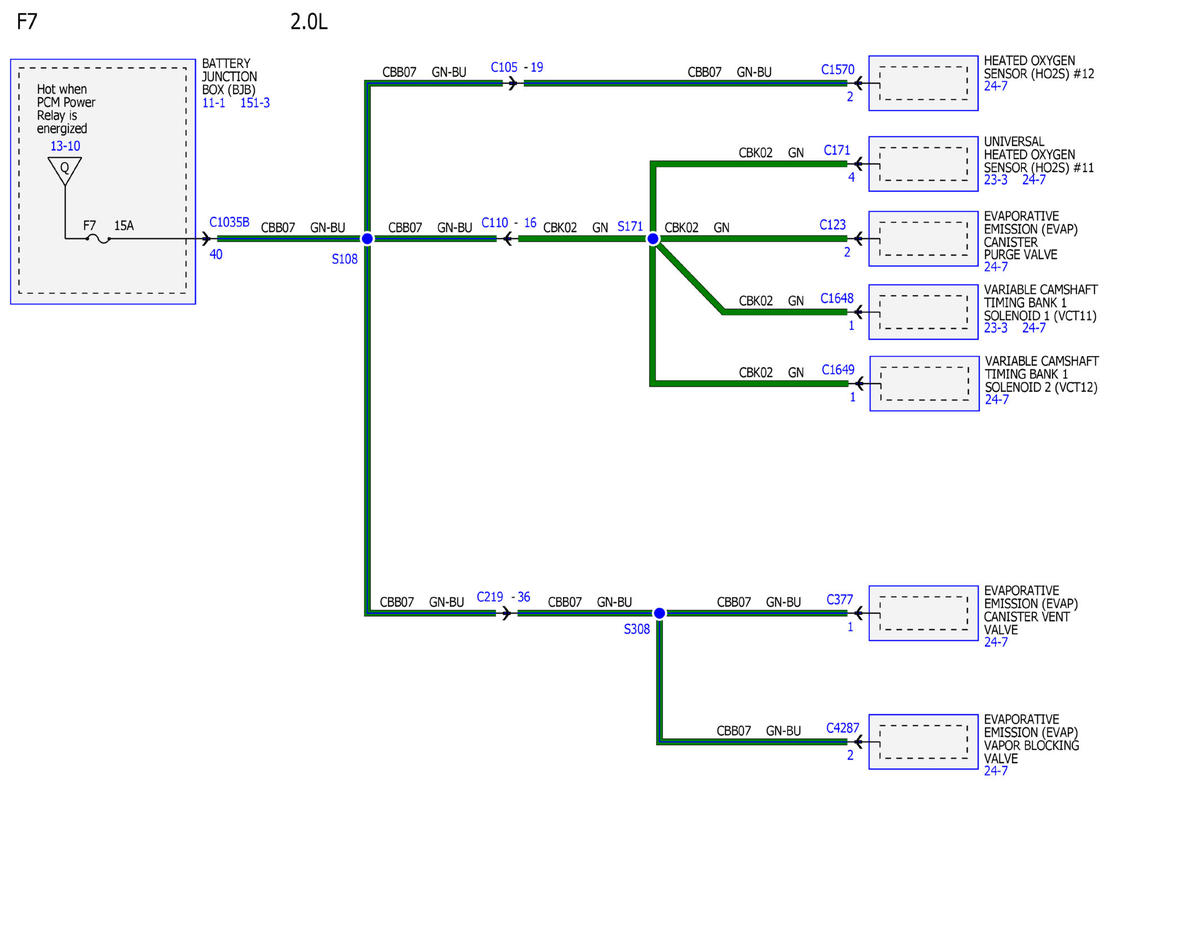

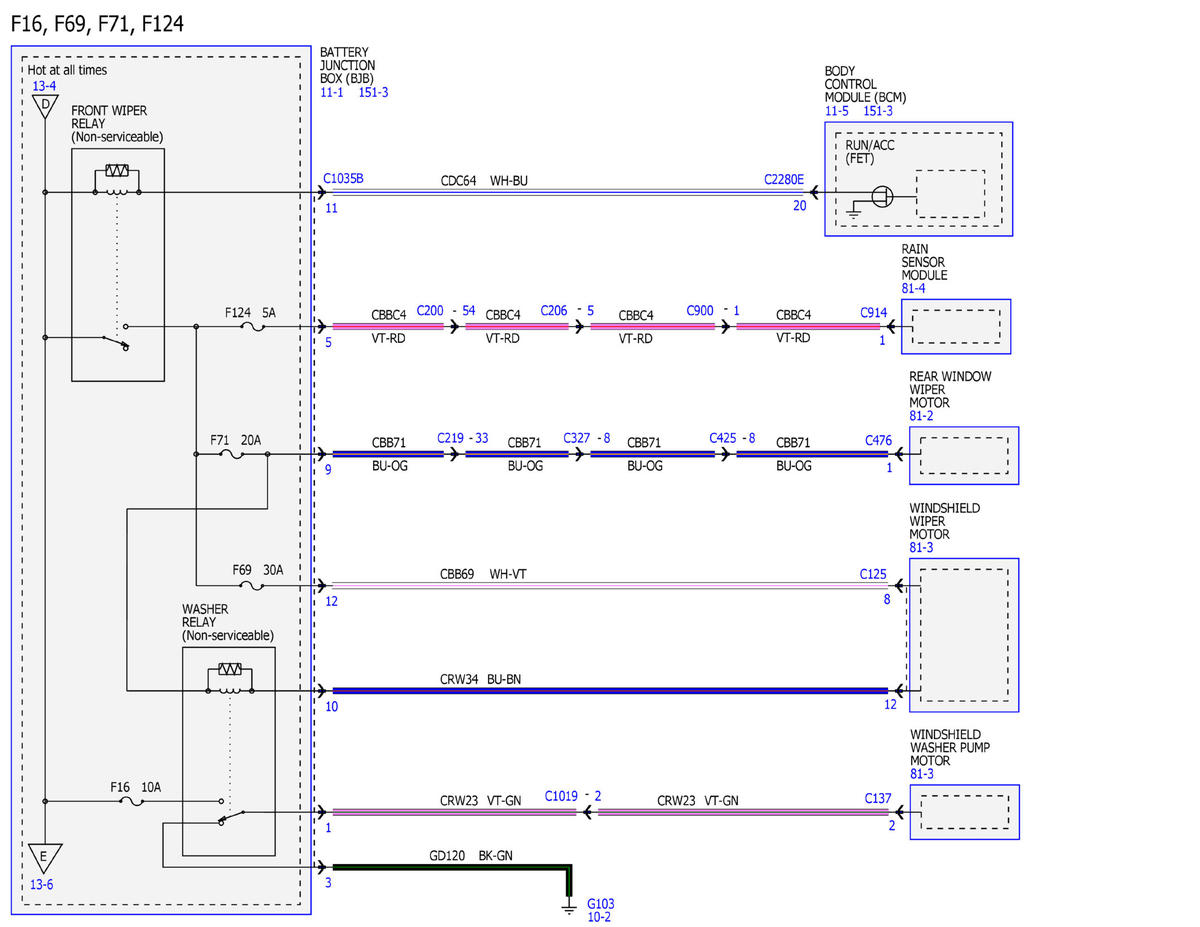

Fig 6: Power Distribution/BCM Wiring Diagram (6 Of 44)
Courtesy of FORD MOTOR COMPANY

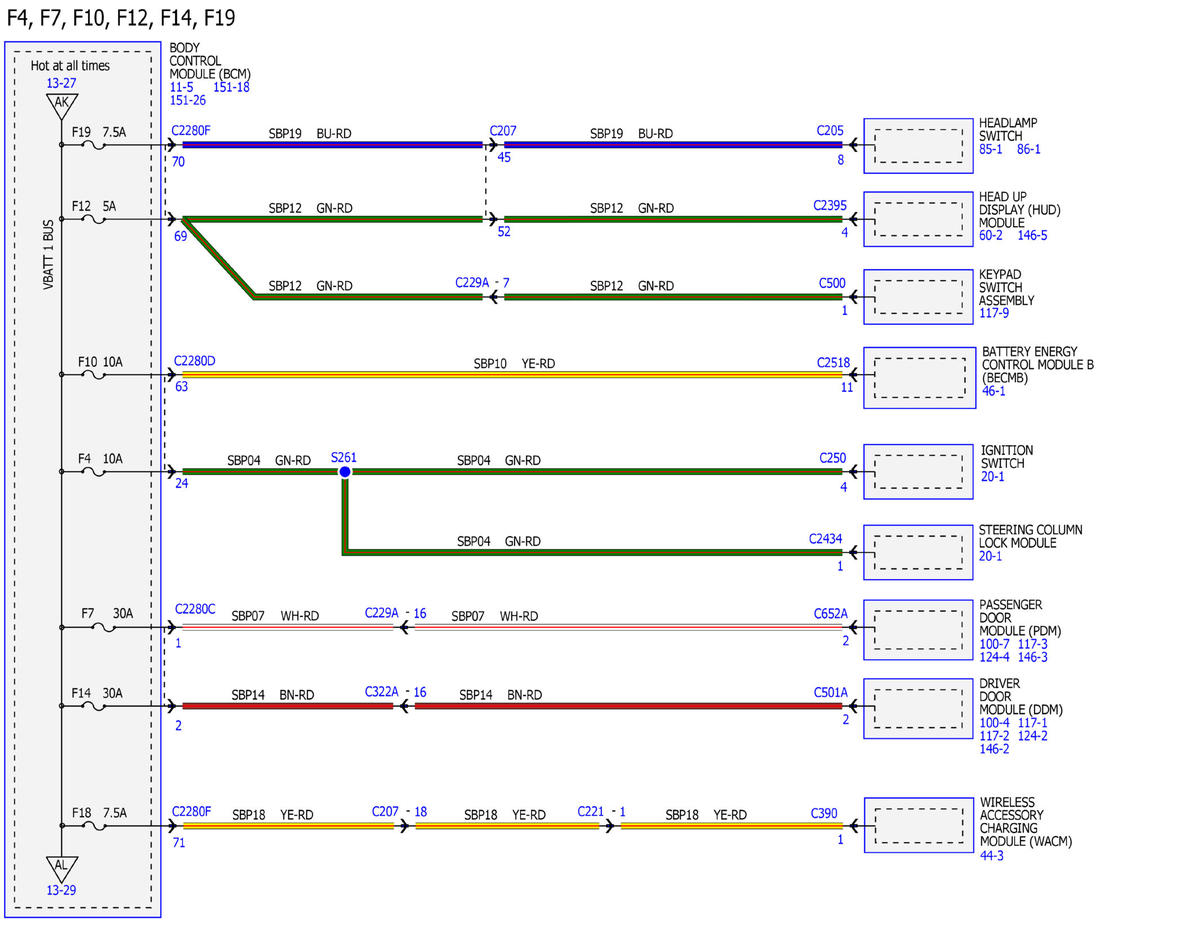

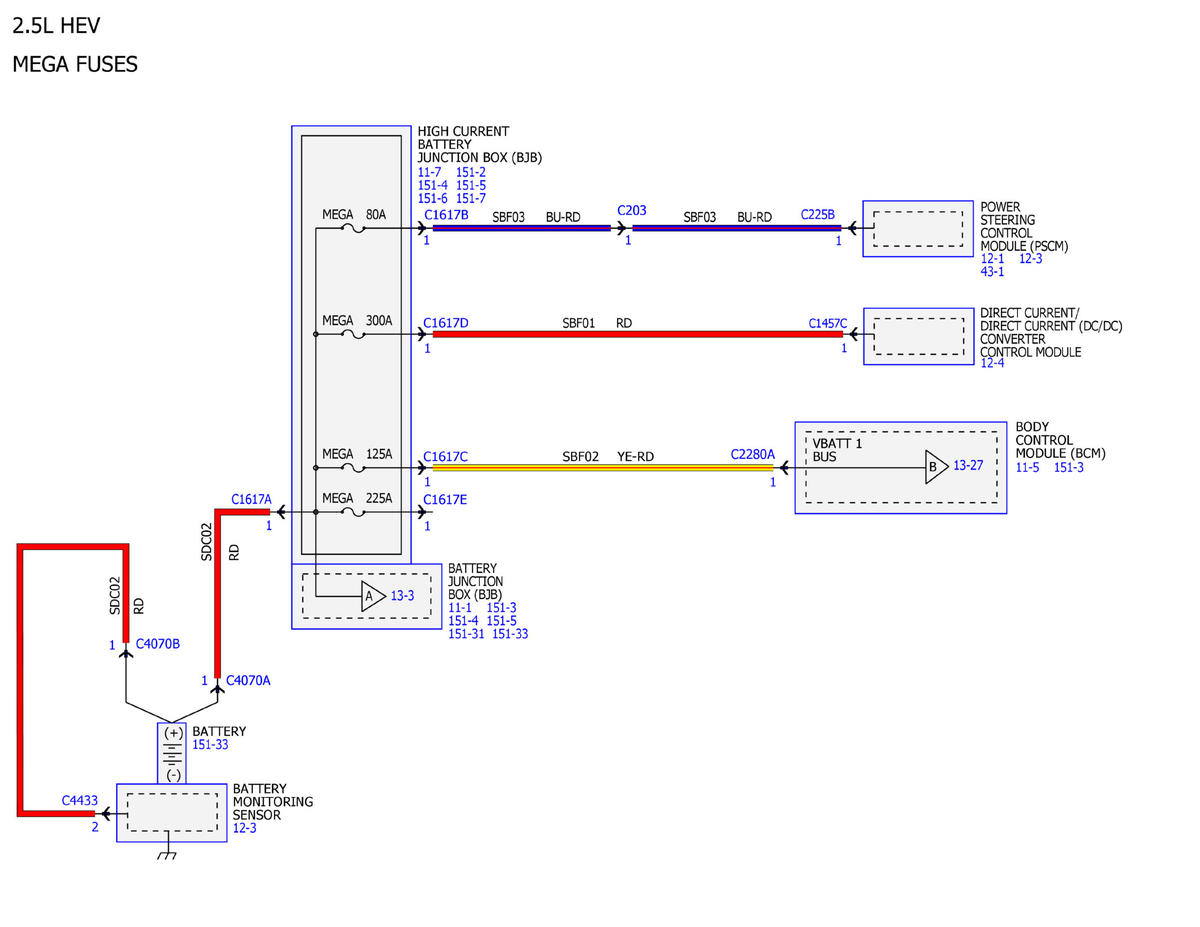

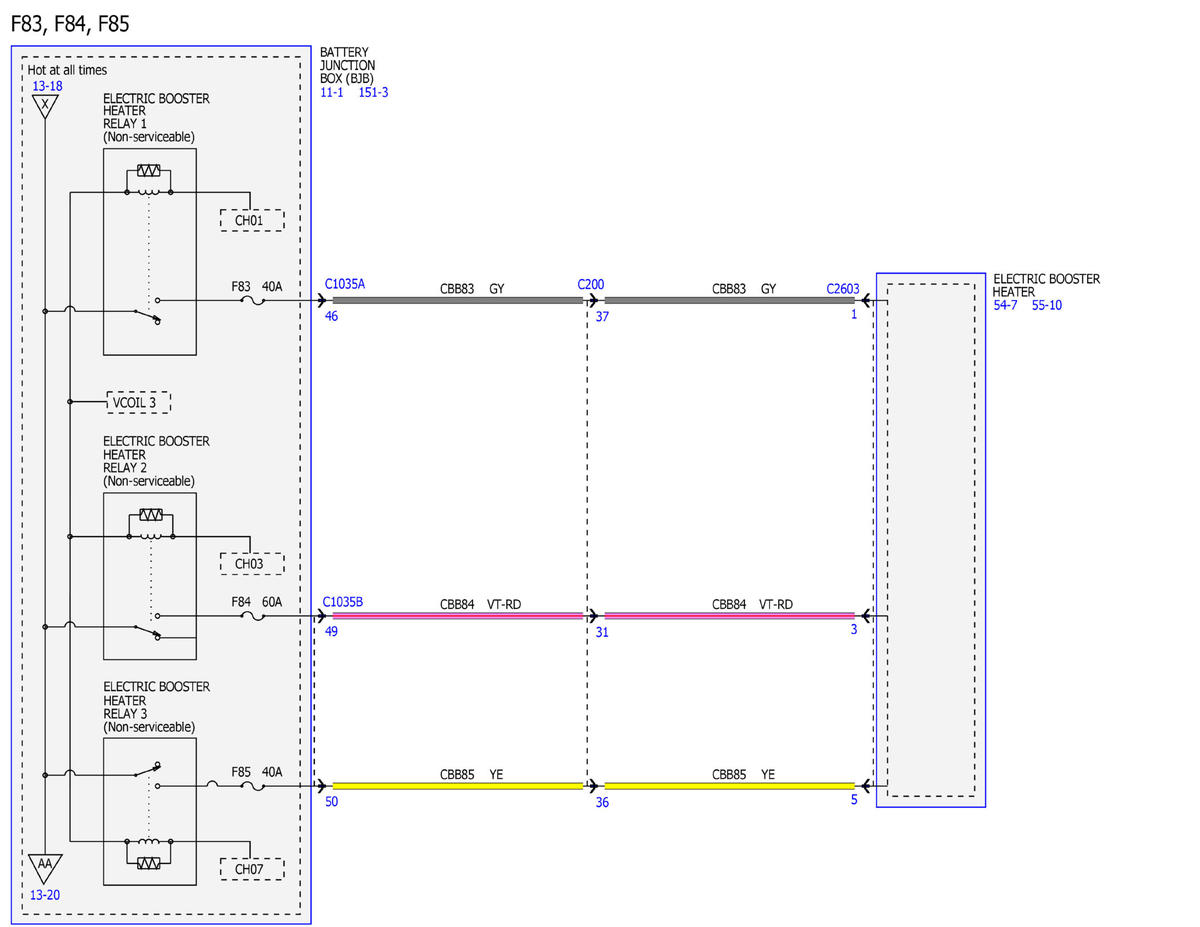

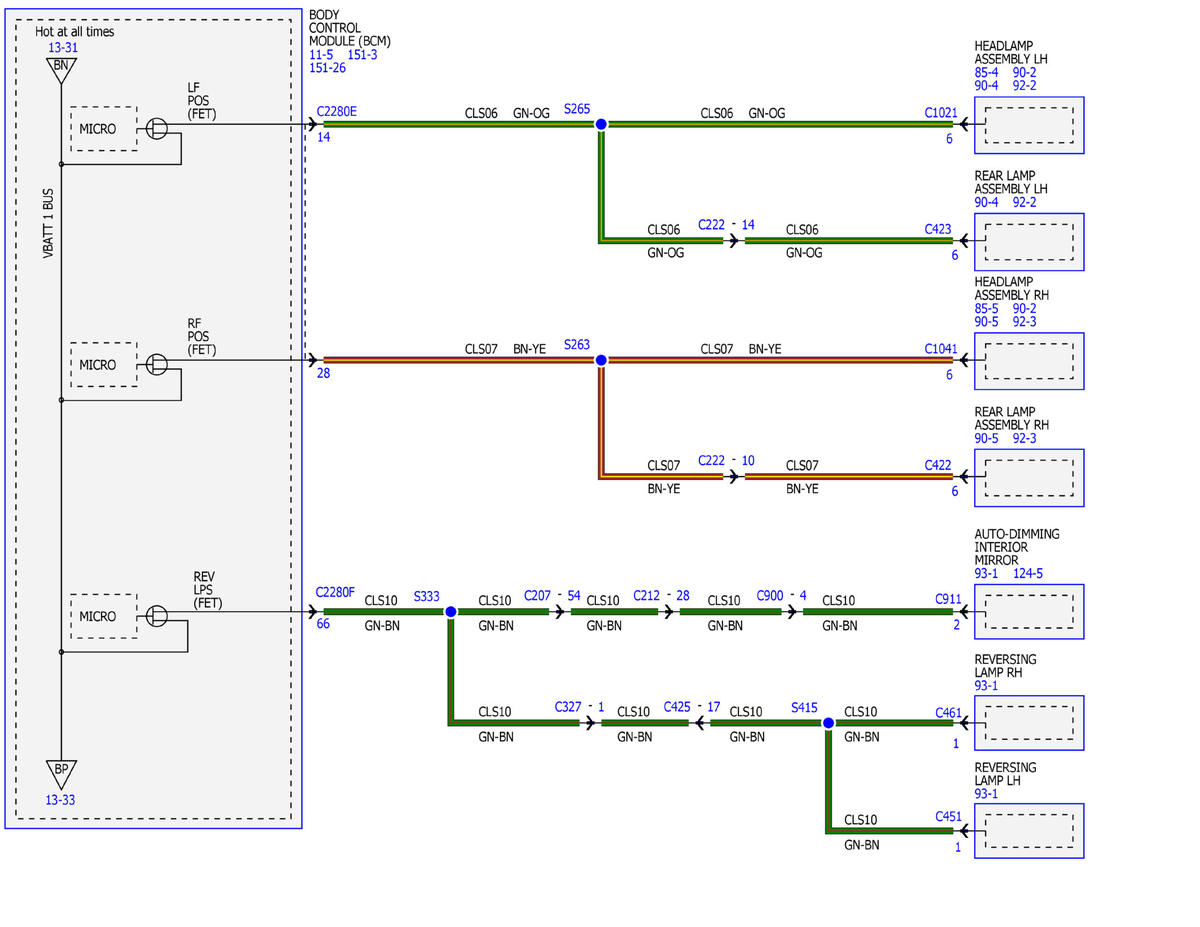

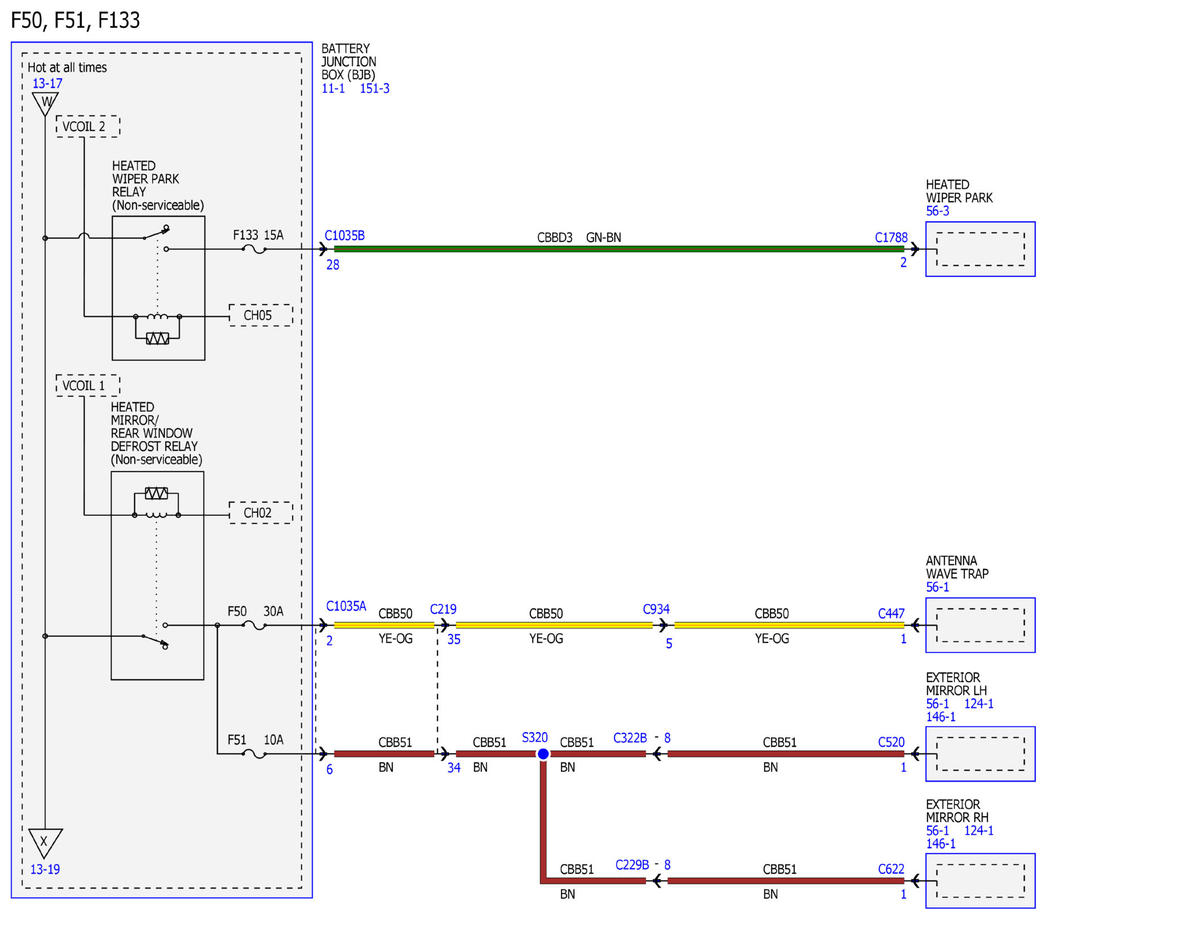

Fig 7: Power Distribution/BCM Wiring Diagram (7 Of 44)
Courtesy of FORD MOTOR COMPANY

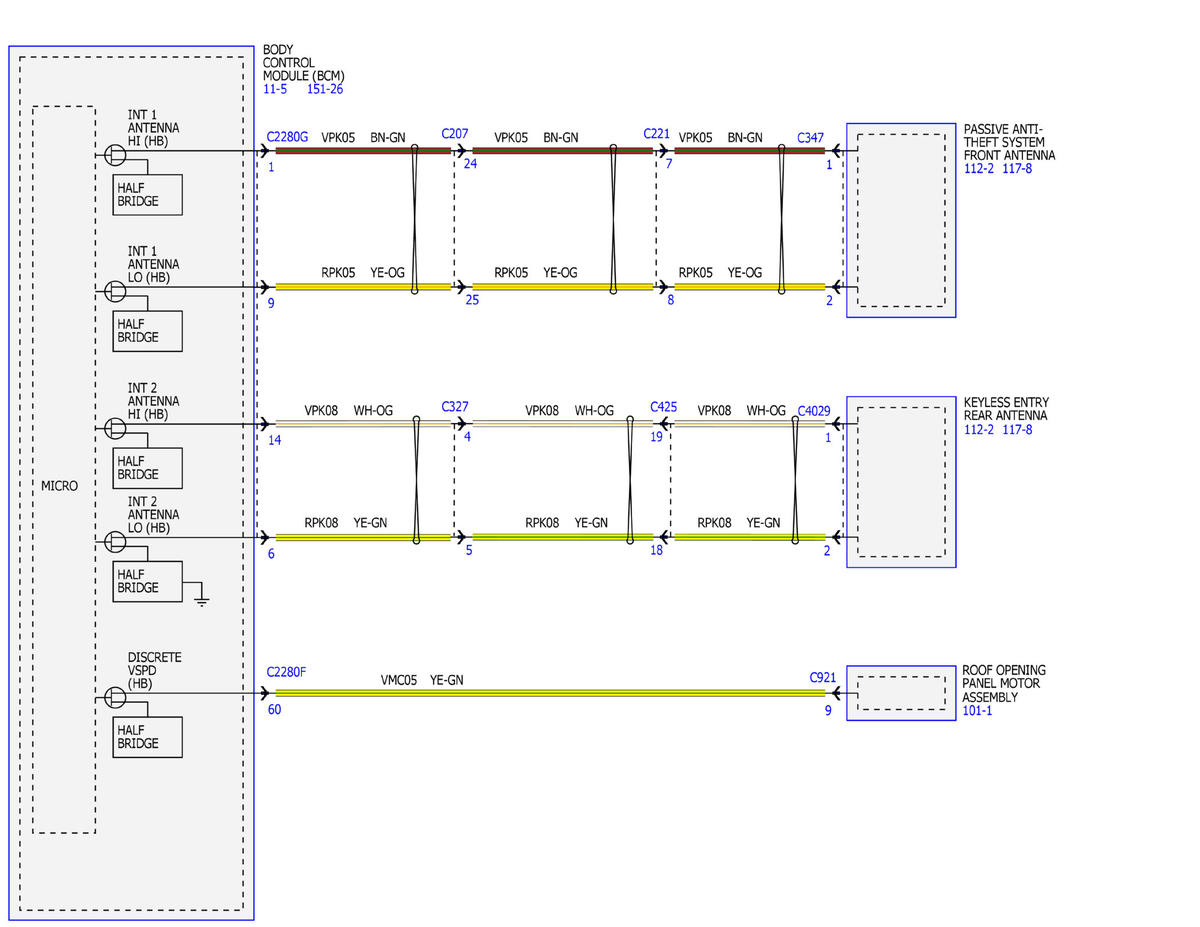

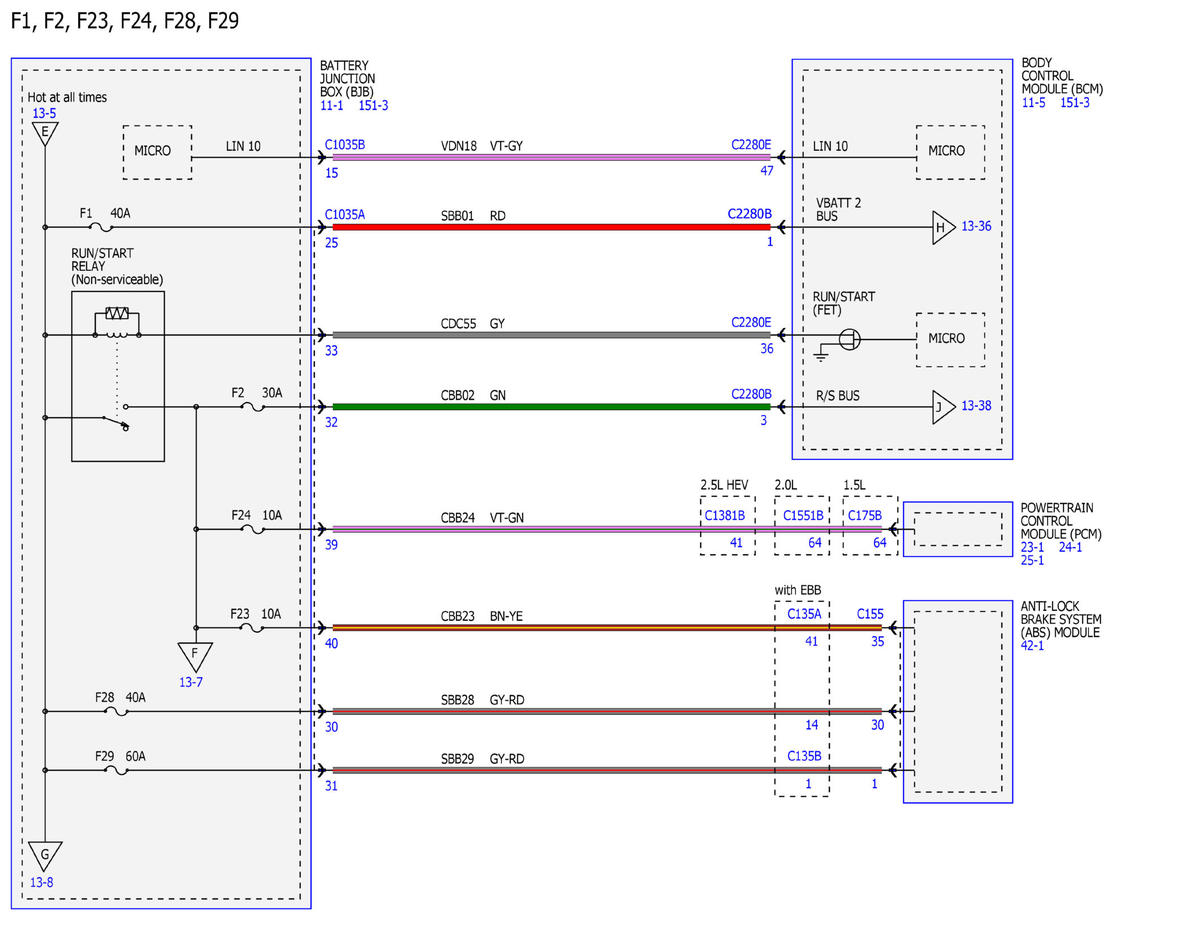

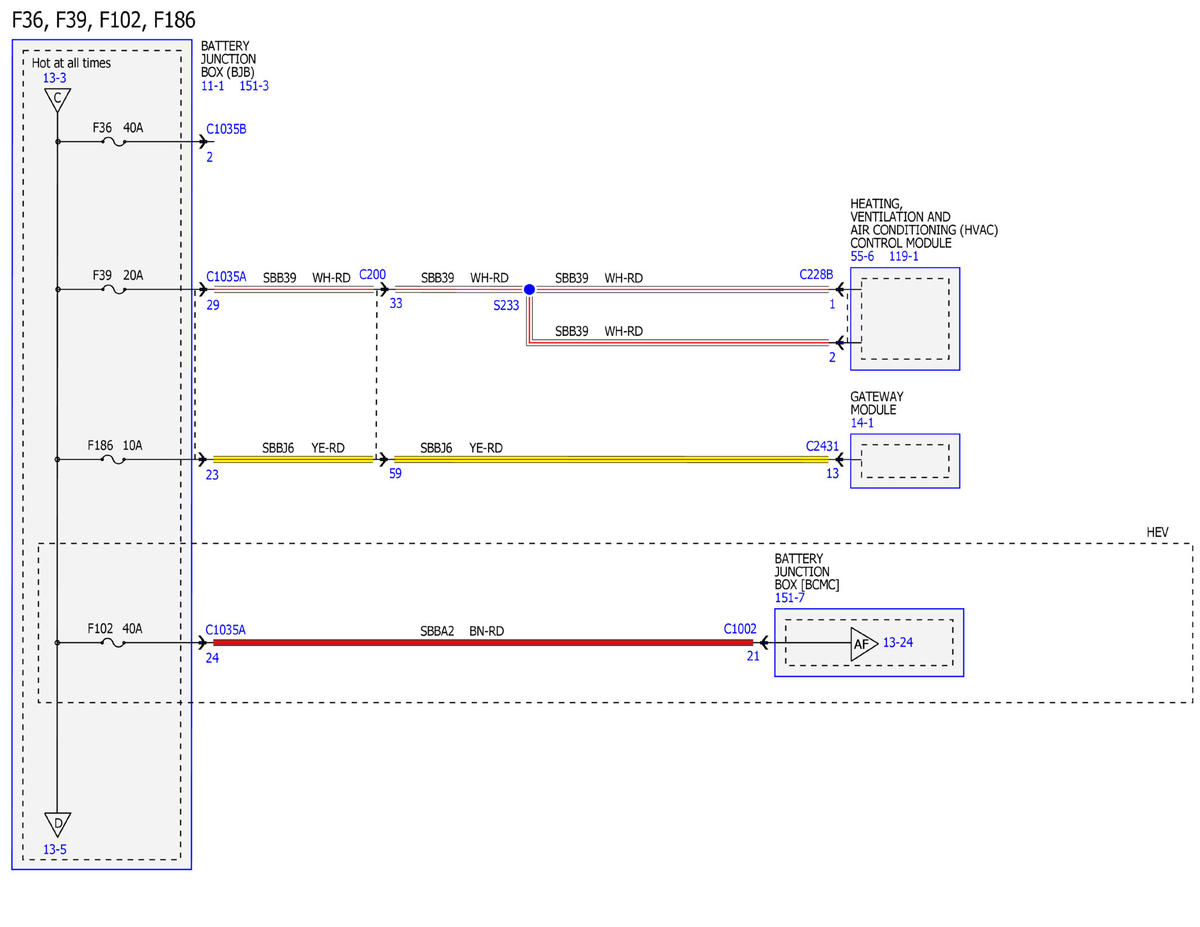

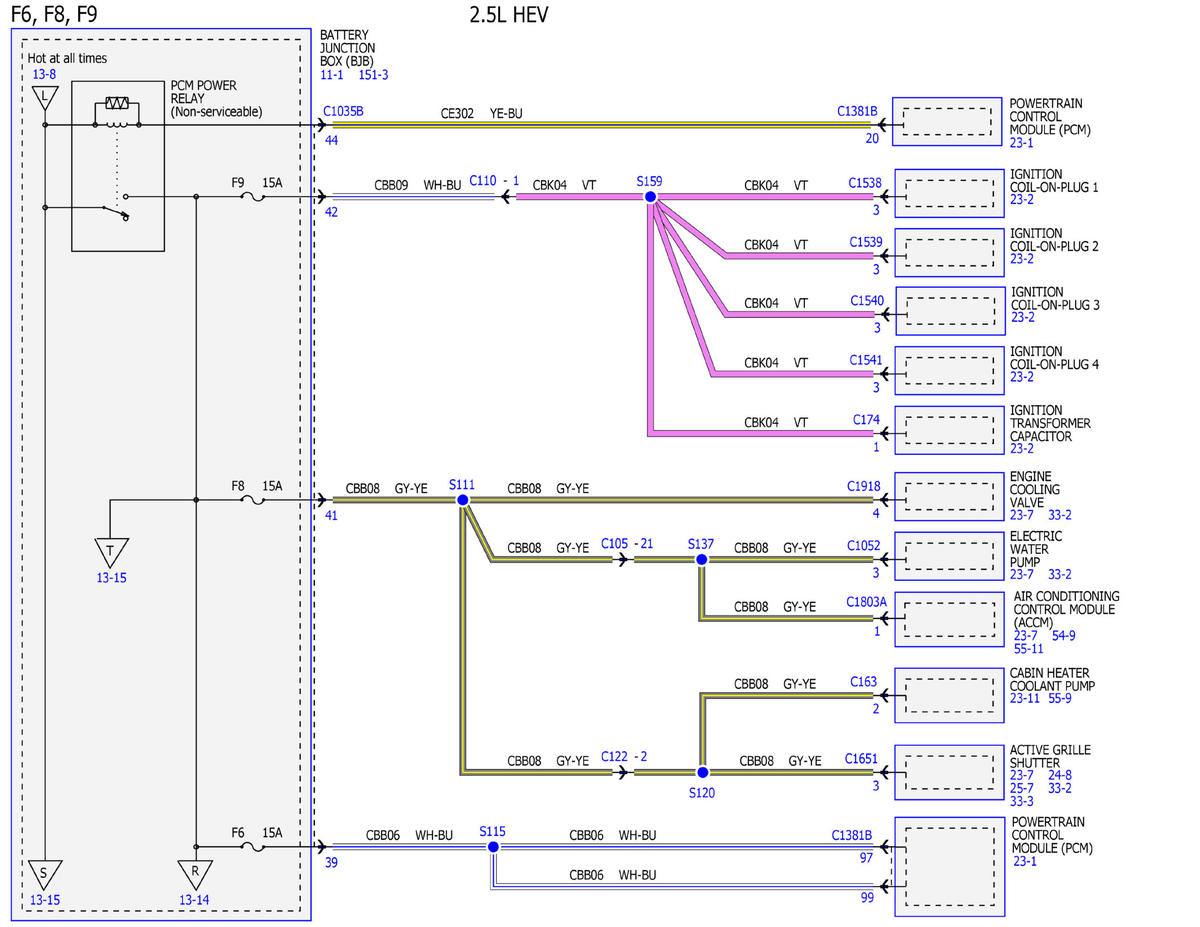

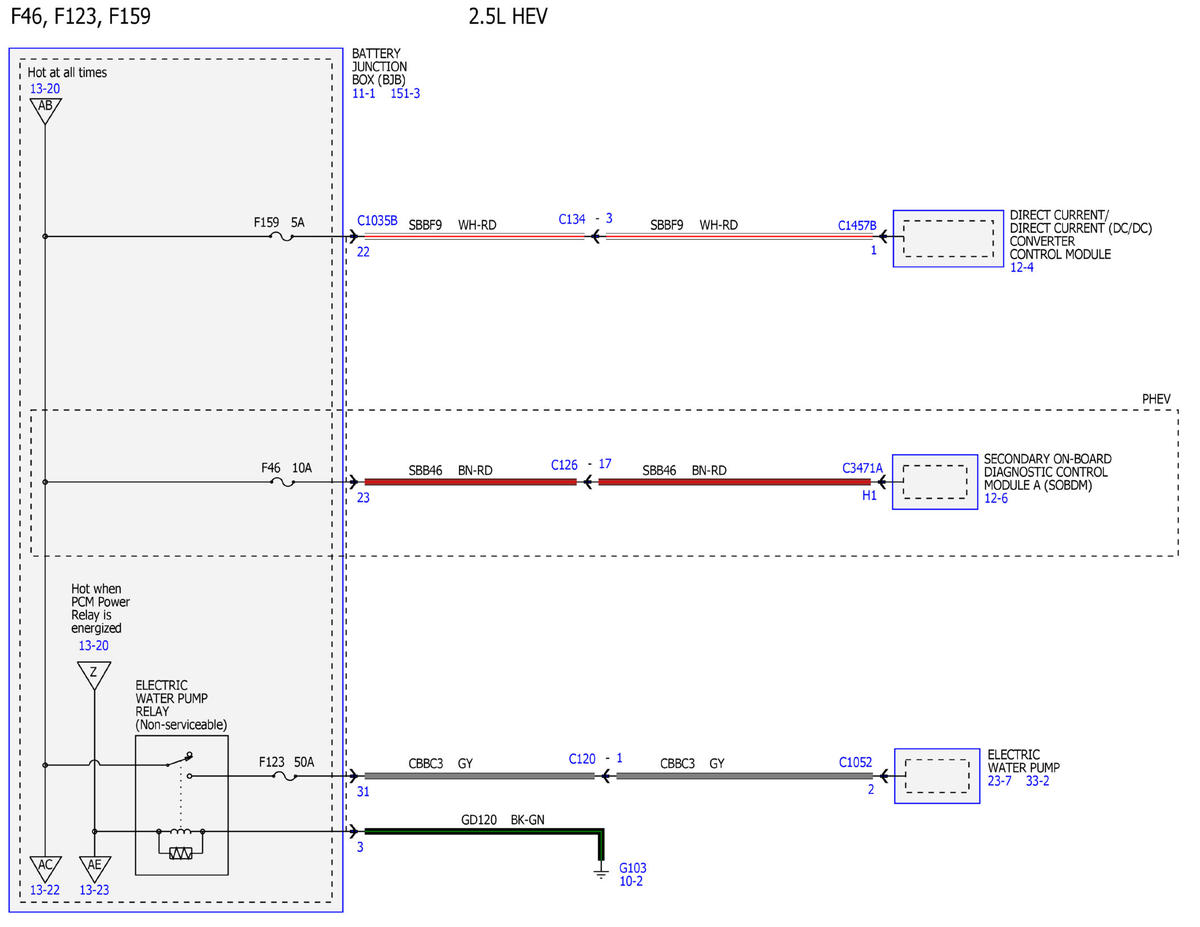

Fig 8: Power Distribution/BCM Wiring Diagram (8 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution/BCM Wiring Diagram (9 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution/BCM Wiring Diagram (10 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution/BCM Wiring Diagram (11 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution/BCM Wiring Diagram (12 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution/BCM Wiring Diagram (13 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution/BCM Wiring Diagram (14 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution/BCM Wiring Diagram (15 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution/BCM Wiring Diagram (16 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution/BCM Wiring Diagram (17 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution/BCM Wiring Diagram (18 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution/BCM Wiring Diagram (19 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution/BCM Wiring Diagram (20 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution/BCM Wiring Diagram (21 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution/BCM Wiring Diagram (22 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution/BCM Wiring Diagram (23 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution/BCM Wiring Diagram (24 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution/BCM Wiring Diagram (25 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution/BCM Wiring Diagram (26 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution/BCM Wiring Diagram (27 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution/BCM Wiring Diagram (28 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution/BCM Wiring Diagram (29 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution/BCM Wiring Diagram (30 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution/BCM Wiring Diagram (31 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution/BCM Wiring Diagram (32 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution/BCM Wiring Diagram (33 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution/BCM Wiring Diagram (34 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution/BCM Wiring Diagram (35 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution/BCM Wiring Diagram (36 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution/BCM Wiring Diagram (37 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution/BCM Wiring Diagram (38 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution/BCM Wiring Diagram (39 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 40: Power Distribution/BCM Wiring Diagram (40 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 41: Power Distribution/BCM Wiring Diagram (41 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 42: Power Distribution/BCM Wiring Diagram (42 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 43: Power Distribution/BCM Wiring Diagram (43 Of 44)
Courtesy of FORD MOTOR COMPANY
Fig 44: Power Distribution/BCM Wiring Diagram (44 Of 44)
Courtesy of FORD MOTOR COMPANY
